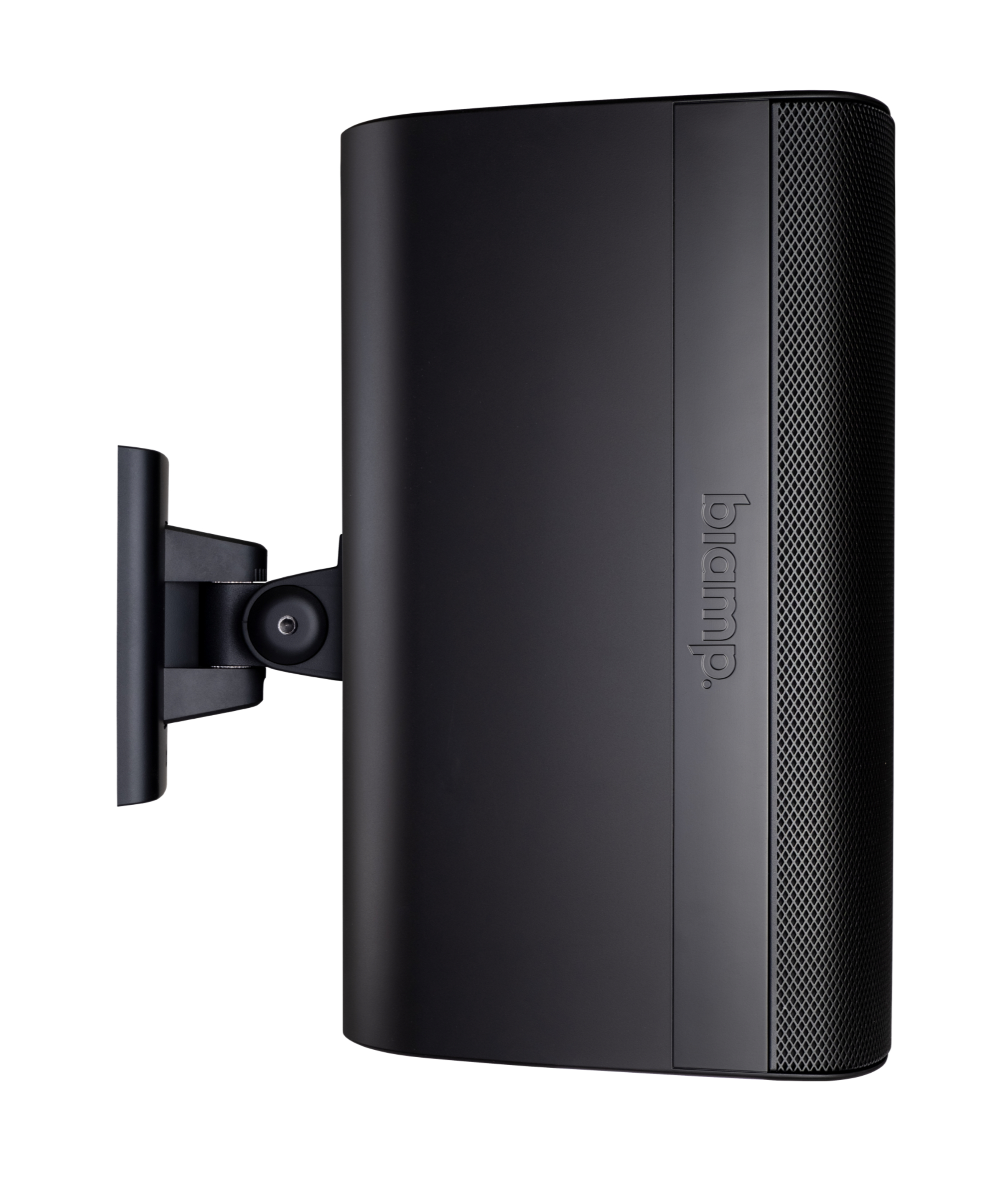

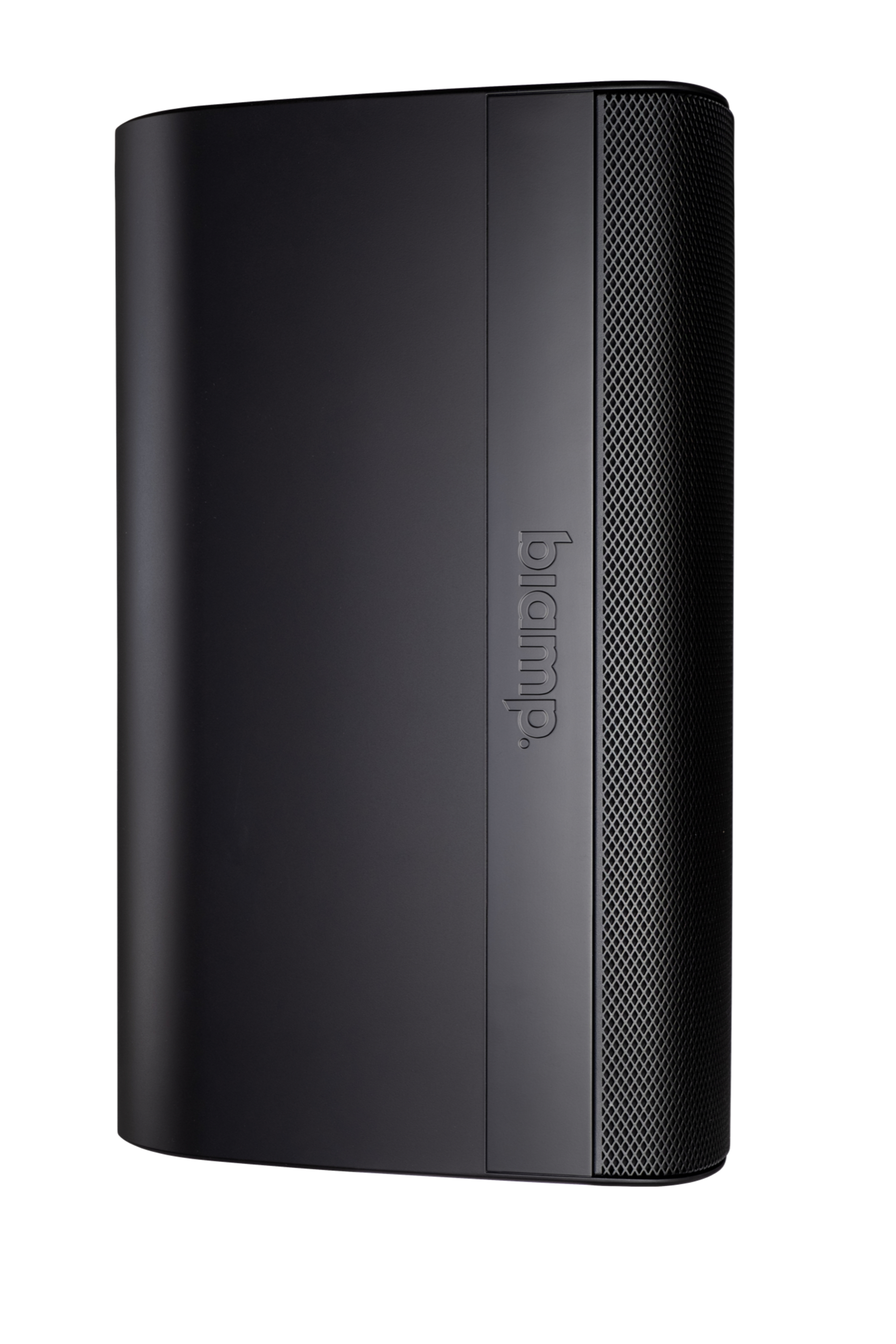

Biamp EX S10 CM
Šifra: 19751
10-inch, 2-way, coaxial, surface mount, indoor/outdoor, black loudspeaker with HF compression driver; 8-ohm or 70V/100V operation; included ClickMount pan-tilt mounting bracket.
Key Features
Certified for use with Zoom software
Exceptional audio clarity with small footprint and attractive styling
Uniform coverage from coaxially mounted HF/LF drivers
6-position switch selects 70 V/100 V taps or low impedance bypass
ETL listed to comply with UL 1480A, CSA 62368-1, CE marked, and RoHS compliant
EN54-24 and ISO 7240-24 certification
| GENERAL | |
| Height | 20.8 inches (529 mm) |
| Width | 12.2 inches (310 mm) |
| Depth | 12.3 inches (312 mm) |
| Weight | 33.43 lbs (15.2 kg) |
| Finish | RAL Color: Black RAL 9017 |
| Material | Grille: Powder-coated perforated Marine Grade aluminum backed with hydrophobic cloth Enclosure: High-impact UL94 5VB rated polycarbonate/ABS blend, painted UV resistant matte finish Bracket: Heavily reinforced glass-filled nylon with UV-resistant painted matte finish cover |
| Mounting | ClickMount pan-tilt bracket or ClickMount U-Bracket |
| Accessories | CMX-LG [-B,-W] - Large ClickMount Pan-tilt Bracket Kit EXUB-S10 [-B,-W] - EX-S10 ClickMount U-Bracket kit |
| Required Accessories | 48 Hz, 18 dB / oct. Butterworth high pass filter; DSP preset |
| Recommended Amplifiers | 300 W - 600 W, 8 Ω (49 V - 69 V) |
| ENVIRONMENTAL | |
| Operating Environment | Indoor/Outdoor |
| POWER | |
| Power | 300W Cont. 1200W Peak |
| LOUDSPEAKER | |
| Loudspeaker Type | 2-way, 10-inch, coaxial, full-range, surface mount loudspeaker |
| Operating Mode | Passive with selectable low-impedance or 70 V/100 V operation |
| Operating Range | 48 Hz - 20 kHz |
| Beamwidth | 100° x 100° |
| Transducers | LF 1 x 10 inches (250 mm) treated paper cone HF 1 x 1.4 inches (35 mm) voice coil compression driver |
| Transformer | 70V: 120W, 60W, 30W, 15W 100V: 120W, 60W, 30W |
| Sensitivity | (1W/1m) 91 dB |
| Dispersion | 100° x 100° |
| Drivers | LF 1 x 10 inches HF 1 x 1.4 inches |
| AUDIO | |
| Impedance | 8Ω |
| Maximum Output | 118 dB 124 dB Peak |
| SPL | Nominal Maximum SPL (Processed) @1m: Continuous: 118 dB Peak: 124 dB Rated Maximum SPL(Processed) @1m: Continuous: 114 dB Peak: 126 dB |
| CERTIFIED SOLUTIONS | |
| Zoom | Zoom Certified |
| COMPLIANCE | |
| Certifications | ETL listed to comply with UL 1480A CSA STD C22.2# 62368-1 EN54-24 ISO 7240-24 IEC 62368-1 |
| Environmental Ratings | IP54 per IEC 60529 IEC 60068-2-5 (Solar Radiation) IEC 60068-2-11 (Salt Mist) IEC 60068-2-42 (SO2) IEC 60068-2-60 (Chlorine) |
