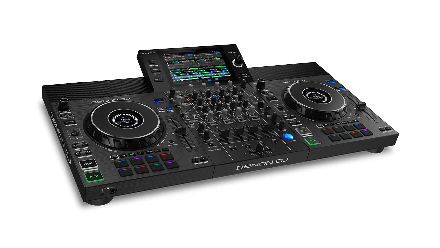

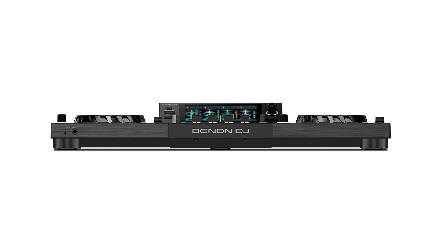

Denon DJ SC LIVE 4
Šifra: 18640
4-Deck Standalone DJ System with WiFi for Amazon Music Streaming
- Audio
- Bit Depth: 24 bit (44.1kHz Sample Rate)
- Frequency Response: 20Hz - 20kHz, +/- 0.5dB
- Dynamic Range: > 110dB, 1kHz @ 0dBFS, A-Weighted
- Signal-to-Noise Ratio: > 92 dB Max Out – Dynamic Range
- Channel Separation: < 107dB, 1kHz @ 0dBFS (Crosstalk from Left to Right/Right to Left is -107dB,1 kHz, unity)
- T.H.D.
- Microphone: < 0.0033%, 1kHz @0dBFS (1 kHz, unity)
- Auxiliary: < 0.0048%, 1kHz @0dBFS (1 kHz, unity)
- Analog Input
- Microphone:
- 110mVrms -60 dBu (minimum)
- Auxiliary:
- +15dBV (maximum)
- Microphone:
- Analog Output
- Master, Balanced:
- +18 dBu (maximum)
- Master, Unbalanced:
- +15 dBu (maximum)
- Booth:
- +18 dBu (maximum)
- Headphone Output:
- < 452mW @32ohms, 25mW @ 590 ohms
- Master, Balanced:
- Speakers
- Frequency Response:
- 20Hz - 20kHz, +/- 1dB
- Frequency Response:
- Network
- Wi-Fi

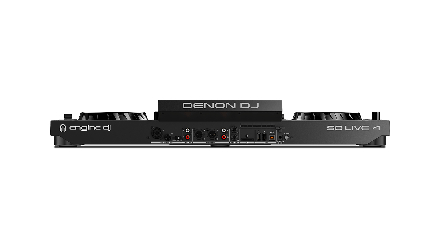

- Connections
- (1) XLR outputs (main left/right, balanced)
- (1) RCA output pair (main left/right, unbalanced)
- (1) 1/4" TRS booth output pair
- (1) 1/4" (6.35mm) stereo output (headphones)
- (1) 1/8" (3.5mm) stereo output (headphones)
- (1) 1/4" (6.35mm) TRS mic input
- (1) XLR & TRS Combo Jack (6.35mm) mic input
- (1) RCA pair Aux input
- (2) USB 2.0 ports (for USB drives, Type A)
- (1) USB port (to computer)
- (1) SD card slot (SD, SDDHC, SDXC)
- Power
- Connection: External power supply, DC, Center Positive, 12.0 V 3.0 A
- Input Voltage: 100–240 VAC, 50/60 Hz
- Dimensions (Width x Depth x Height)
- 28.3” x 15.9” x 3.9”
- Weight
- 12.8 lbs.
