MASCHINE+ offers a classic groove-box workflow with a fast and intuitive interface that is designed to boost your speed and increase your focus. With the ability to act as a sequencer, sampler, instrument/synthesizer host, and multi-effects unit, MASCHINE+ allows you to get creating straightaway, from first ideas to finished tracks. Dial in effects to tweak your sounds, or sample audio and make it your own with an intuitive interface design to keep the creative juices flowing. Should you want to bring your ideas into a DAW, simply copy them over, and boot up the MASCHINE software on your computer to pick up where you left off. The MASCHINE+ hardware even acts as a controller for the software.

MASCHINE+ is powered by a quad-core processor with 4GB of DDR3L RAM and an internal 32GB eMMC flash storage (for OS and factory content). A built-in SD card reader supports cards up to 1TB. A 64GB card is included with additional content to get you started. Speaking of content, MASCHINE+ is loaded with 24GB of content. In standalone mode, MASCHINE+ sports 9 instruments and effects from the MASCHINE+ Select library as well as the MASCHINE Factory library, which includes drum synthesizers and tons of performance effects.

The hardware interface features a professional-quality, 24-bit / 44.1 kHz audio interface (96 kHz / 24-bit in USB computer mode) with stereo line inputs and outputs, as well as a microphone input and separate headphone output. The controller also features 16 extra-large multicolor illuminated pads with velocity and aftertouch, 2 high-resolution full color displays, 8 touch-sensitive endless rotary potentiometers, 50 backlit buttons, a four-directional push encoder, a dual-touch Smart Strip, and 8 multicolor group buttons. There are MIDI input and output ports (5-pin DIN) for connecting outboard drum machines and synthesizers. Additionally, there are two USB Type-A ports for connecting additional controllers.

The MASCHINE+ provides the flexibility of hardware-based music production with straightforward, two-handed control for composing, performing, browsing, sampling, slicing, sound-shaping, and tweaking effects. You can easily load your samples, effects, and control them with the pads and knobs. And, you can always expand your sound with optional MASCHINE Expansions. The Native Instruments MASCHINE+ ships with an SD Card, USB cable, and a power adapter.

At a Glance
Immersive standalone workflow for creating beats and melodies, sampling, arranging music, and performing on stage or in the studio
Includes MASCHINE+ Selection with industry-leading instruments, sounds, and effects, plus renowned MASCHINE drum and bass synth plugins and effects
Quad-core CPU and 4 GB RAM for fast, seamless creation when it counts
Pro-grade, 44.1 kHz / 24-bit audio interface* with 2 x ¼” TRS line outputs, 2 x ¼” TRS line inputs, ¼” dynamic mic input, stereo headphone output, 1 x MIDI In, 1 x MIDI out; 1 x Footswitch, and 2 x USB ports for MIDI controllers / external HDDs
Robust anodized aluminum design for years on the road and in the studio
Iconic MASCHINE features and workflow including 16 velocity-sensitive pads, MASCHINE effects and plugins, swing, pad link, note repeat, step sequencer, and vintage sampler emulation
Use standalone or with a computer – integrate with your studio workflow, and unplug for DAW-less setups or live performances
WiFi and Ableton Link enabled for wirelessly installing and updating products, collaborating with others, and syncing with other gear

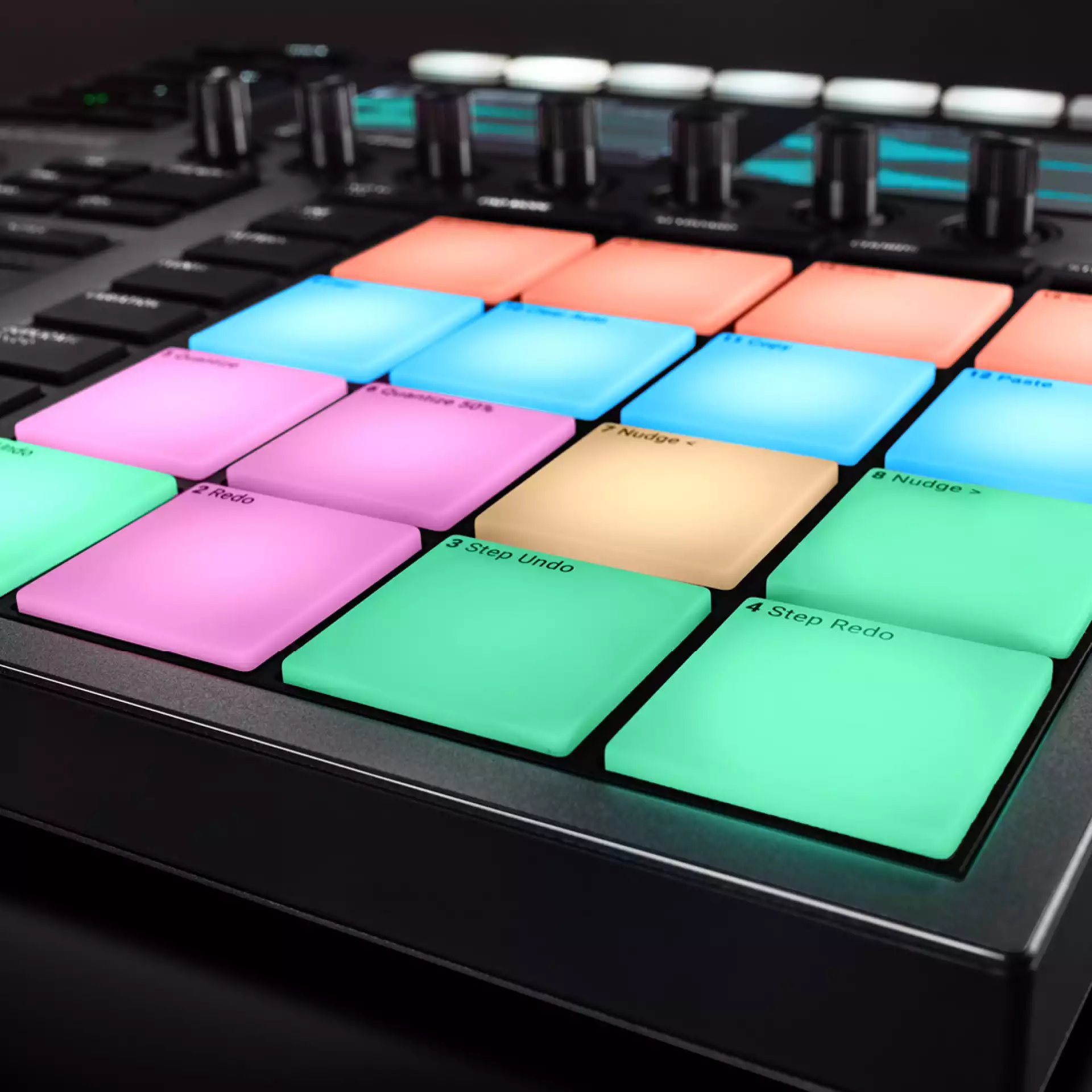

The Pads
Ultrasensitive and fun to play, this is where the magic happens. For finger drumming that sounds like a real kit, nuanced keys, or strummed sounds, they're capable of all kinds of articulation
High Resolution Displays
Find sounds, slice samples, chain up effects, edit notes, and arrange tracks. The MASCHINE+ displays pick up where muscle memory drops off, for deeper tweaks and changes to your project
Eight Touch-Sensitive Knobs
Go beyond tweaking with eight touch-sensitive knobs. Touch once to activate special contextual menus such as tag clouds, sound settings, and FX parameters. You can also map your most frequently used FX, instruments, or plug-in parameters to macros with the touch of a button
Metal Build
Playing MASCHINE+ feels as good as it sounds with anodized aluminum top and bottom plates. The touch-sensitive display knobs and 4D encoder get the same treatment

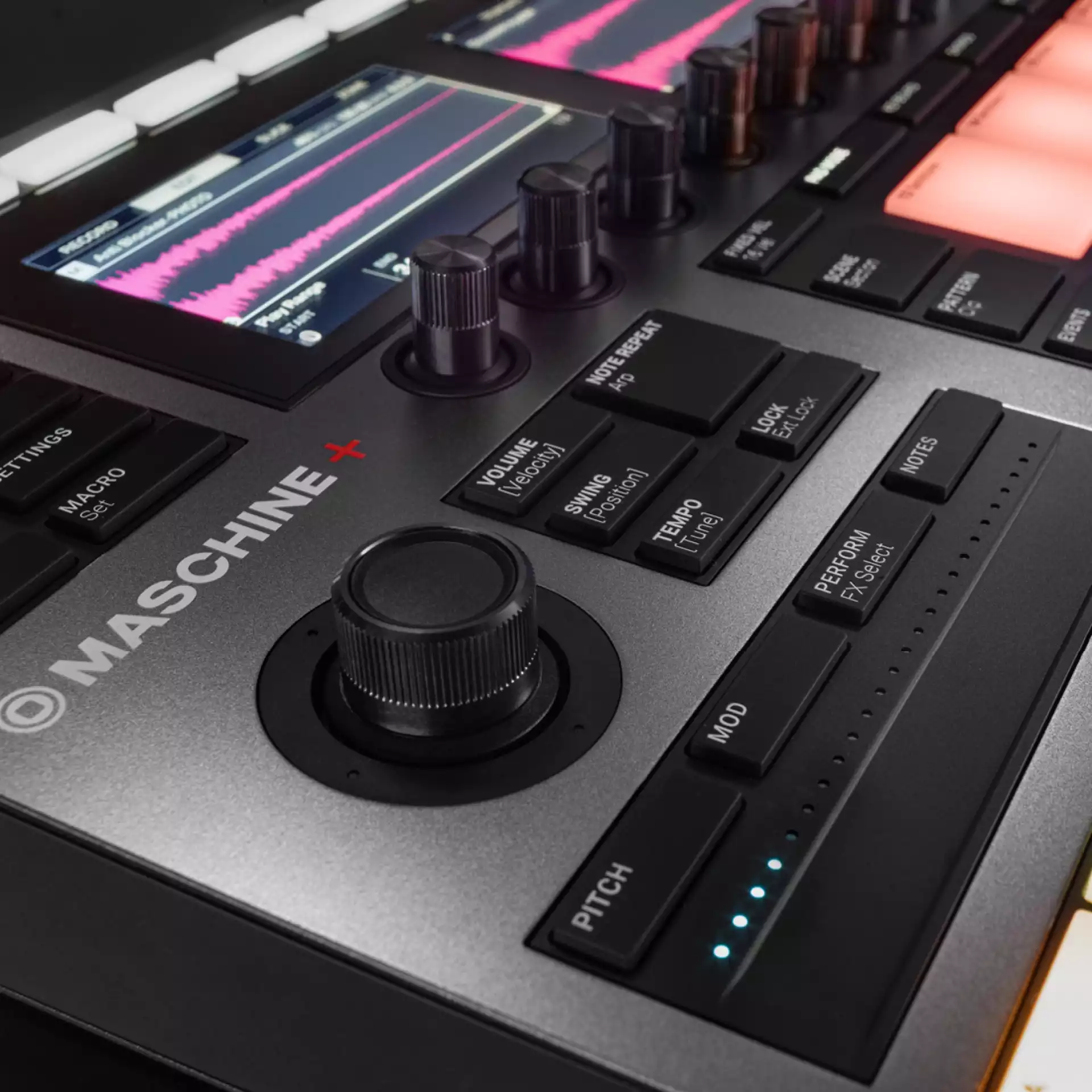

Smart Strip
Strum notes, crank up Perform FX, pitchbend, and modulate sounds for intuitive expression. The Smart Strip also shows you the relative position in a clip when laying down a new pattern
Expandable Memory
MASCHINE+ ships with a 64GB SD card for storing your own content. For the sampling aficionados with larger libraries, it's possible to expand this up to 1TB or even more with a hard drive via USB
Fast Workflow
One-Touch Workflow: Menu-diving is never fun. MASCHINE+ keeps essential control at your fingertips. Once you’ve found the sounds you need, the rest is about creating quickly
Pad Input Modes: Go from drumming patterns to playing melodies, sequencing synths, and one-touch chords in a snap
Lock Button: Hit the lock button, go wild with effects, tweaks, and more, before hitting it again to reset your tweaks for dynamic transitions

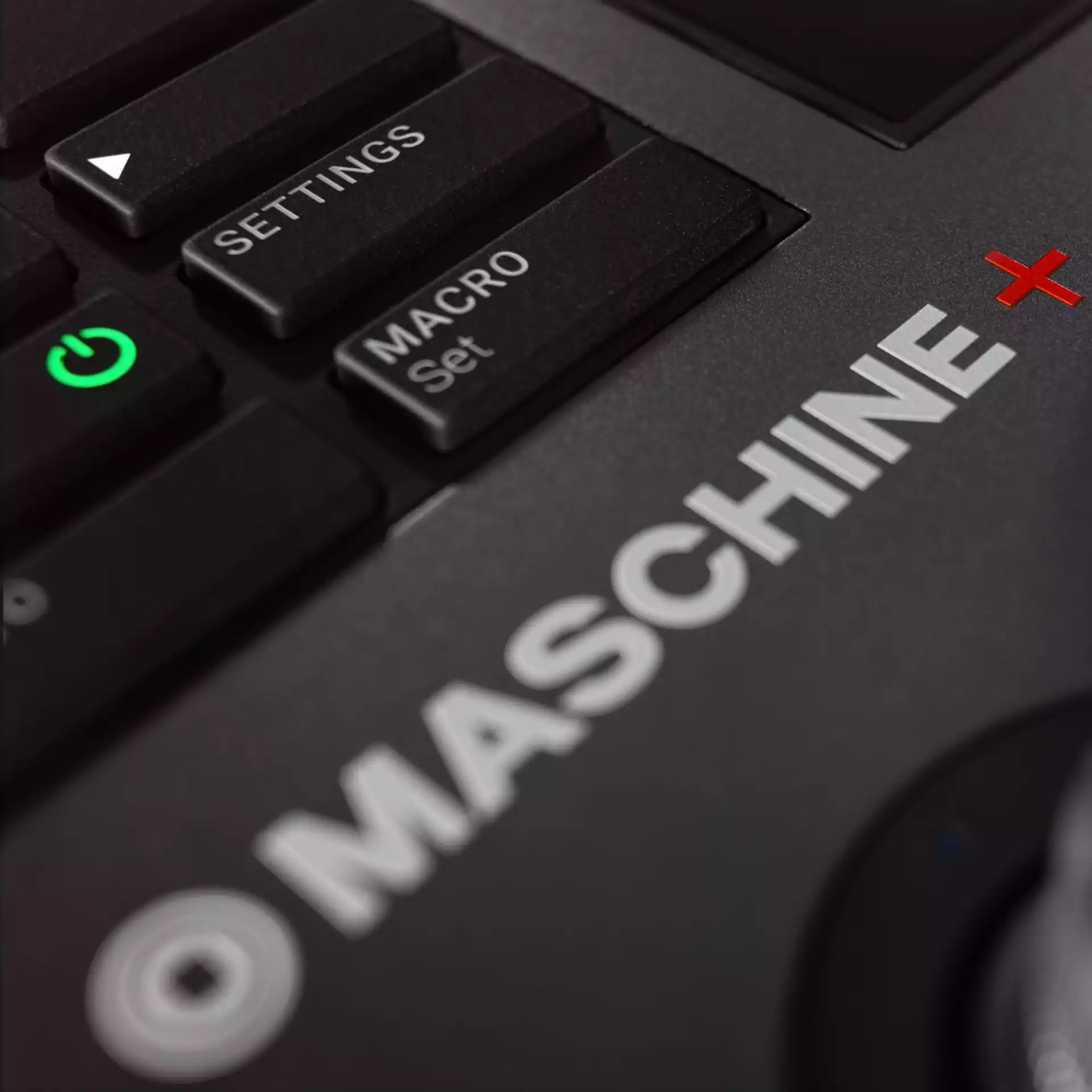

Macro Button: Touch a knob, assign your favorite parameter, and get tweaking
Note Repeat: Big, easy to find, and great for fills or arpeggios when sketching ideas or performing live
Fixed Velocity: Program accents and ghost notes quickly with 16 fixed velocity levels or get a smooth, constant volume when triggering samples
Transport Control: Essential transport functions, as well as mute control are a click away
Touch Encoders: Dial in effects and modulation, touch to browse tags when searching for the right sound, or get hands-on with macro controls when performing. Context-sensitive touch encoders keep tweaking quick, and sound sculpting hands-on
Smart Strip: Small but mighty, the Smart Strip can be used for the classic pitch modulation you’d find on a keyboard, as well as modulating other controls, an expressive way to use Perform FX, and to strum chords and samples like a guitar for both effective realism and left-field creations
Sampling: From crate-digging treasures to vocals and field recordings, sampling is ingrained in MASCHINE’s DNA. Hook up your sound source, enter the sampling mode, and stretch, chop, or loop audio in a matter of seconds
Song Mode: Take ideas, mix them up, swap them about, and structure your tracks straight from MASCHINE+. Song Mode is great for building the final structure for a track or for working out ways to progress a live set
Advanced Features
Ideas View: Added to make sketching and arranging tracks more intuitive. Record alternate musical phrases or play different beats nonstop. Then mix and match until you find a groove you like
Parameter Snapshot Morphing: Lock lets you freeze your current settings, tweak a sound, change an envelope, and return to your initial settings at the press of a button. Combine it with the new Morph function to discover new transitions or add improvisation during a performance
Variation Engine: Great for adding texture to a track or sparking new ideas. Use Randomize to create new patterns and melodies on the fly. Or, add a little swing to your drums with Humanize
Clips: Arrange your ideas with even more freedom. Create transitions across scenes, add unique variation to patterns, record MIDI directly into the full arrangement, and freely add audio wherever you need it
Connect and Control: Play and sequence outboard gear and capture the results, or manipulate external audio in real time with effects. MASCHINE+ can control, mix, and manipulate the rest of your setup with MIDI, line, and mic inputs to bring everything together instantly. And if you want to work with a computer, it doubles up as a classic MASCHINE controller too
Sync and Add Sounds Wirelessly: MASCHINE+ is Wi-Fi enabled, which means you can install new sounds, instruments, and effects at the touch of a button, without a computer in sight. When it comes to jamming with others or playing out live, keep in sync with other music apps, DAWs, and compatible gear with Ableton Link
MASCHINE+ Selection: Standalone Library
A curated selection of legendary synths, sampled instruments, studio effects, and Expansions that bring the noise to MASCHINE+
Synths and Instruments: MASCHINE+ includes synths and instruments that cover everything you’d ever need
MASSIVE: Genre-defining wavetable synth that’s great for bass, lead, and pad duties – from creamy analog sounds to unashamedly digital edge
FM8: The brilliant, intricate sound of FM synthesis in an easy-to-use instrument with innovative advanced features when it’s time to dive deeper
PRISM: Unique modal synth and FX module capable of percussive keys, bells and plucks, as well as hard basses, piercing leads, and organic atmospherics.
MONARK: The kind of analog monosynths with a streamlined interface and infinite sweet spot. Perfect for rich, organic basses and full leads
REAKTOR AND KONTAKT FACTORY SELECTION: Two collections full to the brim with innovative, cutting-edge sound that work seamlessly in standalone mode
REAKTOR Factory Selection packs innovative synths born in our DSP lab, including SPACE DRONE, NEWSCOOL, and LAZERBASS
KONTAKT Factory Selection includes a huge variety of sampled instruments that span a wide range of genres, styles and sounds
RETRO MACHINES: 16 definitive analog synths and keyboards, covering the classic, the idiosyncratic, and the exotic. Lovingly sampled, easy to play, and with advanced custom control
Effects: In addition to the MASCHINE Factory Library effects, MASCHINE+ packs two high-fidelity ways to sculpt, transform, and finish your sounds
RAUM: Do-it-all, high-fidelity reverb capable of everything from subtle space to complex, transformative sound design
PHASIS: Add movement, character, and creative magic to input signals for both classic phasing sounds and previously-unheard effects
MASCHINE Factory Library
Drum Synth Plug-Ins
Create your own tuned electronic and acoustic drum sounds in truly professional quality. Six monophonic drum plug-ins built exclusively for MASCHINE give you any percussive sound you need. All fully tweakable, automatable from the hardware, and built with NI’s DSP expertise
Kick: Nine engines deliver powerful low end. Four are based on classic analog machines—fat, punchy, deep, dusty, and everything in between. The other five deliver some of the most realistic acoustic-sounding kicks you’ve ever heard. And a broad sweet spot means you get pro sound no matter what you dial in
Snare: Thick, harsh, bold, deep, filtered—create any electronic snare imaginable. Or create realistic acoustic snare sounds and tweak with the total control that a real snare can’t give you. Nine engines to choose from, plus a dedicated clap engine for both electronic and acoustic claps
Hi-Hats: No samples here. Three different engines produce the full range of hi-hat sounds, from classic analog hi-hats, digital, robotic sounds, or thick, crunchy sounds from a new, grain-based oscillator. And a few quick tweaks take you beyond simple hi-hat sounds, deep into creative territory
Toms: Three engines let you craft a full set of toms fast. Digital sounds from percussive to bell-like to completely alien, and acoustic sounds so warm and fat you won’t believe they’re not samples. Added control over pitch bend and advanced parameters give you total flexibility. All on the hardware, and super intuitive
Percussion: Three engines, no limits. The fractal engine delivers electronic percussion, from bell-like and metallic to sub-heavy and twisted. The shaker engine gives you acoustic shakers and maracas, and the kettle engine offers rich, resonant timpani. All sounds are mapped across the keyboard for pitched percussion and melodic accents
Cymbal: The Crash engine delivers everything from a 909-like crash to more acoustic-sounding cymbals. The Ride engine can be adjusted to sound as if the cymbal is being struck on its edge or bell
Bass Synth Plug-In
Create rich bass tones with this monophonic bass synth, exclusive to MASCHINE. Design and shape with intuitive, fun, and fully automatable controls, including filter, mod envelope, decay, drive, and glide time, directly from the hardware. Morph seamlessly between waveforms—from sine to saw to square—to create your own unique sounds, with no synth programming knowledge required. Or, load any of the pro-designed presets to get studio-ready bass for any genre, from booming subs to dripping acid
Perform FX
Enliven your sounds with MASCHINE 2.5 software’s advanced Perform FX. Designed for spontaneous, tactile control in recording or live performance, these eight complex multi-effects alter motion, space, dynamics, and more for added expression
Filter: An analog-modeled high-, low-, and band-pass filter capable of yielding raw, natural-sounding results using saturation and resonance. Roll off the highs for a thick, murky veil, or use the resonance to create sounds that float into self-oscillation infinity
Flanger: A comb-filter effect with more than a few tricks up its sleeve. Get performance-ready flanger or phaser effects, or expose its wild side—setting higher decay and frequency values unleashes flutter effects similar to ping-pong delay
Burst Echo: A warm, versatile echo with plenty of character, designed for spontaneous splashes of echo. Strong, responsive attacks that taper off into hazy trails are well suited for dub and can also be tweaked for more extreme sound design
Reso Echo: A complex resonant echo with advanced feedback and saturation that verge on psychedelic tendencies. Echoes range from a tight, punchy resonant hum to ambiguous howling sounds from another dimension
Ring: Built on a carefully selected bank of ring modulators, Ring adds a bell-like quality to melodic sound sources. Using the additional plate reverb, tweak a knob or Smart Strip to hand-pick individual notes and keep them ringing into the stratosphere
Stutter: Turn the intensity up, and down again, with Stutter. This beat-mangling effect adds creative dynamics like glitches, fills, and expressive pitch-bending crescendos to drum patterns and more
Tremolo: A no-frills tremolo and vibrato effect that’s perfect for creating motion and wobble on the fly. Instantly add expression with multiple modes, rate, and depth ranges, and use the Stereo knob to create auto-pan motion effects
Scratcher: Scratcher warps your sounds with turntable motion effects that can get otherworldly. Apply a brake to a sound, then scratch with it—just like on vinyl. Or use the pitch-shifting delay to thicken the sound and create alien-sounding sweeps
Native Instruments MASCHINE PLUS Specs
Number of Pads 16 x Velocity-Sensitive, Backlit Pad with Aftertouch (Multi-Color/RGB)
Expression Controls 1 x Ribbon Controller
Display Color LCD
Internal CPU Quad-Core
Standalone Operation Yes
Sounds
Internal Memory RAM: 4 GB
Factory Content: 32 GB
Included SD Card: 64 GB
Sampling Formats AIFF, WAV - 44.1 kHz / 24-Bit (Standalone)
AIFF, WAV - 96 kHz / 24-Bit (Controller Mode)
Built-In Effects Yes

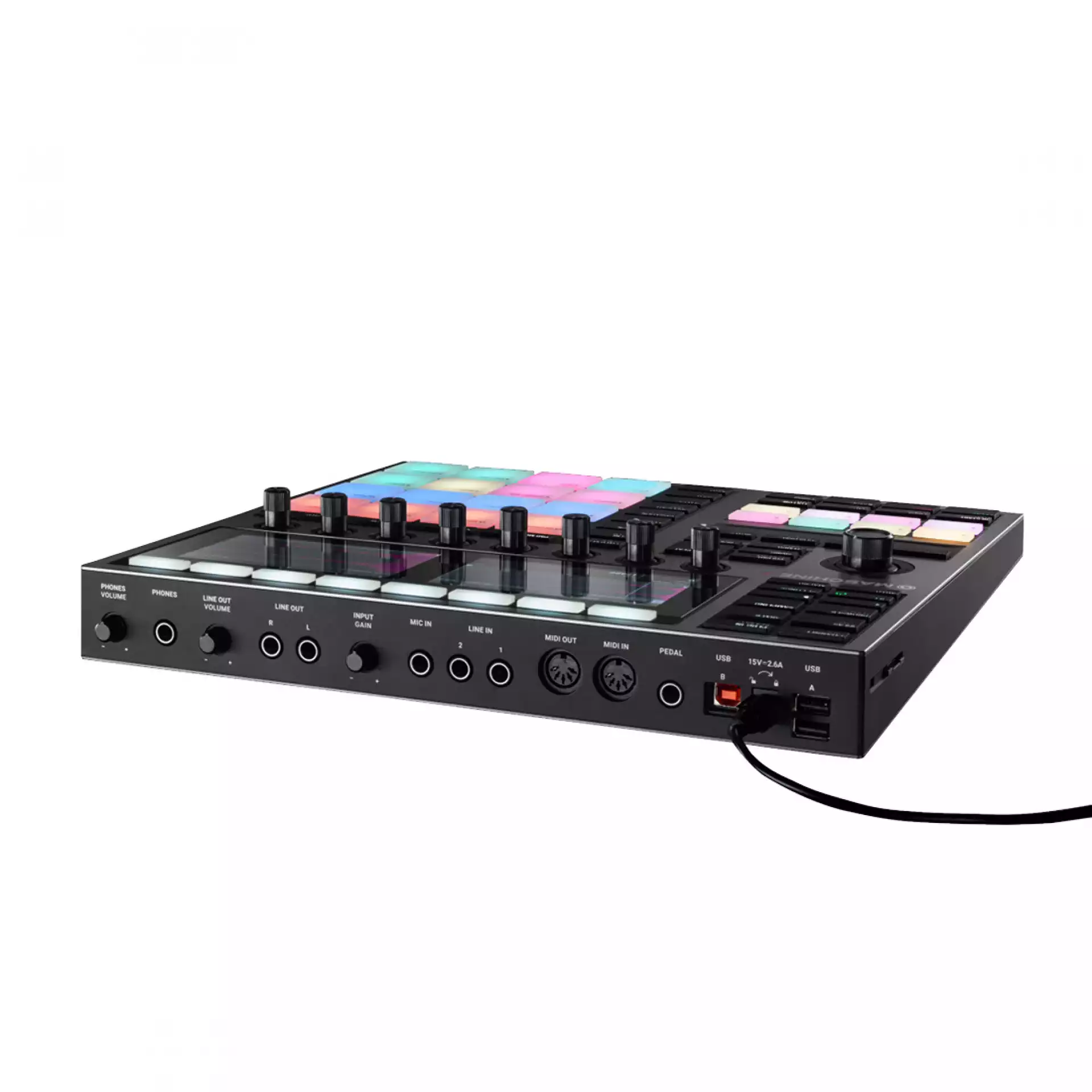

Connectivity
Audio I/O 1 x 1/4" TS Mic Input
2 x 1/4" TRS Line Input
2 x 1/4" TRS Line Output
1 x 1/4" TRS Headphone Output
Headphone Output Power 29.4 mW into 33 Ohms
Trigger Device & Pedal Inputs 1 x 1/4" Footswitch Input
MIDI I/O 1 x DIN 5-Pin Input
1 x DIN 5-Pin Output
USB 2 x USB Type-A (Device/Controller Connection, External Memory)
1 x USB Type-B (USB 2.0, Host Connection)
Media/Memory Card Slot Single Slot: SD/SDHC/SDXC [1 TB Maximum]
Audio Performance
Frequency Response Line Inputs:
20 Hz to 20 kHz ±0.1 dB
Line Outputs:
20 Hz to 20 kHz ±0.5 dB
Headphone Outputs:
20 Hz to 20 kHz ±0.35 dB
Mic Inputs:
20 Hz to 20 kHz ±0.4 dB (Max Gain)
20 Hz to 20 kHz ±0.15 dB (Max Gain)
Maximum Input Level Line Inputs:
+18.6 dBu
Mic Inputs:
-32 dBu (Max Gain)
-3.4 dBu (Min Gain)
Maximum Output Level Line Outputs:
+18 dB
Dynamic Range Line Inputs:
100 dB
Line Outputs:
102 dB
Headphone Outputs:
102 dB
Mic Inputs:
90 dB (Max Gain)
102 dB (Min Gain)
THD Line Inputs:
0.003%
Line Outputs:
0.003%
Headphone Outputs:
0.007%
Mic Inputs:
0.01% (Max Gain)
0.004% (Min Gain)
Crosstalk Line Inputs:
-96 dB
Line Outputs:
-100 dB
Headphone Outputs:
-60 dB
Compatibility
OS Compatibility macOS 10.14 or Later
Windows 10 (64-Bit Only)
*As of March, 2022: Check with manufacturer for the most up-to-date compatibility
Supported Drivers/API & Plug-Ins VST 2 (64-Bit)
Audio Units (AU) (64-Bit)
AAX (64-Bit)
ASIO
Core Audio (Mac)
WASAPI
RAM Requirements 4 GB
Processor Requirement Intel Core i5 or Equivalent
Storage Requirements MASCHINE Software / MASCHINE ESSENTIALS Library: 9 GB
MASCHINE+ Selection: 24 GB
Required Hardware Available USB 2.0 Port
Internet Connection Required for Registration, Software/Driver Download
Power
AC/DC Power Adapter 15 VDC at 2.6 A (Included)
Physical
Anti-Theft Features Kensington Security Slot
Dimensions 12.7 x 11.9 x 2" / 32.2 x 30.1 x 5.1 cm
Weight 5.5 lb / 2.5 kg
Packaging Info
Package Weight 7.475 lb
Box Dimensions (LxWxH) 15.1 x 14.7 x 4.9"
