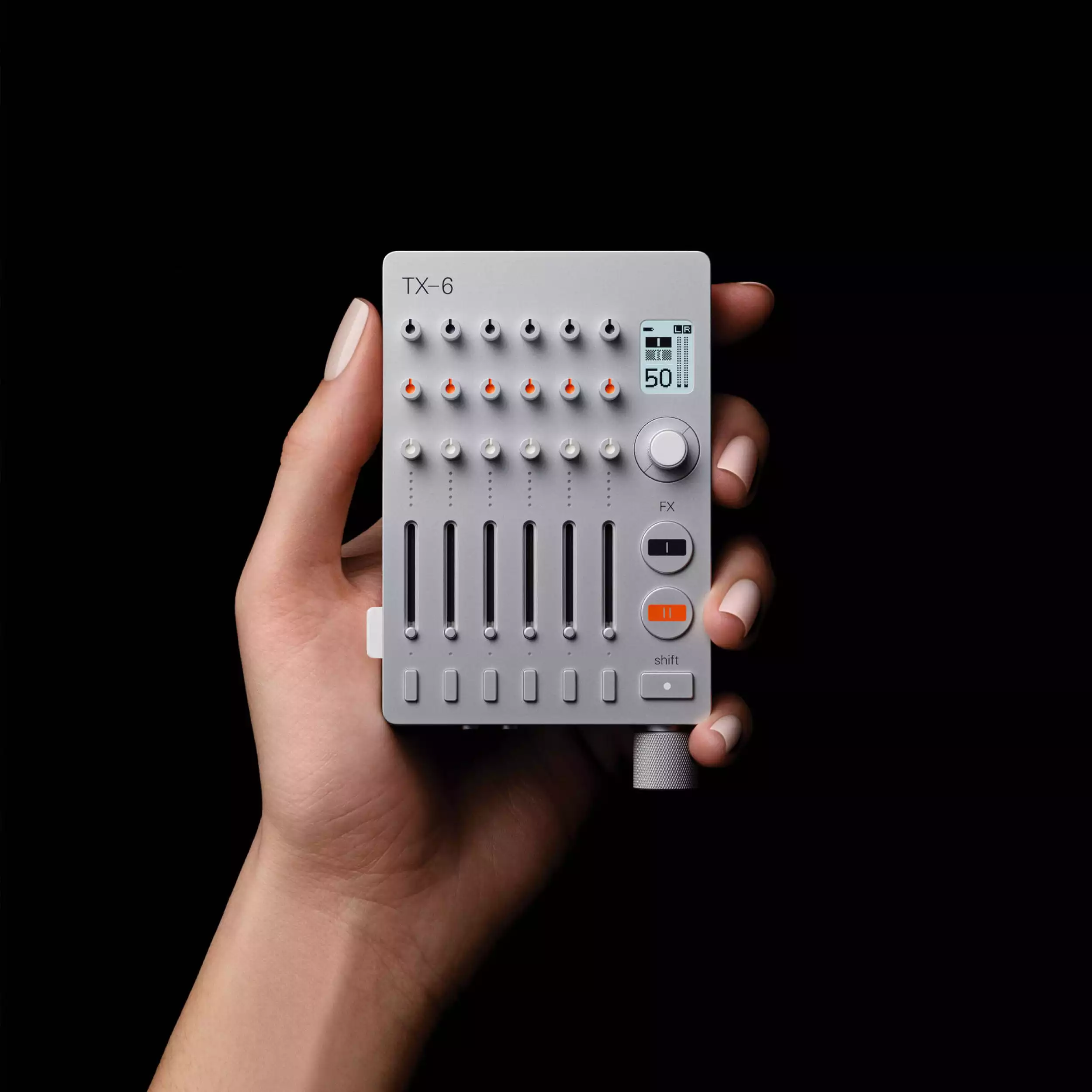

The TX-6 features six 3.5mm TRS inputs, a 3.5mm aux output, a 3.5mm cue (headphone) output, and a 1/4" main output with an included 3.5mm adapter. Each channel sports three encoders that are completely customizable. Use them as a 3-band EQ or assign each knob to control whichever settings you prefer. The TX-6 is highly versatile and includes tempo sync, an onboard synthesizer, drum machine, and sequencer. There's an onboard tuner, plus you can connect to both a computer or to your iOS device (MFi compatible). A USB-C cable is included.

TX-6 Firmware Update 1.1.4
USB mass storage disk record/playback for 24-bit 48 kHz stereo WAV files, including armed recording with automatic start on audio detect.
PO-sync output on aux and cue, with selectable 8th note for PO-sync and 16th note for modular systems.
External MIDI control of all TX–6 parameters, for complete remote control over MIDI.
Extended MIDI support for synth mode to play the synth chromatically using MIDI notes from an external keyboard.
Added Scenes to save and load all settings.
USB audio multiple sample rate support: 48 kHz and additionally 44.1 kHz, for compatibility with MPC live etc.
BLE MIDI clock in/out support with clock routing settings.
BLE host mode to connect peripherals like BLE MIDI keyboards.
Switchable aux and cue outputs, to be able to utilize the higher output level of the aux jack if needed for high impedance headphones.
Added balanced mono input mode in addition to the stereo / mono / split modes.
Parameters keep their values until a knob is moved, making it easier to switch knob config without undesired behavior.
No snap back of the freeze FX parameter. Click to reset instead.
Smoother change of FX I send.
Stability bug fix for USB MIDI host mode.
USB audio mode set on menu exit, instead of directly.
Battery Powered
The rechargeable battery holds for about 8 hours. For energy efficiency, the display automatically goes to sleep when not in use, and LED strength is completely adjustable.
Synthesizer and Sequencer
TX-6 also functions as a portable synthesizer and sequencer with 4 oscillator waveforms and 4 synthesized drum sounds. Use tempo sync to stay on the beat.
Built-In Effects
Explore send effects like reverb, chorus, and delay, and creative effects freeze, tape, filter, and distortion. Each channel has a 3-band EQ and adjustable compressor.
Quality Engineering
TX-6 is a sturdy little machine. encased in CNC aluminum with 2k molding, custom-made encoders and faders, and custom PCB—engineered for portability.
Wireless Connectivity
With BLE, you can use TX-6 as a wireless controller for other BLE MIDI devices or trigger and sync the internal synth and sequencer from other sources.
Super Slimline Cables
High-quality slimline cables custom-made for TX-6 (available separately). The narrow profile allows you to use all 6 channels at once and makes for an easy pack down.
Customizable Interface

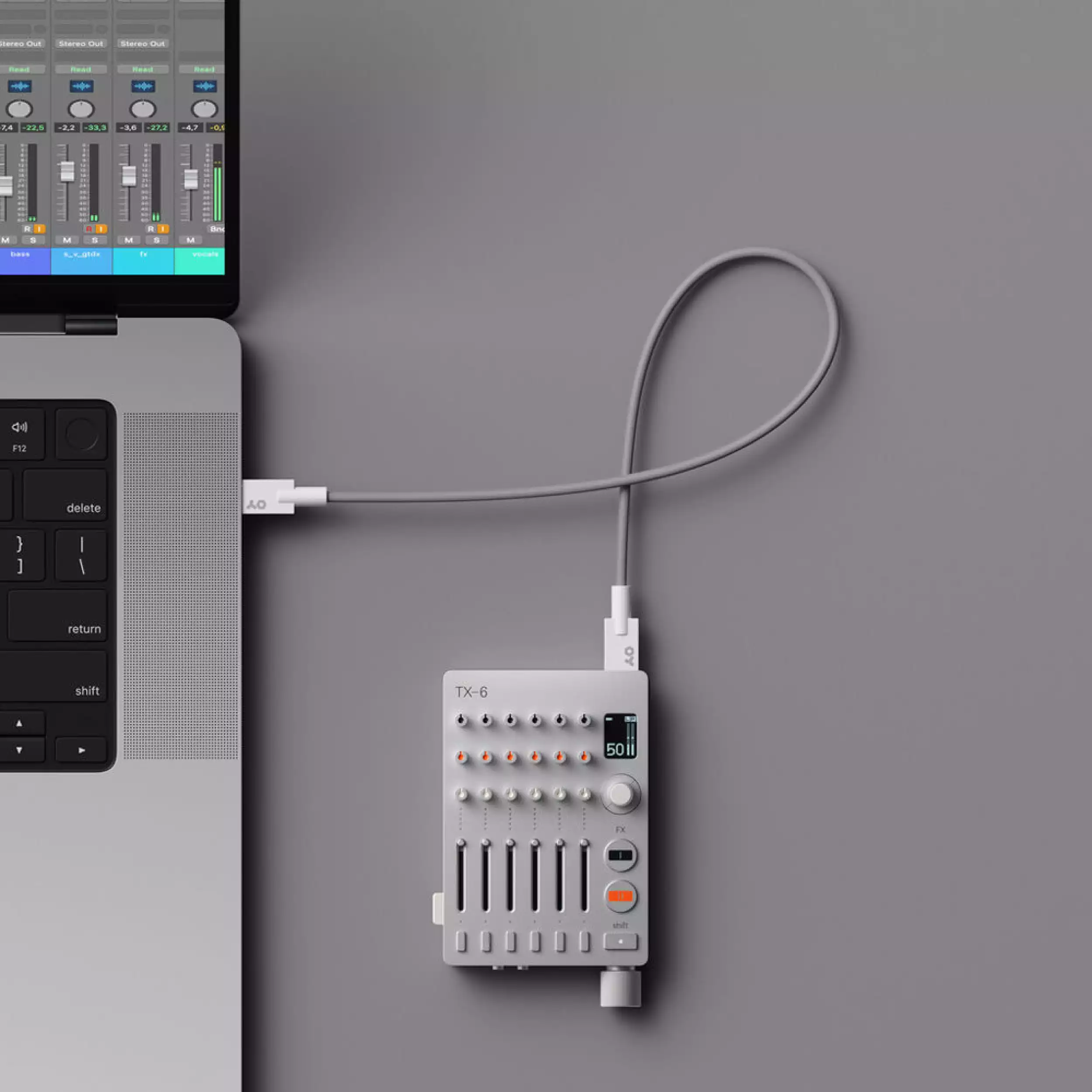

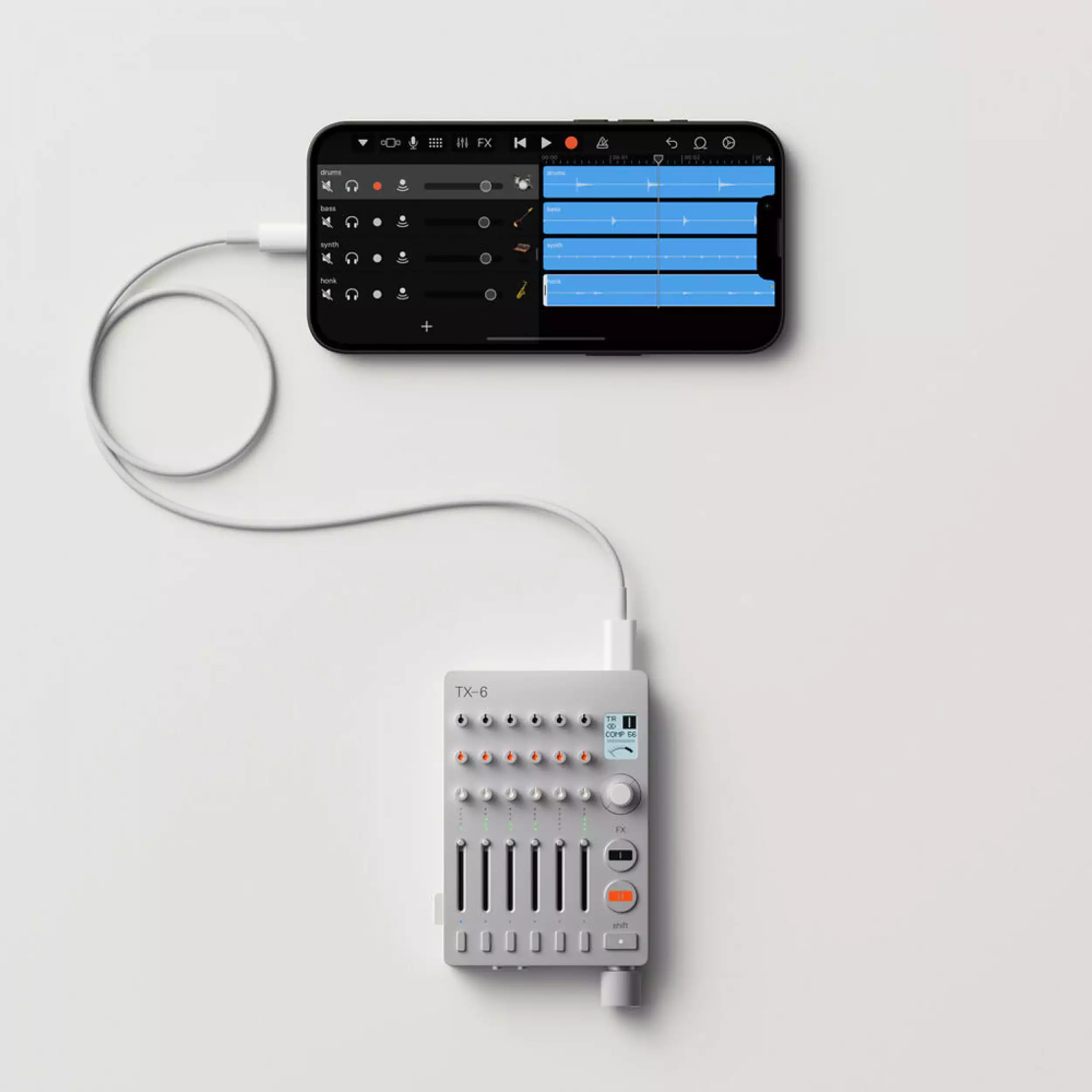

When you're ready for the studio, use TX-6 as a 12-channel audio interface and connect to any DAW over USB-C. MFi also allows you to connect to iOS devices.
DJ Mode
Turn TX-6 on its side and use it as a DJ mixer. Turn channel 1 into a fader to crossfade between channels 5 and 6, so you can fade or cut between the two.

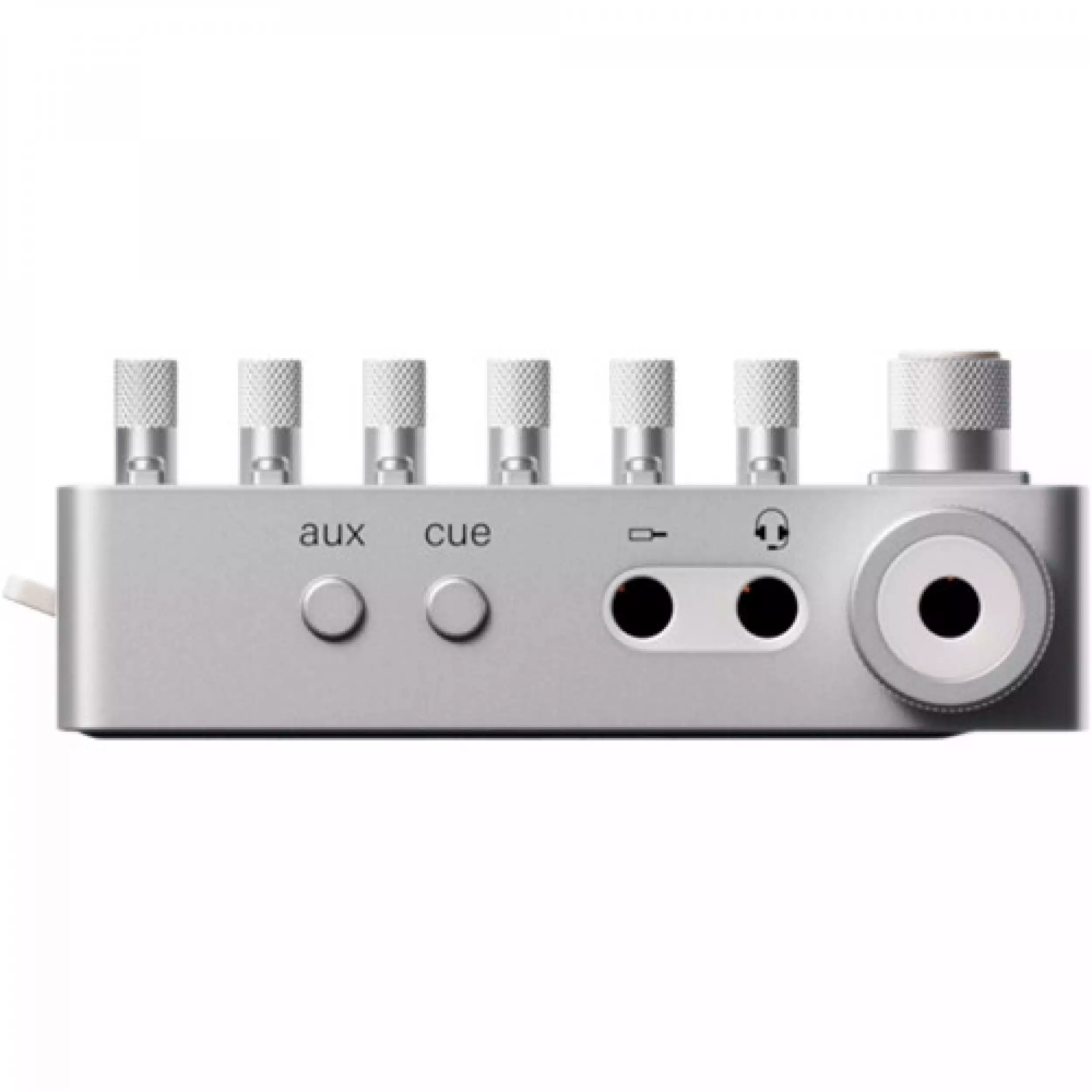

1/4" and 3.5mm Outputs
Connect your audio output through 3.5mm mini jack or use the included and removable 1/4" jack to 3.5 mm mini jack adapter.
Field Bags
Designed to fit TX-6 field mixer and constructed in heavy-duty fabric and hardware, the separately sold field bags are designed for durability, ready to be used out in the field.
Teenage Engineering TX-6 Specs

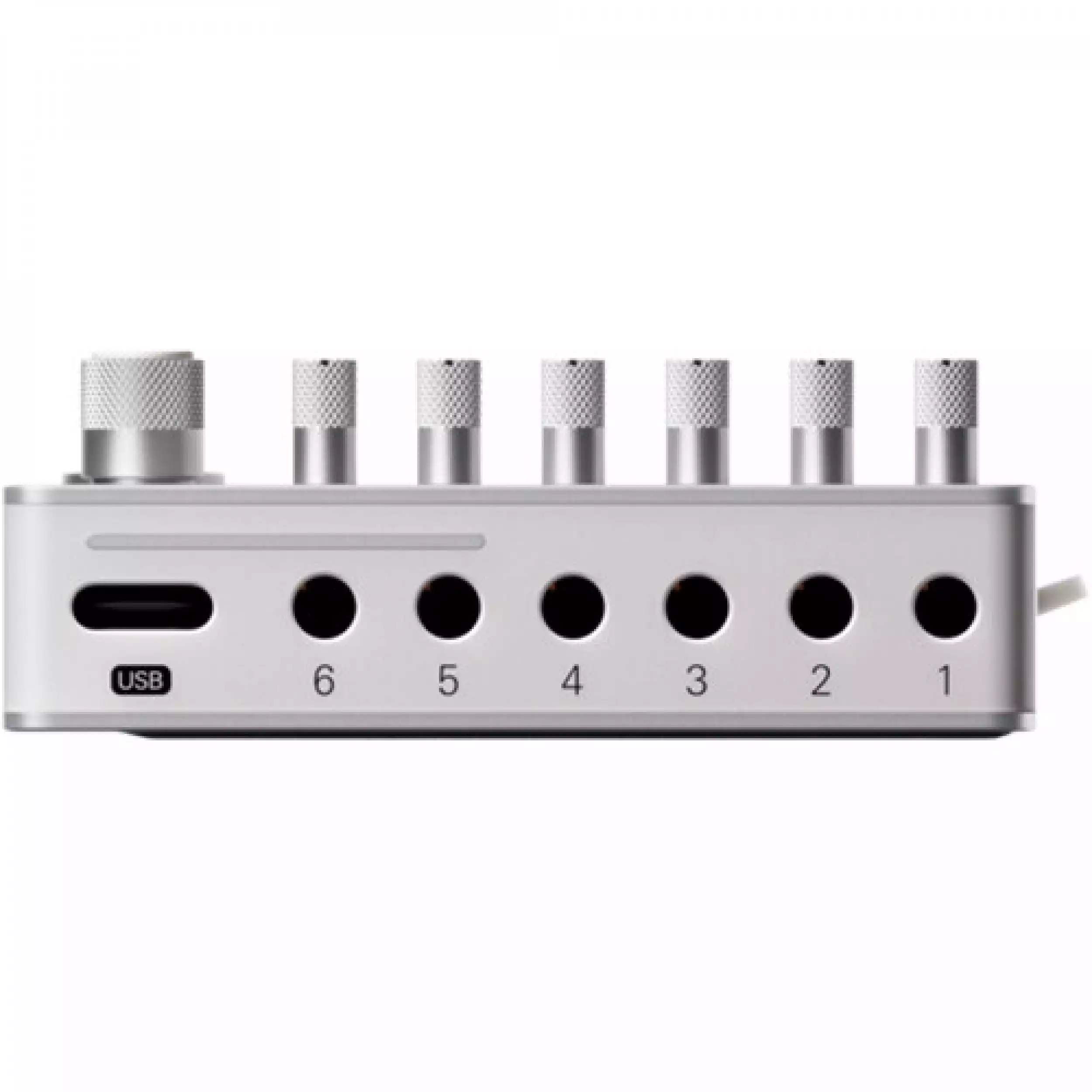

Inputs and Outputs 6 x 1/8" / 3.5 mm Inputs (Stereo or Mono for Each Input)
1/8" / 3.5 mm Mini Jack to 1/4" / 6.35 mm Jack Adapter
1/8" / 3.5 mm Cue / Headset Mic Input
1/8" / 3.5 mm Aux Output
Audio Interface 32-Bit/48 kHz USB Interface
Audio Inputs Impedance: 10 kilohms
Analog Gain: 0 to 42 dB
Max Level: 8 dBu, 2 Vrms
SNR: 102 dB
TLV320ADC3140 Burr-Brown
Audio Outputs Audio Output (Main and Aux)
Max Level: 8 dBu, 2 Vrms
SNR: >120 dBA
Cirrus Logic Masterhifi CS43131

Audio Output (Cue)
Max Level: 2 dBu, 1 Vrms
SNR: >110 dBA
Cirrus Logic CS47L35
USB USB Type-C
Compatibility Compatible with Windows, macOS, Linux, iOS, and Android Operating Systems
MFi Compatible, Connect to iPhone (Lightning Cable)
Dimensions 3.5 x 2.4 x 0.9" / 9.0 x 6.2 x 2.3 cm
Weight 0.6 lb / 0.3 kg
Packaging Info
Package Weight 0.68 lb
Box Dimensions (LxWxH) 7.6 x 7.1 x 1.2"
