ORTOFON DJ S REPLACEMENT STYLUS
*Cena sa popustom može da se ostvari ukoliko se plaća gotovinski, virmanom (preko računa) ili odmah debitnom i kreditnom karticom.
Garantujemo najnižu cenu!
- Cara Dušana 85, Niš
- Svetogorska 9, Beograd

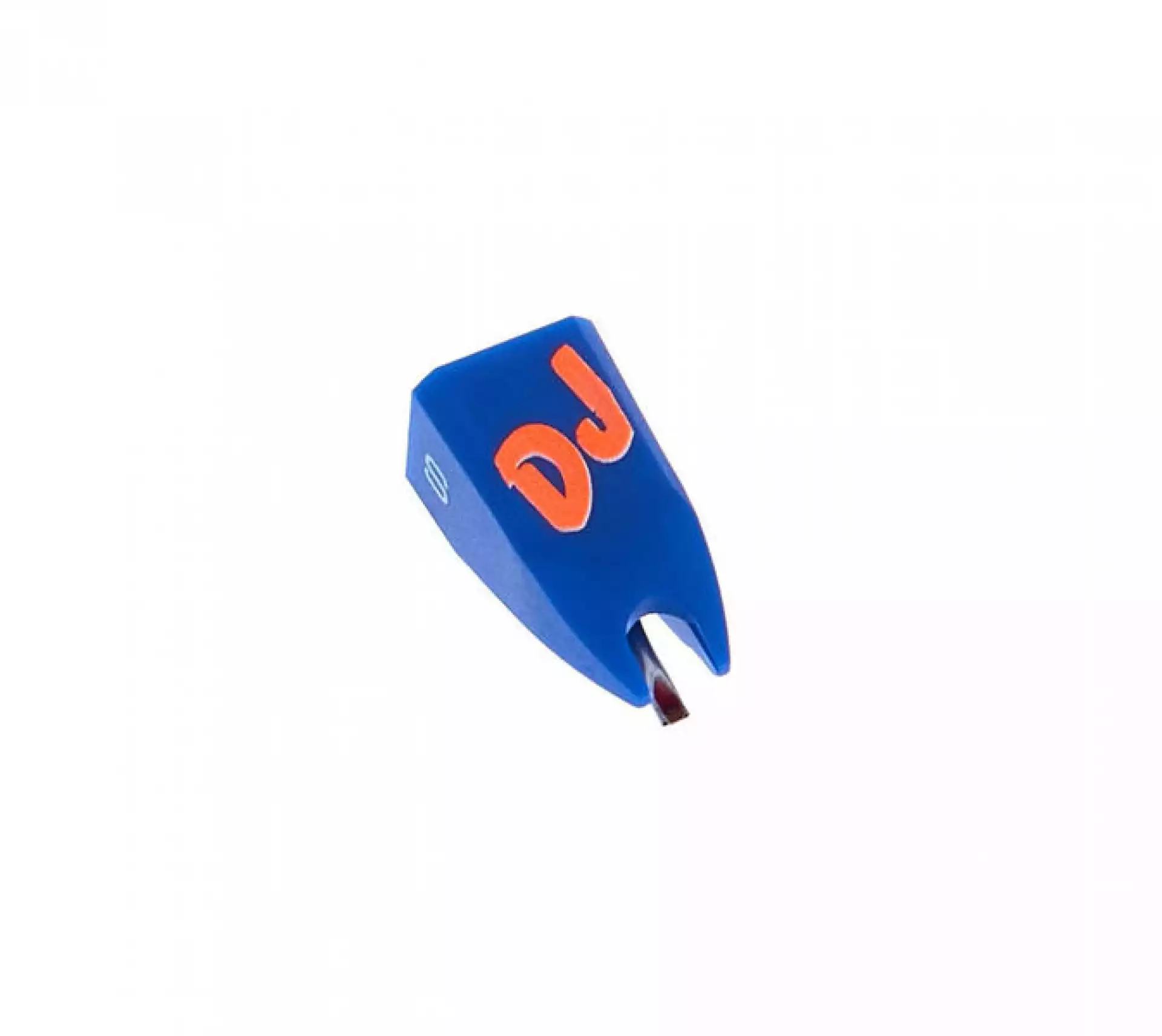

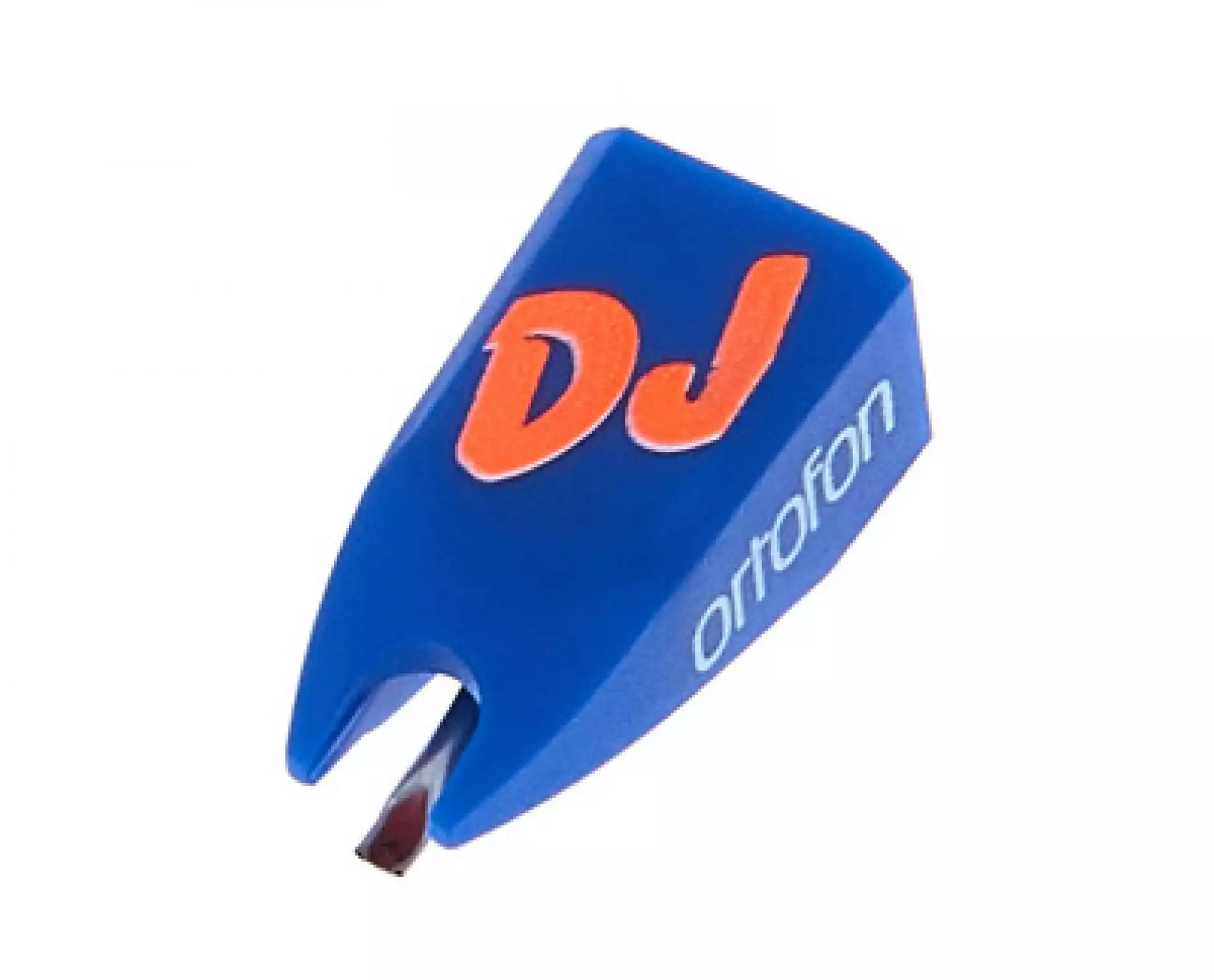

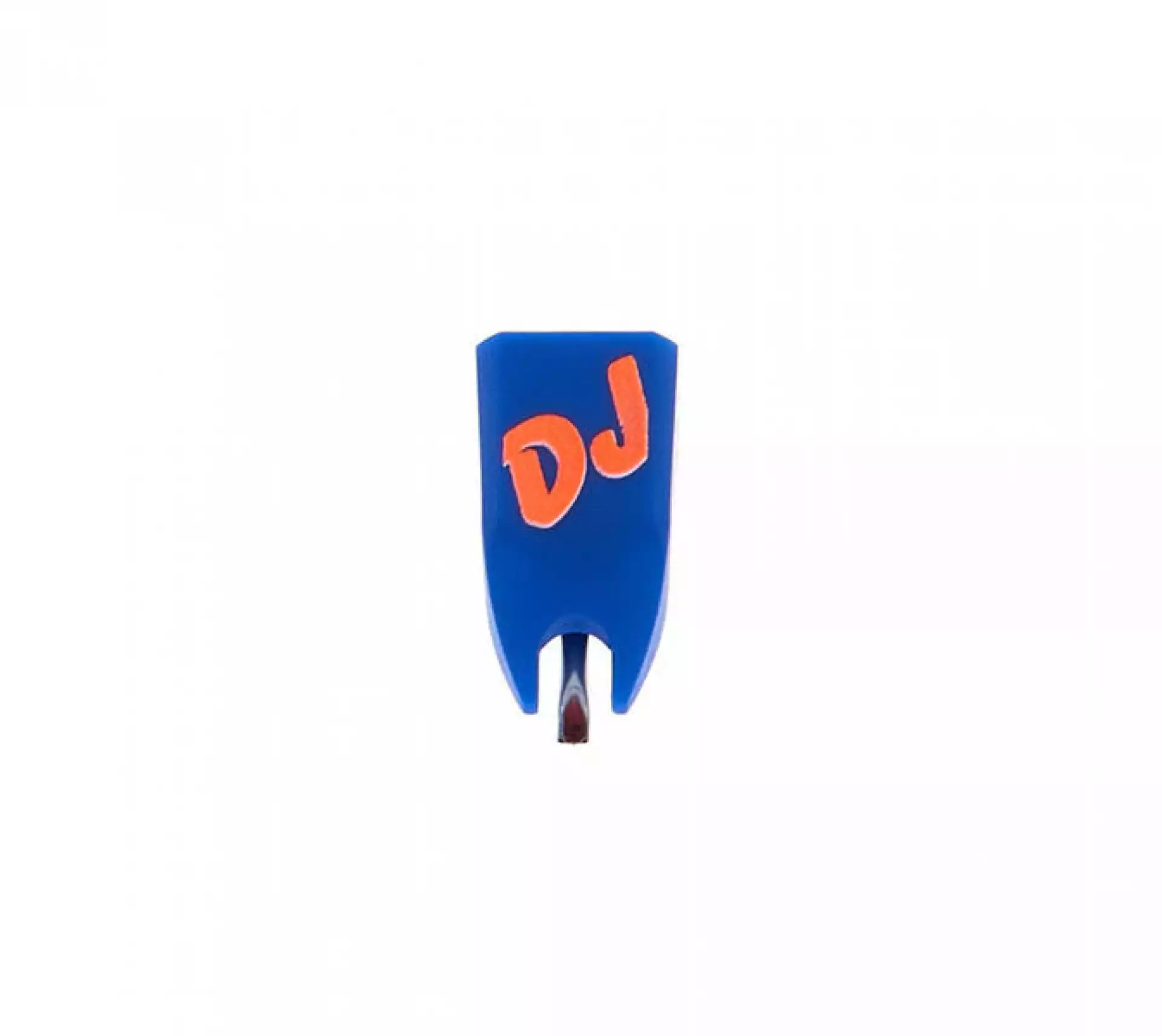

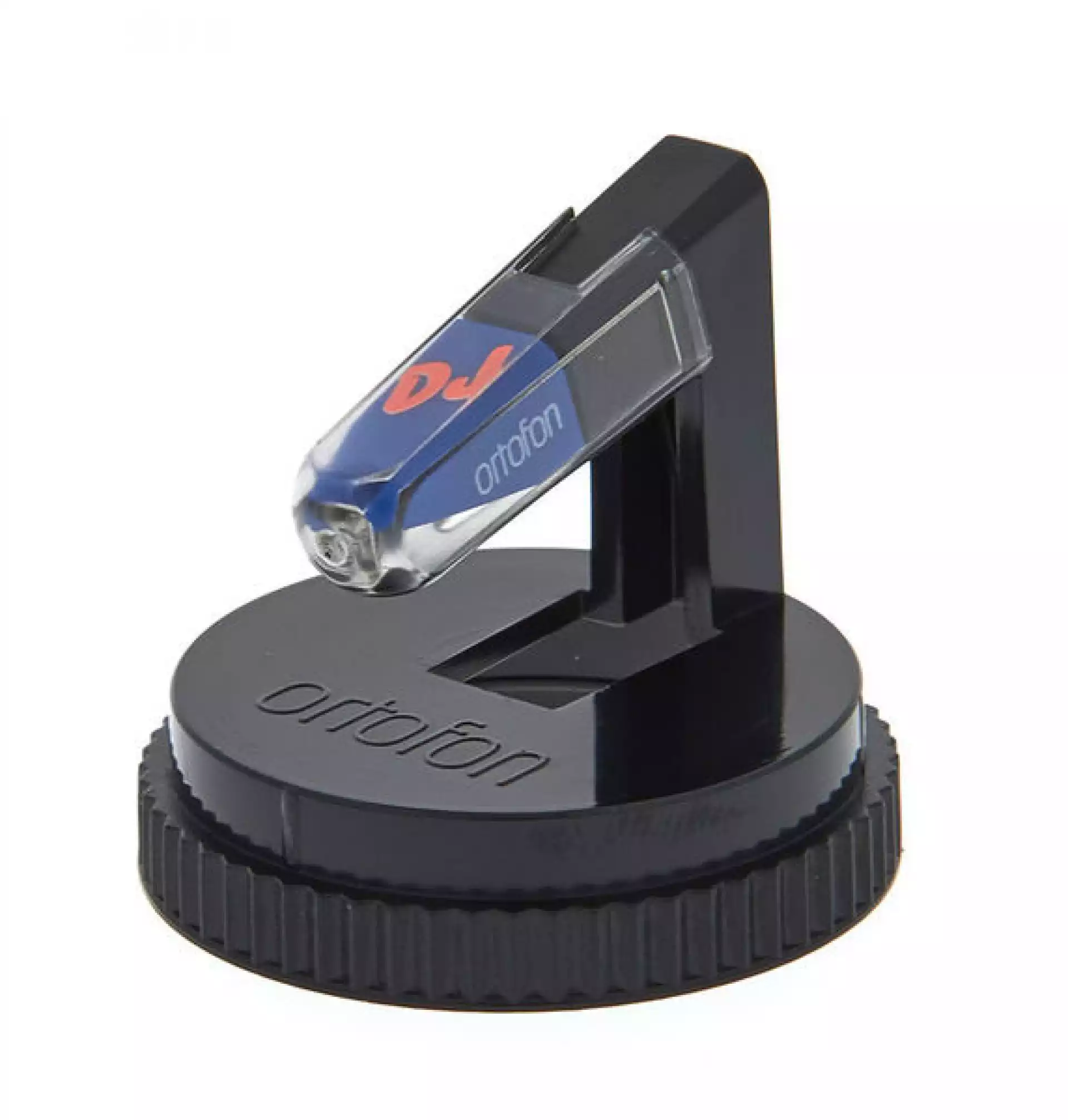

Ortofon DJ S Stylus
The \\\"jack of all trades\\\", with improved tracking, alongside accurate sound reproduction. The Ortofon DJ S styli provides excellent groove handling, even with less weight applied.
Replacement stylus to be used in Ortofon DJ S OM and Concorde cartridges. Ortofon DJ series has been known to many as the \\\"jack of all trades\\\", with improved tracking, alongside of accurate sound reproduction. Featuring a low wear stylus design, the Ortofon DJ S cartridge provides excellent groove handling, even with less weight applied. By gathering information and feedback from DJs all over the world, Ortofon have designed the DJ S series to allow scratching and back cuing, night after night. The Ortofon DJ S cartridges deliver reliability and robustness and are therefore able to withstand the extreme conditions, pressures and vibrations of the DJ environment.
Ortofon DJ S Stylus Specifications:
Frequency response: 20 to 20.000 Hz Output: 6mV Channel separation nominal: 23dB Inductance: 450mH/ch Weight: 5g Tracking force: 3 grams Recommended load: 47K ohms 200pf Stylus tip: Spherical
Ortofon DJ S Stylus
The \\\"jack of all trades\\\", with improved tracking, alongside accurate sound reproduction. The Ortofon DJ S styli provides excellent groove handling, even with less weight applied.
Replacement stylus to be used in Ortofon DJ S OM and Concorde cartridges. Ortofon DJ series has been known to many as the \\\"jack of all trades\\\", with improved tracking, alongside of accurate sound reproduction. Featuring a low wear stylus design, the Ortofon DJ S cartridge provides excellent groove handling, even with less weight applied.
By gathering information and feedback from DJs all over the world, Ortofon have designed the DJ S series to allow scratching and back cuing, night after night. The Ortofon DJ S cartridges deliver reliability and robustness and are therefore able to withstand the extreme conditions, pressures and vibrations of the DJ environment.
Ortofon DJ S Stylus Specifications:
Frequency response: 20 to 20.000 Hz
Output: 6mV
Channel separation nominal: 23dB
Inductance: 450mH/ch
Weight: 5g
Tracking force: 3 grams
Recommended load: 47K ohms 200pf
Stylus tip: Spherical
|
Output voltage at 1000Hz, 5cm/sec. |
6 mV |
|
Channel balance at 1kHz |
2 dB |
|
Channel separation at 1kHz |
23 dB |
|
Channel separation at 15 kHz |
15 dB |
|
Frequency range at -3dB |
20-20.000 Hz |
|
Frequency response |
20-18.000 Hz 3dB/-2 dB |
|
Tracking ability at 315 Hz at recommmende tracking force |
80 μm |
|
Compliance, dynamic lateral |
9 μm/m N |
|
Stylus type |
Spherical |
|
Stylus tip radius |
R 18 μm |
|
Tracking force range |
2,0-4,0 g (20-40 mN) |
|
Tracking force recommended |
3,0 g (30 mN) |
|
Tracking angle |
20° |
|
Internal impedance, DC resistance |
750 Ohm |
|
Internal inductance |
450 mH |
|
Recommended load resistance |
47 kOhm |
|
Recommended load capacitance |
200-600 pF |
|
Cartridge weight |
18,5 g |
|
Compatibility |
DJ Series |
