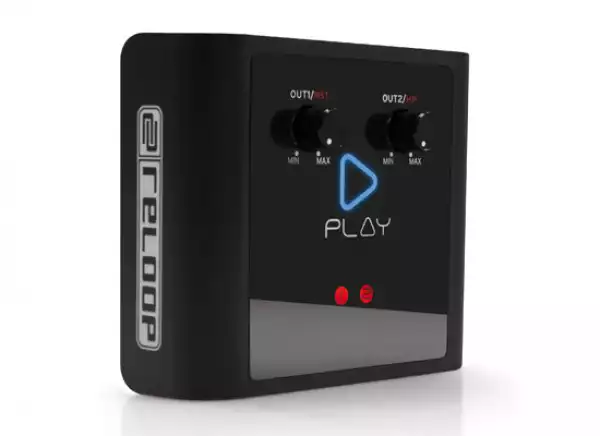

Play



USB-DJ-audio interface with 24-Bit sound quality


Most compact format


External and internal mixer mode


USB DJ soundcard with an outstanding sound quality in pocket size
With this small but powerful interface Reloop presents one of the smallest DJ soundcards that can be found on the market – with an outstanding 24 bit sound quality. Special hi-gain outputs allow an extremely pounding club sound catering for lowest latencies while spinning, granted by the USB 2.0 ASIO/CORE driver technology.



Elaborate connecting possibilities
Thanks to the elaborate connecting possibilities, Reloop Play offers two play modes. On the one hand there is the external mixer mode: with it, it is possible routing two separate stereo channels to an external mixer – this mode will be appreciated by all professional Traktor users. The second mode is called the controller mode: In this case a master ouptut is routed to the sound system and it is possible to connect headphones directly to the interface – this mode is especially appropriate for laptop DJs without further hardware. Both stero channels' volume can be comfortably adjusted via separate controllers. The signal status LEDs allow a visual monitoring so that everything remains in view and under control. Small, professional and always present: Plug&Play.

Technical Data
Minimum system requirements PC:

Windows XP (SP3), Win7 (32 bit/64 bit)
at least Pentium III / Intel Core Duo, 1 GHz (NO AMD processors recommended!)
at least 512 MB RAM

Minimum system requirements Mac:

OS X 10.5/10.6
Intel Core Duo family (only Intel MACs)
at least 512 MB RAM




Dimensions: 80 x 20 x 65 mm
Weight: 85 g
Incl. ASIO driver CD, USB cord

Features

Ultra portable 4-channel DJ audio interface with 24 bit resolution
Hi-speed USB 2.0 with low latency ASIO/CORE Audio drivers
Hi-gain outputs for powerful club sound
2 stereo RCA outputs for use with an external DJ mixer
Stereo 1/4" headphones output for use with software mixer
2 play modes: External mixer mode (2 separate channels can be routed to an external mixer), controller mode (1x master out is routed to the sound system and headphones can be connected directly to the interface)
Volume controls and signal status LEDs for direct, visual monitoring
Separate volume controllers for channels 1 & 2, master & headphones respectively
USB bus powered
Burglar-proof: Kensington lock
Low latency ASIO/Core Audio drivers
Compatible with Mac OS X and Windows XP/Vista/7
