Specifications

Nominal Input Level

-20 dBu

Input Impedance

10 M ohms

Nominal Output Level

OUTPUT jack: -20 dBu
LINE OUT jack: -20 dBu

Output Impedance

OUTPUT jack: 1 k ohm
LINE OUT jack: 600 ohms

Recommended Load Impedance

OUTPUT jack: 10 k ohms or greater
LINE OUT jack: 600 ohms or greater

Bypass

Buffered bypass

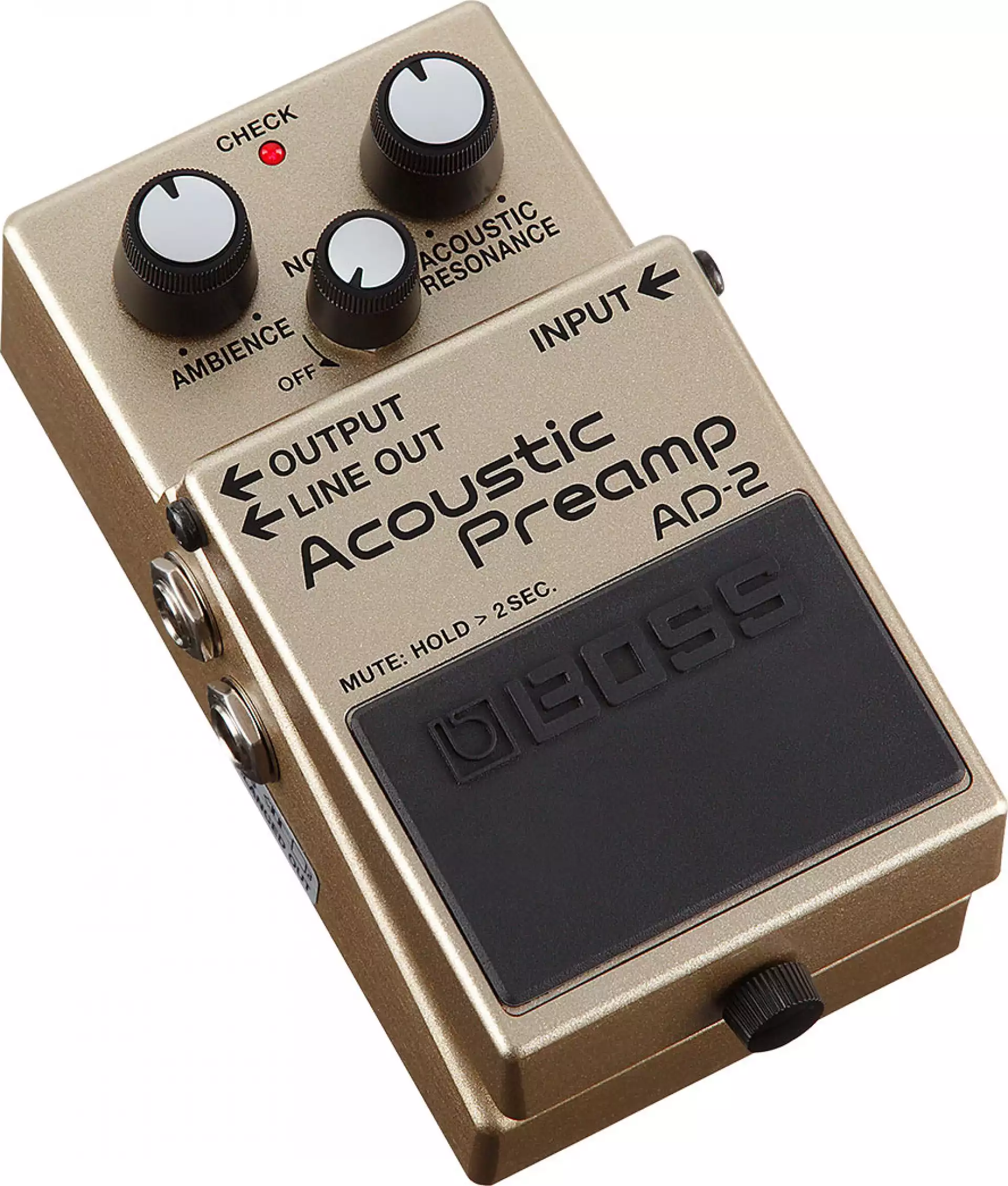

Controls

Pedal switch
ACOUSTIC RESONANCE knob
AMBIENCE knob
NOTCH knob

Indicator

CHECK indicator (Serves also as battery check indicator)

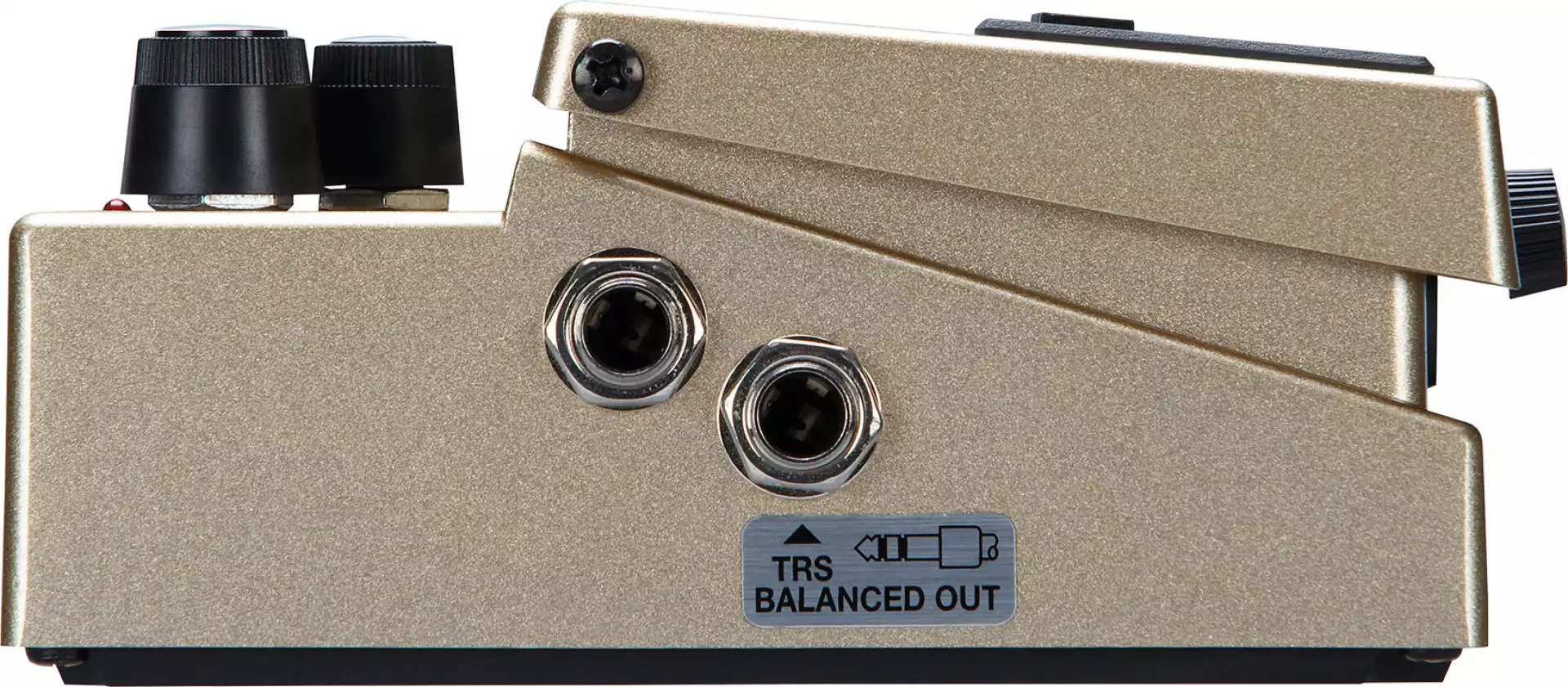

Connectors

INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
LINE OUT jack: 1/4-inch TRS phone type
DC IN jack

Power Supply

Alkaline battery (9V, 6LR61)
AC adaptor (sold separately)

Current Draw

65 mA

Expected battery life under continuous use

Alkaline: Approx. 5 hours
*These figures will vary depending on the actual conditions of use.

Accessories

Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9V, 6LR61)

Option (sold separately)

AC adaptor (PSA series)

Size and Weight

Width

73 mm
2-7/8 inches

Depth

129 mm
5-1/8 inches

Height

59 mm
2-3/8 inches

Weight (including battery)

420 g
15 oz

* 0 dBu = 0.775 Vrms

*The specifications are subject to change without notice.
