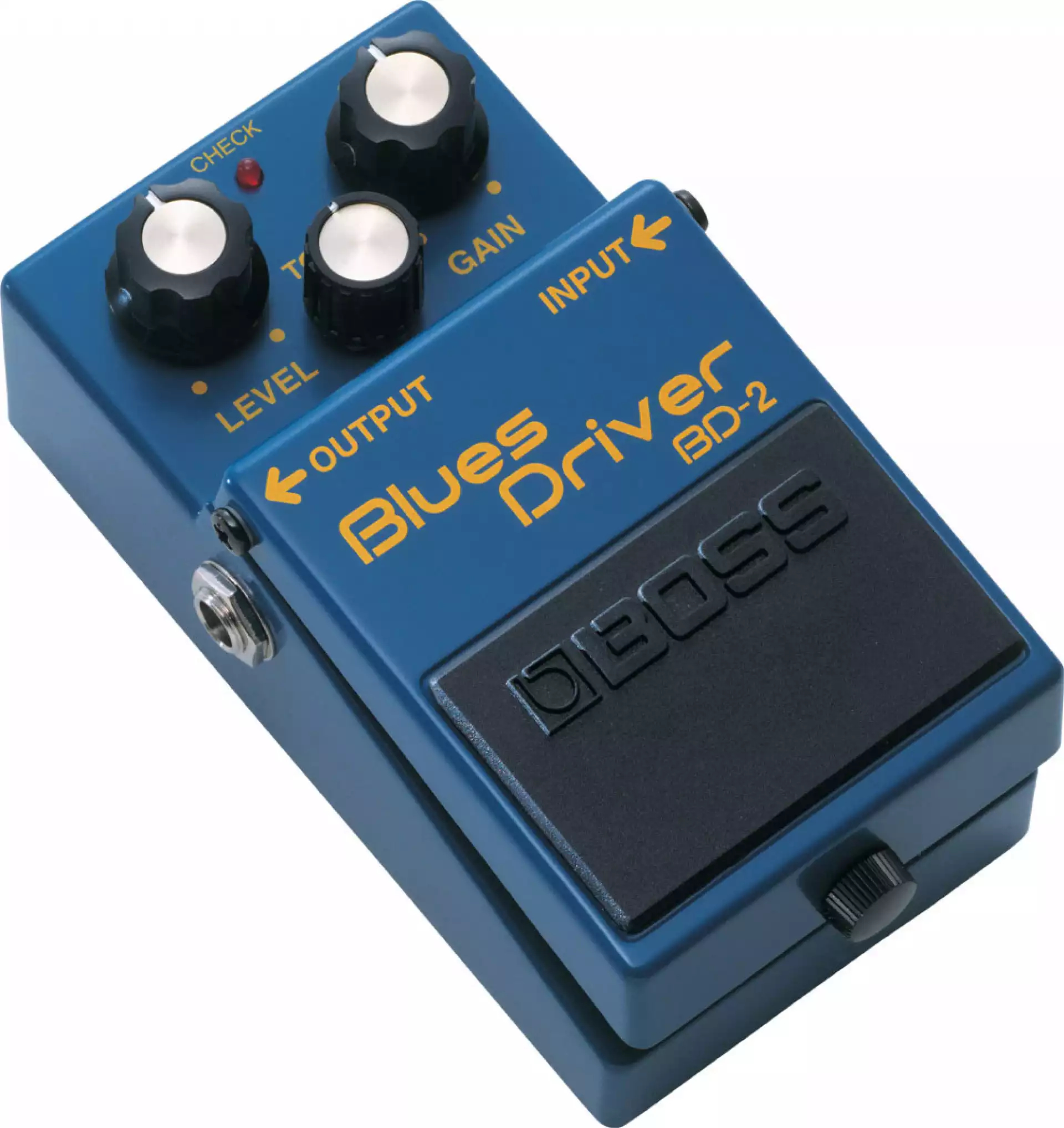

BOSS BD-2 Blues Driver
THE PERFECT TONE FOR BLUES
The BD-2 Blues Driver delivers the creamy, yet crunchy sound associated with great blues guitar. This popular pedal provides instant access to the kind of warm overdrive and emotive distortion usually reserved for 30-year-old tube amps.
Nominal Input Level -20 dBu
Input Impedance 1 M ohm
Nominal Output Level -20 dBu
Output Impedance 1 k ohm
Recommended Load Impedance 10 k ohms or greater
Controls
Pedal switch
GAIN knob
TONE knob
LEVEL knob
Indicator
CHECK indicator (Used for indication of check battery)
Connectors
INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack
Power Supply
Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)
Current Draw
20 mA
Expected battery life under continuous use
Carbon: Approx. 24.5 hours
Alkaline: Approx. 44 hours
*These figures will vary depending on the actual conditions of use.
Accessories
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Carbon-zinc battery (9 V, 6F22)
Option (sold separately) AC adaptor (PSA series)
Size and Weight ( incl. battery )
Width 73 mm 2-7/8 inches
Depth 129 mm 5-1/8 inches
Height 59 mm 2-3/8 inches
Weight 360 g
