- Specifications
- Nominal Input Level
- -20 dBu
- Input Impedance
- 1 M ohm
- Nominal Output Level
- -20 dBu
- Output Impedance
- 1 k ohm
- Recommended Load Impedance
- 10 k ohms or greater
- Bypass
- Buffered bypass
- Controls
- MODE knob
RATE knob
DEPTH knob
RES (Resonance)/MANUAL knob
Pedal switch - Indicator
- CHECK indicator (Used for indication of check battery)
- Connectors
- GUITAR IN jack: 1/4-inch phone type
BASS IN jack: 1/4-inch phone type
OUTPUT A (MONO) jack: 1/4-inch phone type
OUTPUT B jack: 1/4-inch phone type
DC IN jack - Power Supply
- Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately) - Current Draw
- 60 mA
- Expected battery life under continuous use
- Alkaline: Approx. 4 hours
*These figures will vary depending on the actual conditions of use. - Accessories
- Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Registration Card
Alkaline battery (9 V, 6LR61) - Options (sold separately)
- AC adaptor: PSA series
- Size and Weight
- Width
- 73 mm
2-7/8 inches - Depth
- 129 mm
5-1/8 inches - Height
- 59 mm
2-3/8 inches - Weight (including battery)
- 425 g
15 oz - * 0 dBu = 0.775 Vrms
- *The specifications are subject to change without notice.

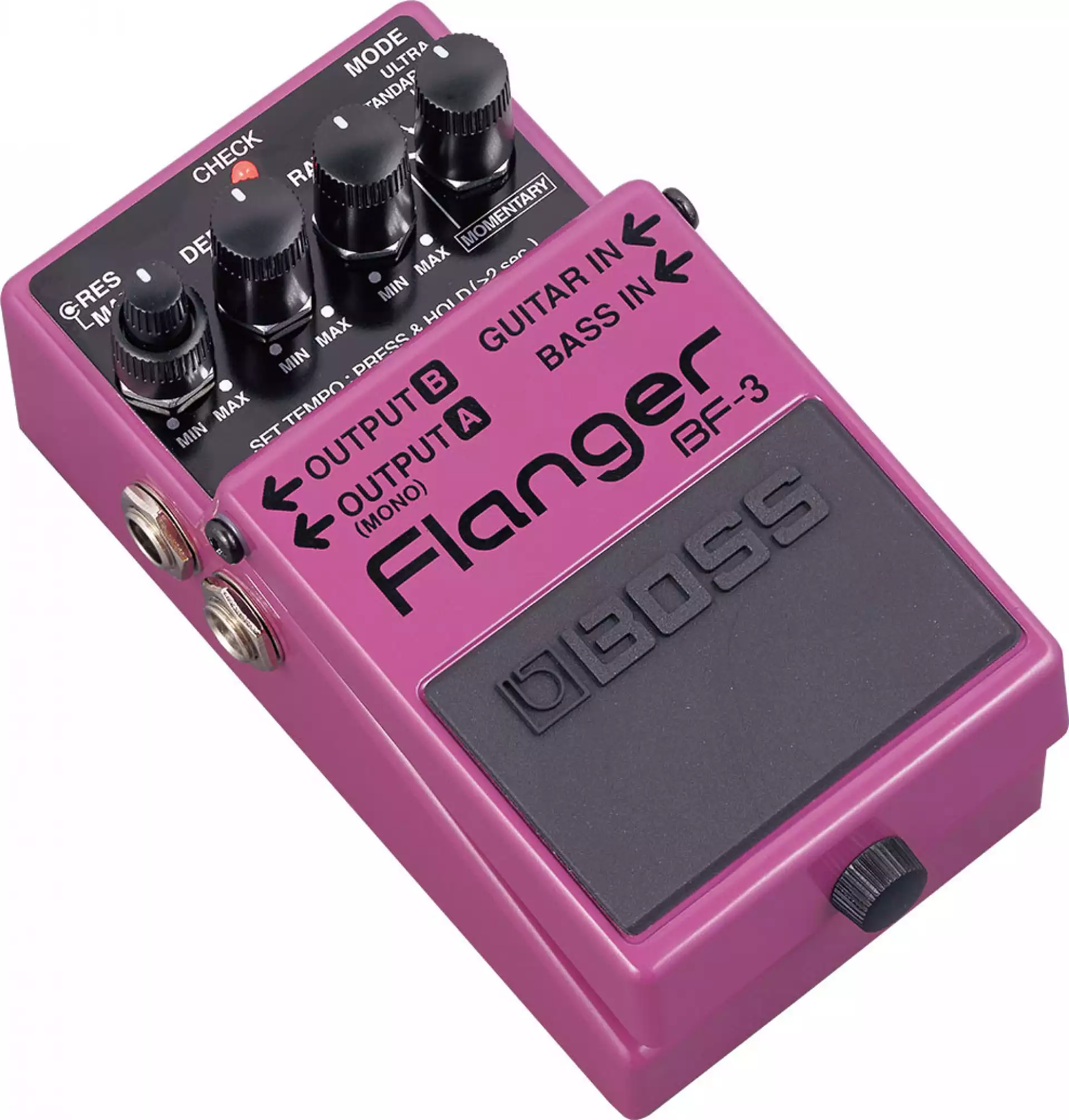

Boss BF-3 - Pedala za gitaru
Garantujemo najnižu cenu!
THE FLANGER GETS A FACE-LIFT
Building on the 20-year legacy of the famous BOSS BF-2, the new BF-3 flanger pedal gives guitarists and bassists an updated version of the classic BOSS flanger with the thickest stereo flanging sounds ever. Two new modes (Ultra and Gate/Pan) create stereo flanging with incredible depth--even Slicer-type effects and sounds that seem to "swirl" around the listener. An instant classic.
