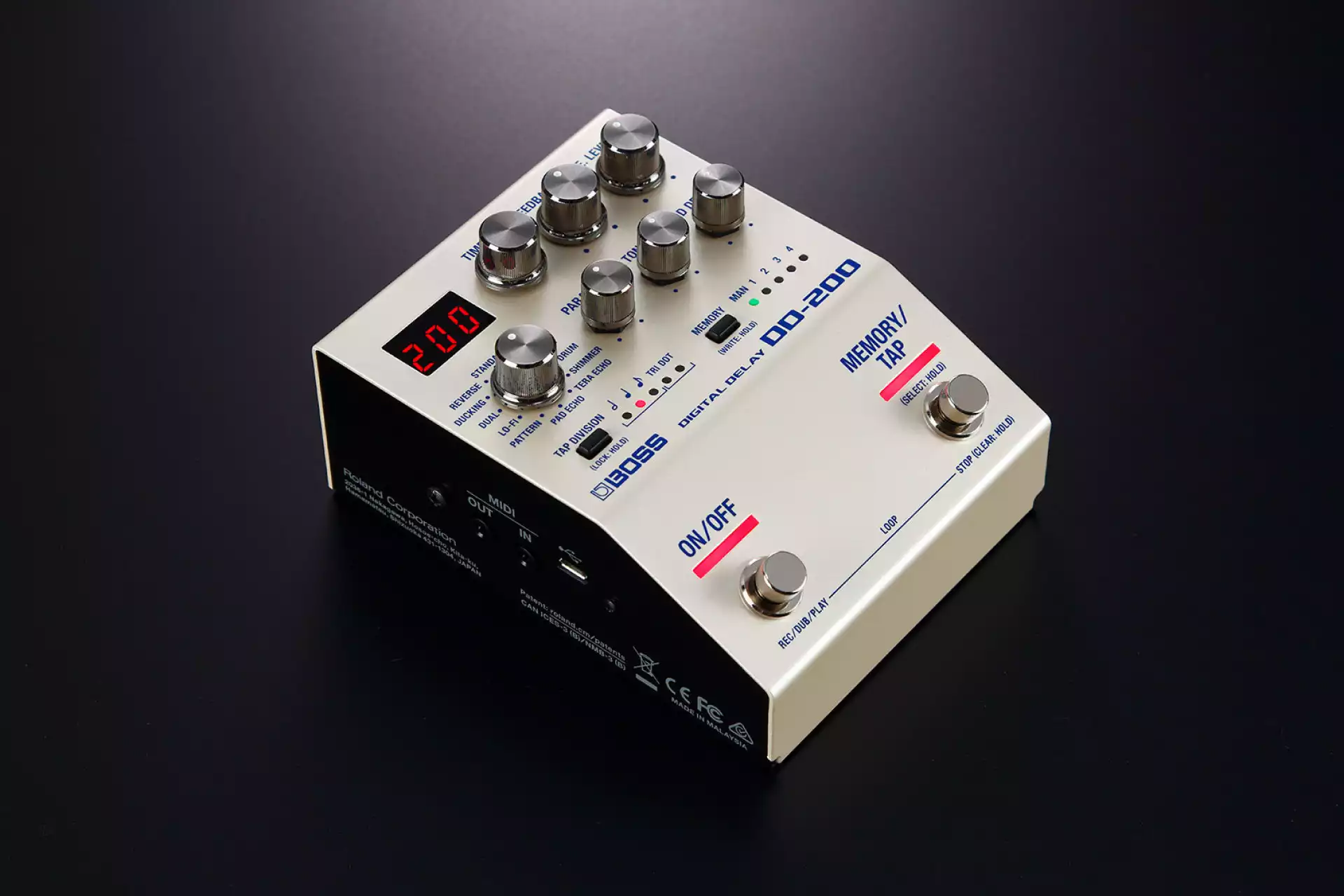

The DD-200 Digital Delay brings together sounds and features inherited from the flagship DD-500 into an even smaller footprint. Twelve different modes offer an inspiring variety of delay colors from modern digital to classic analog, letting you dial up everything from basic echoes to rich ambient pads and everything in-between. There’s also a looper that’s always ready to use, plus a selectable carryover function for seamless transitions between memories.

Version 1.1 Update: User Memory Expansion

The free Version 1.1 software update brings increased flexibility to the BOSS 200 series, greatly expanding the onboard memory capacity for storing and recalling sounds. There are now 128 user setups available. Setups can also be recalled directly via MIDI program change.

The Version 1.1 update is available in the Downloads section for each 200 series pedal.

Class-leading sound quality with 32-bit AD/DA, 32-bit floating point processing, and 96 kHz sampling rate

Twelve versatile modes provide a wide range of delay types

Fast, easy operation with hands-on controls

Access 128 user setups from the panel or MIDI program change

Recall consecutive memories plus real-time panel setting via footswitch or dedicated panel button

Phrase looper with up to 60 seconds of recording time

Panel Lock function disables controls to prevent unwanted changes

Customizable multi-function footswitches for bypass, tap tempo, memory selection, looper control, and more

Support for expanded control via external footswitches, an expression pedal, or MIDI

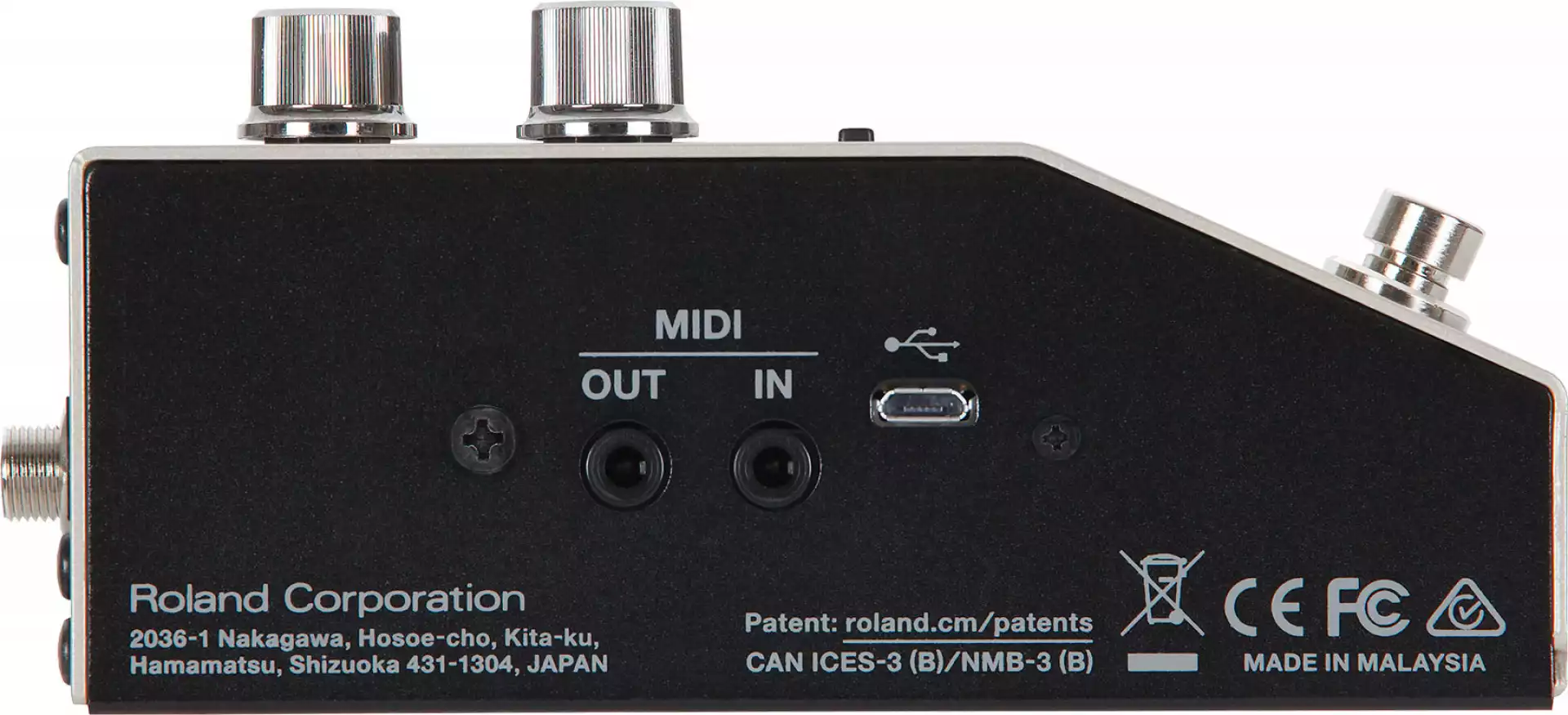

Full MIDI I/O provided with mini TRS jacks (BMIDI-5-35 adaptor cable available separately)

Micro USB jack for firmware updates

Analog dry through and buffered bypass

Runs on PSA-series AC adaptor or three AA-size batteries

Twelve Modes, Unlimited Sounds

With 12 different modes to choose from, the DD-200 provides nearly any flavor of delay in an amazingly compact size. At your command are super-clean digital delays, gritty analog echoes, and spot-on retro sounds from the Roland RE-201 Space Echo and Binson Echorec 2. There’s also a variety of options for creating reverse effects, lo-fi tones, and pulsing rhythmic sounds with layered delays. And with the Tera Echo, Shimmer, and Pad Echo modes, immersive ambient colors are just a knob twist away.

Dial in Sounds Fast

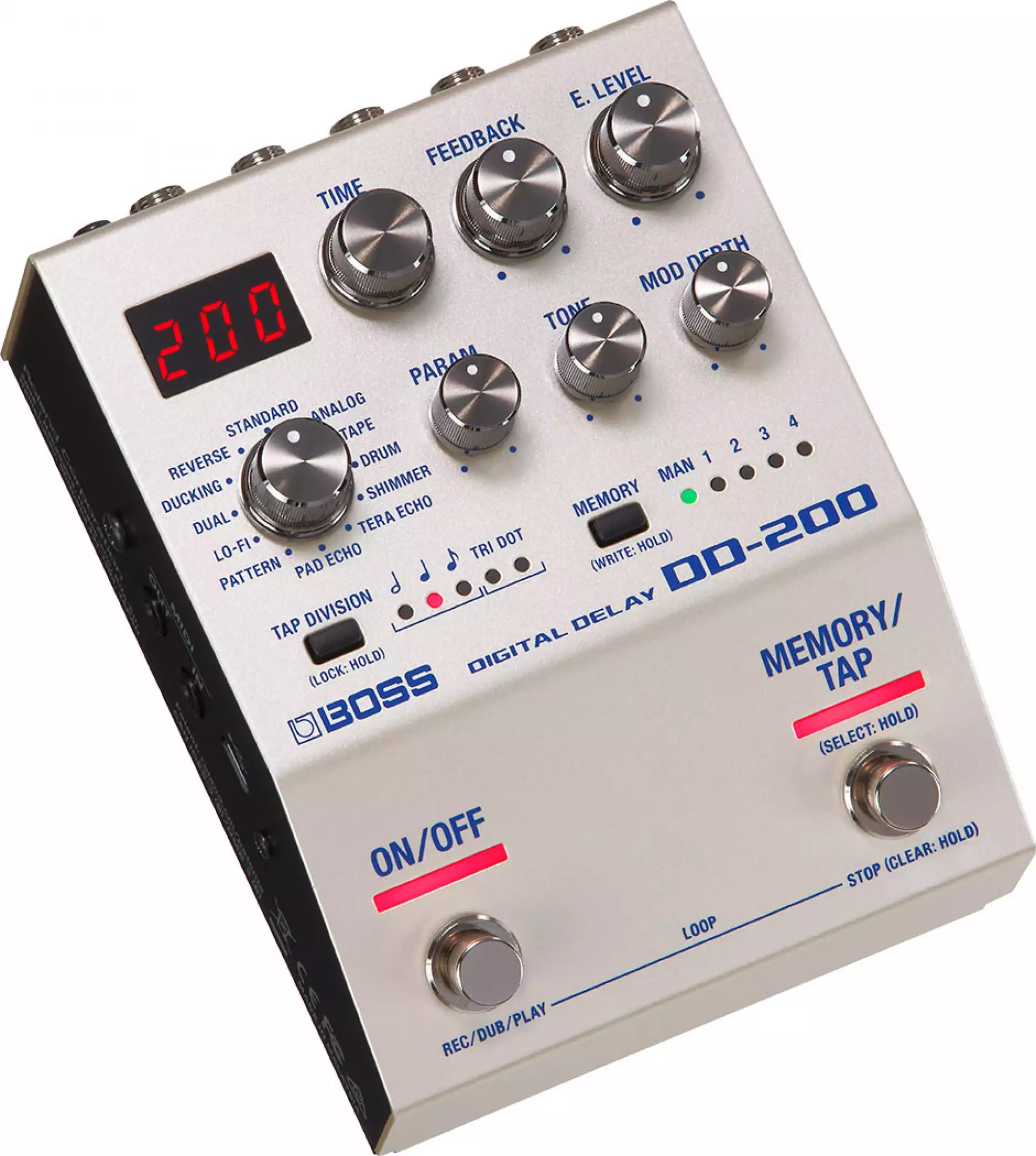

The DD-200 features a no-nonsense interface, making it easy to craft inspiring sounds in the heat of the moment. Essential delay parameters are provided on dedicated controls for direct, hands-on access. And in each mode, the function of the PARAM knob changes to parameters tailored for the selected type, delivering extended control with no need to menu dive.

Save and Recall Your Favorite Setups

The DD-200 features 127 user memories plus a real-time panel setting, giving you 128 total setups to choose from. Any range of consecutive memories and the panel setting can be assigned for scrolling access from a footswitch. It’s also possible to limit the scrolling range or assign memories directly for even faster recall. If you crave deeper control, setups can be directly recalled via program change messages from an external MIDI device. And by enabling the carryover function, delay repeats will keep sounding as you change memories for smooth, free-flowing transitions.

Deep Real-Time Control

By default, the DD-200’s multi-function footswitches provide access to basic functions like bypass, memory scrolling, tap tempo, and looper control. But you can easily reassign them to hold, warp, and many other functions. External control is also possible via footswitches or an expression pedal, and MIDI I/O is even provided on space-saving mini TRS jacks. Via MIDI, you’re able to chain multiple 200 series pedals and select memories on all of them at once, and also control a wide range of functions from MIDI devices like the ES-8 and ES-5 effects switchers.

Ready-to-Go Looper

Any time you’re ready, pressing the DD-200’s two footswitches together puts you into looper mode. Up to 60 seconds of mono recording time is available, and operation is simple and direct with the onboard switches. And since the looper engine functions independently, you’re able to develop expressive loops with any of the DD-200’s rich delay sounds.

DD-200 Delay Modes

• Standard—Clear digital delay. PARAM adjusts the delay attack.
• Analog—Emulates classic analog “BBD” delays like the BOSS DM series. PARAM controls character and distortion amount.
• Tape—Emulates the warm tape-based sound of the legendary Roland RE-201 Space Echo. PARAM selects different combinations of three playback heads, and also adjusts the amount of distortion in the delay sound.
• Drum—Models the drum-based Binson Echorec 2. PARAM selects different combinations of four playback heads, and also adjusts the amount of distortion in the delay sound.
• Shimmer—Pitch-shifted delay for lush, heavenly textures. PARAM adjusts the delay brightness.
• Tera Echo—Spacious, animated ambience effect derived from the BOSS TE-2 pedal. PARAM adjusts the sound character.
• Pad Echo—Newly developed delay sound for creating drifting ambient textures. PARAM adjusts the delay attack.
• Pattern—Rhythmic sounds with 16 delay lines layered together. PARAM selects different pattern variations.
• Lo-Fi—Delay sound with fat, distorted character. PARAM adjusts the distortion effect.
• Dual—Two different delay lines connected in series. PARAM adjusts the time of the second delay.
• Reverse—Backwards delay for cool psychedelic effects and other unique tones. PARAM adjusts the delay attack.
• Ducking—Delay with a built-in ducking effect. PARAM adjusts the input sensitivity.

 SPECIFICATIONSSampling Frequency96 kHzAD/DA Conversion32 bitsProcessing32-bit floating pointModes12 modes
STANDARD, ANALOG, TAPE, DRUM, SHIMMER, TERA ECHO, PAD ECHO, PATTERN, LO-FI, DUAL, DUCKING, REVERSEMemory127 + ManualNominal Input LevelINPUT A/MONO, B: -10 dBuMaximum Input LevelINPUT A/MONO, B: +7 dBuInput ImpedanceINPUT A/MONO, B: 2 M ohmNominal Output LevelOUTPUT A/MONO, B: -10 dBuMaximum Output LevelOUTPUT A/MONO, B: +7 dBuOutput ImpedanceOUTPUT A/MONO, B: 1 k ohmsRecommended Load ImpedanceOUTPUT A/MONO, B: 10 k ohms or greaterBypassBuffered bypassControlsON/OFF switch, MEMORY/TAP switch
MODE knob, TIME knob, FEEDBACK knob, E. LEVEL Knob, PARAM knob, TONE knob, MOD DEPTH knob

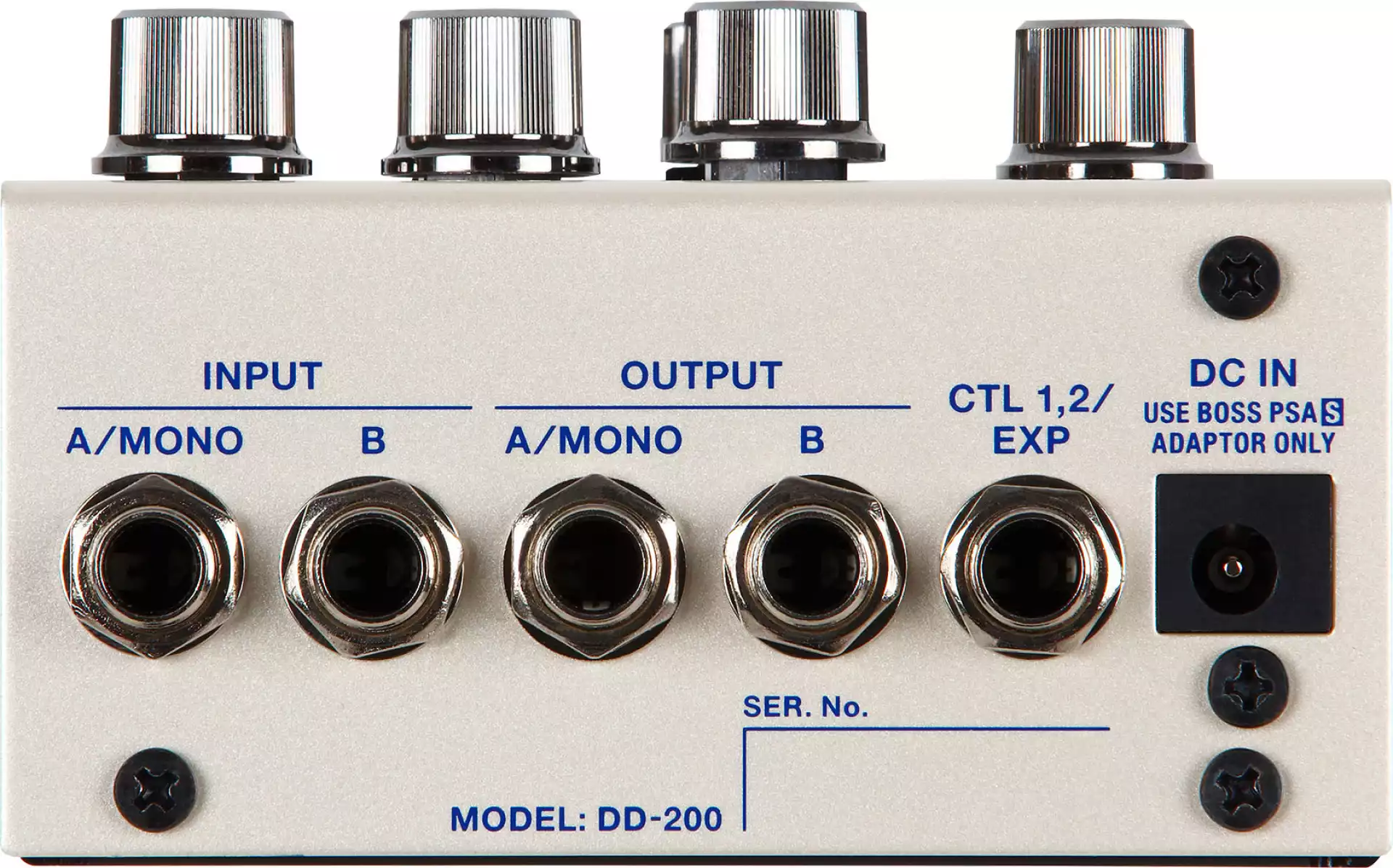

TAP DIVISION button, MEMORY buttonDisplay7 segments, 3 characters (LED)IndicatorTAP DIVISION indicator, MEMORY (MAN, 1--4) indicatorsConnectorsINPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type
CTL 1, 2/EXP jack: 1/4-inch TRS phone type
MIDI (IN, OUT) jacks: Stereo miniature phone type
DC IN jack
USB port: USB micro B-type (program update only)Power SupplyAlkaline battery (AA, LR6) x 3, AC adaptor (sold separately)Current Draw225 mAExpected Battery Life Under Continuous UseAlkaline: Approx. 4 Hours
* These figures will vary depending on the actual conditions of use.AccessoriesOwner's Manual
Leaflet "USING THE UNIT SAFELY"
Alkaline battery (AA, LR6) x 3
Rubber foot x 4Options (sold separately)AC adaptor: PSA-S series
Footswitch: FS-5U
Dual footswitch: FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
TRS/MIDI cable: BMIDI-5-35SIZE AND WEIGHTWidth101 mm
4 inchesDepth138 mm
5-7/16 inchesHeight63 mm
2-1/2 inchesHeight (including rubber foot)65 mm
2-9/16 inchesWeight610 g
1 lb 6 ozWeight (including battery)680 g
1 lb 8 oz
