- Specifications
- Sampling Frequency
- 96 kHz
- AD/DA Conversion
- 32 bits
- Processing
- 32-bit floating point
- Memory
- 127 + Manual
- Nominal Input Level
- INPUT A/MONO, B: -10 dBu
- Maximum Input Level
- INPUT A/MONO, B: +7 dBu
- Input Impedance
- INPUT A/MONO, B: 2 M ohm
- Nominal Output Level
- OUTPUT A/MONO, B: -10 dBu
- Maximum Output Level
- OUTPUT A/MONO, B: +7 dBu
- Output Impedance
- OUTPUT A/MONO, B: 1 k ohms
- Recommended Load Impedance
- OUTPUT A/MONO, B: 10 k ohms or greater
- Bypass
- Buffered bypass
- Controls
- ON/OFF switch, MEMORY switch
30--12.8 k sliders, LEVEL slider
A/B button, MEMORY button - Display
- Graphic LCD (64 x 32 dots, backlit LCD)
- Indicator
- A/B indicator, MEMORY (MAN, 1--4) indicators
- Connectors

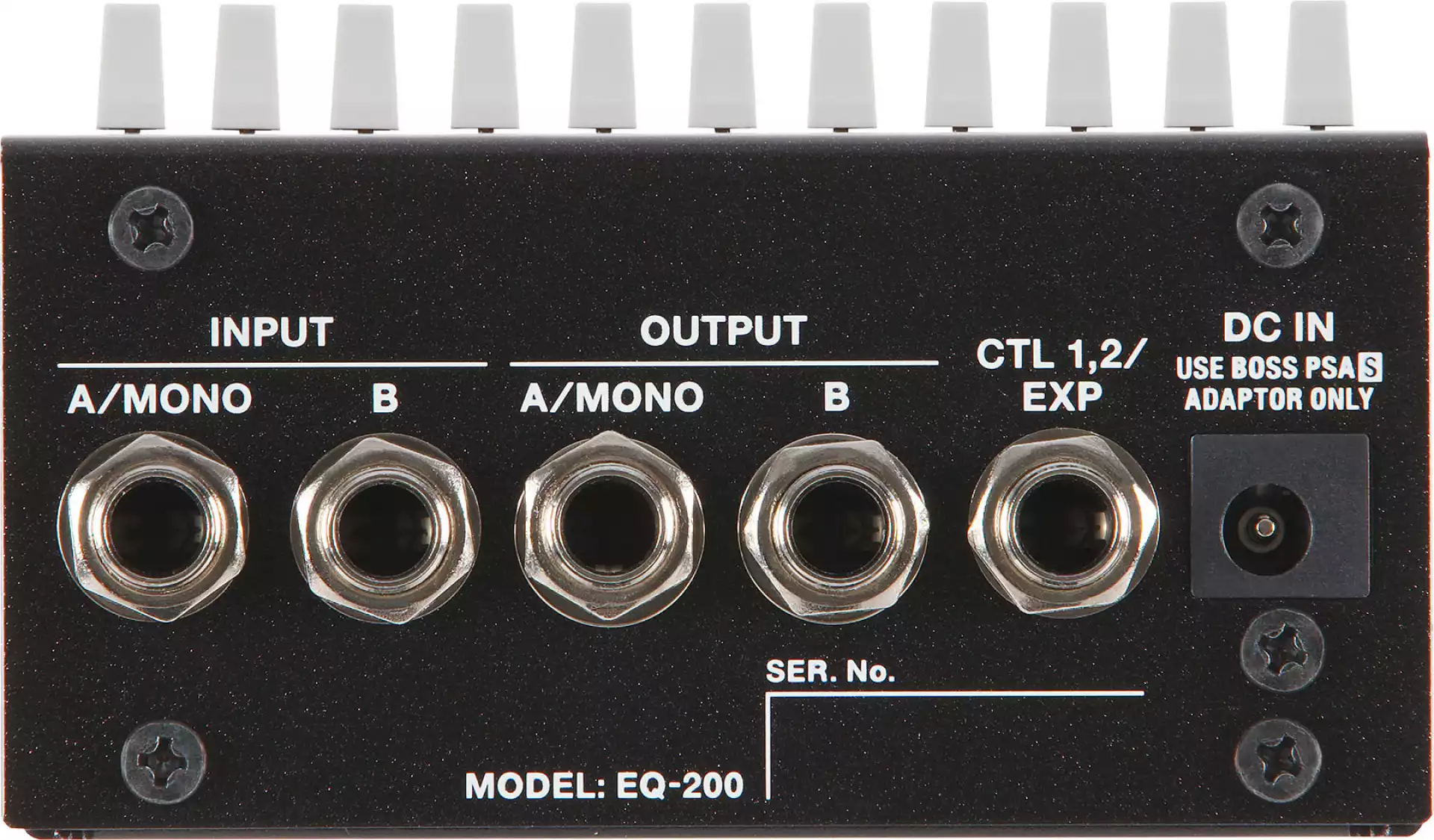

- INPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type
CTL 1, 2/EXP jack: 1/4-inch TRS phone type
MIDI (IN, OUT) jacks: Stereo miniature phone type
DC IN jack
USB port: USB micro-B type (program update only) - Power Supply
- Alkaline battery (AA, LR6) x 3, AC adaptor (sold separately)
- Current Draw
- 170 mA
- Expected Battery Life Under Continuous Use
- Alkaline: Approx. 7 Hours
* These figures will vary depending on the actual conditions of use. - Accessories
- Owner's Manual
Leaflet "USING THE UNIT SAFELY"
Alkaline battery (AA, LR6) x 3
Rubber foot x 4 - Options (sold separately)
- AC adaptor: PSA-S series
Footswitch: FS-5U
Dual footswitch: FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
MIDI/TRS connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535 - Size and Weight
- Width
- 101 mm
4 inches - Depth
- 138 mm
5-7/16 inches - Height
- 60 mm
2-3/8 inches - Height (including rubber foot)
- 62 mm
2-1/2 inches - Weight
- 630 g
1 lb 7 oz - Weight (including battery)
- 700 g
1 lb 9 oz - * 0 dBu = 0.775 Vrms
- *The specifications are subject to change without notice.
+
−
Boss EQ-200 - Pedala za gitaru
Šifra:
39.000,00 rsd
32.500,00 rsd (Bez PDV-a)
Iznos rate:
Prikazana cena je za komad.
Garantujemo najnižu cenu!
SIMPLY SOPHISTICATED
With the 200 series, BOSS introduces a new generation of pedals that pack advanced sound and versatility into a streamlined size that saves space on your board. Grab-and-go controls and multi-function switches make operation easy and intuitive, while onboard memories allow you to store multiple setups for instant recall. All 200 series pedals feature premium audio quality with 32-bit internal processing and offer support for external control via footswitches, an expression pedal, or MIDI.

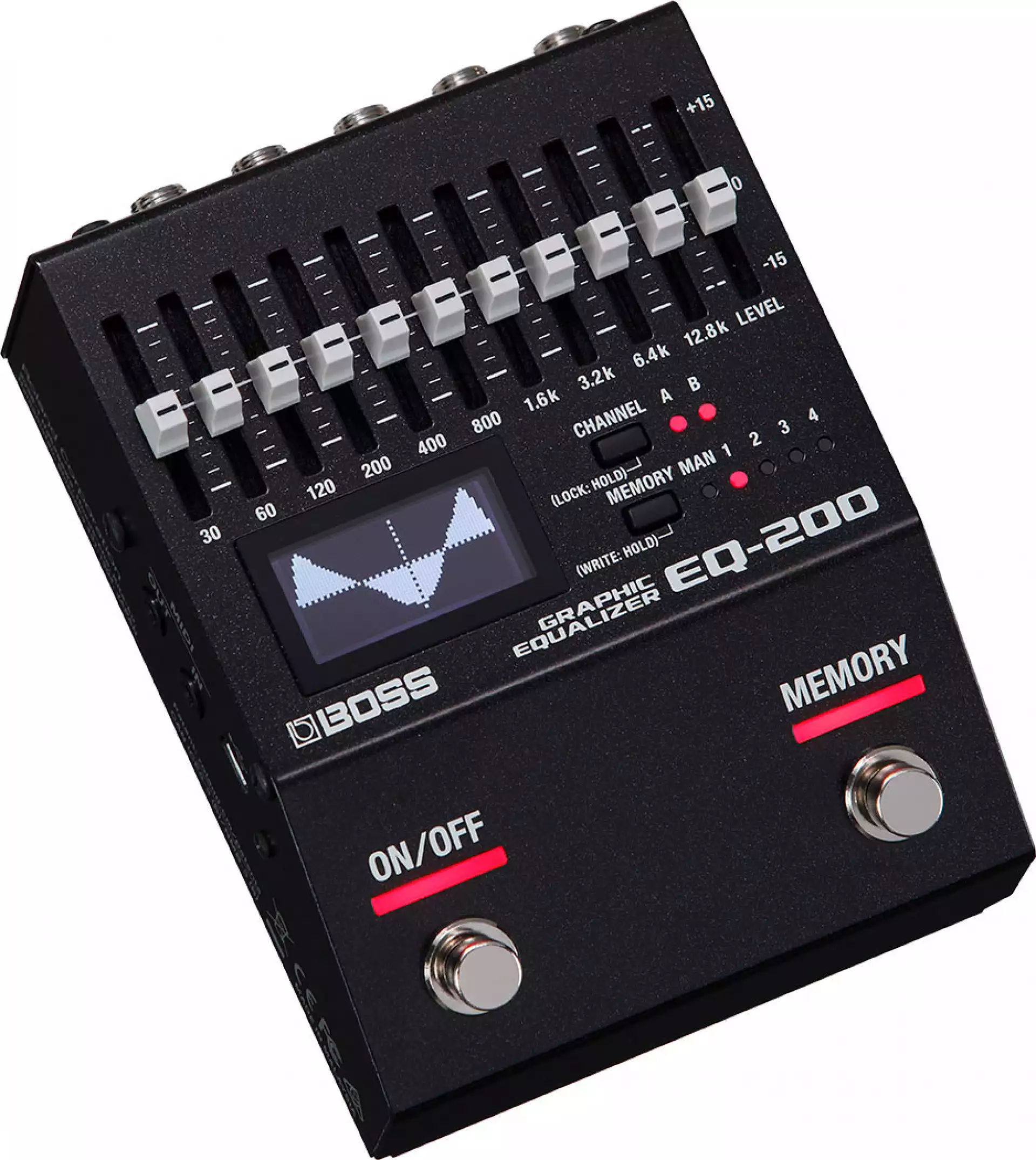

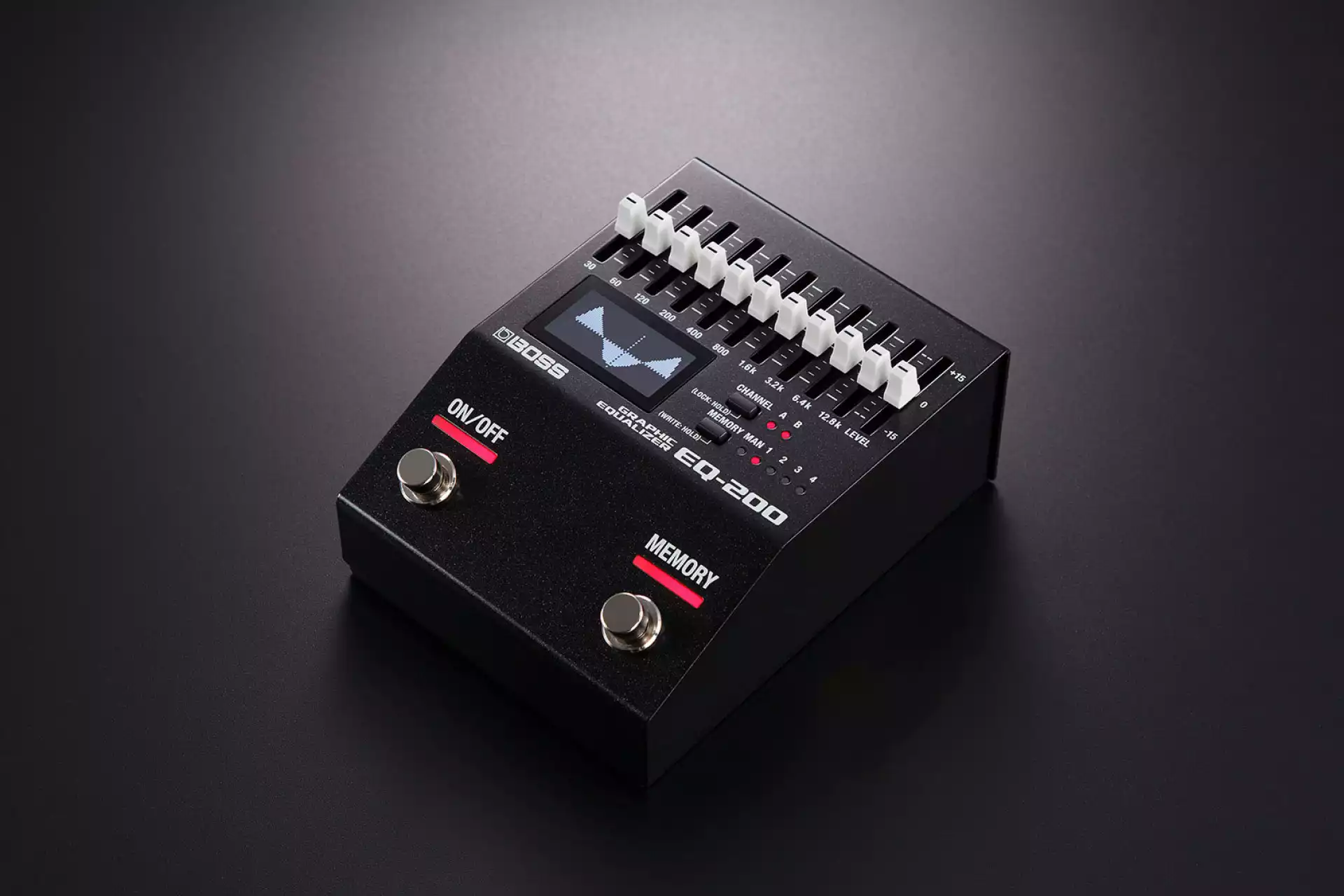

The EQ-200 is the most flexible compact EQ ever created for guitar and bass. It features two wide-ranging 10-band EQ channels, plus an onboard graphic display that shows the current EQ curve at a glance. Selectable signal flow structures configure the channels for stereo, parallel, or series operation, and it’s even possible to patch in external pedals for deep pre/post tone shaping. Going further, the frequency centers of all 10 bands can be set to three different types, letting you optimize the EQ-200’s performance for different instruments.
Version 1.1 Update: User Memory Expansion
The free Version 1.1 software update brings increased flexibility to the BOSS 200 series, greatly expanding the onboard memory capacity for storing and recalling sounds. There are now 128 user setups available. Setups can also be recalled directly via MIDI program change.
The Version 1.1 update is available in the Downloads section for each 200 series pedal.
Class-leading sound quality with 32-bit AD/DA, 32-bit floating point processing, and 96 kHz sampling rate
Dual 10-band EQs that can be used in stereo, parallel, or series
Insert function for processing external effects with pre and/or post tone shaping
Three different range settings: 30 Hz to 12.8 kHz, 32 Hz to 16 kHz, and 28 Hz to 14 kHz
15 dB boost/cut on each band, plus overall level control for each channel
Stereo link function for operating both EQ channels together
Intuitive interface with hands-on sliders and graphic EQ display
Access 128 user setups from the panel or MIDI program change
Recall consecutive memories plus real-time panel setting via footswitch or dedicated panel button
Panel Lock function disables controls to prevent unwanted changes
Two onboard footswitches with customizable assignments
Support for expanded control via external footswitches, an expression pedal, or MIDI

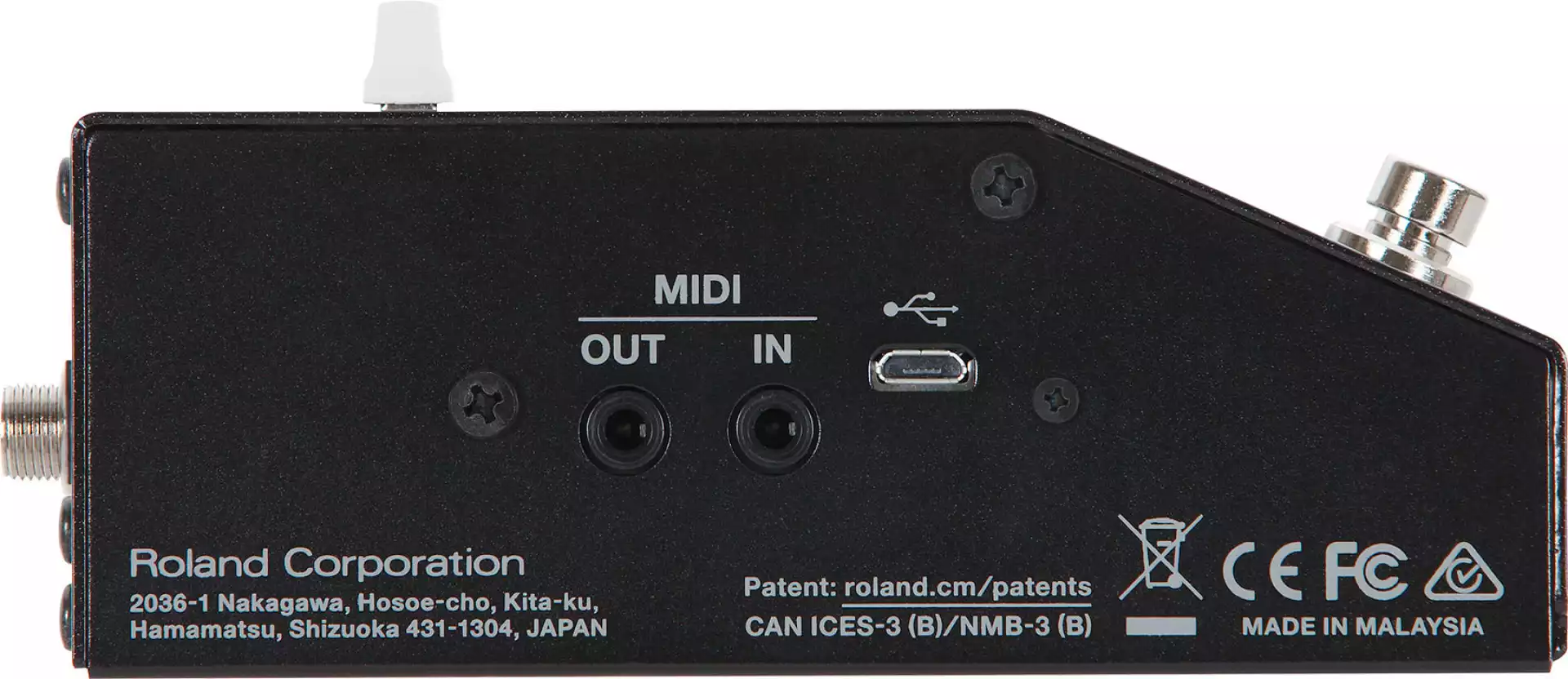

Full MIDI I/O provided with mini TRS jacks (BMIDI-5-35 adaptor cable available separately)
Micro USB jack for firmware updates
Runs on PSA-series AC adaptor or three AA-size batteries
