Outfitted with algorithms from the flagship MD-500, the MD-200 Modulation delivers an array of world-class effects in one small, convenient pedal. Twelve different modes provide every mod sound you need and more, and each includes customized controls that unlock deep tone shaping right from the panel. And with the powerful insert function, it’s simple to patch in drive pedals and other effects for selectable pre or post processing.

Version 1.1 Update: User Memory Expansion

The free Version 1.1 software update brings increased flexibility to the BOSS 200 series, greatly expanding the onboard memory capacity for storing and recalling sounds. There are now 128 user setups available. Setups can also be recalled directly via MIDI program change.

The Version 1.1 update is available in the Downloads section for each 200 series pedal.

Class-leading sound quality with 32-bit AD/DA, 32-bit floating point processing, and 96 kHz sampling rate

Twelve versatile modes provide a wide range of modulation types

Dedicated rate, depth, and level controls, plus three parameter knobs that change function with the selected mode

Insert Loop function for positioning external pedals before or after mod effects

Access 128 user setups from the panel or MIDI program change

Recall consecutive memories plus real-time panel setting via footswitch or dedicated panel button

Global setting optimizes flanger, phaser, and auto wah effects for guitar or bass

Panel Lock function disables controls to prevent unwanted changes

Customizable multi-function footswitches for tap tempo, memory selection, and more

Support for expanded control via external footswitches, an expression pedal, or MIDI

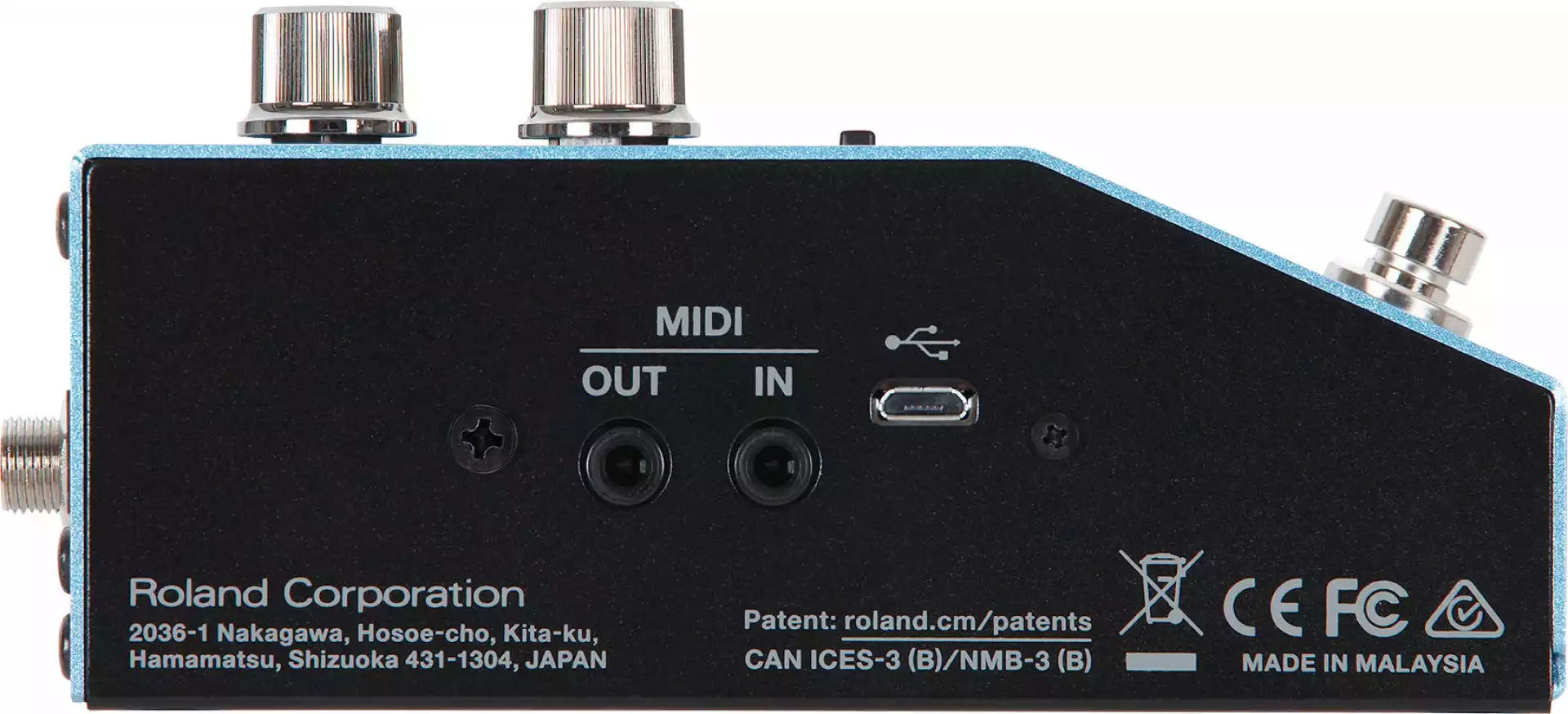

Full MIDI I/O provided with mini TRS jacks (BMIDI-5-35 adaptor cable available separately)

Micro USB jack for firmware updates

Runs on PSA-series AC adaptor or three AA-size batteries

Twelve Mod Essentials in One Pedal

Compact and mighty, the MD-200 gives you every key mod effect in a minimal footprint. Modern and vintage BOSS chorus effects are included, plus phaser, flanger, rotary, vibrato, and tremolo. Classic vibe and ‘70s phaser effects are also available, complete with selectable distortion for added versatility. BOSS’s famous Slicer delivers lots of cool rhythmic grooves, while the rich Overtone effect dishes up fat octave tones and unique sonic colors. There’s a highly adjustable auto wah as well, which can double as a foot wah when an expression pedal is connected.

Dial in Sounds Fast

With the MD-200’s simple and direct interface, it’s easy to craft inspiring sounds in the heat of the moment. Using dedicated controls, you can quickly dial in rate, depth, and level for any selected mode. You can also tap in the rate with a footswitch while playing, and visually set note subdivisions right from the panel. Going further, three additional parameter knobs dynamically change functions with each mode, providing extended tone shaping with no need to menu dive.

Save and Recall Your Favorite Setups

The MD-200 features 127 user memories plus a real-time panel setting, giving you 128 total setups to choose from. Any range of consecutive memories and the panel setting can be assigned for scrolling access from a footswitch. It’s also possible to limit the scrolling range or assign memories directly for even faster recall. And if you crave deeper control, setups can be directly recalled via program change messages from an external MIDI device.

Instantly Change Effect Order for Optimum Tone

Using the MD-200's insert loop function, you're able to patch external pedals, set the ideal effect order, and save the setting to an onboard memory. For example, you can place a phaser or classic vibe before an external pedal in one memory, a chorus or flanger after in the next, and then switch between them. This is particularly useful with drive pedals, where the signal order can have a dramatic effect on the selected mod sound.

Deep Real-Time Control

By default, the MD-200’s multi-function footswitches control bypass, memory scrolling, and tap tempo, but you can easily reassign them to alternate functions as needed. External control is also possible via footswitches or an expression pedal, and MIDI I/O is even provided on space-saving mini TRS jacks. Via MIDI, you’re able to chain multiple 200 series pedals and select memories on all of them at once, and also control various functions from MIDI devices like the ES-8 and ES-5 effects switchers.

MD-200 Modulation Modes

• Chorus—Cutting-edge BOSS chorus derived from the advanced Prime Chorus in the MD-500.
• CE-1 Chorus—Authentic recreation of the legendary CE-1 Chorus Ensemble that includes chorus and vibrato modes from the original pedal.
• Flanger—Cutting-edge BOSS flanger derived from the advanced Prime Flanger in the MD-500.
• Phaser—Cutting-edge BOSS phaser derived from the advanced Prime Phaser in the MD-500.
• Vintage Phaser—‘70s script-type phaser, plus a selectable distortion effect.
• Classic Vibe—Vintage Uni-Vibe sound, plus a selectable fuzz effect.
• Vibrato—Versatile vibrato effect with wide-ranging modulation and tonal adjustment.
• Tremolo—Selectable tremolo and stereo pan modes, plus waveform and tone controls.
• Rotary—Vintage rotating speaker effect with adjustable slow/fast speeds and horn/rotor balance.
• Auto Wah—Expressive wah effect with frequency, resonance, and three filter types, plus selectable guitar or bass operation. Can also be used as a foot wah with an optional expression pedal.
• Slicer—Original BOSS patternClassic Vibe—Vintage Uni-Vibe sound, plus a selectable fuzz effect effect derived from the popular SL-20 Slicer pedal.
• Overtone—Original BOSS effect that uses advanced MDP tech to create unique new sounds with altered pitch and harmonic characteristics.

*The product names mentioned on this page are registered trademarks or trademarks of their respective owners. These names are used because it is the most practical way of describing the sounds that are simulated.
