- Specifications
- Nominal Input Level
- -20 dBu
- Input Impedance
- 1 M ohm
- Nominal Output Level
- -20 dBu
- Output Impedance
- 1 k ohm
- Recommended Load Impedance
- 10 k ohms or greater
- Bypass
- Buffered bypass
- Controls

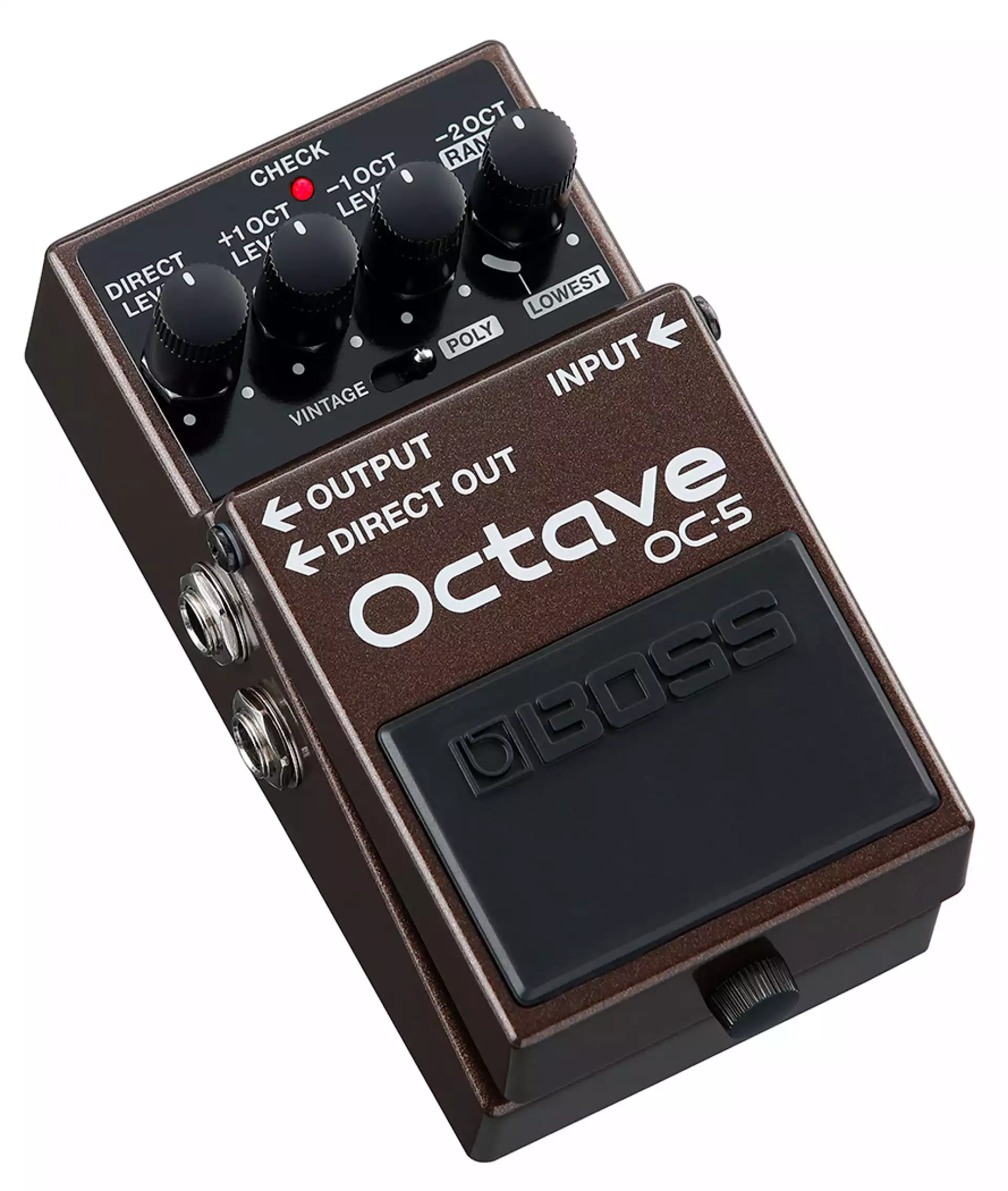

- Pedal switch, GUITAR/BASS switch, VINTAGE/POLY switch, DIRECT LEVEL knob, +1OCT knob, -1OCT knob, -2OCT/RANGE knob
- Indicator
- CHECK indicator (Serves also as battery check indicator)
- Connectors
- INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DIRECT OUT jack: 1/4-inch phone type

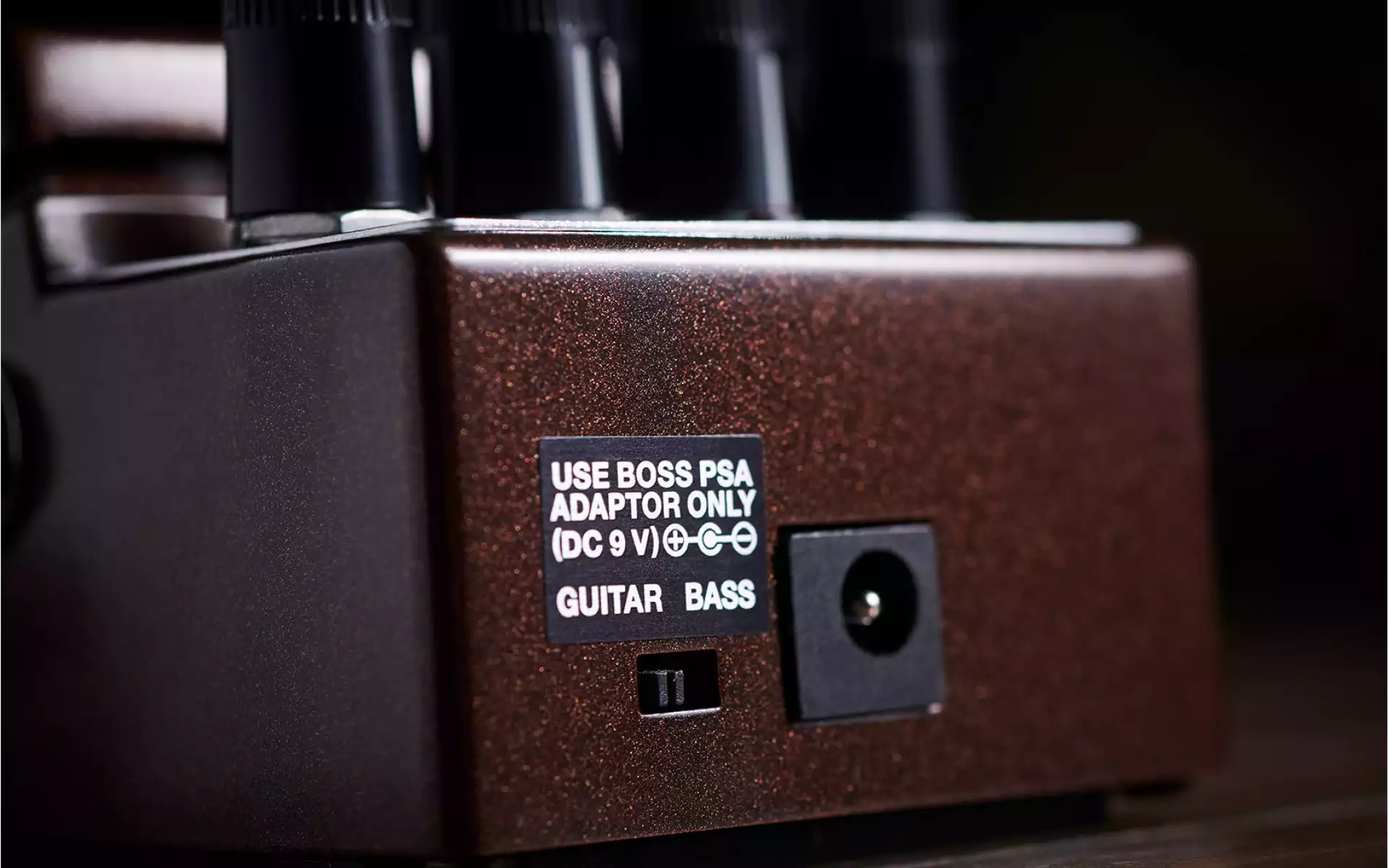

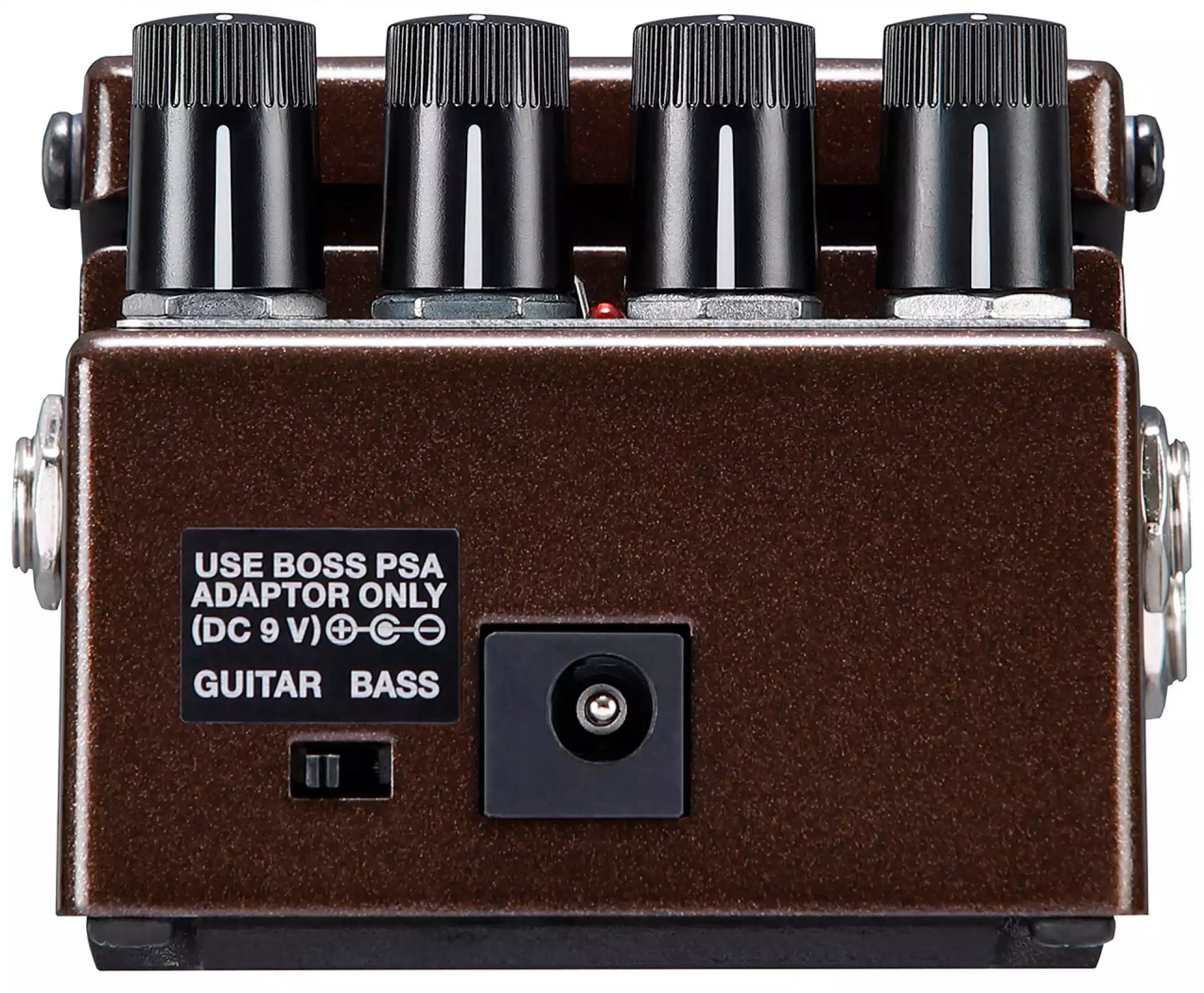

DC IN jack - Power Supply
- Alkaline battery (9 V, 6LR61 or 6LF22)
AC adaptor (PSA series: sold separately) - Current Draw
- 60 mA
- Expected battery life under continuous use
- Alkaline: Approx. 5 hours
*These figures will vary depending on the actual conditions of use. - Accessories
- Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61) - Options (sold separately)
- AC adaptor: PSA series
- Size and Weight
- Width
- 73 mm
2-7/8 inches - Depth
- 129 mm
5-1/8 inches - Height
- 59 mm
2-3/8 inches - Weight (including battery)
- 440 g
1 lb - * 0 dBu = 0.775 Vrms
- *The specifications are subject to change without notice.
+
−
Boss OC-5 - Pedala za gitaru
Šifra:
21.000,00 rsd
17.500,00 rsd (Bez PDV-a)
Iznos rate:
Prikazana cena je za komad.
Garantujemo najnižu cenu!
The New Standard in Octave Pedals
Fusing classic BOSS octave tones with the latest tracking technologies, the BOSS OC-5 sets a new standard in octave pedal performance. Vintage mode provides a spot-on recreation of the legendary mono OC-2 from 1982, while Poly mode offers numerous enhancements for extended-range playing. And with the addition of an octave-up feature, a span of three octaves is now available for creative exploration. From fat, low mono sounds to octave-shifted chords and more, the OC-5 delivers the widest range, finest sound quality, and best playability in any octave stomp to date.
Standard Features
The industry-standard octave pedal, updated with enhanced features
Newly developed tracking technology provides more accurate response and natural feel with no latency
Vintage mode faithfully reproduces the mono sound of the original OC-2
Poly mode for chord playing; Range knob sets the note range where the effect is applied
Lowest Range setting in Poly mode applies the octave effect to only the lowest note in a chord
New octave-up effect, available on its own or blended with octave-down effects
Mode switch optimizes the tracking engine for guitar or bass
Direct out for wet/dry setups
BOSS five-year warranty
