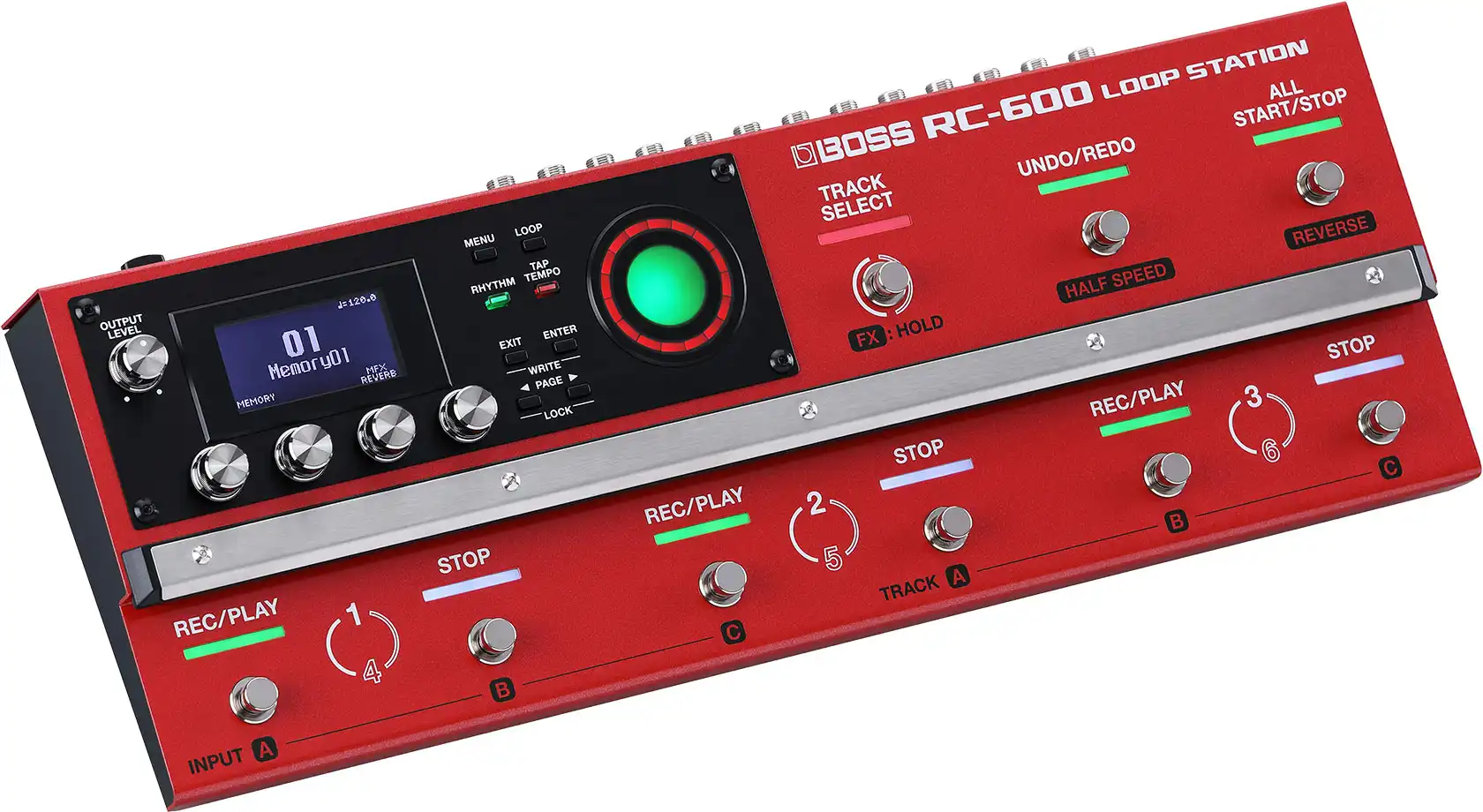

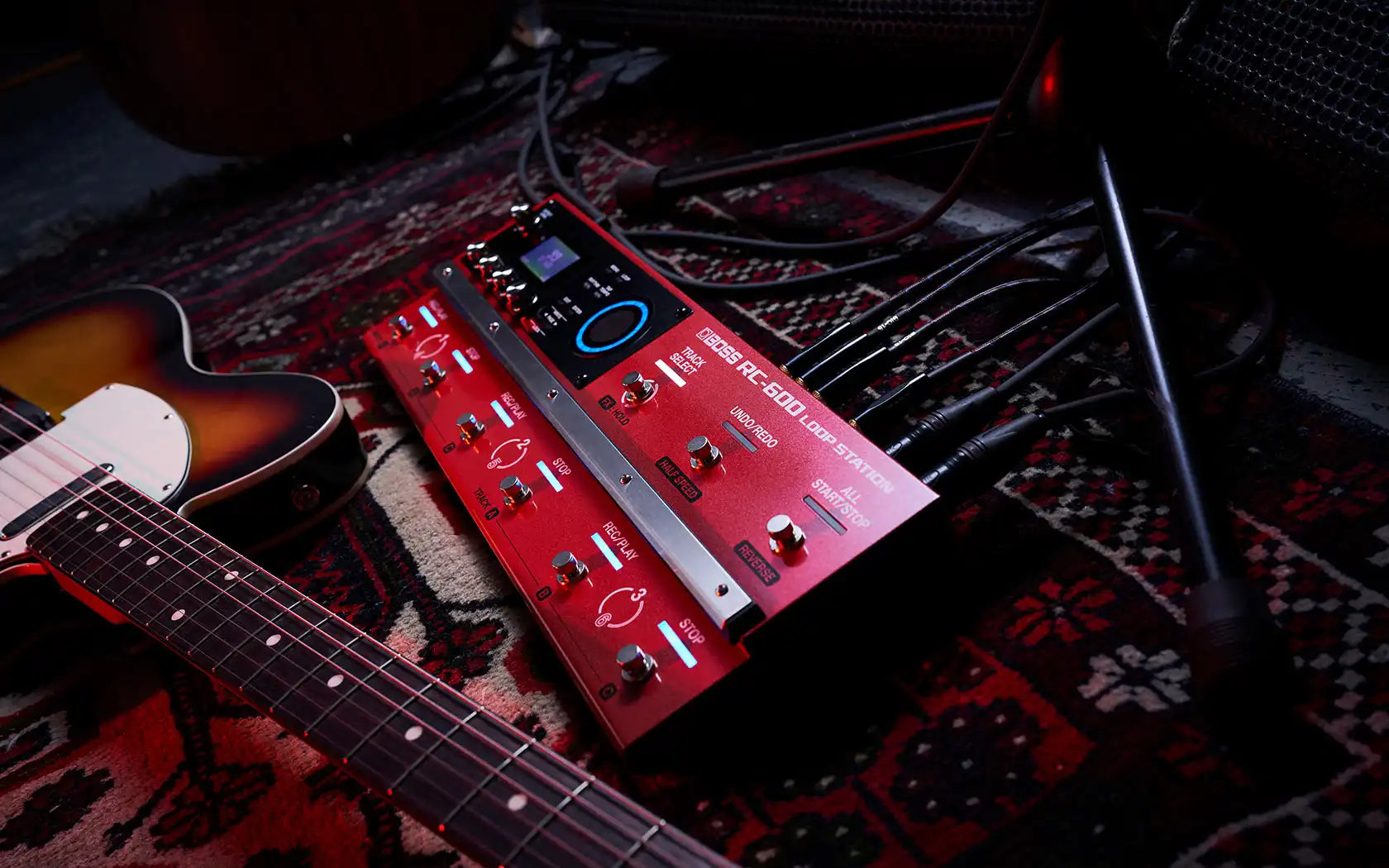

Boss RC-600 Loop Station - Looper pedala za gitaru
A Floor-Based Looper Like No Other
Meet the RC-600, the most advanced looper on the planet. Loaded with evolved features and customizable functions, this next-generation Loop Station ushers in a new era of creative power for guitarists, singer/songwriters, multi-instrumentalists, and other looping musicians. Capture multiple mics and instruments with six stereo tracks and premium 32-bit sound, and take full command with nine freely assignable footswitches and deep external control support. And that’s just the start—you can also color loops with a massive FX selection, groove with onboard rhythms, route audio as you like to the three stereo outputs, integrate with computer software via USB, and much more.
Standard Features
Flagship floor-based Loop Station with next-level sound quality and flexibility
Class-leading sound quality with 32-bit AD/DA and 32-bit floating-point processing
Six simultaneous stereo phrase tracks
Ultra-flexible onboard control with nine freely assignable footswitches and three pedal modes
Massive onboard effects selection with 49 Input FX and 53 Track FX types and the ability to use four at once in each section
Time-based effects can automatically sync to rhythms and loop tempo
Two XLR mic inputs with phantom power, two stereo line input pairs, and three stereo assignable line output pairs
99 memories, each containing six phrase tracks, custom effects and playback settings, control assignments, and more
Synchronize your loops with over 200 onboard rhythm patterns and 16 drum kits
Deep MIDI control support
Streamlined and durable metal body

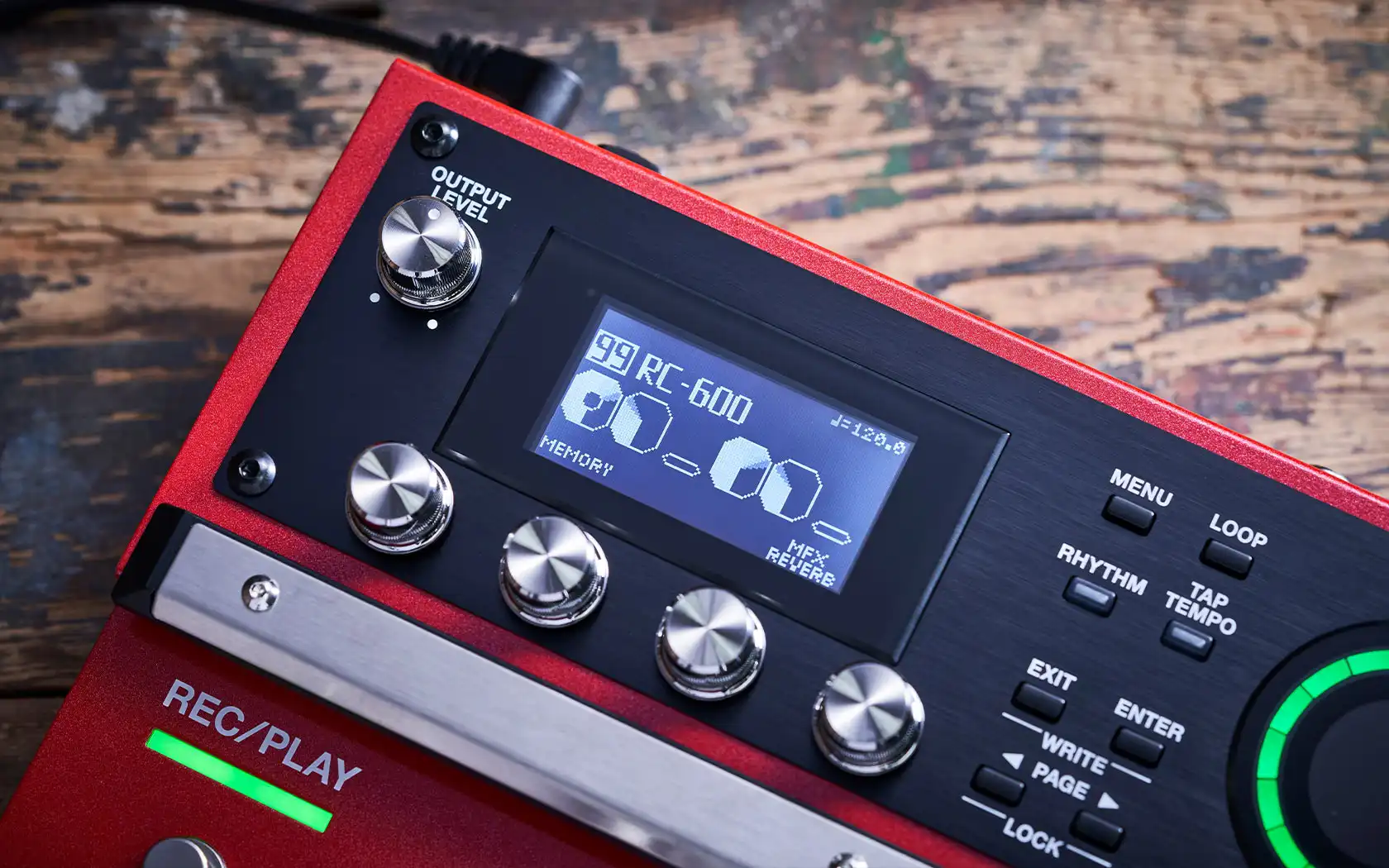

Large circular loop status indicator and informative LCD screen with selectable display modes
Two external control jacks, each with support for up to two footswitches or an expression pedal
USB for data backup, phrase import/export with BOSS Tone Studio, and pattern import with the RC Rhythm Converter
SPECIFICATIONS
Sampling Frequency44.1 kHzAD/DA Conversion32 bitsProcessing32-bit floating pointRecording/PlaybackNumber of Tracks: 6
Data Format: WAV (44.1 kHz, 32-bit float, stereo)
Maximum Recording Time: Approx. 1.5 hours (1 track), Approx.13 hours (total of All memories)Rhythm Type200 types or greaterRhythm Kit16 typesEffectINPUT FX: 49 types
TRACK FX: 53 types
MASTER FX: 2 typesMemory99Nominal Input LevelMIC IN 1, 2: -40 dBu
INST IN 1, 2: -10 dBuMaximum Input LevelMIC IN 1, 2: 0 dBu
INST IN 1, 2: +7 dBu/+20 dBu (selectable)Input ImpedanceMIC IN 1, 2: 3kohms
INST IN 1, 2: 1 M ohms/25 k ohms (selectable)Nominal Output LevelMAIN OUTPUT: -10 dBu
SUB OUTPUT 1, 2: -10 dBuMaximum Output LevelMAIN OUTPUT: +7 dBu
SUB OUTPUT 1, 2: +7 dBuOutput ImpedanceMAIN OUTPUT: 1 k ohm
SUB OUTPUT 1, 2: 1 k ohmRecommended Load ImpedanceMAIN OUTPUT: 10 k ohms or greater
SUB OUTPUT 1, 2: 10 k ohms or greaterControlsREC/PLAY switch x 3, STOP switch x 3, TRACK SELECT switch, UNDO/REDO switch, ALL START/STOP switch, MENU button, LOOP button, RHYTHM button, TAP TEMPO button, ENTER button, EXIT button, PAGE buttons, 1--4 knobs, OUTPUT LEVEL knobDisplayGraphic LCD (128 x 64 dots, backlit LCD)ConnectorsMIC IN 1, 2 connectors: XLR type (balanced, phantom power: DC 48 V, 10 mA Max
INST IN 1, 2 jacks, MAIN OUTPUT jacks, SUB OUTPUT 1, 2 jacks: 1/4-inch phone type
PHONES jack: Stereo 1/4-inch phone type
CTL1,2/EXP1 jack, CTL3,4/EXP2 jack: 1/4-inch TRS phone type
USB port: USB B type
MIDI (IN, OUT) connectors
DC IN jackPower SupplyAC adaptorCurrent Draw1.2 A (with phantom power)
1.1 A (without phantom power)AccessoriesAC adaptor
Owner's Manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")Options (sold separately)Footswitch: FS-5U
Dual Footswitch: FS-6, FS-7
Expression Pedal: FV-500H, FV-500L, EV-30, Roland EV-5SIZE AND WEIGHTWidth435 mm
17-1/8 inchesDepth163 mm
6-7/16 inchesHeight66 mm
2-5/8 inchesWeight (including battery)2.4 kg
5 lbs 5 oz
