Circuit: Digital
Bypass: Buffered Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 150mA
Year Released: 2019

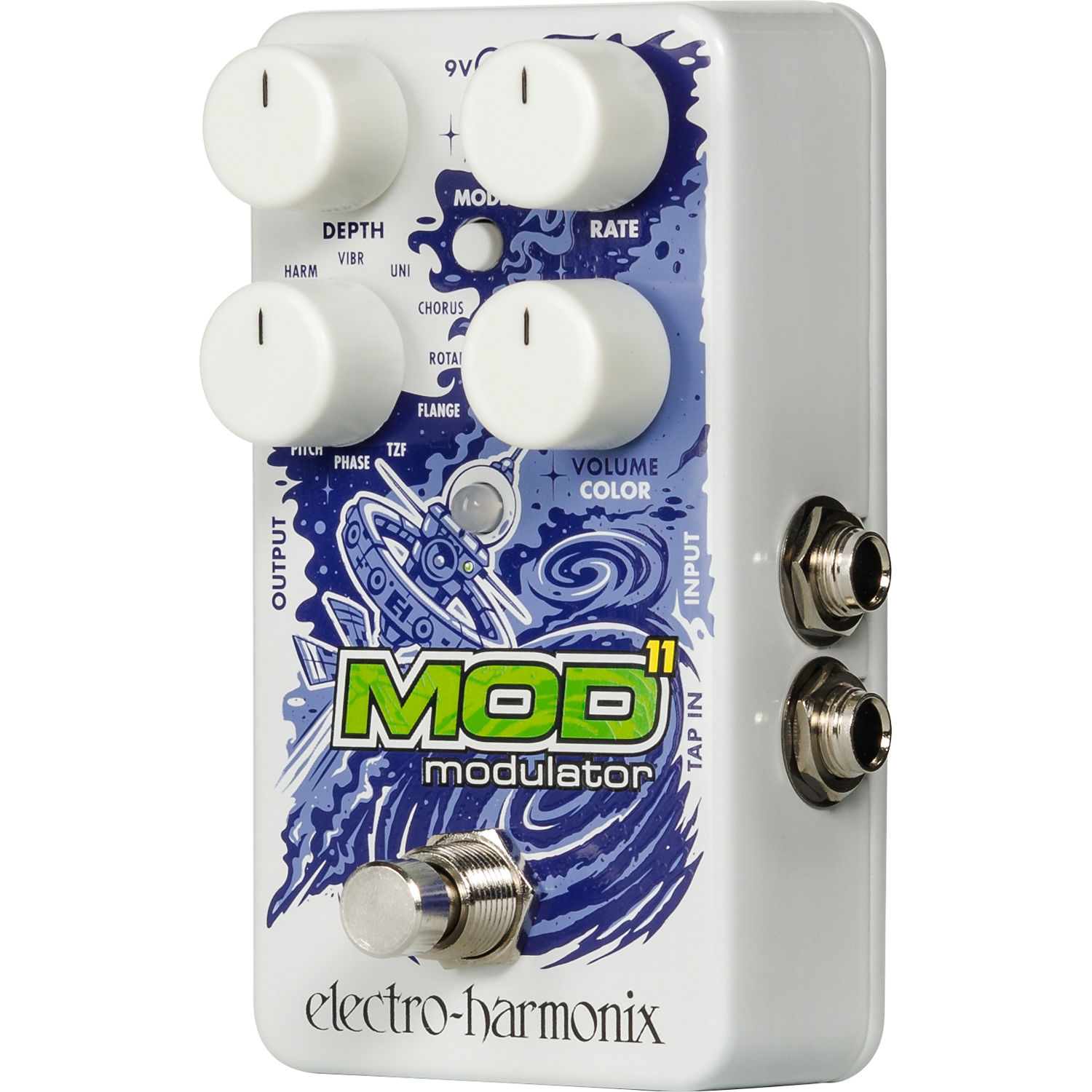

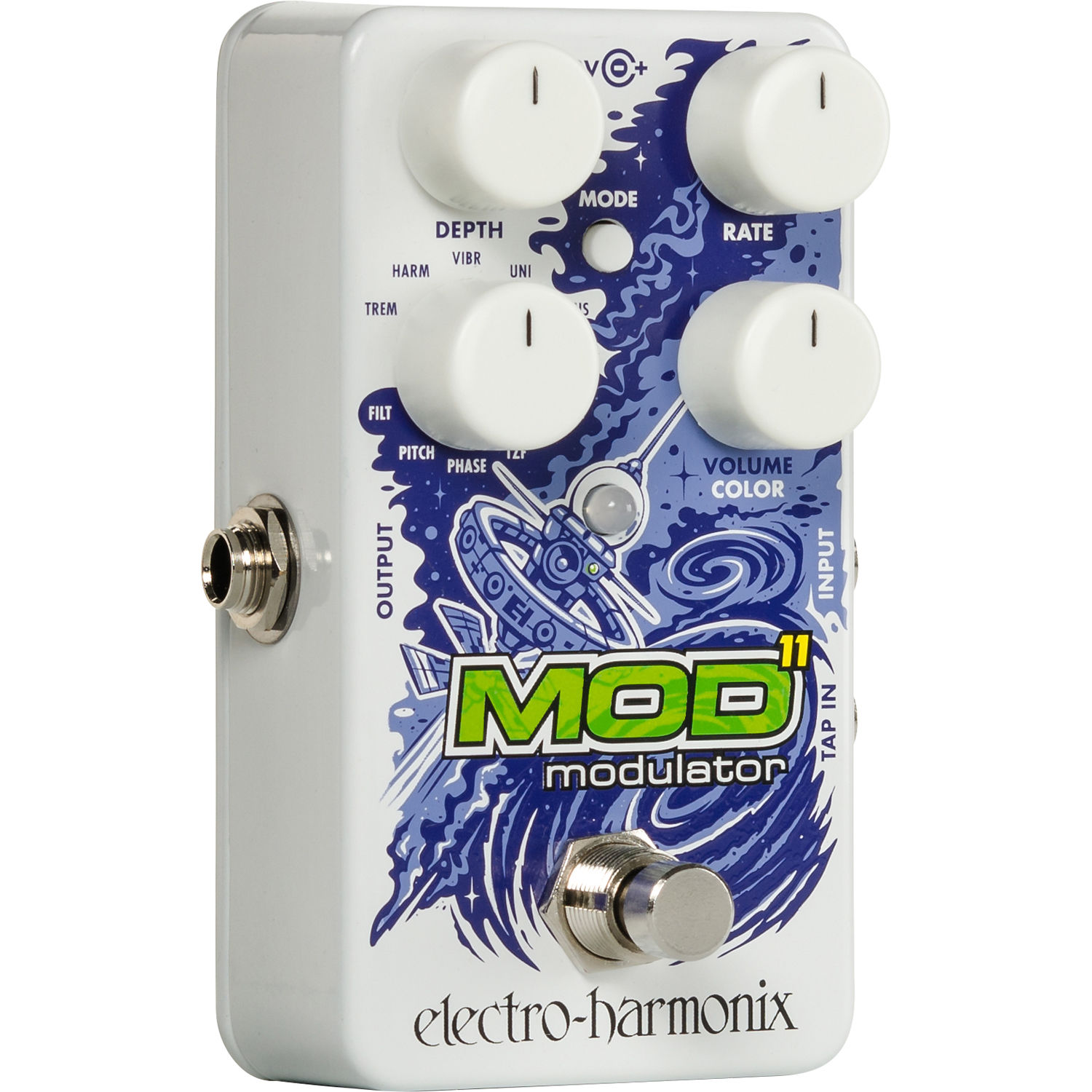

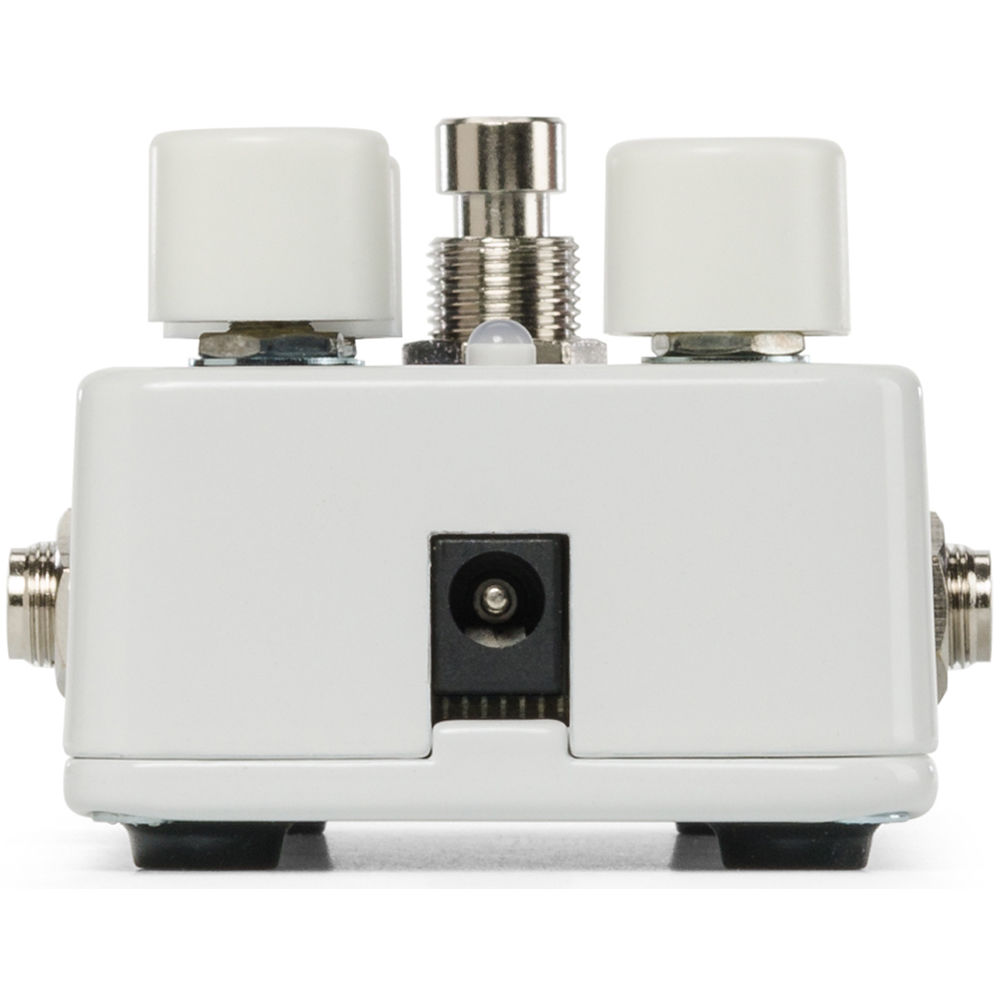

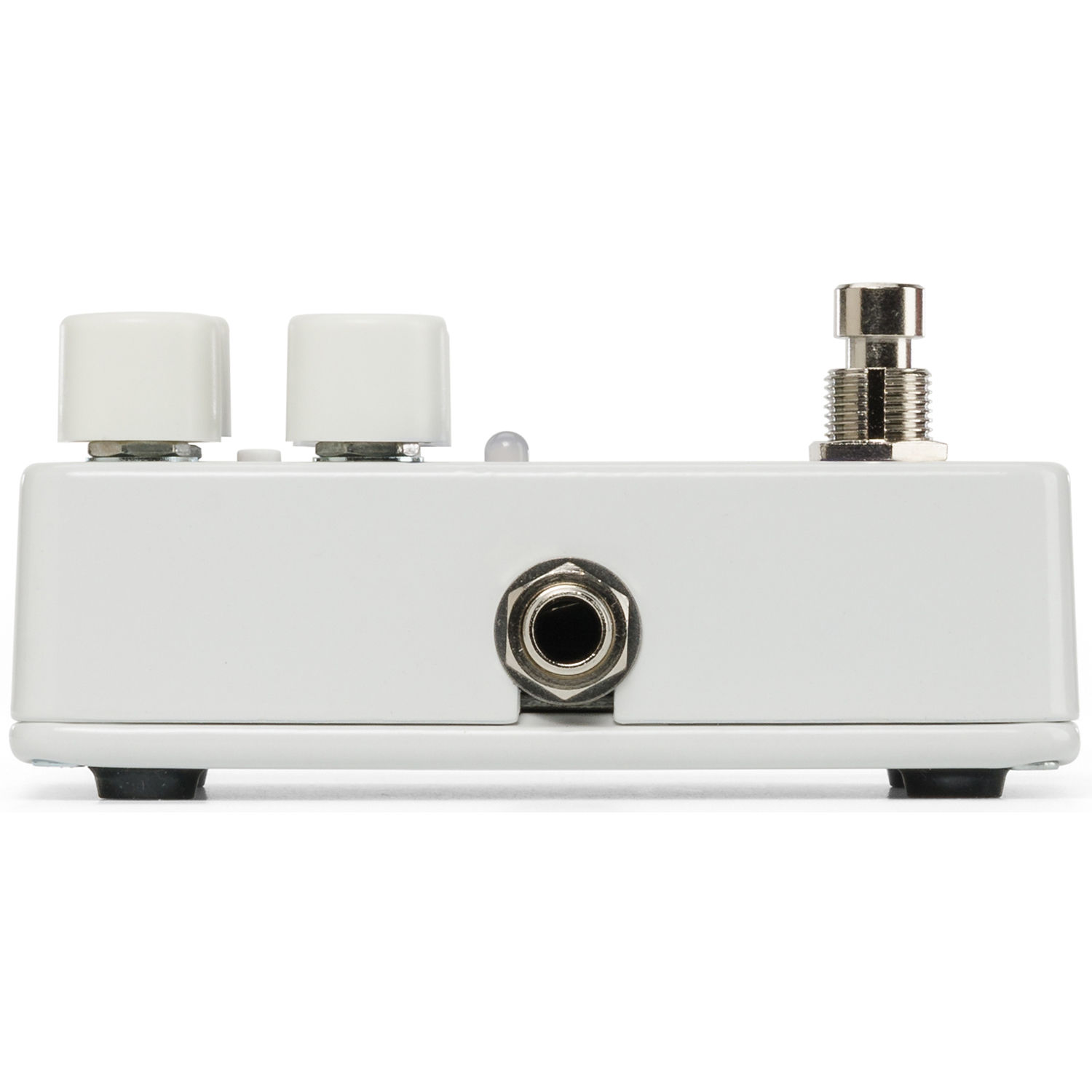

The EHX Mod 11 is packed with 11 different modulation effects that range from classic to exotic plus advanced functionality all in a compact pedal. It gives you access to powerful yet intuitive “hidden” parameters accessible through its Secondary Knob Mode which let you take even greater control over its effects.

The Mod 11’s modulation effects are:
1. TREM: Tremolo modulates your signal’s volume. Selectable modes allow your playing envelope to control modulation rate or depth.
2. HARM: Harmonic tremolo. The signal is split into high and low frequency bands and modulated between the two. Selectable modes allow your playing envelope to control modulation rate or depth.
3. VIBR: Vibrato modulates your instrument’s pitch. Selectable modes allow your playing envelope to control modulation rate or depth.
4. UNI: pays homage to the classic Univibe®. Includes “Chorus” and “Vibrato” modes plus added overdrive
5. CHORUS: Warbling, doubling, chorus effect like the EHX Small Clone. Extra modes include tri-chorus and bass chorus effects
6. ROTARY: Rotary speaker cabinet simulation. Extra functionality includes overdrive plus envelope control over rotation speed
7. FLANGE: Flanging with modes for both additive and subtractive flanger. Multiple LFO shapes, including envelope follower
8. TZF: Through Zero Flanger. A flanger effect that crosses through the “zero point” of the sweep where the modulated delayed signal meets back with the dry signal. Modes for both additive and subtractive flanger, plus barber-pole flanger
9. PHASE: Choose from 4, 6, or 8 stage phaser. Multiple LFO shapes including envelope follower
10. PITCH: Modulated pitch shifter. Select your main pitch shift and modulate around it. Extra functionality includes a dry blend and stepped pitch modes
11. FILT: Modulated filter effects like those on classic analog synths. Low Pass, High Pass and Band Pass. Multiple LFO shapes available including a Q-Tron style envelope follower

The Mod 11’s Momentary Mode lets you seamlessly switch in and out of effects mode for quick accents. It also features Tap Tempo controllable via the built-in footswitch or an external one. The Mod 11 is modulation with warp drive!

    11 modulation types with multiple modes for each
    Intuitive “hidden” parameters accessible through its Secondary Knob Mode
    Tap Tempo via the built-in footswitch or an external one
    Momentary Mode to switch effects in or out
    Comes with a standard EHX EHX 9.6DC200mA power supply
    Compact and rugged
    Power adapter included
