Circuit: Analog
Bypass: True Bypass
Audio: Mono
Effects Loop: Yes
Power Supply: 24VDC-100mA power adapter included
Dimensions (in): 5.75 x 4.75 x 2.5
Current Draw: 35mA
Year Released: 2008

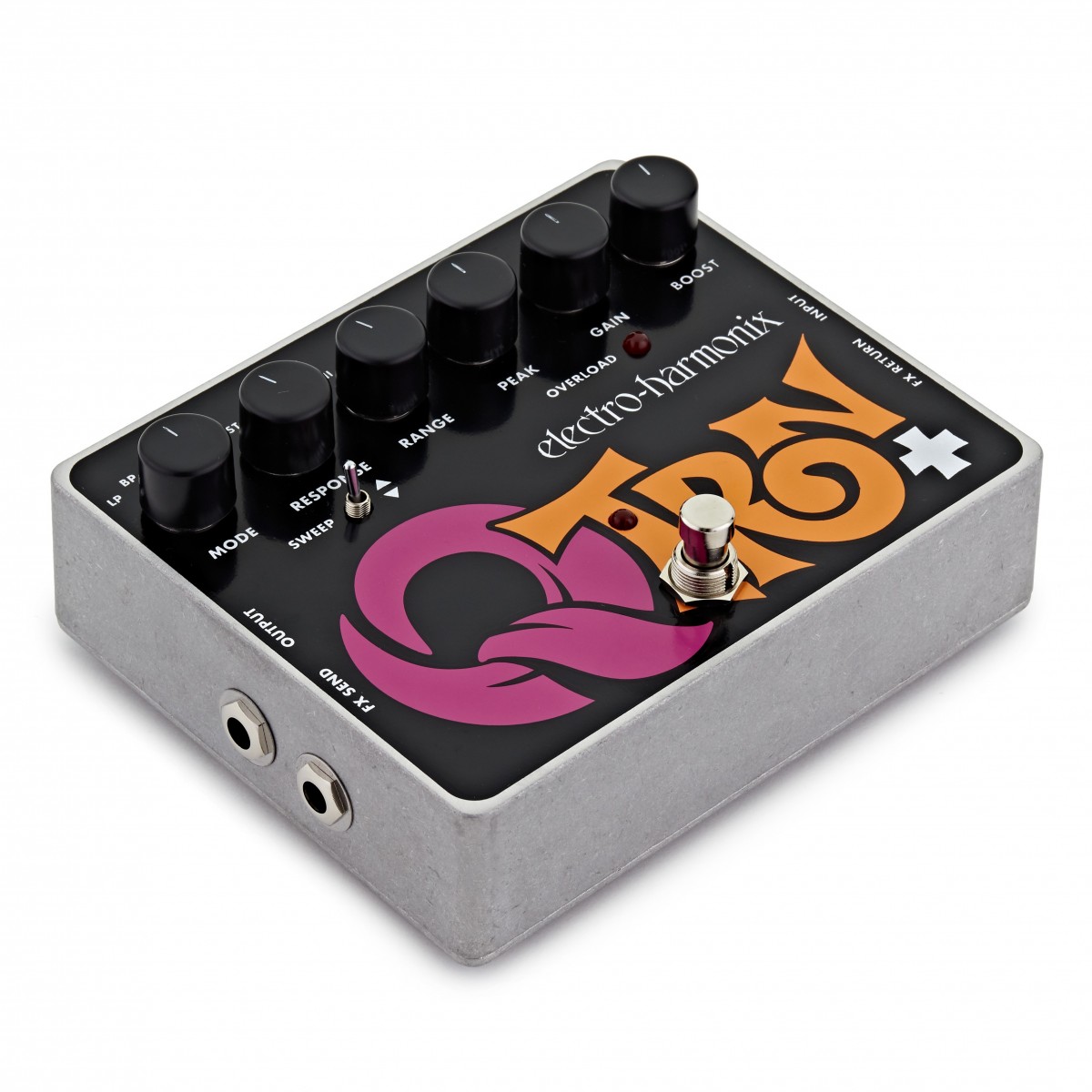

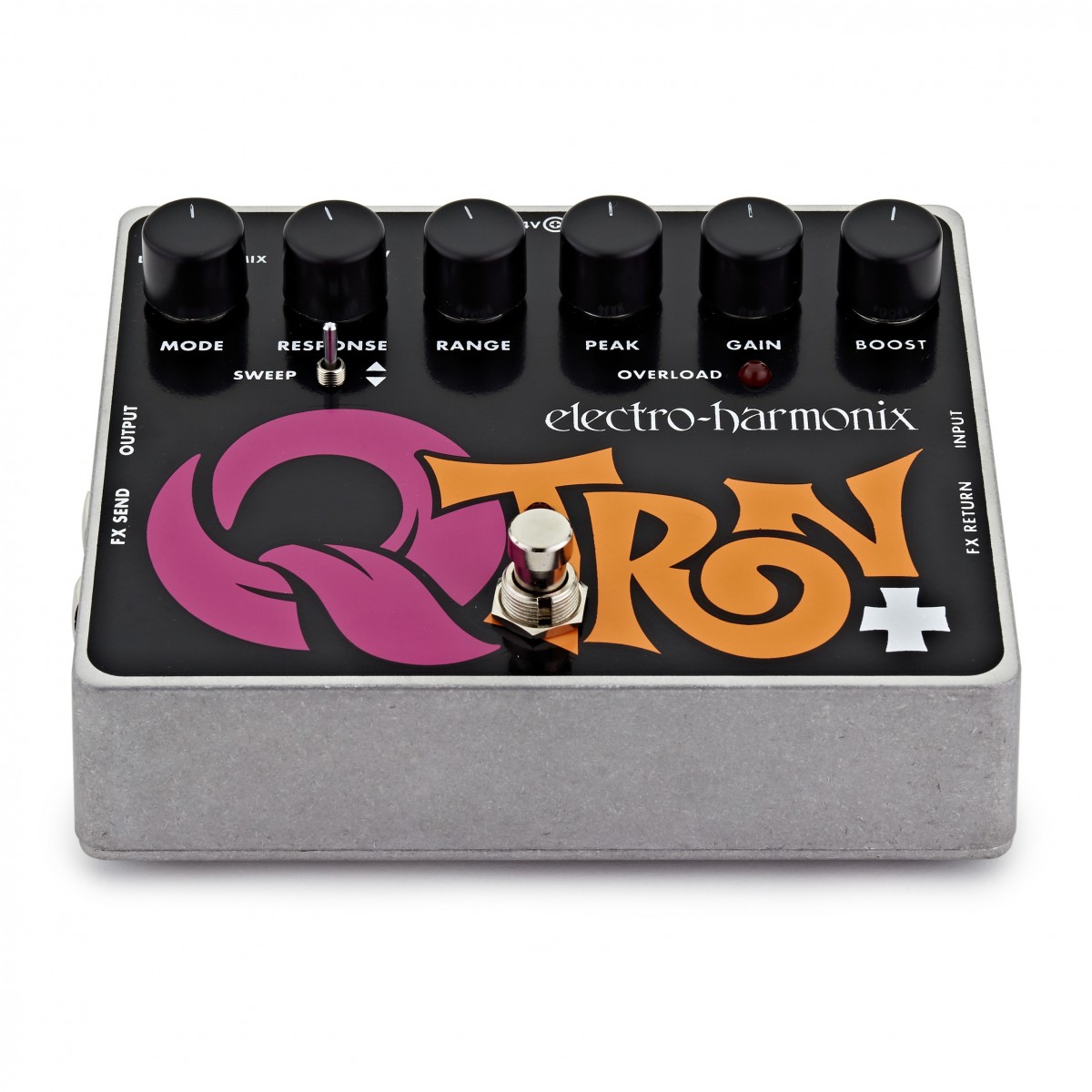

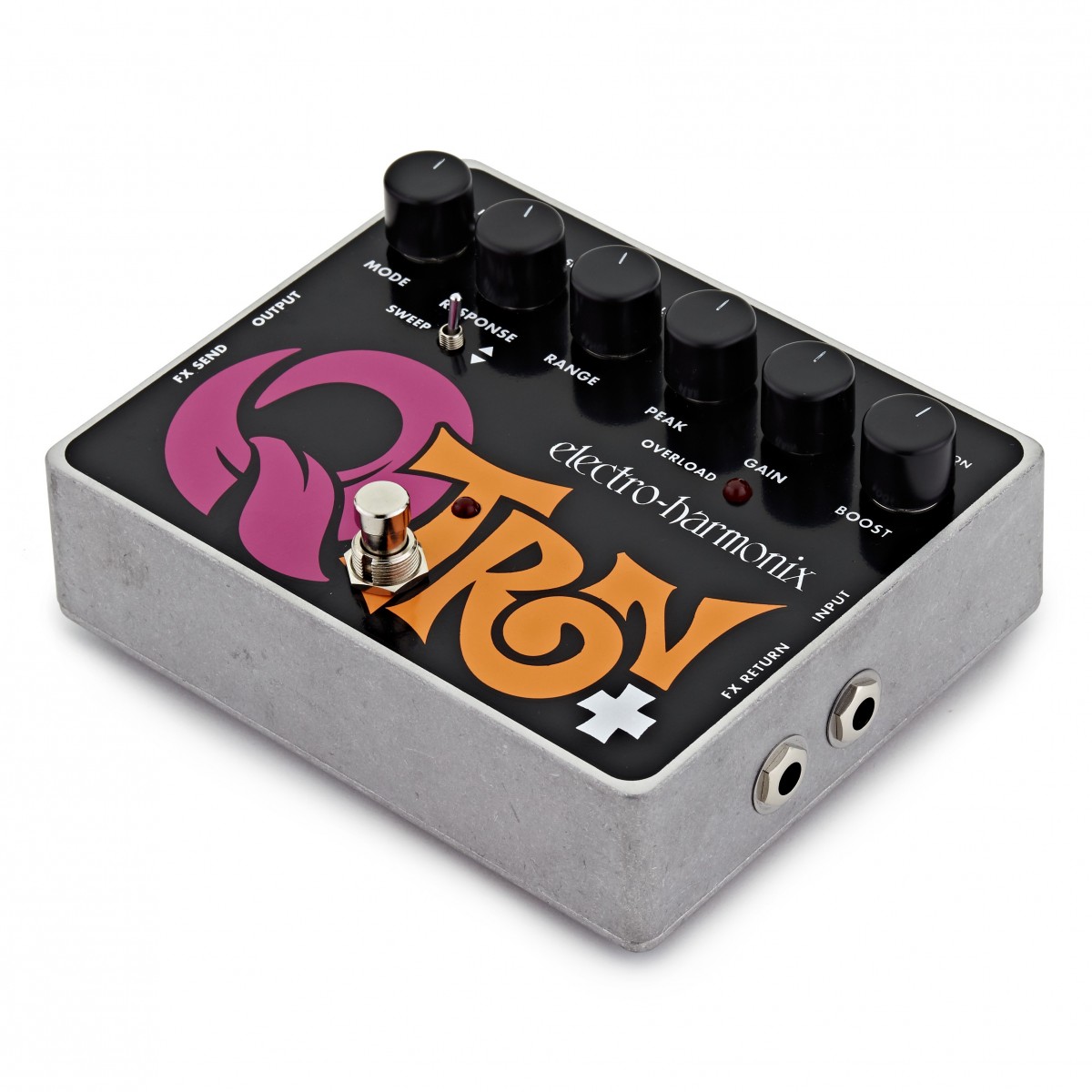

Same design as the original EHX Q-Tron but with extremely useful Effects Loop and an Attack Response Switch. The Effects Loop gives the musician the ability to place an additional effect, or chain of effects between the EHX Q-Tron Plus’s preamp and filter section without changing the envelope drive. This is particularly important with most distortion devices, as most all do not have much of an amplitude envelope. The FX loop will also fire up your creative juices to try all sorts of combinations in the effects loop: try the Micro POG into a Deluxe Memory Man. You can invent all sorts of novel effects. The added Response Switch selects between a slow, smooth, vowel-like attack and the fast, snaked response of the original Q-Tron.

    True bypass
    Dedicated effects loop allows you to place any effect or pedal board into the loop
    FX send and return without changing the envelope drive
    Selectable low pass, band pass and high pass filters
    Resonant peak control to adjust the filter’s Q from subtle to dramatic
    Response switch changes the reaction time of envelope follower from fast to slow
    Switchable hi or lo frequency sweep ranges
    Adjustable gain knob and boost switch
    Sweep direction switch for up or down filter sweeps
    Power adapter included
