Circuit: Analog
Bypass: True Bypass
Audio: Mono
Power Supply: 9V battery included (optional 9.6VDC-200mA power adapter not included)
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 10mA
Year Released: 2017

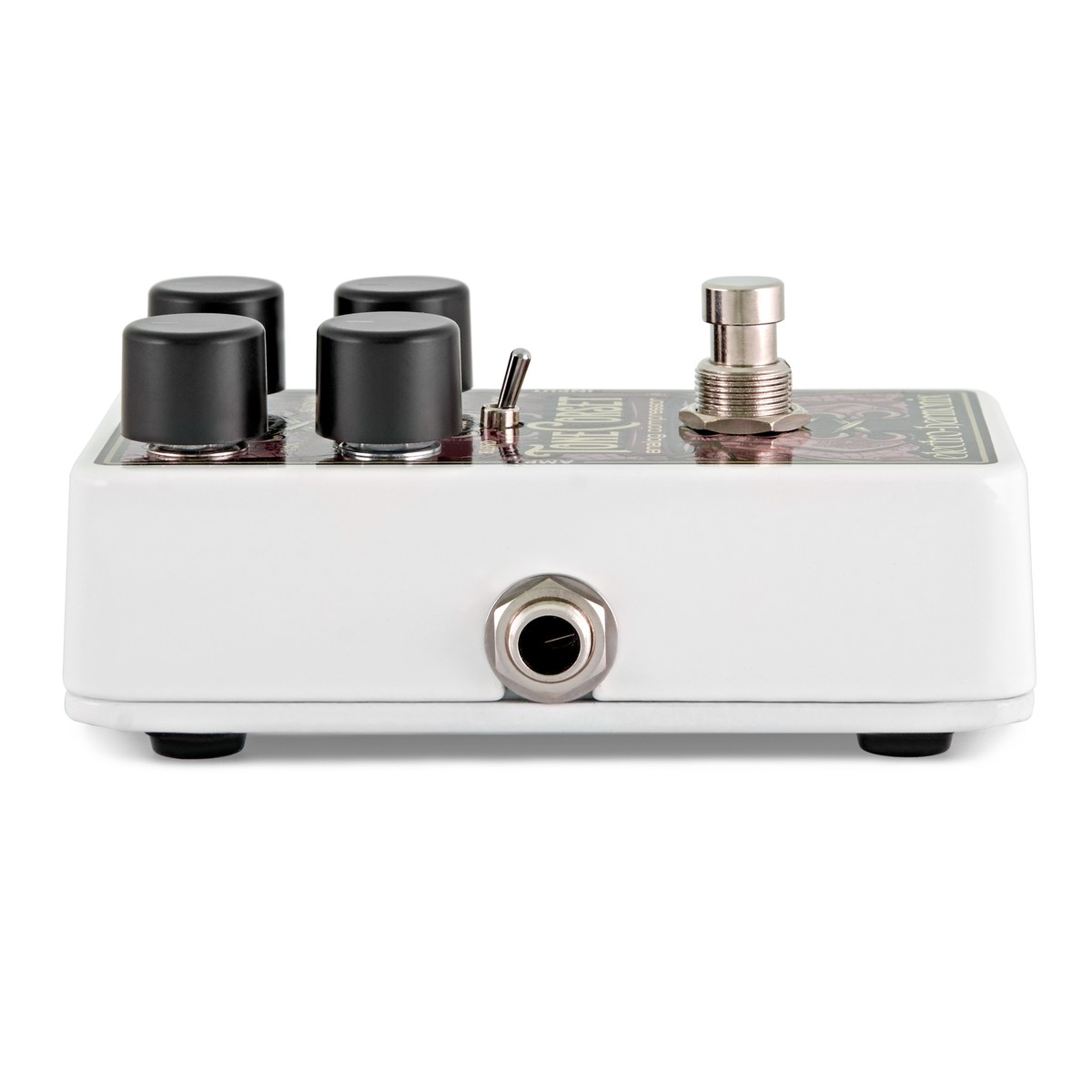

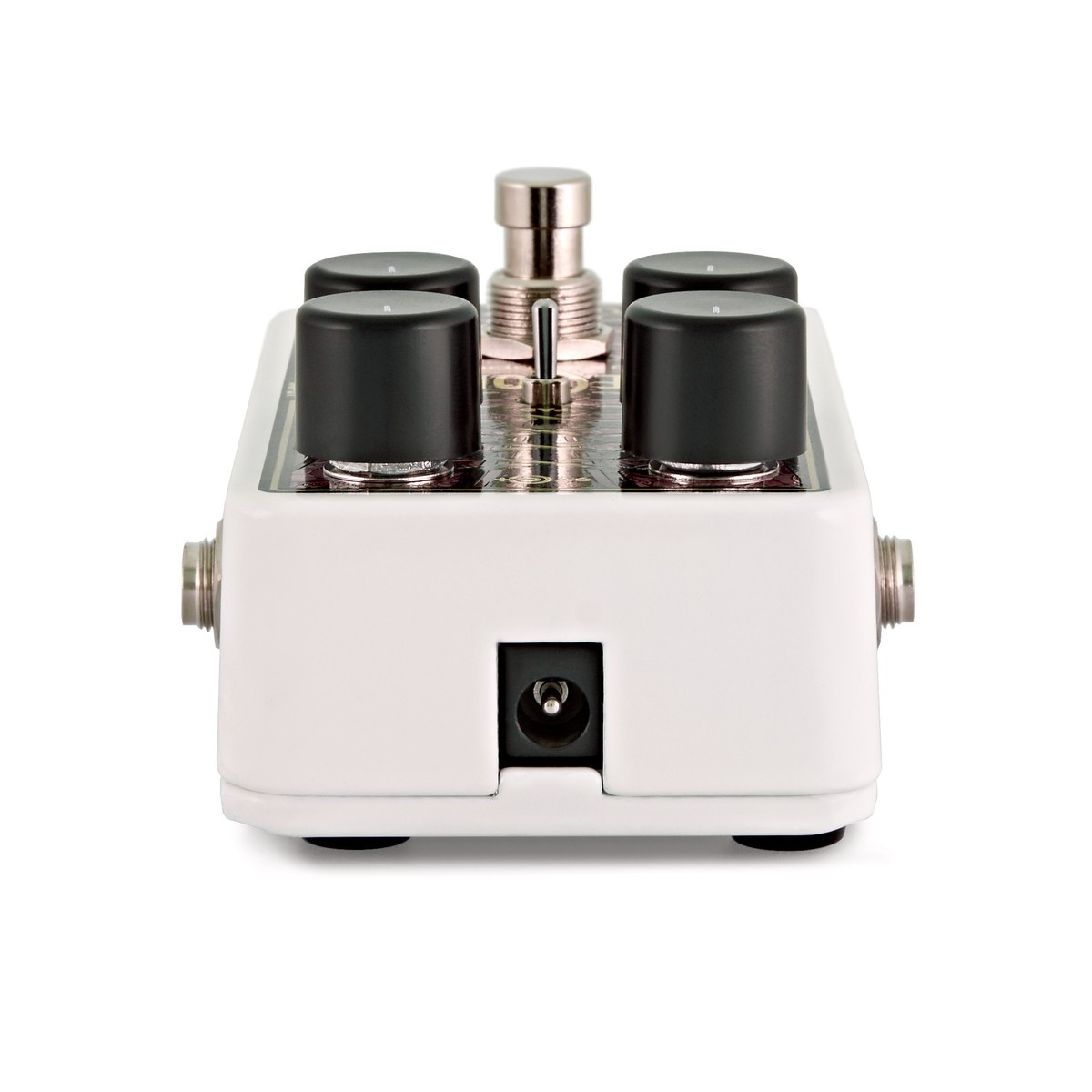

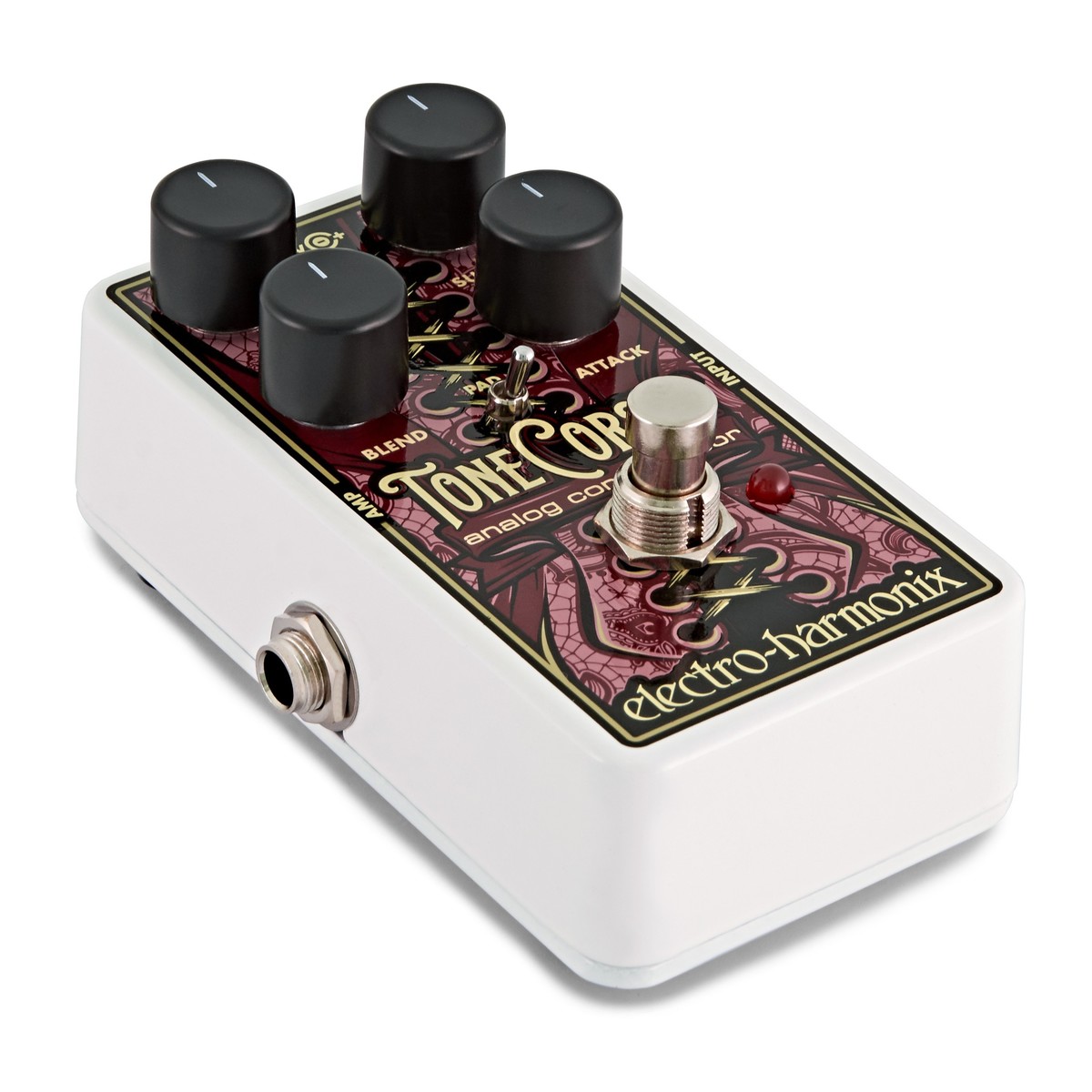

The EHX Tone Corset is a versatile analog compressor featuring a blend control to dial in the purfect amount of parallel compression. In addition to standard Volume and Sustain controls, an Attack control adjusts the response of the compression circuit for increased flexibility. From cowboy plunk to warm and transparent console tones, The Tone Corset fits around any player’s style.

Mike Matthews says, “The Tone Corset is the funkiest analog compressor I ever heard on guitar!”

    Four-knob design provides excellent control and gives the user the ability to precisely shape their instrument’s dynamics
    The Sustain knob controls the amount of compression applied to the guitar signal. As Sustain is turned clockwise compression and sustain increases
    The Attack knob adjusts how quickly the compressor recovers. As Attack is turned clockwise the pedal’s response is slower and more initial pick attack comes through
    The Blend knob adjusts the mix of the dry and compressed signals. As Blend is turned clockwise the signals blends from 100% dry to 100% compressed
    The Pad switch pads down the input signal to prevent undesirable distortion if the Tone Corset is used with high output humbuckers, bass guitar, etc.
    True Bypass for maximum signal path integrity
    9V battery included
