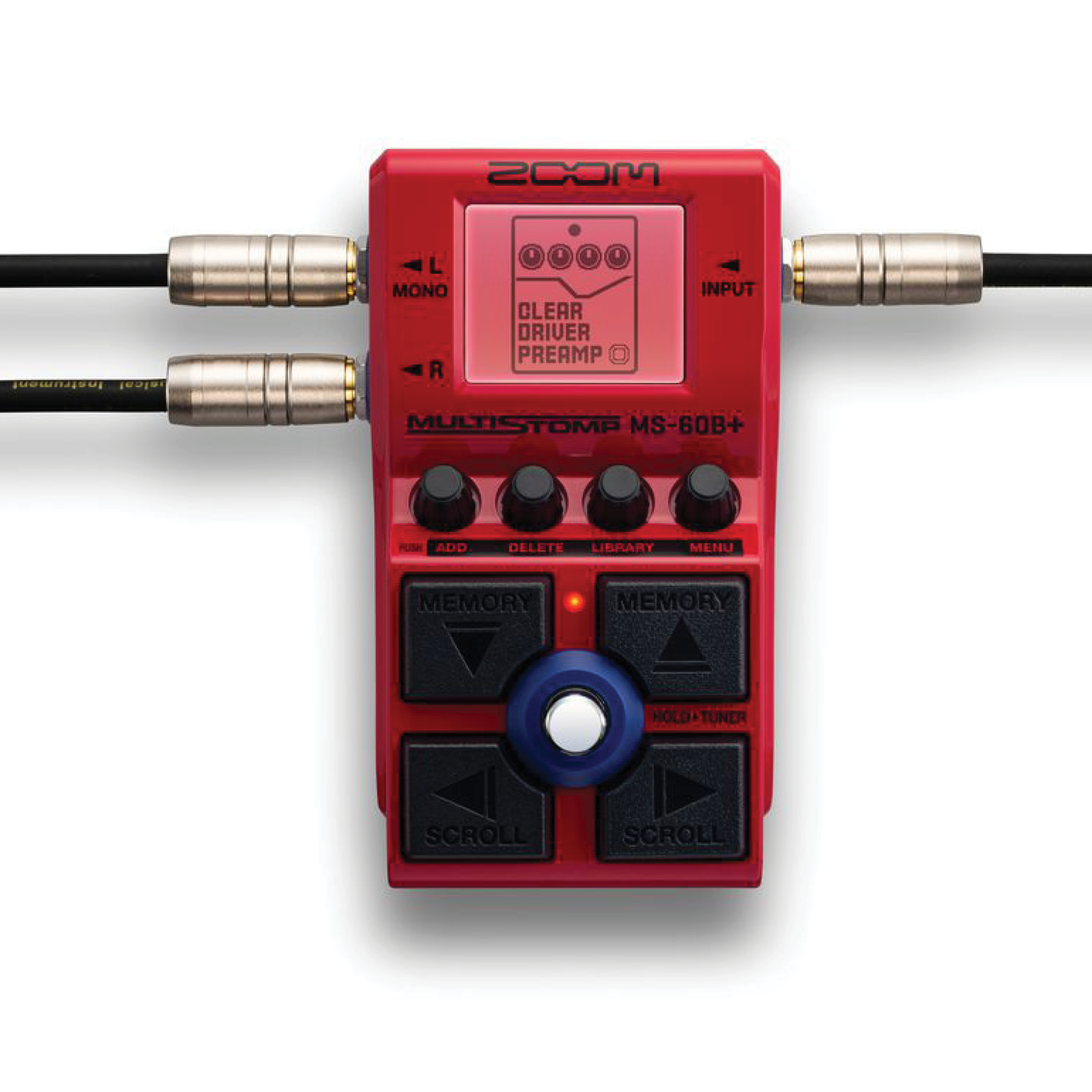

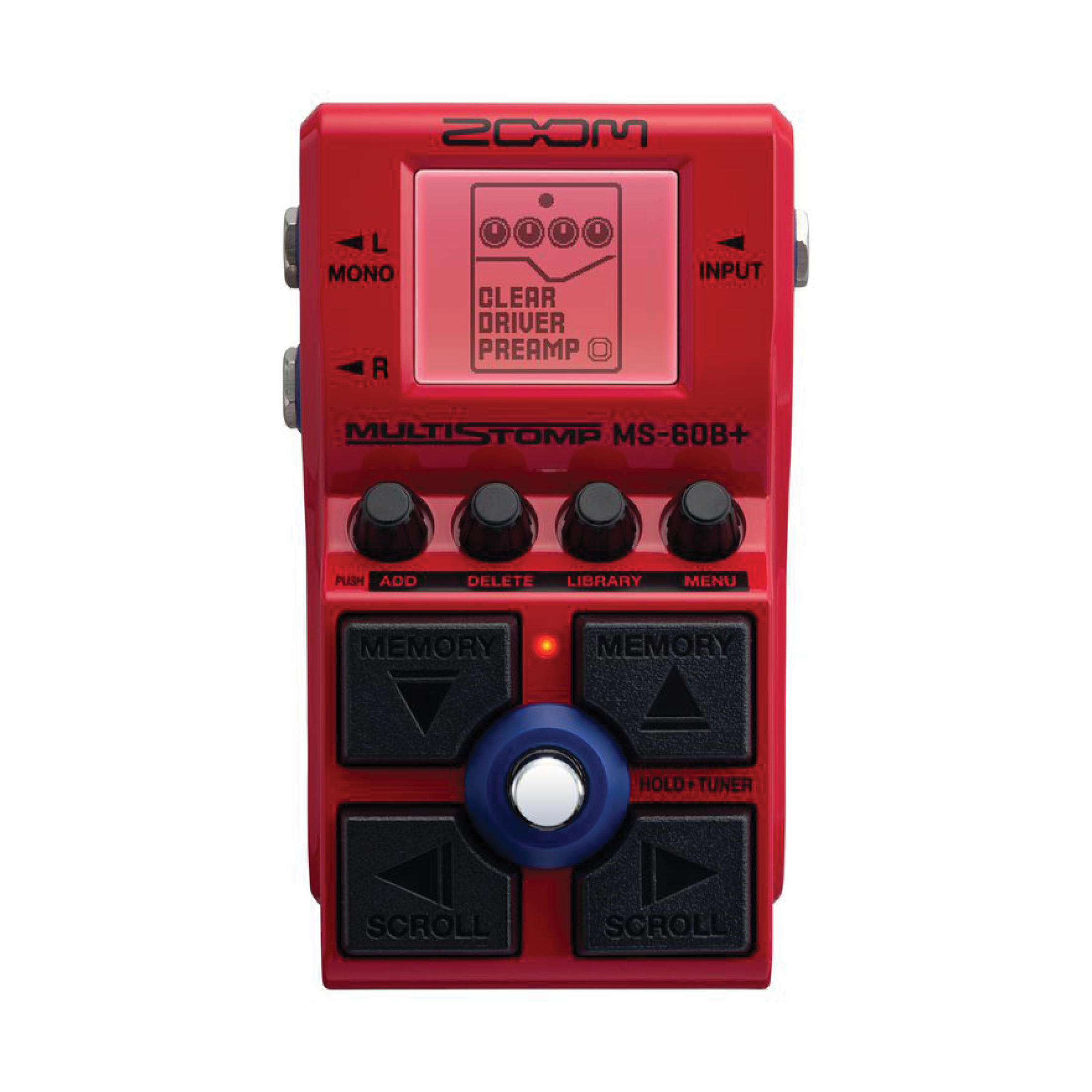

ZOOM MS-60B+
The ZOOM MS-60B+ MultiStomp for Bass
The MS-60B+ is designed to help bassists craft the perfect low-end tone. It features realistic amp models, recreations of renowned preamps and a wide range of effects.
• 95+ Bass effects, including amps, preamps and effects
• 11 preamp models
• 11 realistic amp/cabinet models with Multi-Layer IR
• Use up to 6 effects at the same time
• 100 memory patches (85 factory preset + 15 user)
• Improved analog circuit with minimal sound deterioration
• Single stompbox design
• 4x Cross Key switches (MEMORY / SCROLL) for easy operation by foot
• Improved UI for easier navigation and control
• Stereo output supports split output signals and stereo effects
• LCD backlight that changes color depending on the selected effect category
• USB MIDI Support
• Runs on 2 AA batteries or AC Adapter
• Chromatic tuner supports all standard bass guitar tunings, including open & drop tunings
• Handy Guitar Lab App for iOS
Maximum number of simultaneous effects: 6 effects
User patch memories: 100
Sampling frequency: 44.1 kHz
A/D conversion: 24-bit 128× oversampling
D/A conversion: 24-bit 128× oversampling
Signal processing: 32-bit
Frequency response: 20 Hz – 20 kHz (+0.5 dB/−0.5 dB) (when 10kΩ load)
Display: 160×128 dot-matrix LCD
Input
INPUT: Standard mono phone jack Rated input level: −20 dBu Input impedance (line): 470 kΩ
Outputs
L/R: Standard mono phone jack Maximum output level: +7.2 dBu (when output impedance 10 kΩ or higher)
Input S/N: 122 dB
Noise floor (residual noise)
L/R: –100 dBu

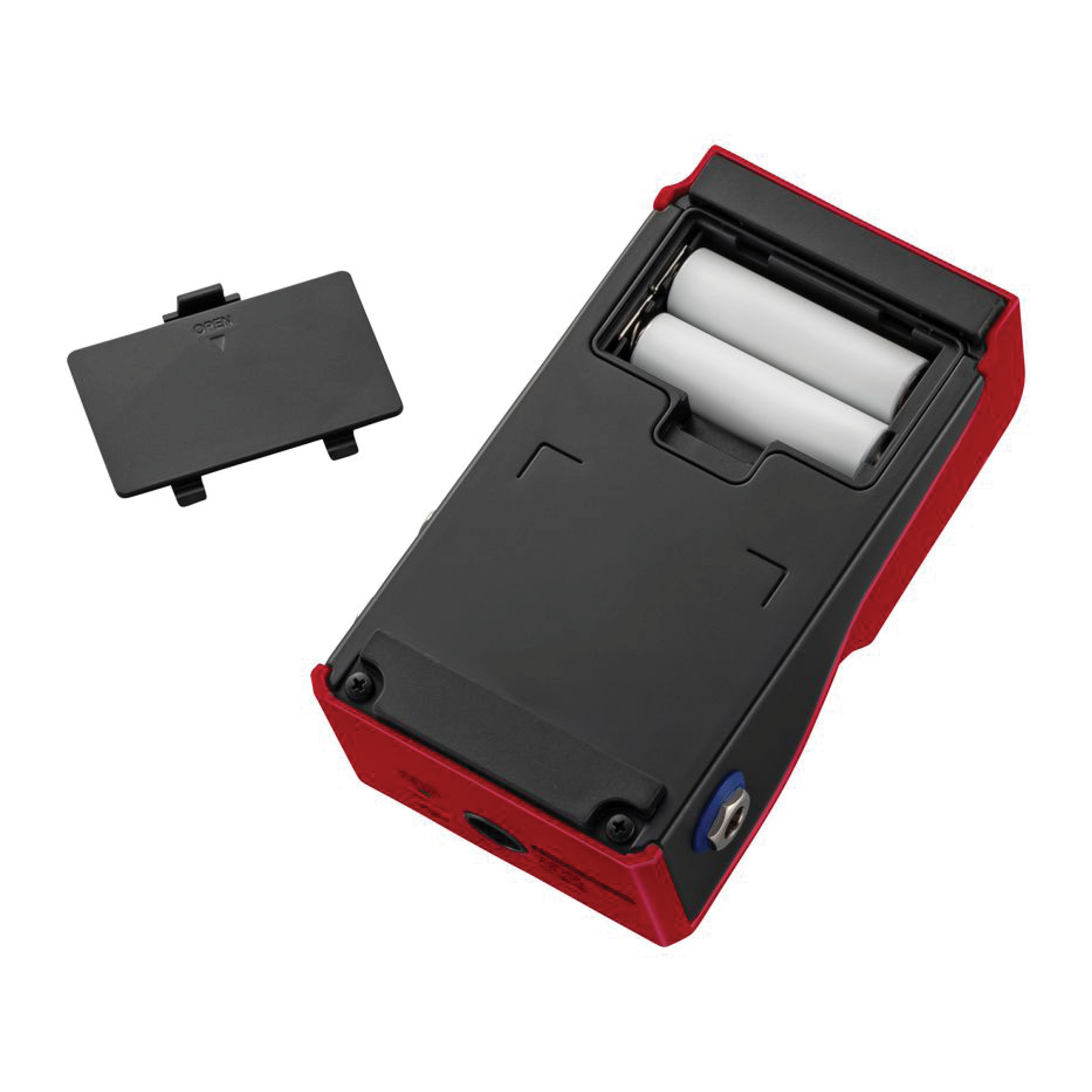

Power: AC adapter: 9V DC 500mA center negative (ZOOM AD-16) 2 AA batteries (alkaline, lithium or rechargeable NiMH batteries)
Estimated operation times using batteries
• These values are approximate. • Battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.
• Alkaline batteries: about 7 hours NiMH batteries (1900 mAh): about 6.5 hours Lithium batteries: about 14 hours
USB: Port: USB 2.0 Type-C / Supported cable type: Type-C Handy Guitar Lab: USB 1.1 Full Speed • Use a USB cable that supports data transfer. USB bus power is supported.
Dimensions: 133 mm (D) × 79 mm (W) × 61 mm (H)
Weight: 353 g (excluding batteries) 400 g (including batteries)
*Note: 0 dBu = 0.775 V
