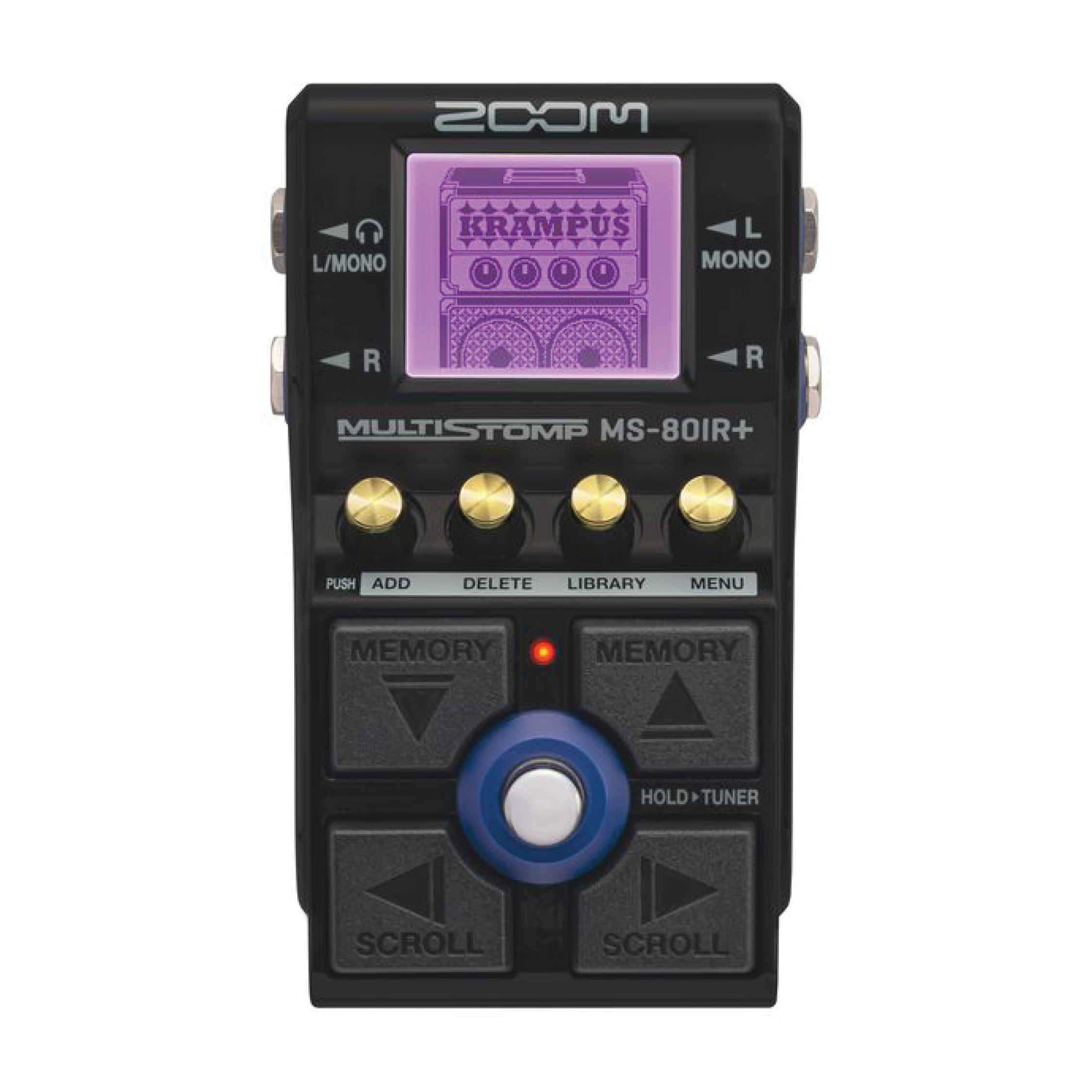

• 23 guitar Amp/Cabinet models developed with Multi-Layer IR technology
• 5 Studio Sounds effects to add natural reverb to your tone
• 12 additional effects, including noise gates, EQ’s, and delays
• Create and save 80 unique memory patches
• 4x Cross Key switches (MEMORY / SCROLL) for easy operation by foot
• Stereo input (both active and passive instruments supported)
• Stereo output for connection to amps, speaker or headphones
• Output splitting lets you send signals with and without IR’s simultaneously
• Chromatic tuner supports all standard guitar tunings, including open & drop tunings
• 2-IN / 2-OUT Audio Interface function (via built-in USB-C port)
• IR load function for speaker cabinet simulation
• Runs on 2 AA batteries or AC Adapter
• Handy Guitar Lab for MS-80IR+ App (iOS)

Maximum number of simultaneous effects: 1 amplifier, 1 studio ambience and 1 other effect
User patch memories: 80
Sampling frequency: 44.1 kHz
A/D conversion: 24-bit 128× oversampling
D/A conversion: 24-bit 128× oversampling
Signal processing: 32-bit
Frequency response: 20 Hz - 20 kHz (+0.5 dB/-0.5 dB) (when 10kΩ load)
Display: 160×128 dot-matrix LCD
Inputs:
L / R:
• Standard mono phone jacks
• Rated input level: −20 dBu
• Input impedance (line): 470 kΩ
Outputs:
L / MONO / Headphone
• Standard stereo phone jacks (combined line/headphone)
• Maximum output level: +7.2 dBu (when output impedance 10 kΩ or higher)
• Maximum output level: 20 mW + 20 mW (when 32Ω load)
R
• Standard mono phone jacks
• Maximum output level: +7.2 dBu (when output impedance 10 kΩ or higher)
Input S/N: 122 dB
Noise floor (residual noise):
L / R
• –100 dBu
Power:
• AC adapter: 9V DC 500mA center negative (ZOOM AD-16)
• 2 AA batteries (alkaline, lithium or rechargeable NiMH batteries)
• USB bus power is supported.
Estimated operation times using batteries:
• Alkaline batteries: about 3.5 hours (about 3 hours using stereo input)
• NiMH batteries (1900 mAh): about 4 hours (about 3.5 hours using stereo input)
• Lithium batteries: about 7.5 hours (about 6.5 hours using stereo input)
• These values are approximate. • Battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.
USB:
• Port: USB 2.0 Type-C
• Supported cable type: Type-C
• Handy Guitar Lab: USB 1.1 Full Speed
• Audio interface: USB 2.0 Full Speed, 44.1kHz/32-bit, 2 in 2 out
• Use a USB cable that supports data transfer.
Dimensions: 133 mm (D) × 79 mm (W) × 61 mm (H)
Weight:
• 369 g (excluding batteries)
• 416 g (including batteries)
