ZOOM MS-70CDR+
Šifra: 18795
The MS-70CDR+ gives musicians 149 spatial effects ranging from lush choruses to crystal-clear delays to atmospheric reverbs. This single stompbox can shape your tone and provide endless depth and textures.
| Maximum number of simultaneous effects | 6 effects | |
| User patch memories | 100 | |
| Sampling frequency | 44.1 kHz | |
| A/D conversion | 24-bit 128× oversampling | |
| D/A conversion | 24-bit 128× oversampling | |
| Signal processing | 32-bit | |
| Frequency response | 20 Hz - 20 kHz (+0.5 dB/-0.5 dB) (when 10kΩ load) | |
| Display | 160×128 dot-matrix LCD | |

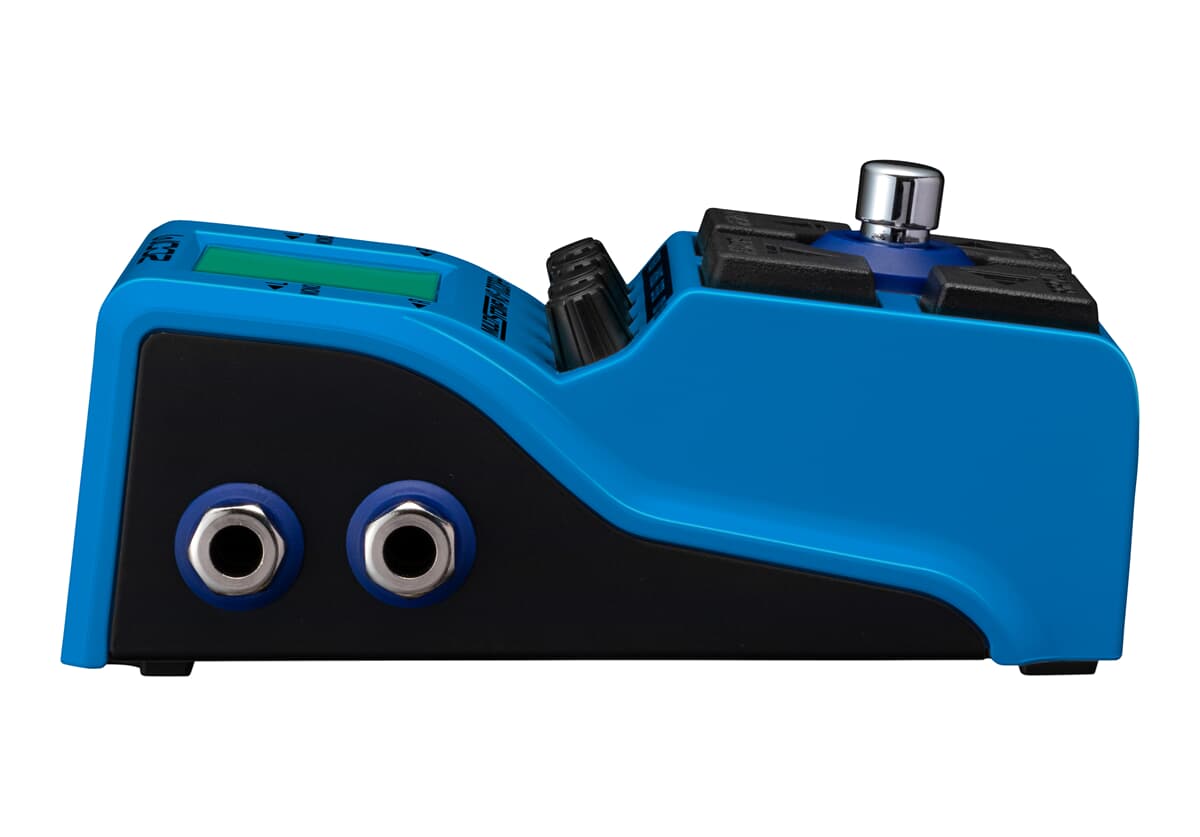

| Inputs | L/R | Standard mono phone jacks Rated input level: −20 dBu Input impedance (line): 470 kΩ |
| Outputs | L/R | Standard mono phone jacks Maximum output level: +7.2 dBu (when output impedance 10 kΩ or higher) |
| Input S/N | 122 dB | |
| Noise floor (residual noise) | L/R | –100 dBu |

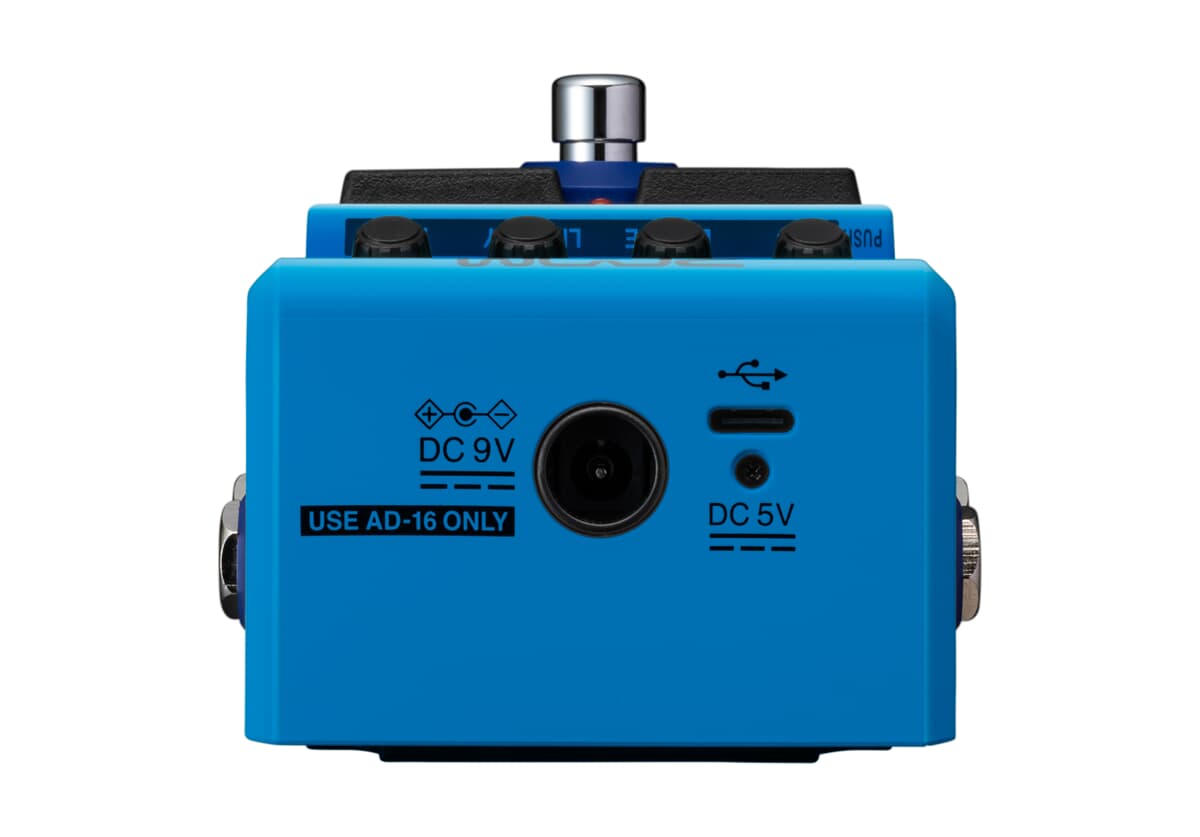

| Power | AC adapter: 9V DC 500mA center negative (ZOOM AD-16) 2 AA batteries (alkaline, lithium or rechargeable NiMH batteries) | |
| Estimated operation times | • These values are "approximate. • Battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions." | Alkaline batteries: about 7 hours (about 5 hours using using batteries) NiMH batteries (1900 mAh): about 6.5 hours (about 5 hours using stereo input) Lithium batteries: about 14 hours (about 10 hours using stereo input) |
| USB | Port: USB 2.0 Type-C / Supported cable type: Type-C Handy Guitar Lab: USB 1.1 Full Speed • Use a USB cable that supports data transfer. USB bus power is supported. | |
| Dimensions | 133 mm (D) × 79 mm (W) × 61 mm (H) | |
| Weight | 368 g (excluding batteries) 415 g (including batteries) |
140+ guitar and bass effects, including modulation, chorus, delay, and reverb
Use up to 6 effects at the same time
100 Patch slots with 80 presets
Analog circuit with minimal sound deterioration
Single stompbox design
Stereo input and output supports effects like stereo chorus and delays
4x Cross Key switches (MEMORY / SCROLL) for easy operation by foot
Improved UI for easier navigation and control
Color coded LCD backlight for selected effect category

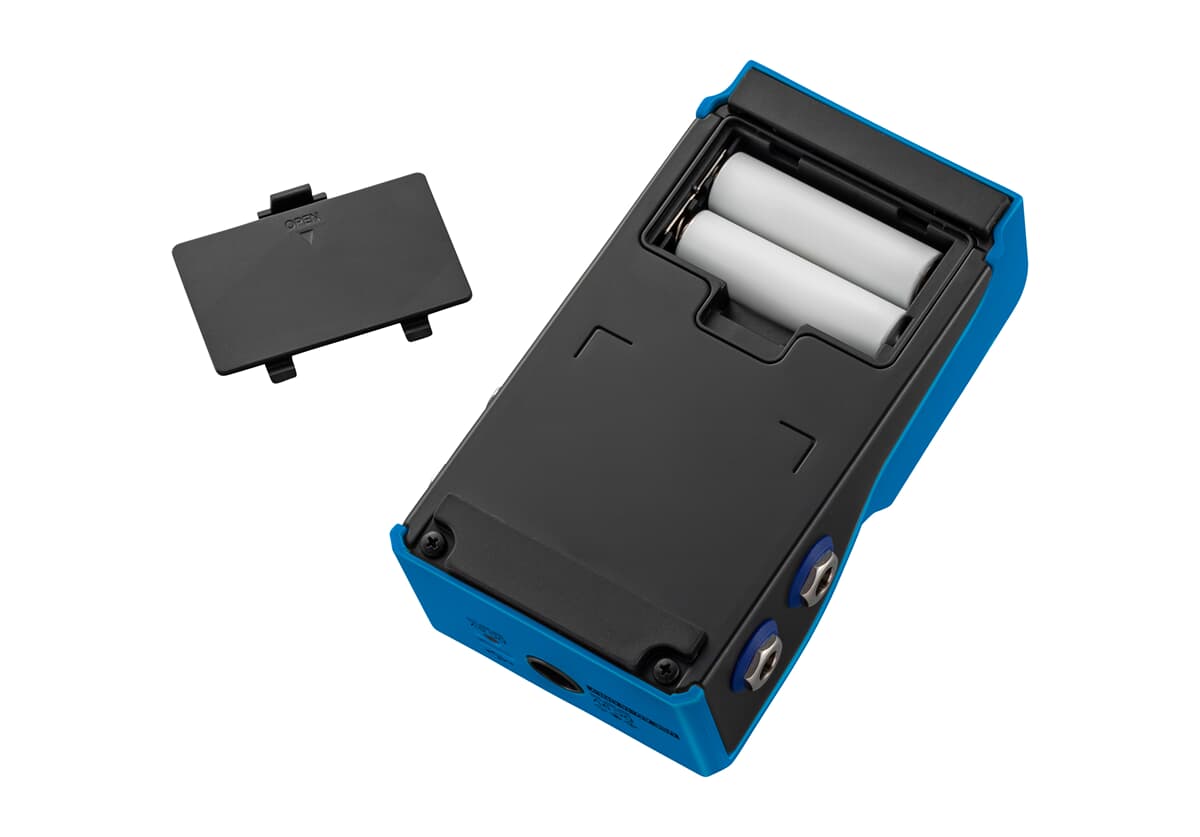

Runs on 2 AA batteries or AC Adapter
