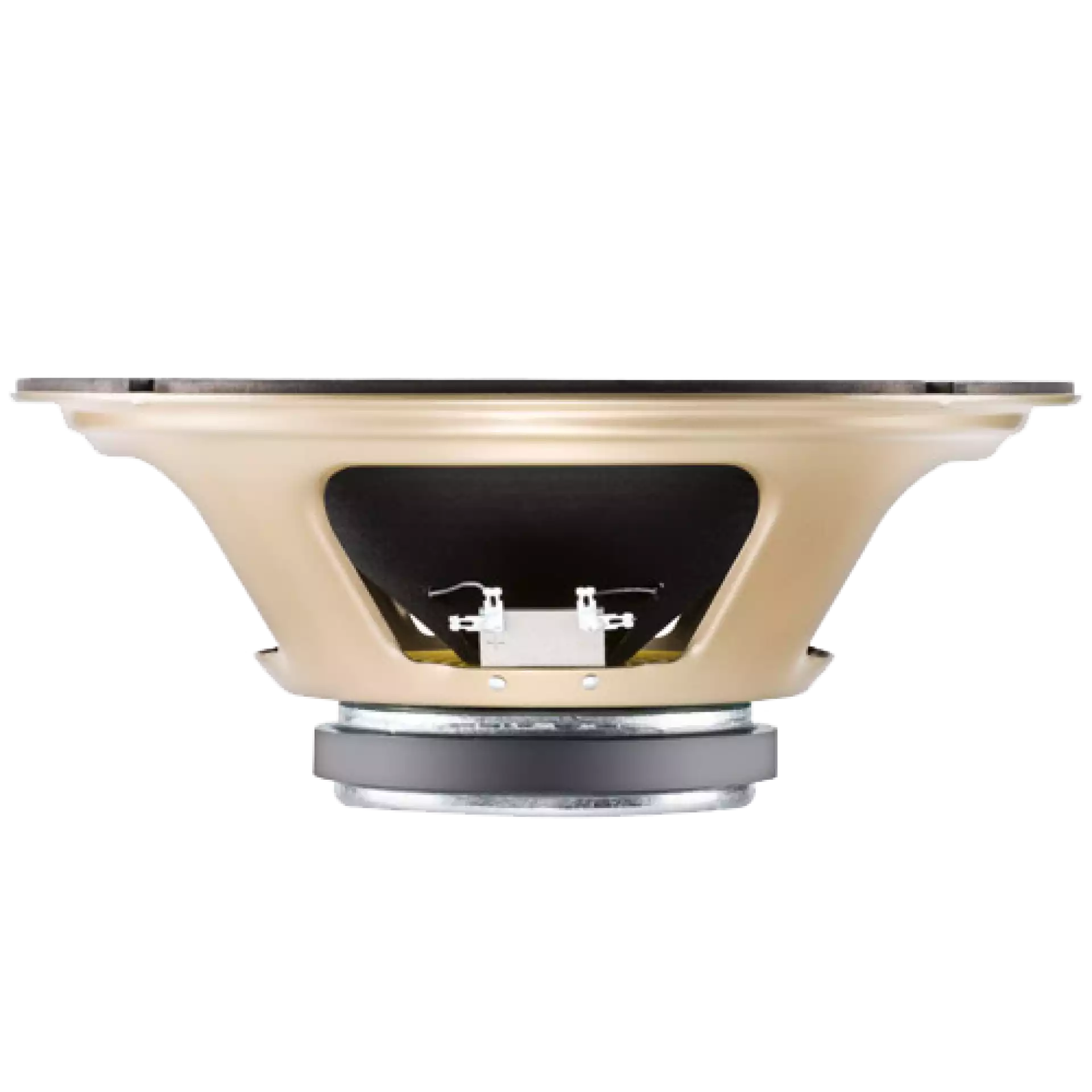

CELESTION G12 V-Type 16 Ohm
Šifra: 11762
11.880,00 rsd
9.900,00 rsd (Bez PDV-a)
Iznos rate:
Prikazana cena je za komad.
Garantujemo najnižu cenu!
Combining decades of experience with advanced measurement and analysis, the V-Type has been built using a carefully balanced 'recipe' of old and new design techniques.
General Specifications
Nominal diameter
12", 305mm
Power rating
70Wrms
Nominal impedance
Available 8Ω or 16Ω
Sensitivity
98dB
Chassis type
Pressed steel
Voice coil diameter
1.75", 44.5mm
Voice coil material
Round copper
Magnet type
Ceramic
Magnet weight
31oz, 0.88Kg
Frequency range
70-5000 Hz
Resonance frequency, Fs
75Hz
DC resistance, Re
Available 7.3Ω or 12.9Ω
Mounting Information
Cut-out diameter
11.1", 283mm
Diameter
12.2", 309mm
Magnet structure diameter
5.3”, 134mm
Mounting slot dimensions
0.31", 7.9mm Ø
Mounting slot PCD
11.7", 297mm
Number of mounting slots
8
Overall depth
4.84”, 123mm
Unit weight
7.2lb, 3.3kg
