The new M-DAC+ is a high-performance, multi-purpose audio DAC (Digital-to-Analogue Converter) for home use, designed to sit on a desk or table, or integrate into a hi-fi system. It incorporates a highly specified, audiophile-quality digital preamplifier and Class A output stage for connection to a power amp and speakers (the output can be fixed for those who wish to use an existing preamp or integrated amp), in addition to a high-quality output for headphone use.
"The Audiolab M-DAC+ gets an awful lot right – so much, in fact, it comfortably justifies its ‘+’ designation. Lavishly detailed, fastidiously organised and elegantly straight-edged in its sound, it absolutely demands an audition."
Hi Fi Choice May 2016
"It delivers a great sound for its price, one that is balanced and refined yet powerful and immersive"
Hi-Fi World June 2016
"It's a great piece of design work and sounds wonderful too, even breathtaking"
Hi-Fi News June 2016
"Merely Superb"
The Finest DAC Circuitry
Like the M-DAC, the M-DAC+ incorporates the ES9018 Sabre Reference 32-bit DAC chipset, still widely regarded as the finest available. This is surrounded by exceptionally well-specified circuitry that puts other similarly priced DACs to shame, including a proprietary, discrete master clock to minimise jitter, coupled with extensive time domain isolation. A JFET Class A output stage ensures that the audio signal, following conversion from the digital domain to analogue, is of the highest quality.
High Performance with DSD
Under the hood lie a number of performance-related enhancements. The M-DAC+ now processes audio data up to 32-bit/384kHz via USB; this is a far higher specification than that required by current hi-res music formats, ensuring this new, premium-quality addition to the M-DAC family is fully equipped for future advances in ultra-high definition digital sound. The USB input now also accepts DSD files (the digital audio system originally developed for Super Audio CD), offering compatibility with DSD64, DSD128 and DSD256. This is a significant addition, as DSD has an important role to play in the developing high-resolution digital download scene.
Adjustable sound for all Sources
As digital audio technology has progressed, the importance of the characteristics of reconstruction digital filters has become more appreciated. Like the classic M-DAC, the M-DAC+ features user-selectable filters for optimal listening and measurement modes, in addition to more conventional types for easy comparison. These filter settings allow the user to tune performance to suit his or her preference, depending on system configuration, digital file quality and musical taste. The M-DAC+ inherits seven filter settings from the M-DAC for PCM files and adds four more for DSD playback, allowing the user to optimise the noise floor to suit the performance of the source file and the bandwidth of associated equipment such as amps and speakers.
Enhanced Sonic Performance
Another important change relates to the power supply, which has been upgraded and is now incorporated within the M-DAC+’s chassis (hence its slightly taller and deeper case compared to the classic M-DAC). A precision-wound toroidal transformer uses multiple windings to feed separate analogue and digital rectification stages. From there, multiple power supply sections feed the necessary voltages to each area of the DAC, keeping any crossover interference to a minimum. The result is the highest performance power supply Audiolab engineers have yet specified for a DAC, and its contribution to the M DAC+’s enhanced sonic performance is significant.
|
DAC |
ESS Sabre32 9018 chip |
|
Sampling Rate |
32-bit / 192kHz (Optical, Coaxial, AES) 32-bit / 384kHz (USB) |
|

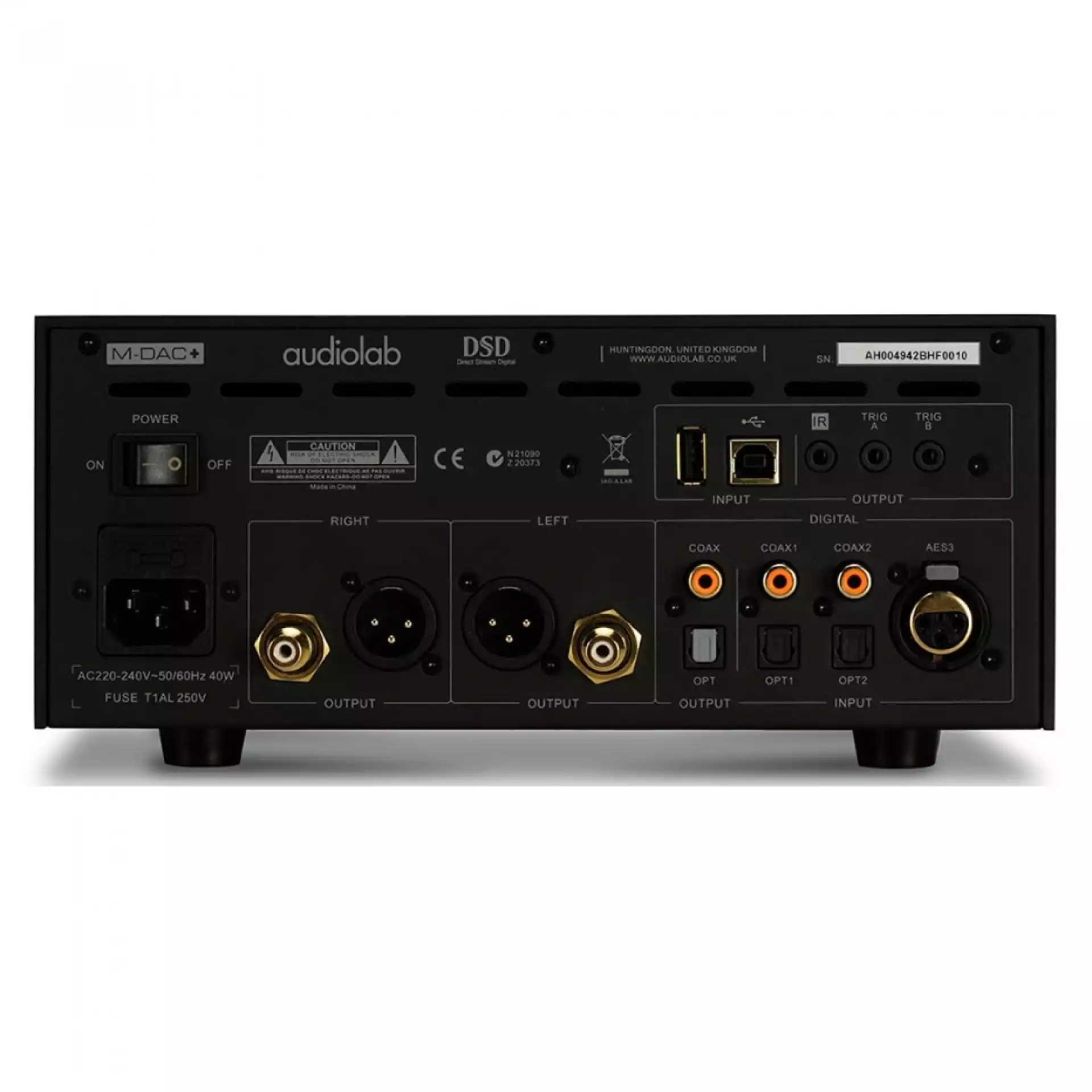

Digital Input |
2 x Coaxial 2 x Toslink Optical ,br> 1 x AES/EBU 1 x USB for PC USB 1x USB for iPod/iPhone/iPad |
|
Digital Output |
1 x Coaxial 1 x Toslink Optical |
|
Output Voltage |
Balanced: 4.5V RMS Unbalanced: 2.25V RMS |
|
Output Impedance |
Balanced: 20Ω Unbalanced: 10Ω |
|
Frequency Response |
20Hz - 20KHz (± 0.2dB) |
|
Signal to Noise Ratio |
RCA: > -115dB, XLR: > -120dB |
|
Dynamic Range |
RCA: > 115dB, XLR: > 120dB |
|
Crosstalk |
RCA: > 120dB, XLR: > 130dB |
|
Colour |
Silver |
|
Dimensions |
114mm x 247mm x 292mm |
|
Net Weight |
3.7kg |
