Eversolo DAC-Z6 DAC i pojačalo za slušalice
Garantujemo najnižu cenu!
The Eversolo DAC-Z6 DAC and Headphone Amplifier is perfect for producing high-quality sound, featuring a built-in headphone driver circuit suited for a wide collection of HiFi headphones anywhere from 16 - 300 ohm. Powered by a dual ES9068 DAC chip, the DAC-Z6 minimises the noise floor to 6dB and offers crisp quality audio. Fitted with the third-generation XMOS XU316 processor, the DAC-Z6 is capable of rapid processing speeds and lossless transmission to enable a hi-res listening experience.
Enjoy optimal sample processing thanks to the two low-jitter dual clock oscillators. The DAC-Z6 also supports PCM768@32bit, DSD512 Native, and even MQA full decoding which lets you hear the music as the artist intended. As well as headphones, you can connect multiple audio devices via USB, coaxial, and optical inputs along with RCA and XLR outputs. With the integrated Qualcomm QCC5125 Bluetooth 5.0 module, the DAC-Z6 supports AAC, aptX, aptX LL, and aptX HD audio codecs and establishes reliable, wireless connectivity to your smart devices. You will also have total control over navigation and source selection thanks to the multifunctional dial and exclusive Eversolo Controller app. Whether it's your headphones, CD player, or speakers, the DAC-Z6 will envelop you in thrilling sound.
What's in the box?
1 x Remote control
1 x Power cable
1 x User manual
| Model | EverSolo DAC-Z6 |
|---|---|
| Display Screen | 3-inch LCD screen |
| Chassis | Aluminum Alloy |
| DAC Audio | ES 9068*2 |
| Audio Processor | XMOS XU316 |
| OPA Chip | RT 6863*6 |
| Power Supply | High quality switching power supply with low noise |
| Bluetooth Audio Input | Qualcomm QCC5125 Bluetooth module, BT5.0
Support SBC/AAC/aptX/aptX LL/aptX HD/LDAC Bluetooth protocol |
| USB-B DAC Input | Compatible with Windows (7, 10)
Mac Android and IOS Up to stereo DSD512 PCM 768KHz 32Bit MQA |
| USB-C DAC Input | Compatible with Windows (7, 10)
Mac Android and IOS Up to stereo DSD512 PCM 768KHz 32Bit MQA |
| OPTICAL Audio Input | Up to stereo PCM 192Khz 24Bit
DSD64 Do MQA |
| COAXIAL Audio Input | Up to stereo PCM 192Khz 24Bit
DSD64 Dop MQA |

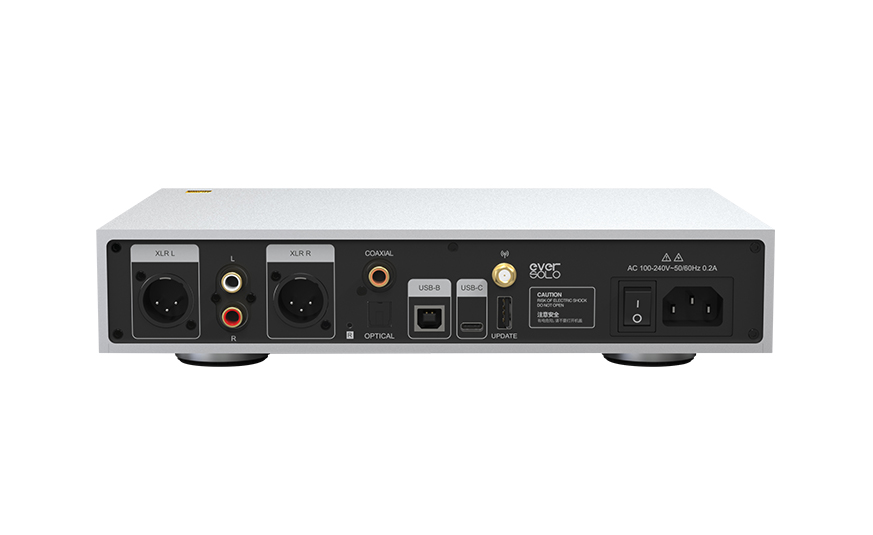

| Analog Audio Output | Preamp output: XLR(balanced)+RCA
Headphone output: 6.3mm single-ended |
| USB Port | USB2.0*1?only for firmware upgrade |
| Control Methods | Remote control
Mobile APP control Knob control |
| Headphone Impedance | 16-300Ω (low gain mode:16-32Ω/high gain mode:32-300Ω) |
| XLR Audio Output | Output Level(Vrms): 4.1Vrms@0dBFS
THD+N@A-wt: 0.000094 @1kHz?-120dB@1kHz THD+N@No-wt: 0.000117 @1kHz?-118dB@1kHz Noise@No-wt: <3uVrms SNR)@No-wt:125@1kHz Frequency response: 20Hz-20kHz(±0.15dB) CROSSTALK: -123dB@1kHz DNR)@No-wt:125dB@1kHz |
| RCA Audio Output | Output Level(Vrms): 2.1Vrms@0dBFS
THD+N@A-wt: 0.000116 @1kHz(-118dB@1kHz) THD+N@No-wt: 0.000138 @1kHz(-117dB@1kHz) Noise@No-wt <2.5uVrms SNR)@No-wt: 21dB@1kHz Frequency response: 20Hz-20kHz(±0.15dB CROSSTALK: -118dB@1kHz DNR)@No-wt: 121dB@1kHz |
| Headphone (low gain mode) | Output Level(Vrms)?1.2Vrms@0dBFS
Max Power: 45 mW@32Ω THD+N@A-wt: 0.00028 @1kHz(-111dB@1kHz) THD+N@No-wt: 0.00031 @1kHz(-110dB@1kHz) Noise@No-wt: <3.5uVrms SNR)@No-wt: 114dB@1kHz Frequency response: 20Hz-20kHz(±0.15dB) DNR)@No-wt: 114dB@1kHz |
| Headphone (high gain mode) | Output Level(Vrms): 2.8Vrms@0dBFS
Max Power: 26 mW@300Ω THD+N@A-wt: 0.00014 @1kHz(-117dB@1kHz) THD+N@No-wt: 0.00016 @1kHz(-116dB@1kHz) Noise@No-wt: <3.5uVrms SNR)@No-wt: 121dB@1kHz Frequency response: 20Hz-20kHz(±0.15dB) DNR)@No-wt: 121dB@1kHz |
| Power Input | AC 110 240V 50/60Hz |
| Rated power | 9W |
| Product Dimensions | 270mm(W) x 187mm(D) x 50mm(H) |
