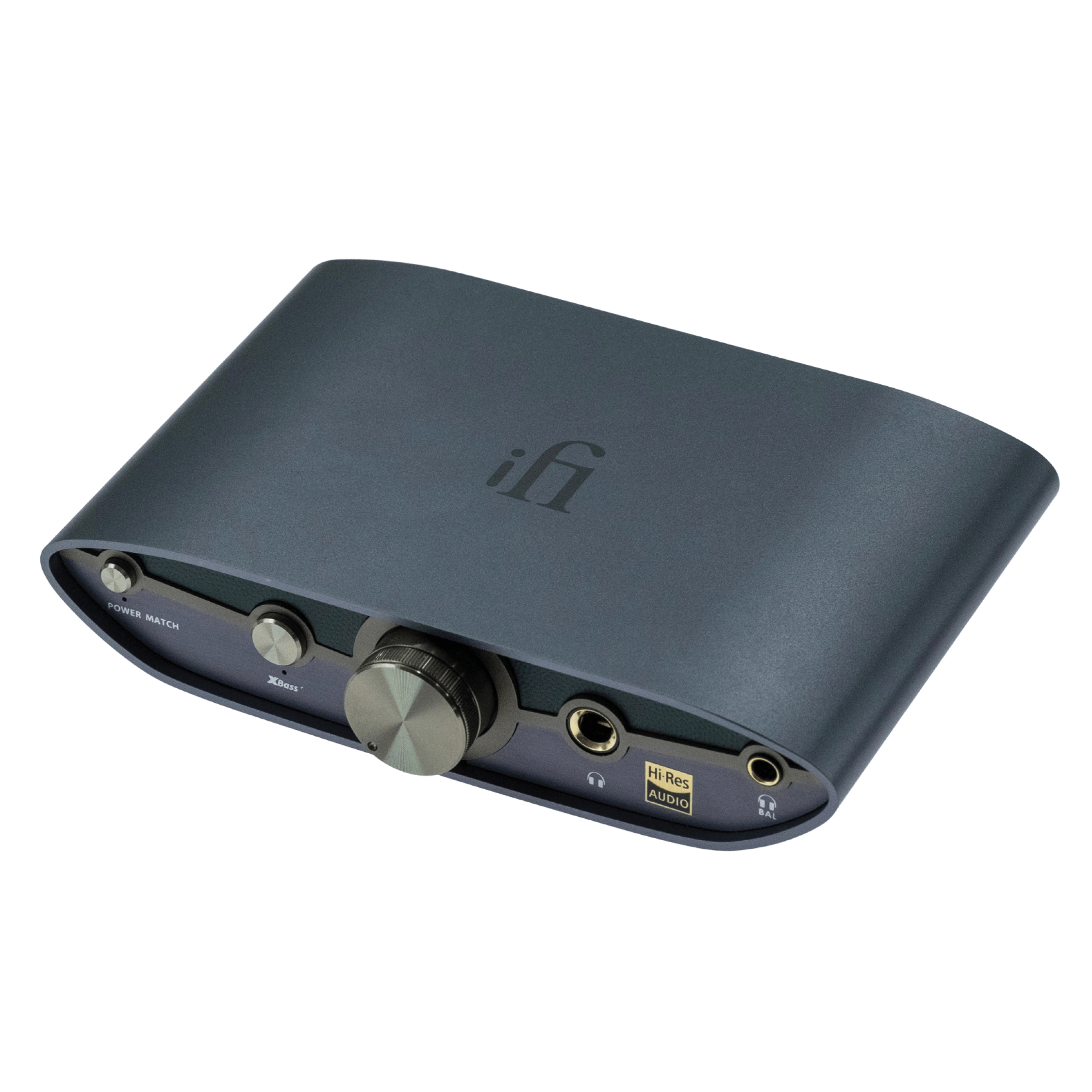

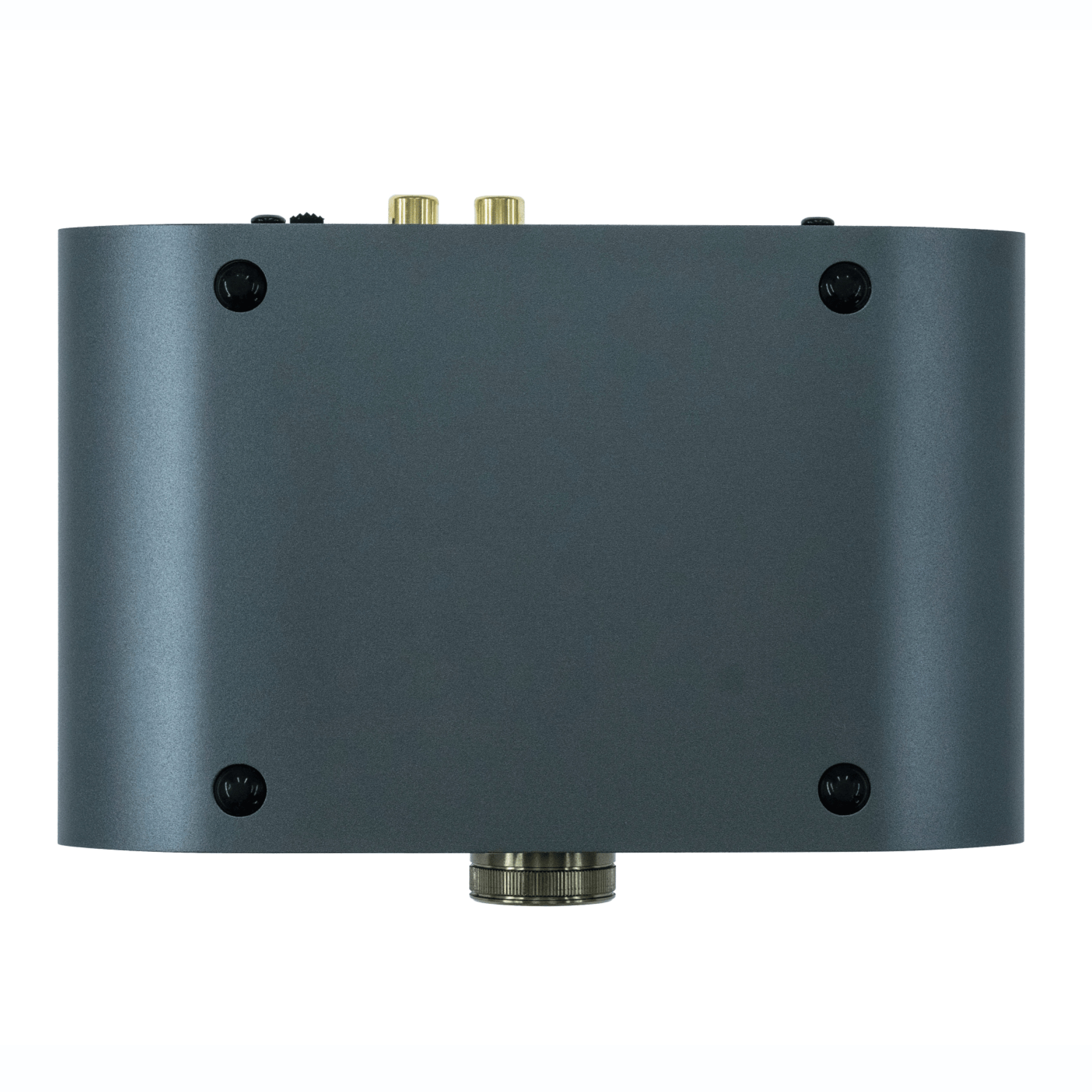

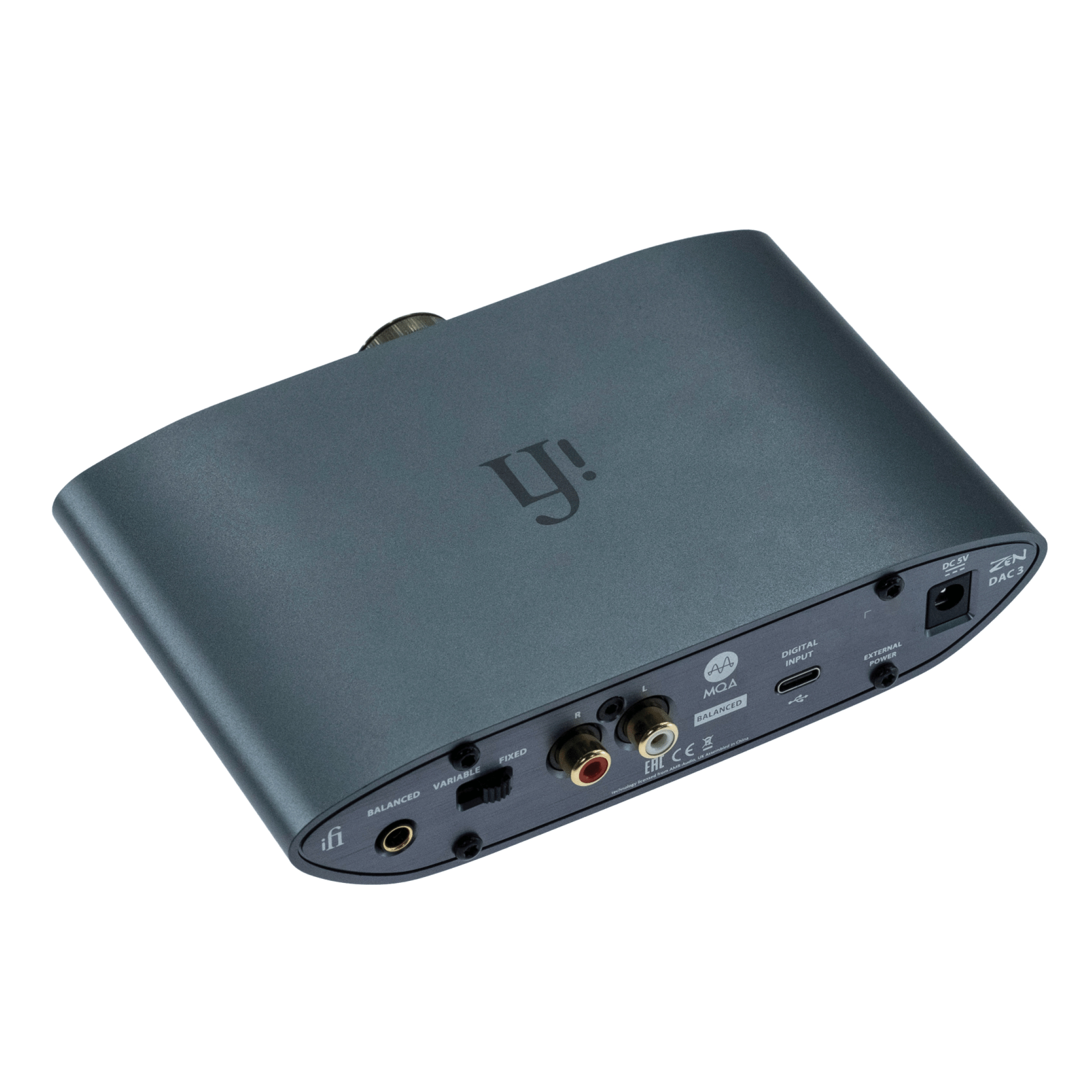

Ifi Audio ZEN DAC 3
*Cena sa popustom može da se ostvari ukoliko se plaća gotovinski, virmanom (preko računa) ili odmah debitnom i kreditnom karticom.
Garantujemo najnižu cenu!
- Svetogorska 9, Beograd
This multi award-winning desktop DAC delivers high-end, Hi-Fi performance to your headphones and speakers - all in a simple, plug-and-play design.
Specifications
DAC Bit-Perfect DSD & DXD DAC by Burr Brown
DIMENSIONS 158 x 115 x 35mm (6.2” x 4.6” x 1.4”)
DNR Line Section:
≥ 113dBA @ 0dBFS
Headphone Section:
≥ 109dBA @ 0dBFS (6.2V 4.4mm / 3.3V 6.35mm)
FORMATS SUPPORTED PCM (768/705.6/384/352.8/192/176.4/96/88.2/48/44.1kHz)
DSD (512/256/128/64)
DXD (768/705.6/384/352.8kHz)
MQA (Decoder)
FREQUENCY RESPONSE 5Hz – 90kHz (±3dB)
GAME CONSOLE COMPATIBILITY SONY PS5 and Nintendo Switch
“SONY” is registered trademark or trademark of Sony Group Corporation.
“PS5” is registered trademark or trademark of Sony Interactive Entertainment Inc.
Nintendo Switch™ is trademark of Nintendo.
INPUT USB Type-C
MAXIMUM OUTPUT POWER Headphone Section:
BAL 4.4mm: >70mW @ 600Ω; >300mW @ 32Ω
Single-Ended 6.35mm: >18mW @ 600Ω; >210mW @ 32Ω
NET WEIGHT 456g (1.0 lbs)
OUTPUT IMPEDANCE Line Section:
Balanced 4.4mm ≤200Ω; Single-Ended RCA ≤100Ω
Headphone Section:
≤1Ω
POWER CONSUMPTION No Signal ~0.5W; Max Signal ~2.5W
RMS OUTPUT POWER Headphone Section:
BAL 4.4mm: >390mW @ 64Ω
Single-Ended 6.35mm: >18mW @ 600Ω; >210mW @ 32Ω
THD+N Line Section:
BAL 4.4mm: <0.0015% @ 0dBFS
Single-Ended 6.35mm: <0.003% @ 0dBFS
Headphone Section:
BAL 4.4mm: <0.005% (2V @ 600 Ω)
Single-Ended 6.35mm: <0.013% (1.27V @ 32Ω)@ 32Ω
POWER SUPPLY REQUIREMENT USB-C or DC 5V/0.5A (centre +ve)
