Ifi Audio ZEN DAC V2
*Cena sa popustom može da se ostvari ukoliko se plaća gotovinski, virmanom (preko računa) ili odmah debitnom i kreditnom karticom.
Garantujemo najnižu cenu!
- Futoški put 1, Novi Sad
- Cara Dušana 85, Niš
- Svetogorska 9, Beograd

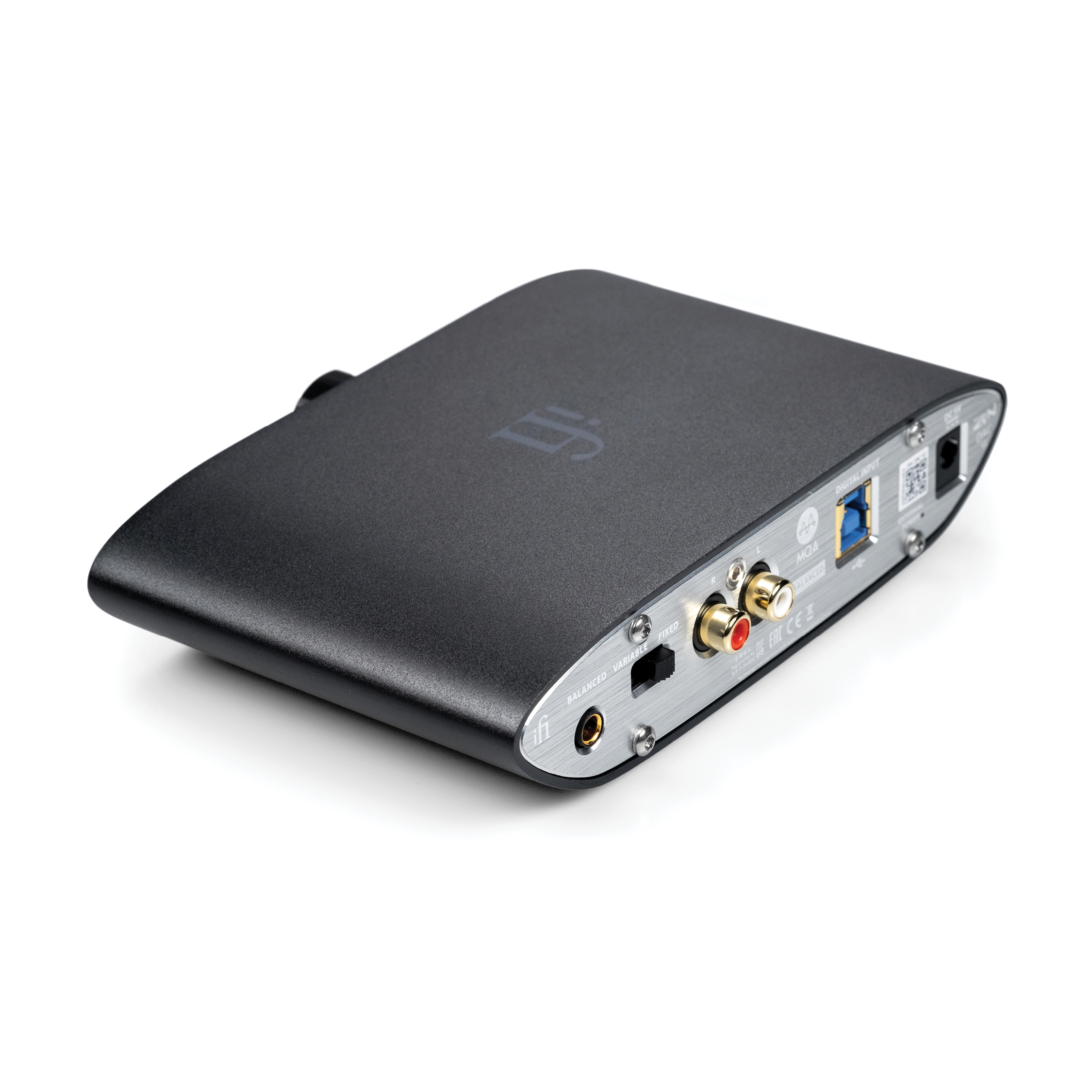

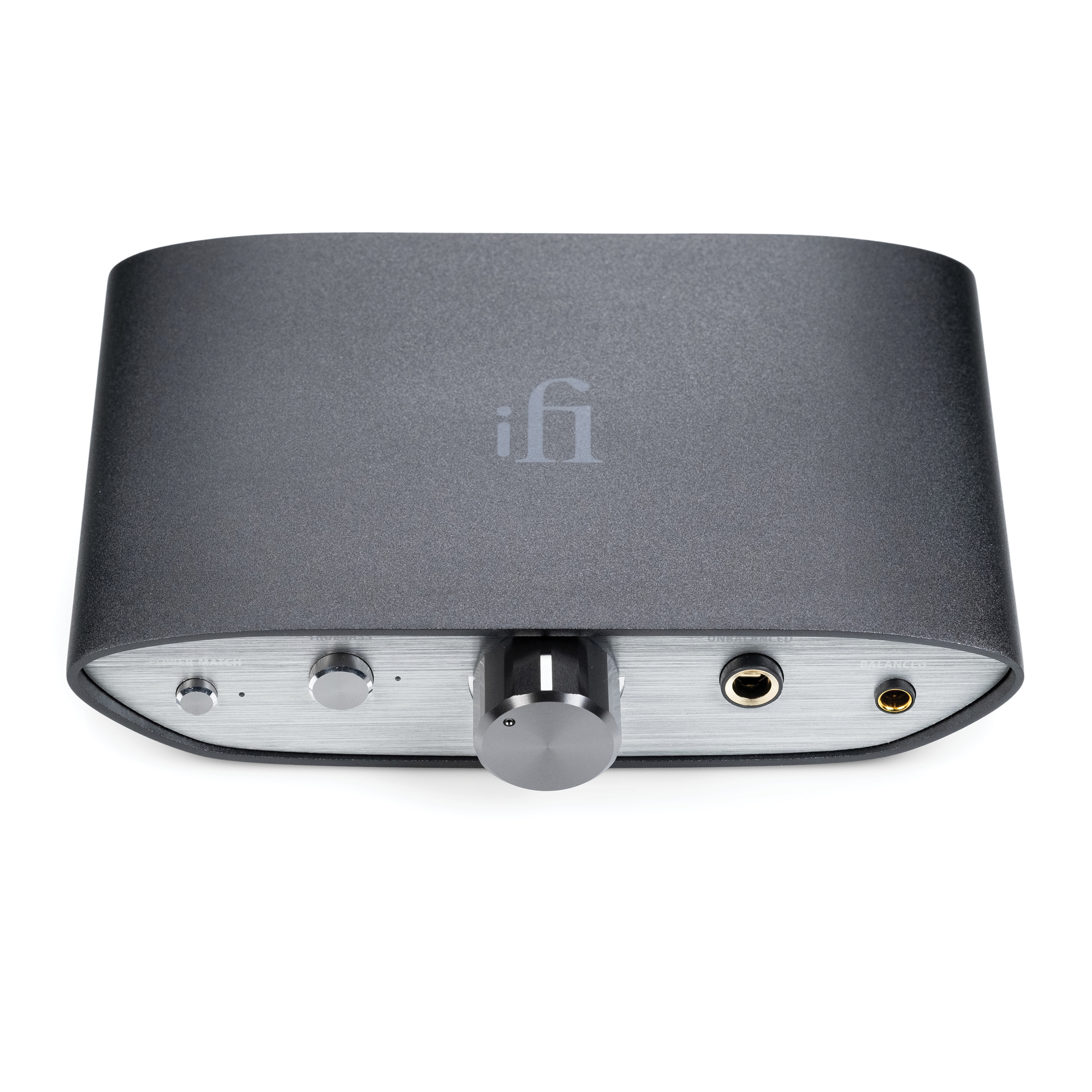

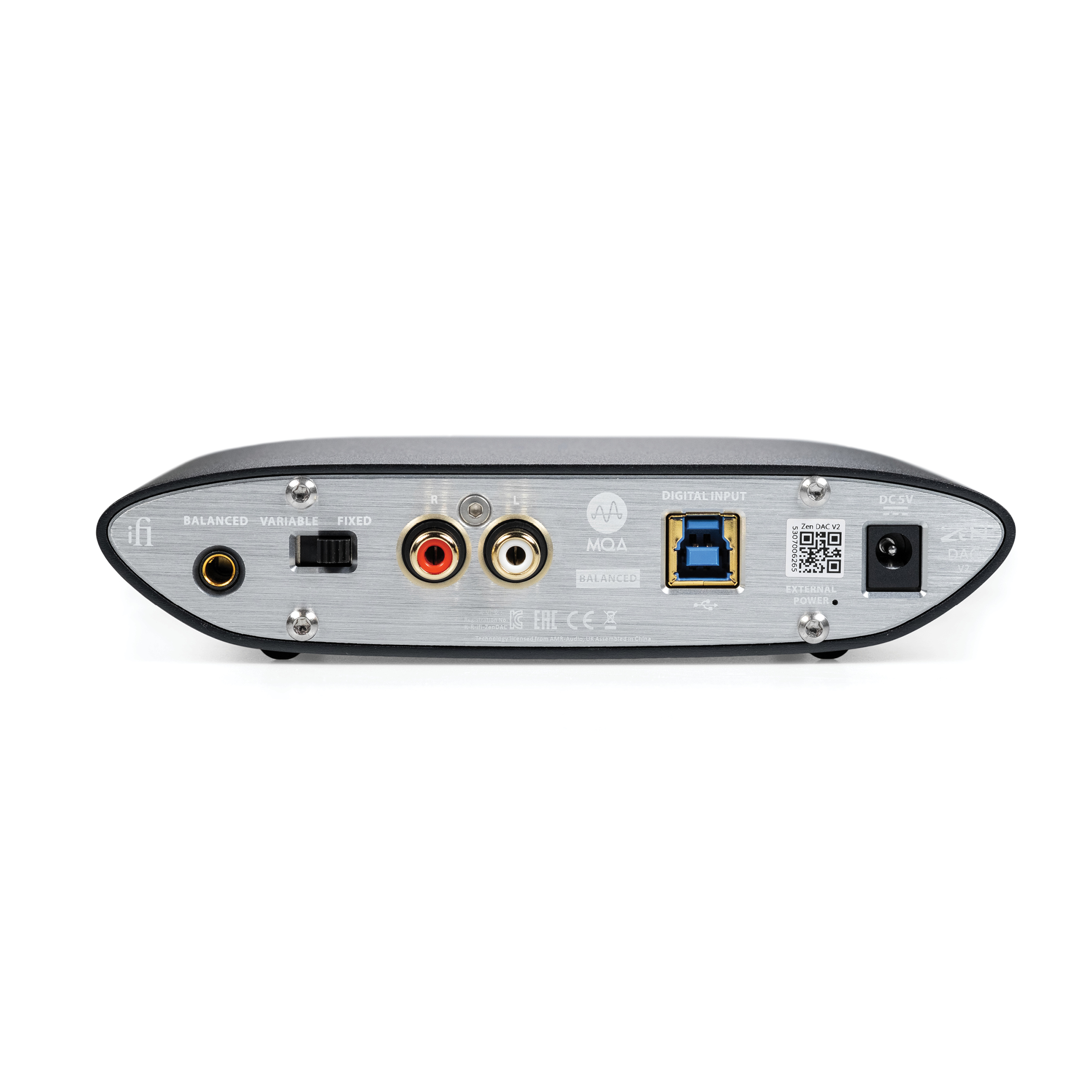

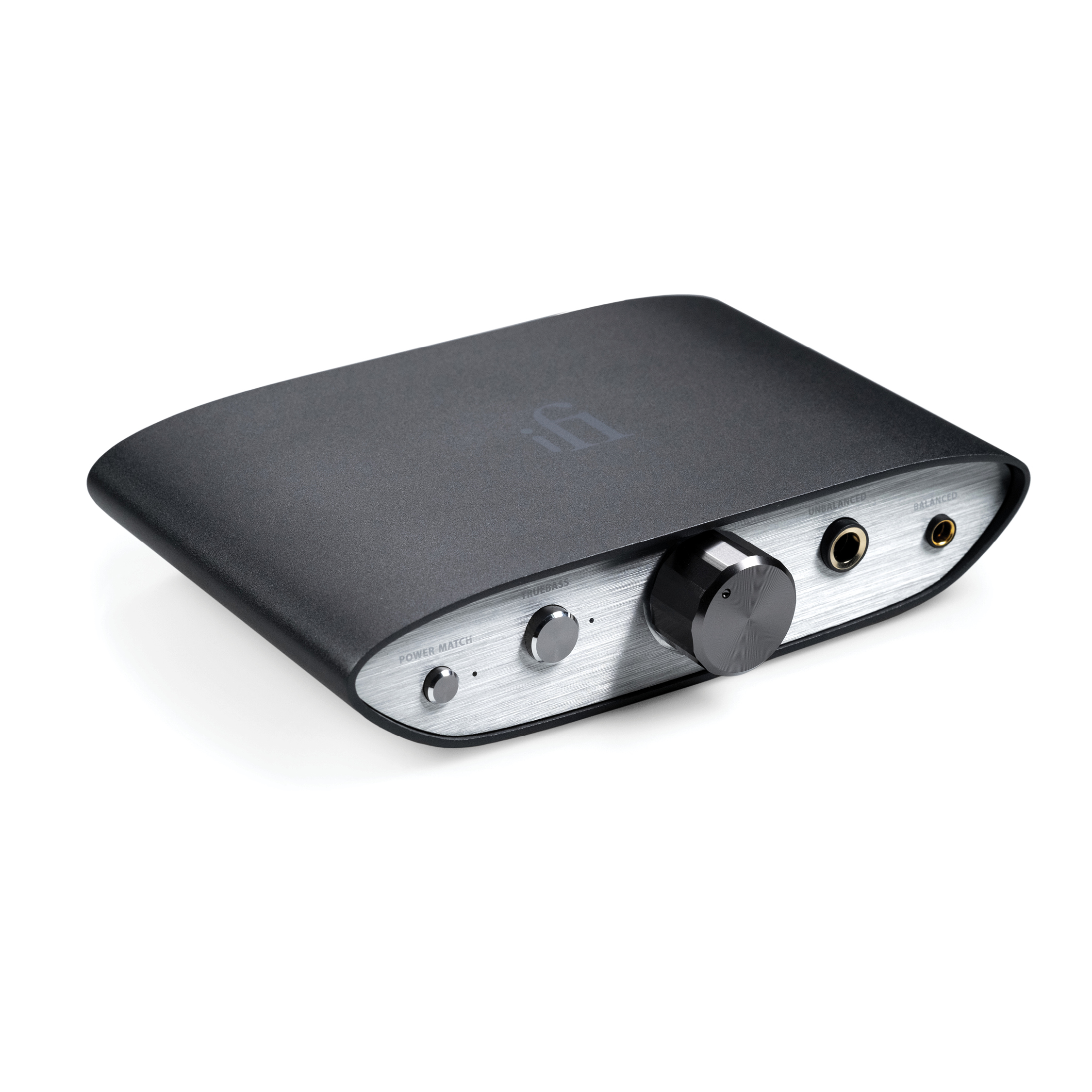

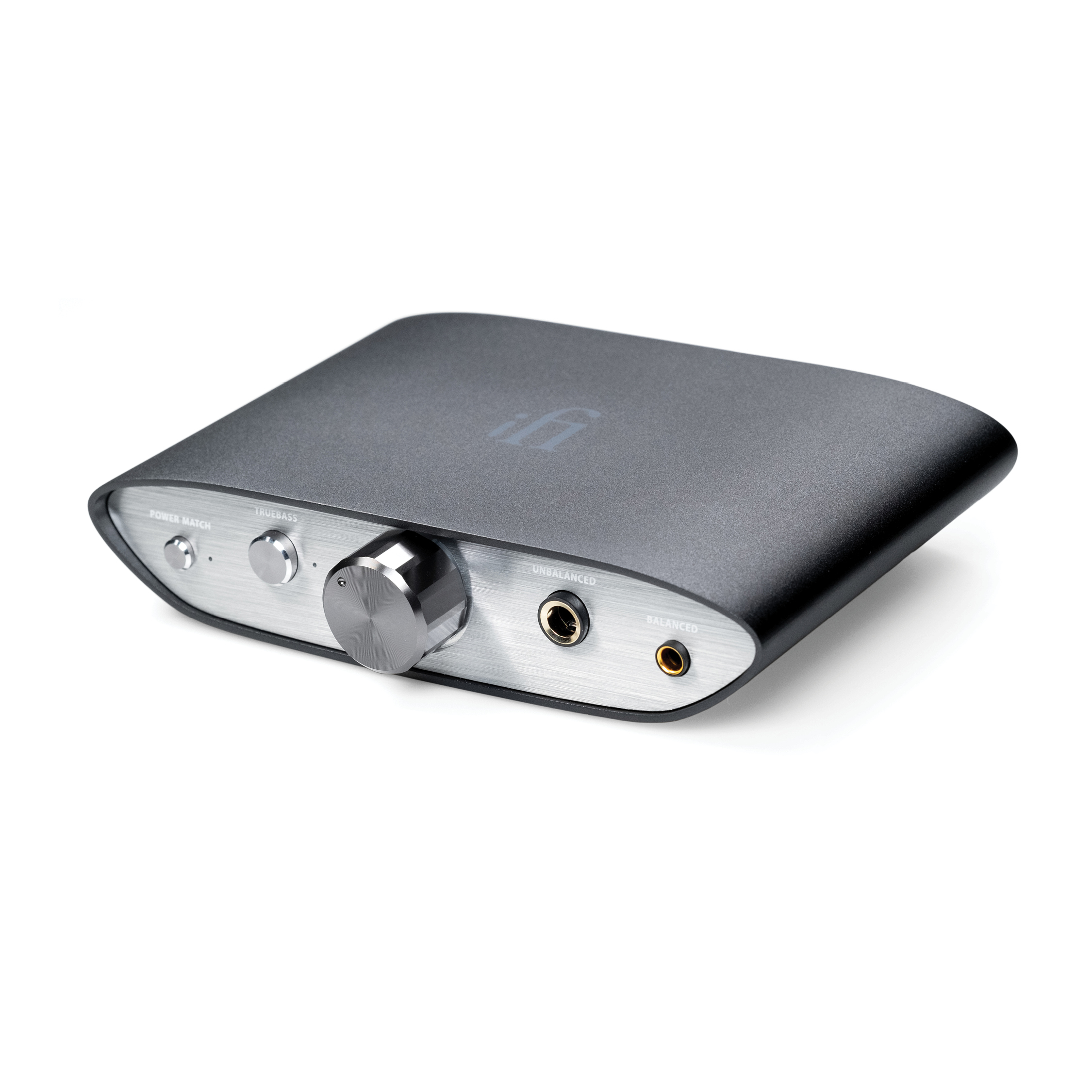

This ZEN DAC V2 is the same award-winning hi-res USB DAC/headphone amp as before but with added oomph!
We’ve upgraded its digital engine from an 8 core XMOS chip to a 16 core chip. It’s ultra-capable while still being super-affordable. Compact enough to use as a USB DAC/amp on your work desk and stylish enough to use at home with your favorite active speakers or amp, it delivers a level of specification and performance that punches above its super-affordable price tag.
Input: USB3.0 B Socket (USB2.0 compatible)
Formats:
• DSD256/128/64, Octa/Quad/Double/Single-Speed DSD DXD(384/352.8kHz),
• PCM(384/352.8/192/176.4/96/88.2/48/44.1kHz) MQA
DAC: Bit-Perfect DSD & DXD DAC by Burr Brown
Line Section
Output:
• Audio RCA (SE) — 2.1V fixed
• 1V / 3.3V max. (variable)
• 4.4mm Pentaconn (BAL) — 4.2V fixed
• 2V / 6.2V max. (variable)
Zout:
• <= 200 Ohm (BAL)
• <= 100 Ohm (SE)
SNR: < -116dB(A) @ 0dBFS (BAL/SE)
DNR: > 116dB(A) @ -60dBFS (BAL/SE)
THD+N: < 0.0015% @ 0dBFS (BAL/SE)
Headphone Section
Output Power (@1% THD):
• 4.4mm Pentaconn (BAL)
• 330mW@32 Ohm; 6.6V@600 Ohm;
• 16 Ohm - 600 Ohm Headphone
• 6.3mm S-BAL (SE)
• 230mW@32 Ohm; 3.3V@600 Ohm
• 16 Ohm - 600 Ohm Headphone
Note: Using 5v power. If powered from USB, power output may vary.
Output Impedance: < 1 Ω (BAL/SE)
THD & N: < 0.005% (125mW @ 32R)
SNR: > 113dBA (6.2V BAL/3.3V SE)
Power consumption: < 1.5W via USB power OR 5v DC (power supply not included)
Dimensions: 160(w) x 117(d) x 35(h) mm 6.3" x 4.6" x 1.4"
Weight (Gross): 0.8 kg (1.8 lbs)
Warranty period: 12 months
