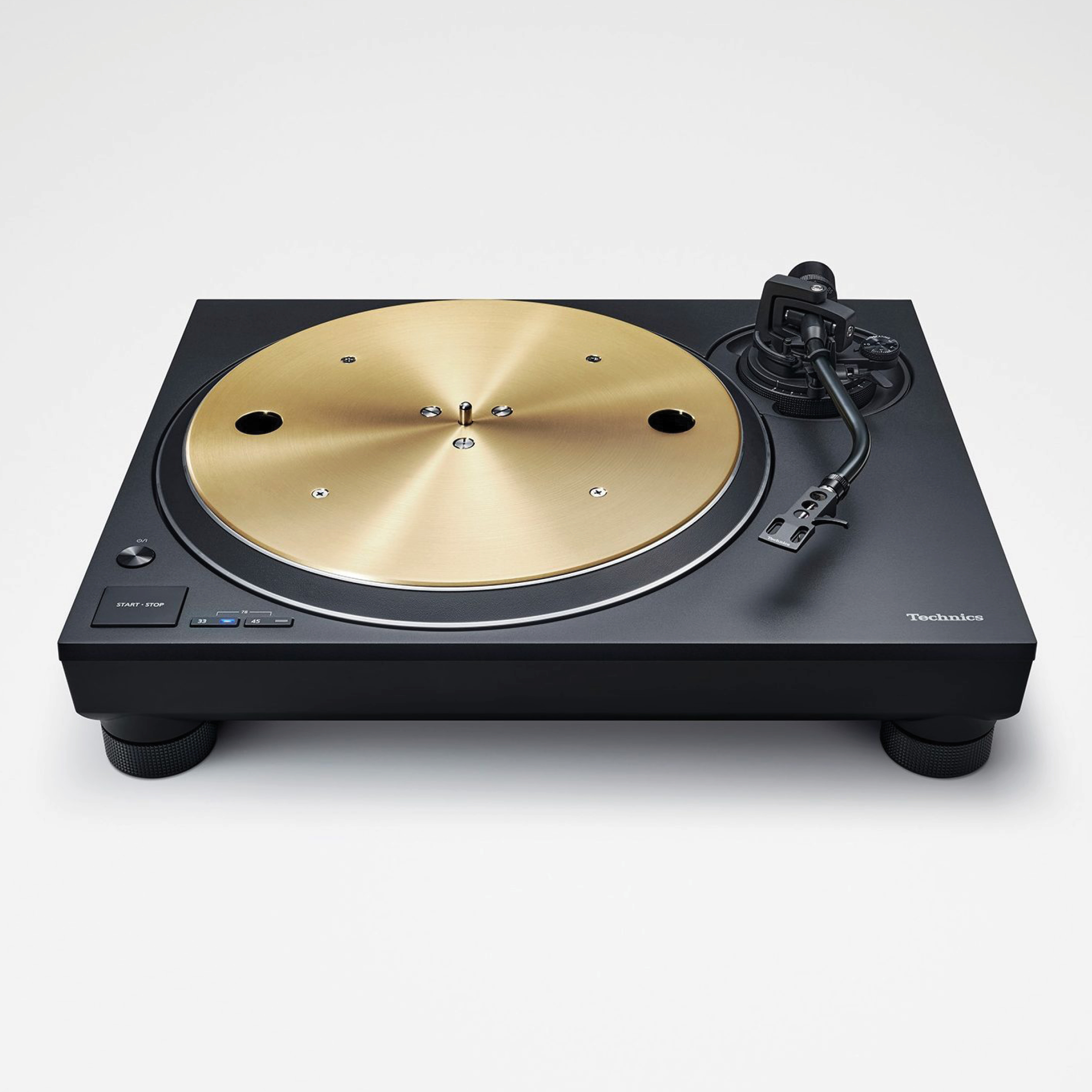

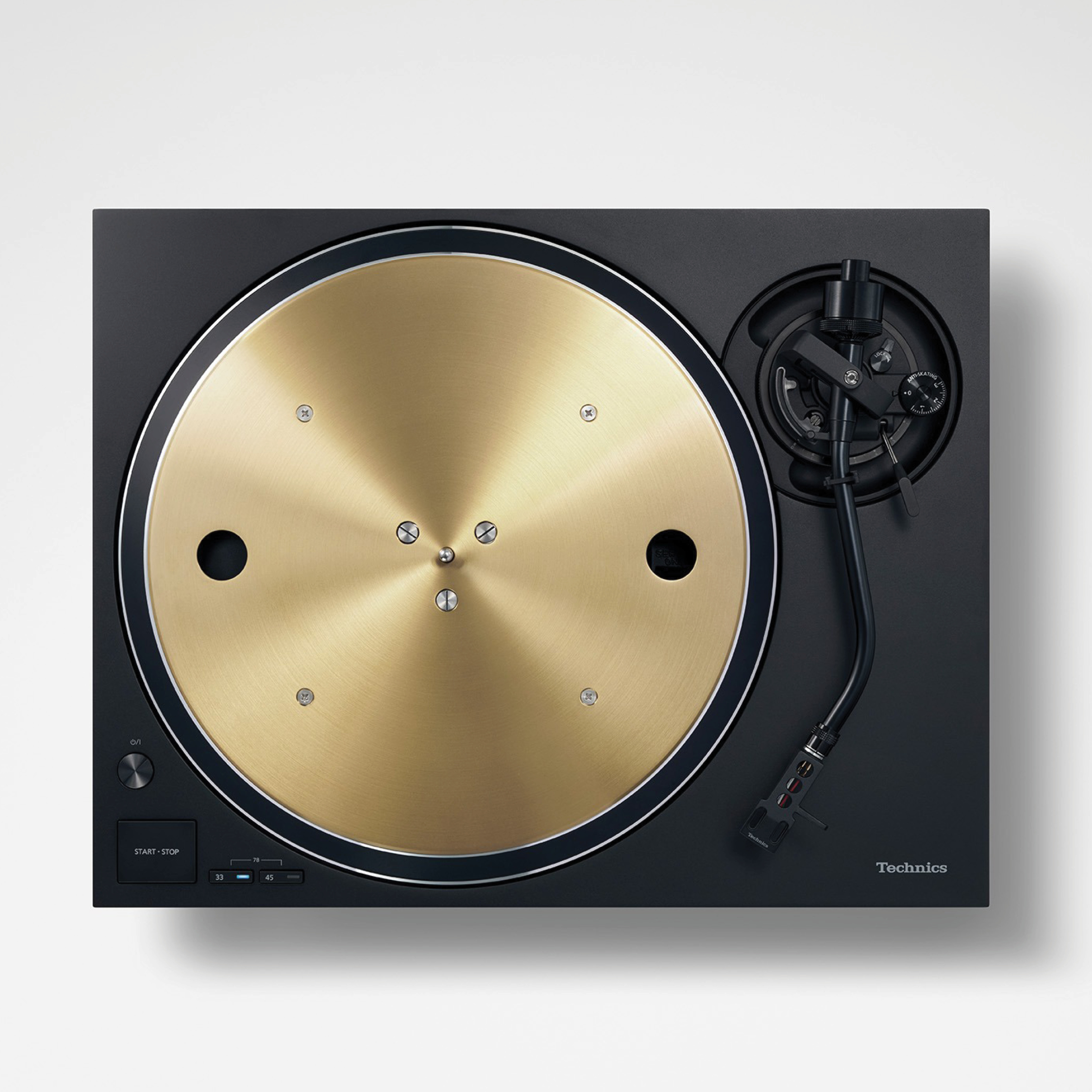

Technics SL-1300GE-K
The Technics SL-1300G is a new-generation direct-drive turntable that combines elegant Hi-Fi design with cutting-edge technologies to deliver an unprecedented listening experience. Equipped with the revolutionary ΔΣ-Drive (Delta Sigma Drive), this turntable uses a new motor technology that ensures high rotation precision and minimizes unwanted vibrations. The result is extremely accurate and detailed audio reproduction, which satisfies even the most demanding audiophiles.
Key Features:
• Coreless direct drive motor with ΔΣ-Drive: provides stable and precise rotation by eliminating cogging and reducing vibration.
• Three-layer plate: combines brass, aluminum and rubber to eliminate unwanted resonances.
• High rigidity frame with double skin structure: ensures robustness and vibration damping.
• High sensitivity arm: S-shaped gimbal-mounted tonearm with high-precision bearings for accurate tracking.
• Multi-Stage Silent Power Supply: Reduces electrical noise with a low-noise switching circuit.
• Silicone insulating feet: offer excellent vibration reduction.
• High quality terminals: Gold-plated phono connectors with metal shielding to reduce external noise.
• Eco-friendly packaging materials: uses sustainable materials to reduce environmental impact.
Specifications:
Traction method: Direct drive
Motor: Brushless DC motor
Turntable speed:
• 33 1/3 rpm
• 45 rpm
• 78 rpm (Note: Actual speed at 78 rpm is 78,26 rpm)
Starting torque: 0,32 Nm (3,3 kgfcm)
Starting characteristics: 0,7 seconds from standstill to 33 1/3 rpm
braking system: Electronic brake
Oscillations and vibrations: 0,025% WRMS
Turntable platter:
• Material: Die-cast aluminum, brass and rubber
• Diameter: 332 mm
• Weight: Approx. 3,6kg (including rubber sheet)
Arm:
• Type: Static Balancing
• Effective length: 230 mm
• Overhang: 15 mm
• Tracking error angle:
• Within 2°32′ (at the outer groove of a 30 cm disc)
• Within 0°32′ (at the inner groove of a 30 cm disc)
• Compensation angle: 22°
• Arm height adjustment range: 0 – 6 mm
• Stylus pressure adjustment range: 0 – 4 g (direct reading)
• Headshell Weight: Approx. 7,6 g
• Applicable head weight range:
Without auxiliary weight:
• 5,6 – 12 g (14,3 – 20,7 g including headshell)
With small auxiliary weight:
• 10 – 16,4 g (18,7 – 25,1 g including headshell)
With large auxiliary weight:
• 14,3 – 19,8 g (23 – 28,5 g including headshell)
• Head holder size: 12,7mm (1/2″)
• Headshell connection terminal: 4 mmφ 1,2-pin terminal
Audio output terminals:
• PHONO (RCA connectors) x 1
• Grounding x 1
Supply: AC 220-240V, 50/60Hz
Energy consumption:
• 10W (operating)
• 0,3W (standby)
Dimensions (L x H x D): 453 x 173 x 372 mm
Weight: Approx. 13 kg
Operating temperature range: 0°C – +40°C
Operating humidity range: 35% – 80% RH (non-condensing)
Accessories included:
• Piatto
• Bath mats
• Dust cover
• EP Disc Adapter
• Counterweight
• Auxiliary weight
• Headshell
• Pin protrusion sensor
• Cartridge Screw Set
• PHONO cable
• PHONO grounding cable
• AC power cord
• Turntable Screw Set
• Instruction Manual
Additional notes:
• Ecological materials: The SL-1300G uses environmentally friendly packaging materials to reduce environmental impact, replacing styrene foam with corrugated cardboard.
• Precision balancing: Each platter is precision balanced at the factory to eliminate unwanted vibration and noise during rotation.
Dimensions and weight:
• Height 173mm
• Width 453mm
• Depth 372mm
• Weight: 13kg (about)
