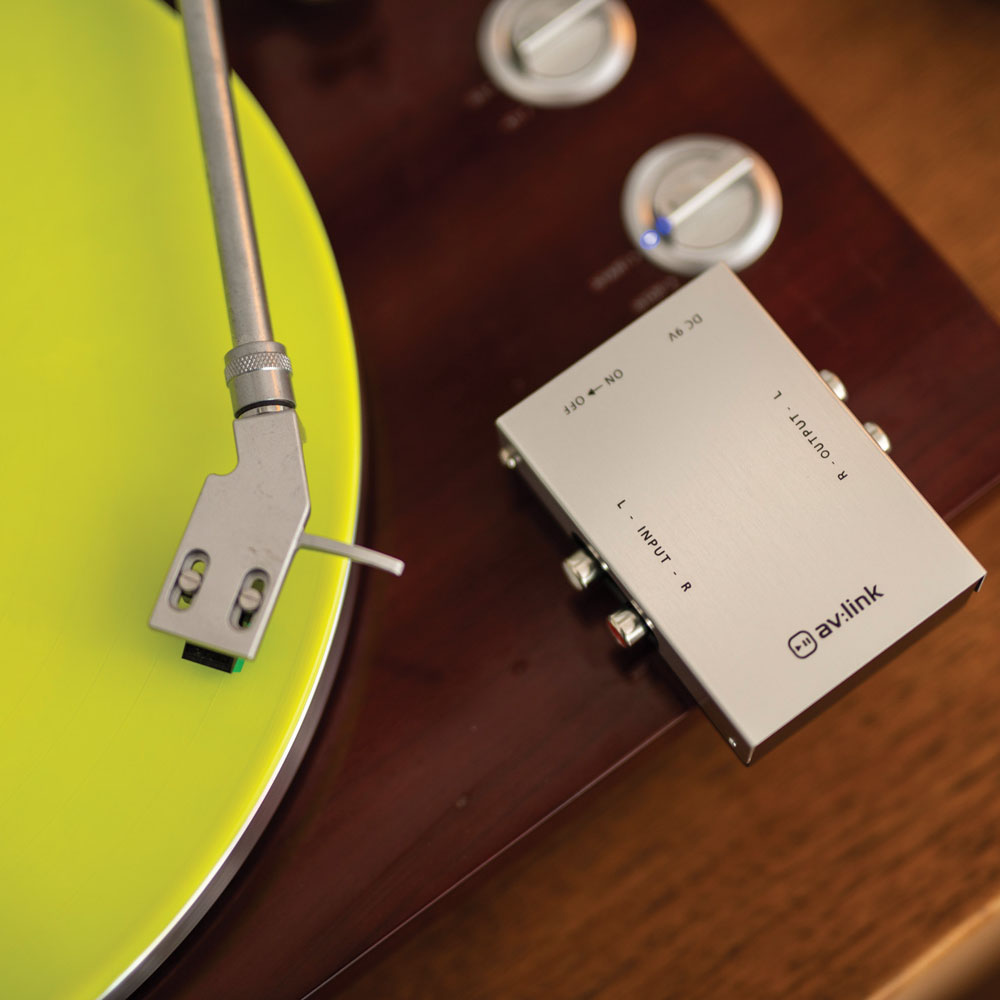

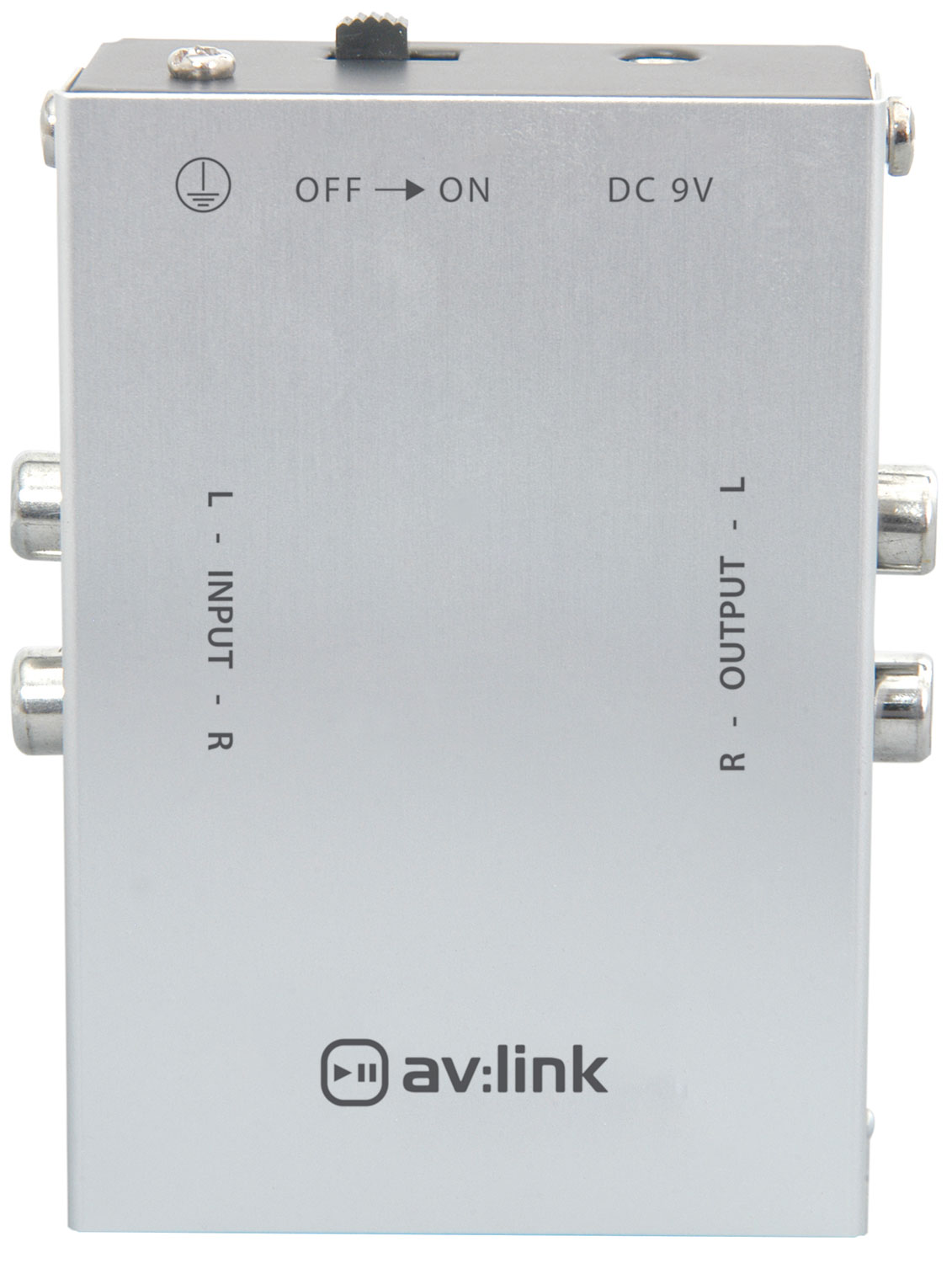

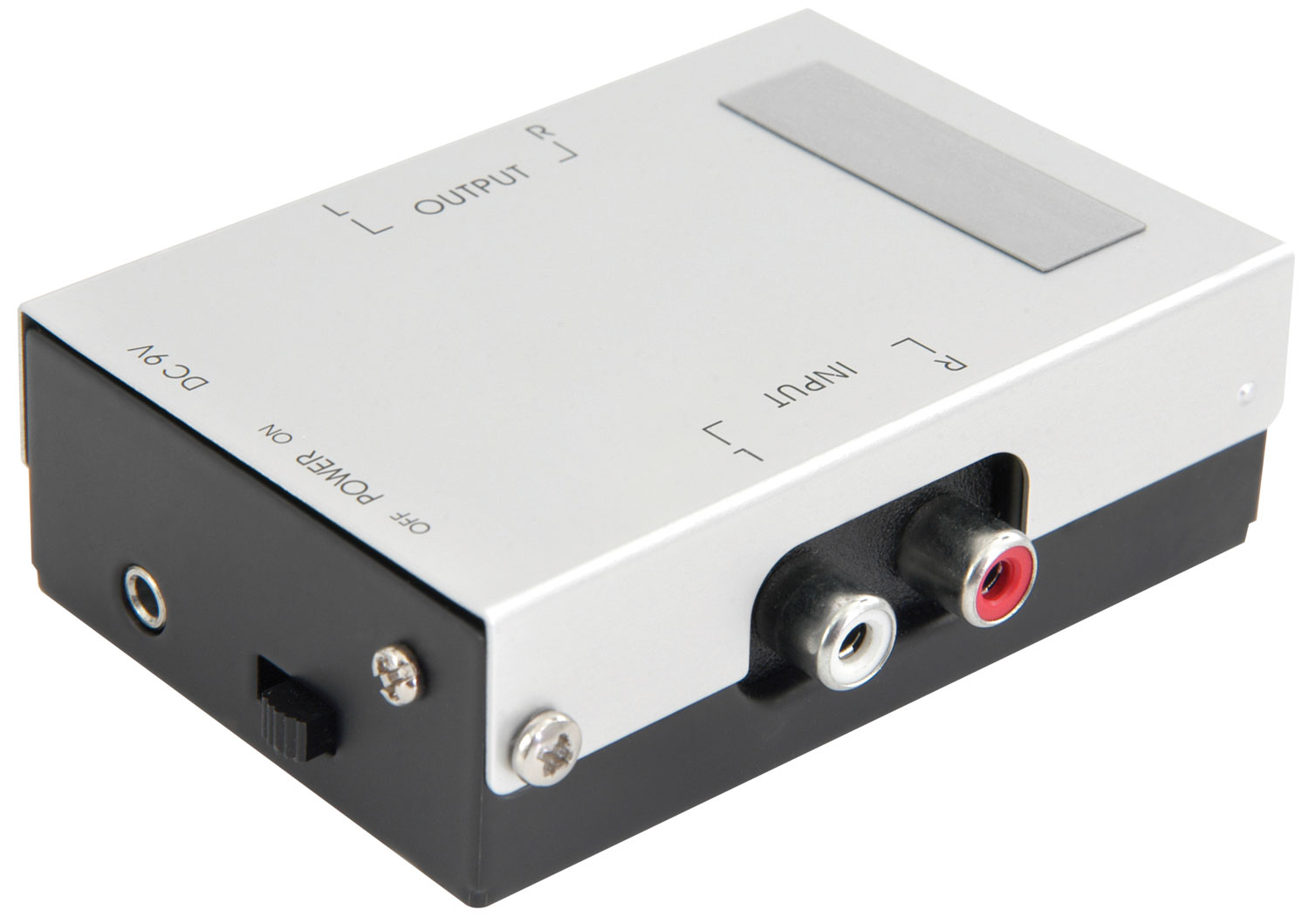

av:link STP-2 Stereo Pre-amp
A compact ultra-low noise pre-amp that amplifies phono signals from a turntable to line level signals. The unit can be powered using the provided UK power supply or additional 9V battery if preferred (not supplied) and comes fitted with a grounding screw to eliminate additional noise from inference.
Stereo pre-amplifier for use with turntables fitted with magnetic cartridges
Amplifies the signal to match it to the line or CD input of an amplifier
On/Off switch and grounding screw
UK Mains adaptor included or can be powered by additional 9V battery if preferred (not supplied)
Power supply 9V DC, 100mA
Battery (optional) 9V DC (1 x PP3)
Equalization RIAA correction
Frequency response 30Hz - 20kHz
Gain 34dB
Input impedance 50k ohms
Output impedance 50k ohms
Dimensions 30 x 70 x 90mm
Weight 250g
