The multiple inputs are fully adjustable in real-time. Each input has two separate head-shell / arm settings to allow precise matching for up to six phono cartridges, each being selectable at the touch of a button.

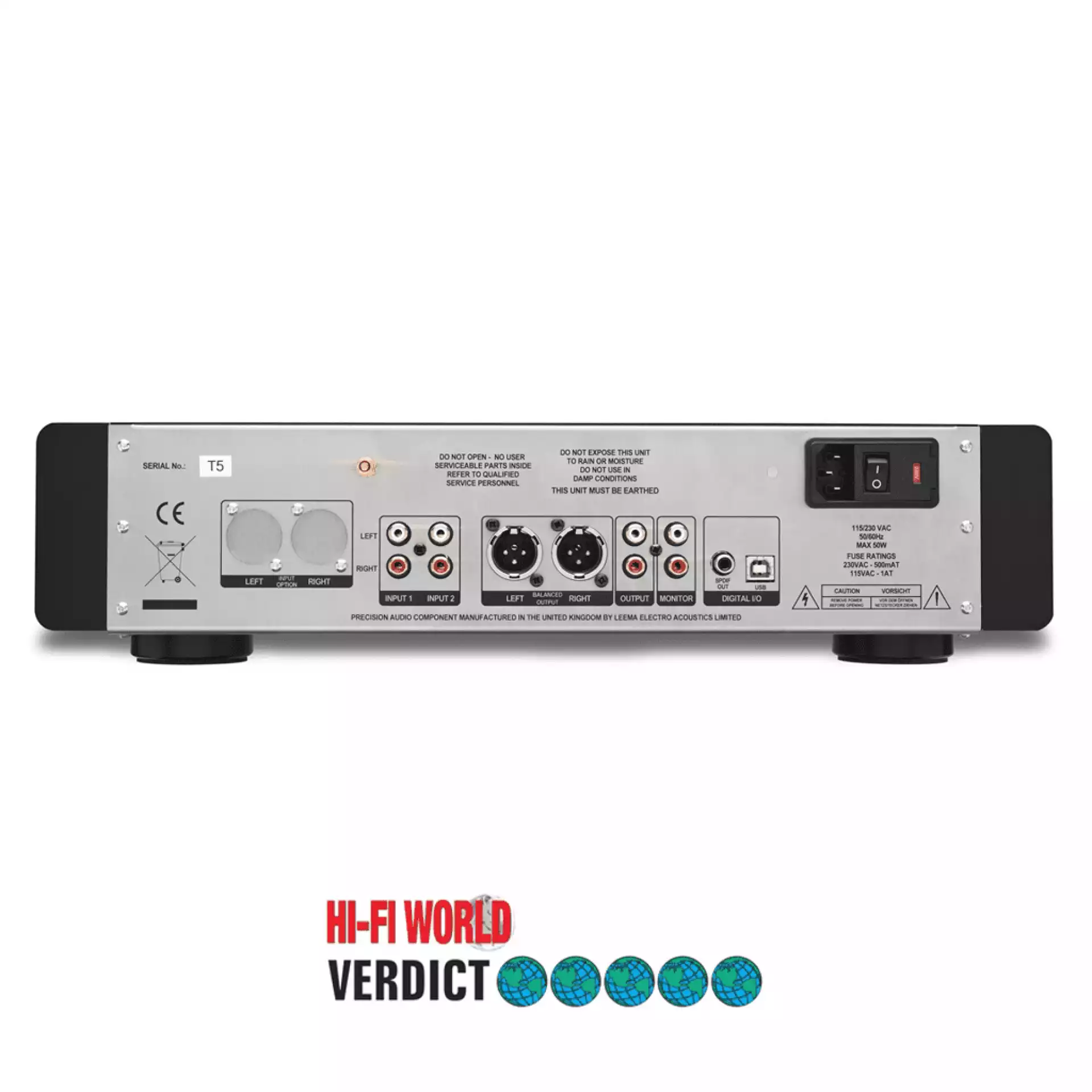

In addition to the single-ended RCA (cinch) and fully balanced XLR analogue outputs, a reference quality analogue to digital converter feeds a USB output, allowing broadcast quality archiving to computer hard-drives or other digital media.

Real time record monitoring is possible from the USB-connected computer via dedicated RCA (cinch) analogue and SPDIF digital outputs.

Agena features a unique ‘Sleep Mode’ which, when selected, enables the unit to switch off its control circuitry, LEDs and display automatically when not required. In this mode, Agena becomes a purely analogue component, with no interference from microprocessors etc. in this way, the analogue signal path is optimised for the very highest performance and signal fidelity.

User features include mono, mute and high and low frequency filters.

Specification / Features

Input Resistance
    MM: 47 kOhms & 100 kOhms
    MC: 20, 50, 100, 500, 1000 Ohms

Input Capacitance
     MM: 100 pF
     MC: 100, 250, 430, 580, 1100,1250, 1430, 1580 pF

Input Sensitivity
     MM: 1.6, 2, 4 mV
     MC: 135, 145, 177, 200, 320, 400, 800 µV

Noise
     MM: 0.34 µV-A weighted
     MC: 0.05 µV-A weighted @ max gain

RIAA Error: 10 Hz - 100 kHz - 1dB

Filters: 15 Hz / 15 kHz

Dimensions: 440*320*110mm

Carton: 590*450*210mm

Mass: 11Kg
