How does it work?
Connect the output of your phono preamplifier to the Vinyl NRS Box S3. First, the line signal gets digitized with a bit depth of 24-bits and a sampling rate of 96 kHz. If the input is too loud, the overflow LED will show it to you. You can then activate the -6 dB switch and the gain is fine now. The real magic happens in the digital domain.

De-Crackling
The signal gets filtered to not interfere with the processing itself. High frequency components are used as a marker for crackles. The dedicated algorithm can now detect these peaks. You can easily
adjust the sensitivity with the potentiometer on the front. The LED gives you instant feedback on the process. Crackling parts can be reduced by up to 8 dB which is a big improvement for the listening experience. If you don‘t want to use the De-Crackling function, just turn the potentiometer completely to the left and the algorithm is in bypass.

Vinyl Noise Reduction System (VNRS)
The signal is first separated into two frequency bands and then fed into two expanders, which increase the signal-to-noise ratio. There are no noise modulations audible using this technique! We are able to reduce the noise by up to 8 dB.

Connection & Setup

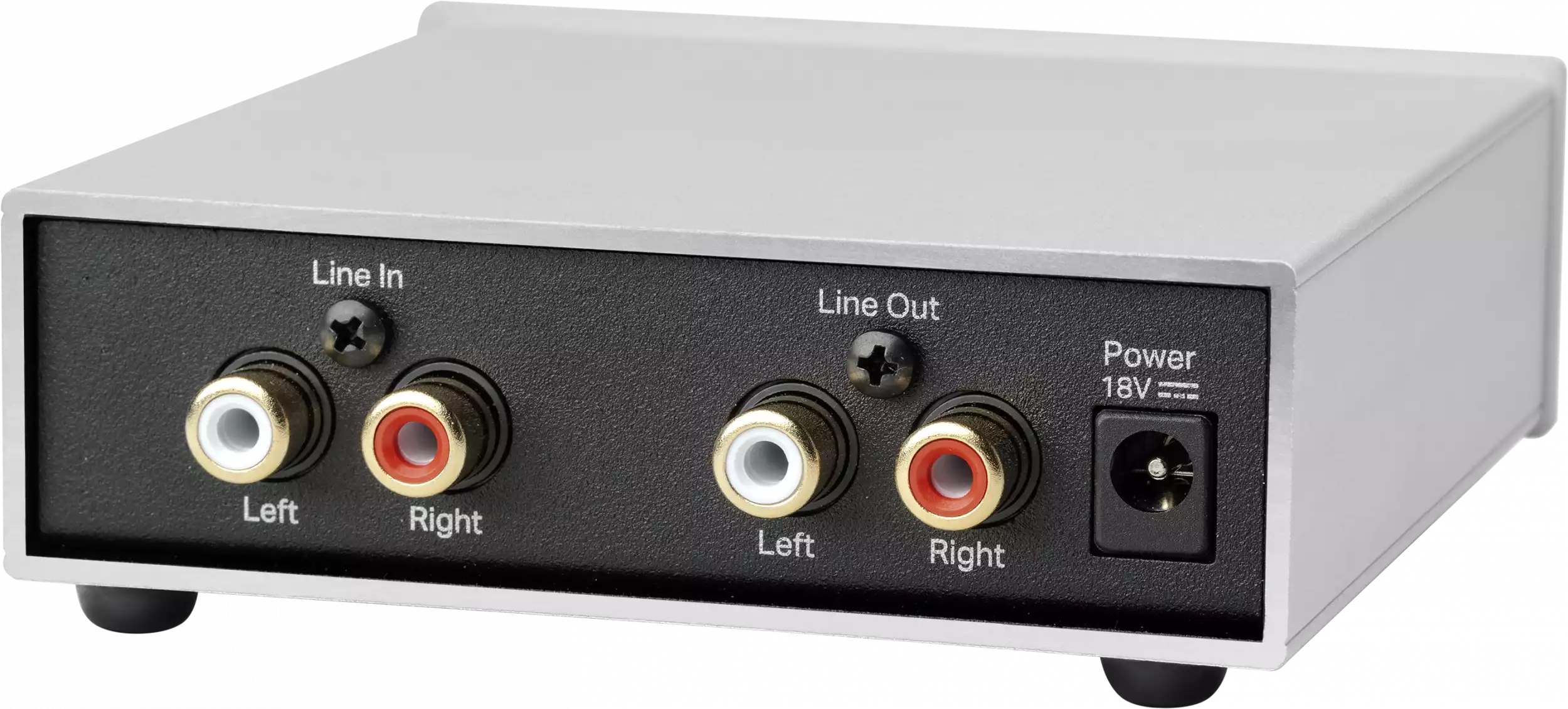

The Vinyl NRS Box S3 is connected between the phono preamp and your preamp or integrated amplifier. If you turn it on, the Vinyl NRS Box S3 is active immediately. If you don‘t want it in your signal path, just turn it off and the device is bypassed and the inputs are galvanicaly connected to the outputs. There are two De-Crackling intensity algorithms available: the basic one processes the signal very lightly; the advanced is stronger with more heavy processing. Always try the basic setting first & adjust the intensity with the potentiometer. By pressing the „Intensity“ button you can engage the advanced mode if wanted and/or necessary. The LED shows you if clicks & crackles are reduced. If you‘re happy with the De-Crackling setting, but you can still hear a lot of noise, you can now activate the Vinyl Noise Reduction feature by pressing the VNRS button. There is only one preset for the Vinyl Noise Reduction feature and it cannot be customized in the same way the De-Crackling can be adjusted.

Features
De-Crackling function to reduce clicks
Noise reduction for vinyl records
Reduces noise of the turntable drive
Processing based on DSP with 24 bits
96 kHz sampling rate for precise processing
Galvanic pure bypass if switched OFF
Ideal transfer characteristics and linearity
De-Crackling with adjustable sensitivity
Line-level operation
Compact design in standard S3-line case
Full aluminium housing
Available in silver or black
