SVS SoundPath Speaker Level Subwoofer Adapter
Add pristine speaker-level to line-level subwoofer connectivity with no loss of fidelity. For use with integrated amplifiers and legacy stereo receivers which lack line level or subwoofer outputs. Easy set up with high quality speaker-level binding post inputs, and stereo RCA line-level outputs.
Features and Specifications:

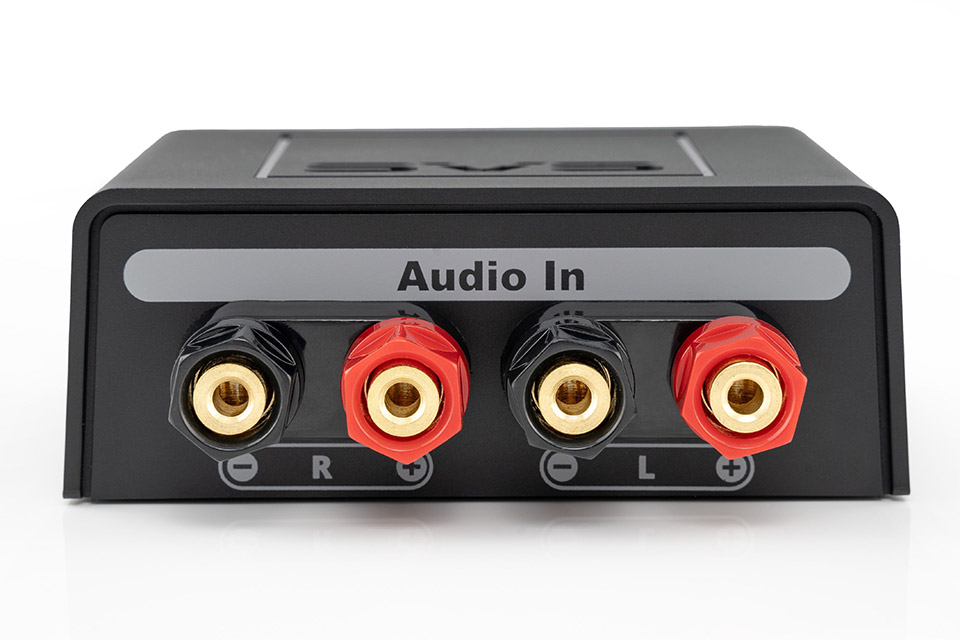

Speaker-Level Inputs: Stereo Gold-Plated 5-Way Speaker-Level Binding Posts

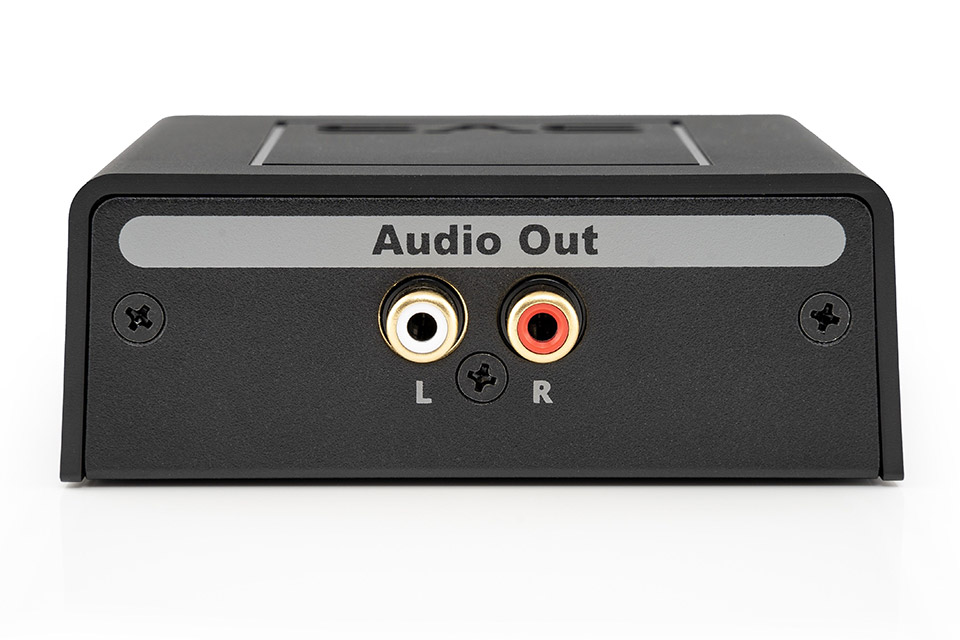

Line-Level Outputs: Stereo Gold-Plated RCA Jacks
Speaker-Level Input Impedance: 4.85 kΩ
Line-Level Output Impedance: 150 Ω
Voltage Attenuation: -30 dBV
Power Handling: 500W RMS / 1,000W Peak
Frequency Response: 10 Hz – 80 kHz (+/- 0.01 dB)
THD+N @ 10V: <0.03% (10 Hz – 80 kHz)
Dimensions: 1.5” (37 mm) H x 3.9” (99 mm) W x 4.1” (103 m) D
Weight: 0.6 lb. (0.28 kg.)
