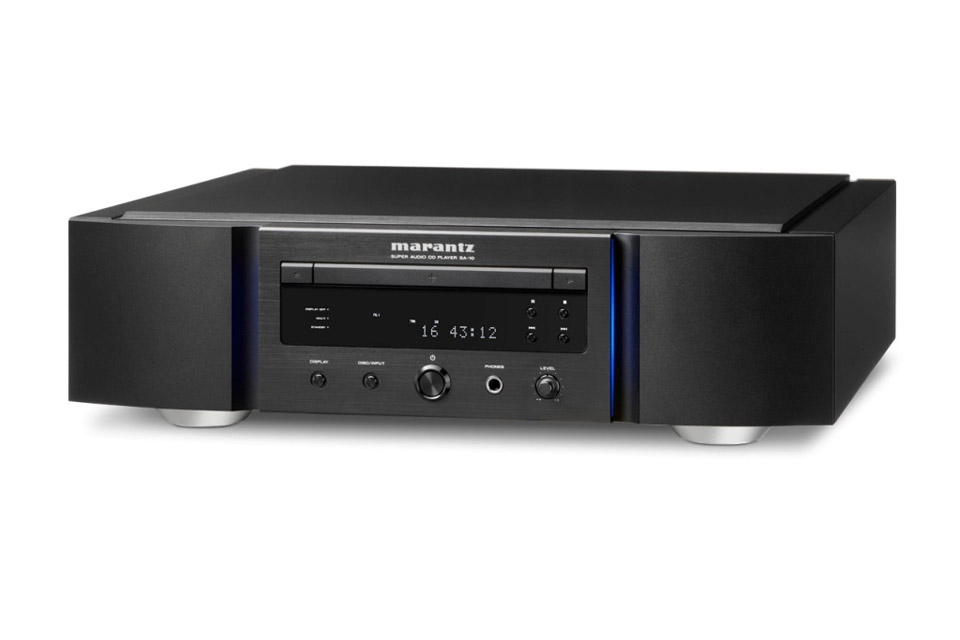

Marantz SA-10S1 Black
The SA-10 is an exceptional player of both CD and SACD discs, but can also play high-resolution music stored on computer-burned discs, as well as being a high-end digital to analogue converter for computer-stored music. From the unique new disc transport designed for this player all the way through to a complete rethink of the way digital audio data is converted into analogue signals, the SA-10 is a ‘clean sheet’ design, the result of painstaking research and development and extensive listening in Marantz’s custom-built listening facilities. That’s symptomatic of the way Marantz has always done things: while it always aims for the most elegant engineering solution, the listening test is always the final arbiter. It’s all to do with that simple phrase running through the heart of everything the company does: ‘Because Music Matters.
Key Features
Hear All Your Music - From SACDs to DSD files, enjoy all of your music without limits.
Pure Marantz Sound - HDAM technology combined with optimized circuit design layout and carefully selected components, provides exceptional sound quality and performance.
Sound Master Tuned - Engineered and extensively tuned by a team drawing on more than 35 years of Marantz CD and SACD design knowledge.
Upscale Listening - Innovative Marantz Musical Mastering “MMM-Stream” up-sampling to DSD and filtering
Developed For Generations
Like its partnering, the PM-10 integrated amplifier, the SA-10 is constructed to the highest possible standards, with a double-layered copper-plated chassis for excellent rejection of mechanical and electrical interference, and casework constructed from thick non-magnetic aluminum panels and 5mm thick top lid. Both products also sit on aluminum machining feet for reduced vibration and allows for a smoother listening experience.
This Is More Than Just A DAC
The SA-10 takes things further - just as it features an all-new disc transport mechanism, so the digital to analogue conversion has also been subject to a radical rethink, taking full advantage of the 1-bit conversion technology found in past flagship Marantz players, and incorporating brand-new filtering and up-conversion to take advantage of this simple, but elegant solution. We name it Marantz Musical Mastering.
Marantz Musical Mastering
DSD is at the heart of the way the SA-10 handles digital audio: PCM and DXD inputs are all upconverted to DSD at 11.2MHz using the proprietary MMM-Stream converter within the player, and then the high-frequency signal produced is processed by the unique MMM-Conversion stage, used in place of a conventional DAC, to produce the analogue output.
It Starts With The Disc
Whether playing SACDs, CDs, or other data discs containing music, it's vital that any player retrieves the information as accurately as possible: unlike a computer reading a disc for ripping, there's no time for repeated re-scans when playing music - it happens in real time, so the disc transport needs to get things right first time.
CDs, SACDs And Beyond
The SA-10 goes so much further than just disc playback: it's also a fully-functional digital-to-analog converter for music stored on a home computer, as well as having conventional digital inputs for existing source components. Those conventional inputs - optical and coaxial - can handle your music files up to 192kHz/24bit.
CD Compatibility: CD / CD-R/RW / SA-CD / WMA / MP3 / AAC |
Yes / Yes / Yes / Yes / Yes / Yes |
CD-Text / SA-CD Text / ID3 Tag / WMA Meta Tag / AAC Meta data |
No / Yes / Yes / Yes / Yes |
Data Disc Compatibility: DSD / WAV / ALAC |
<=5.6 / 192 / 96 |
iPod / iPhone Compatible USB Input |
Yes |
DAC Operation Mode: USB / Coax / Optical |
Yes / Yes / Yes |
Asynchronous Mode Rear USB |
Yes |
Bit-Perfect Transmission |
Yes |
Signal Isolator For DAC Mode Operation |
Yes |
HDAM Version |
HDAM+HDAM SA2 |
Power Transformer: Toroidal / El |
Yes / No |
High Grade Audio Components |
Yes |
Customised Components |
Yes |
Symmetric Circuit Layout |
Yes |
Copper Plated Chassis |
Yes |
Extra Metal Plate For Chassis Strengthening |
Yes |
Digital Out Off / Audio EX Mode |
Yes / No |
Headphone: Standard / Buffer / Current Feedback |
No / Yes (HDAM SA2+HDAM) / Yes |
Others
Separated Rectifier Circuit For Analog And Digital Circuitry |
Yes |
Display: Dimmer / Off |
No / Yes |
Low Noise LCD Display |
Yes |
5mm Aluminium Top Cover |
Yes |
Selectable Filter: CD / SA-CD / DAC-Mode |
Yes / No / Yes |
Marantz Musical Mastering |
Yes (HD) |
Marantz Musical Mastering Stream |
Yes |
Marantz Musical Mastering Conversion |
Yes |
Playback
Program Play (CD / SA-CD) |
Yes / Yes |
Repeat |
Yes |
Random Play |
Yes |
Start Sound Mode For SA-CD |
Yes |

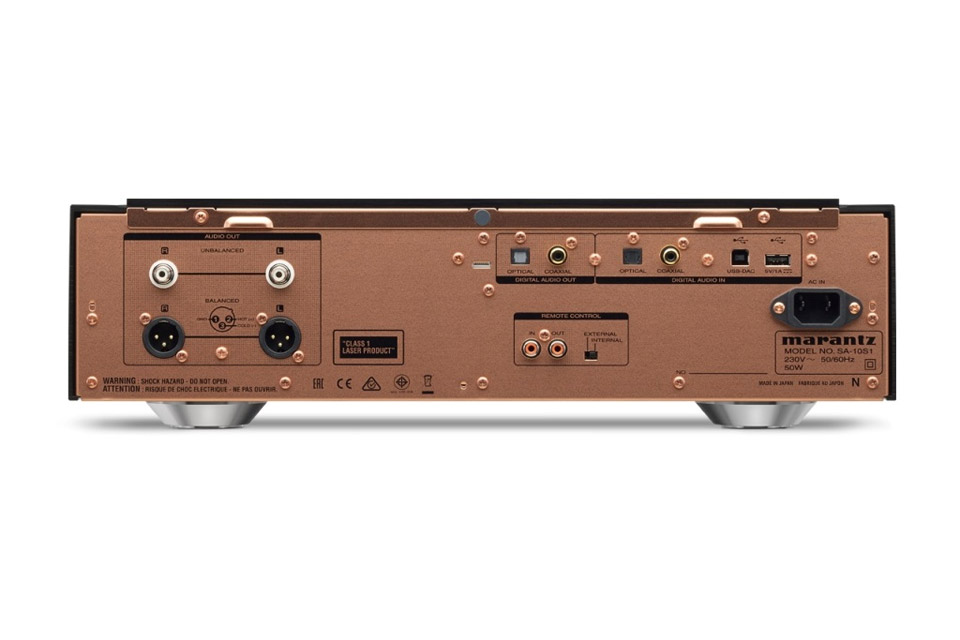

Inputs/Outputs
Analogue Out (Cinch) |
Content |
Heading |
2ch |
Balanced Out |
Yes |
Digital Optical In / Out |
Yes / Yes |
Digital Coaxial In / Out |
Yes / Yes |
Sample Rate Digital In |
192 kHz / 24-bit |
Gold Plated Cinch |
silver / nickel |
USB Audio (Front) / Made for iPod / Made for iPhone |
rear / Yes / Yes |
USB Type B Input For PC (Rear) Sample Rate USB Type B In |
Yes |
Asynchronous Mode Rear USB |
Yes |
USB Type B input For PC (rear) |
384 kHz / 32-bit |
USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 |
-> DSD11.2 |
Headphone Out |
Yes |
Headphone Volume Control |
Yes |
Mechanism |
SACD-M3 (METAL) |
D/A Conversion |
Marantz Musical Mastering Conversion |
DAC IC |
Marantz Musical Mastering Conversion |
Digital Filter |
DSP (Marantz) |
Low Pass Filter Stage |
HDAM x 2 |
Output Buffer |
HDAM SA2 |
Frequency Response (Cust.) |
2 Hz - 60 kHz |
Dynamic Range (SA) |
109dB |
Signal To Noise Ratio (SA) |
112dB |
Channel Separation (SA) |
105 dB |
Frequency Response |
2 Hz - 20 kHz |
Dynamic Range |
98 dB |
Signal To Noise Ratio |
104 dB |
Total Harmonic Distortion |
0.00% |
Channel Separation |
100 dB |
Total Harmonic Distortion (SA) |
0.00% |
General
Available Colours: Gold / Silver / Black / Silver-Gold |
Yes / No / Yes / No |
Metal Front Panel |
Yes |
Remote Control |
RC004PMSA |
Power Consumption in W |
50 |
Standby Consumption in W |
0.3 |
Auto Power Off |
Yes |
Detachable Power Cable |
Yes |
Maximum Dimensions (W x D x H) In mm |
440 x 419 x 127 |
Weight In kg |
18.4 |
