Marantz SACD 30N Silver
SACD 30n was designed for the experienced audiophile who appreciates flexibility in format and expects the most realistic sound. Hundreds of hours of careful Sound Master tuning ensure the exquisite detail and musicality Marantz has always delivered.
Crafted in Shirakawa, Japan
SACD, CD & DVD Support
Exclusive HDAM
DSD Support
HEOS Built-in
Marantz Musical Mastering DAC
Features
AirPlay 2 Yes
Amazon Prime Music* / Pandora* Yes / No
Asynchronous mode rear USB-B Yes
Bit-perfect transmission Yes
CD Compatibility: CD / CD-R/RW / SA-CD / WMA / MP3 / AAC Yes / Yes / Yes / Yes / Yes / No
CD-Text / SA-CD Text / ID3 Tag / WMA Meta Tag / AAC Meta data No / Yes / Yes / Yes / No
Copper Plated Chassis No
Customised Components Yes
DAC operation mode: USB B type / Coax / Optical Yes / Yes / Yes
Data Disc Compatibility: DSD / WAV / ALAC Yes / Yes / Yes
Digital out off / Audio EX Mode Yes / No
Extra metal plate for chassis strengthing Yes (1.5mm)
HDAM version HDAM+HDAM SA3
Headphone: Standard / Buffer / Current feedback No / No / Yes (HDAM SA2)
HEOS Multiroom and Streaming Yes
High Grade Audio Components Yes
Internet radio tunein
Jitter reducer Yes
Network Audio Streaming Yes
Power Transformer: Toroidal / El Yes / No
Roon Tested Yes
Signal isolator for DAC Mode operation Yes
Spotify Connect* / Tidal* / Deezer* / others * Yes / Yes / Yes / Yes
Symmetric circuit layout Yes
USB input for memory stick Yes
USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 / DSD11.2 Yes / Yes / Yes
Voice Control - Google Assist / Apple Siri Yes / Yes
Voice Control - Microphone built-in No
Voice Control - Works with Amazon Alexa Yes
General
Auto Power off Yes
Available Colors: Gold / Silver / Black / Silver-Gold No / No / Yes / Yes
Carton Maximum Dimensions (W x D x H) in mm 534 x 522 x 255
Carton Weight (inc. product) in kg 16.2
Detachable Power Cable Yes
Maximum Dimensions (W x D x H) in mm 443 x 424 x 130
Metal Front Panel Yes
Power Consumption in W 48
Remote Control RC002PMND
Standby Consumption in W 0.4
Weight in kg 13.5

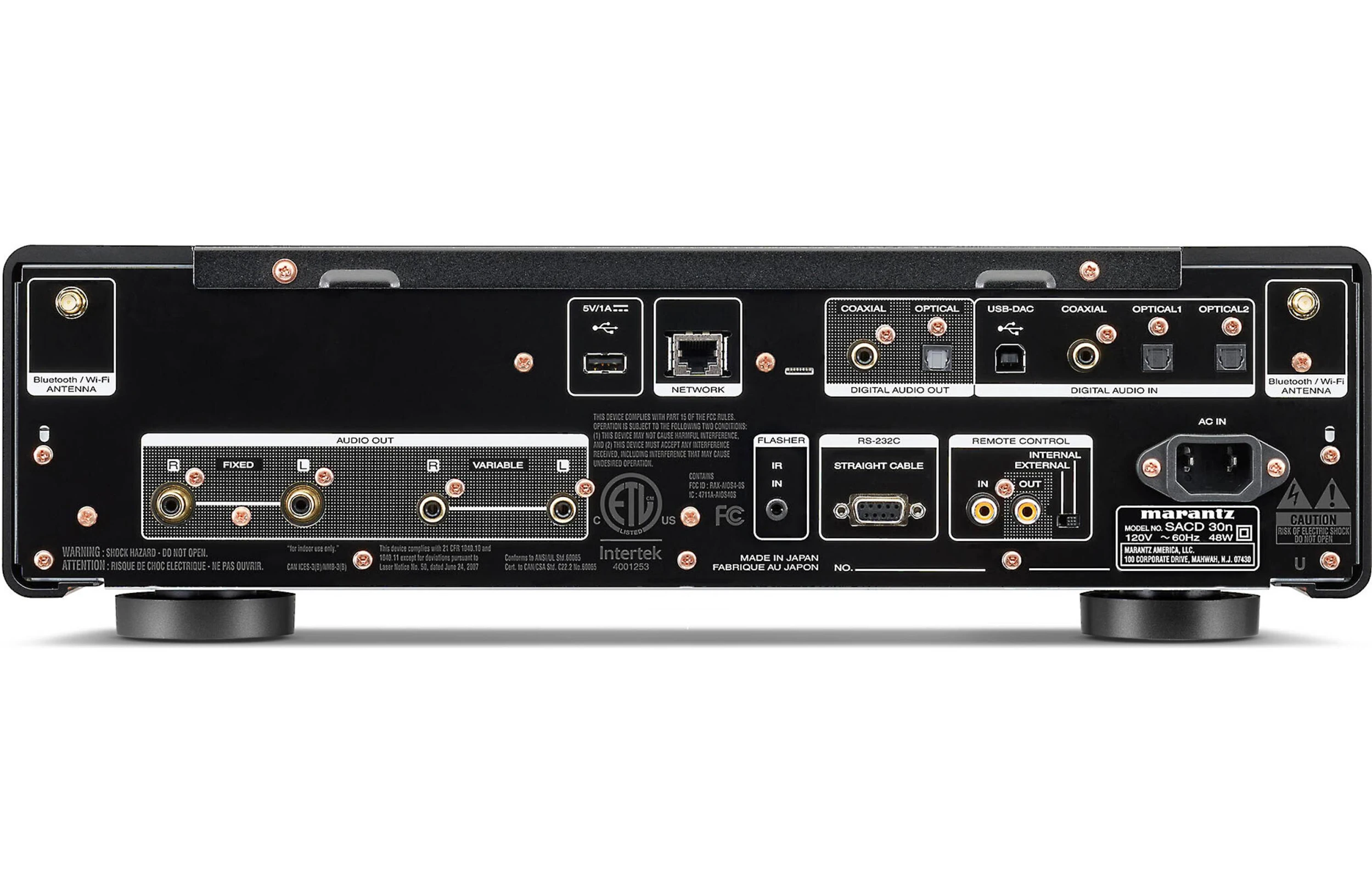

Inputs Outputs
Analogue Out (Cinch) 1
Balanced Out No
D-Bus Yes
Digital Coaxial In / Out 2 / 1
Digital Optical In / Out 1 / 1
Ethernet port Yes
Flasher Input Yes
Gold Plated Cinch Yes
Headphone Out Yes
Headphone Volume Control Yes
IP control Yes
RS232 Yes
Sample Rate digital In 192 kHz / 24-bit
USB Audio (front) Yes (rear)
USB type B input for PC (rear) Sample Rate USB type B In Yes up to DSD11.2
Variable Out (Cinch) 1
Network
App control AMP/CD via Network Player Yes
Bluetooth on / off mode Yes
DSD Audio Streaming up to DSD5.6
Gapless Playback Yes (FLAC, WAV, DSD)
Lossless formats: DSD / FLAC HD 192/24 / ALAC 96/24 / WAV 192/24 Yes / Yes / Yes / Yes
Lossy formats MP3 / WMA / AAC Yes / Yes / Yes
Remote APP: iDevice / Android Yes / Yes
Wi-Fi on / off mode Yes
Wi-Fi / Wired LAN 2.4GHz, 5GHz / Yes
Others
Display: Dimmer / Off Yes / Yes
Marantz Musical Mastering Yes
Marantz Musical Mastering Conversion Yes
Marantz Musical Mastering Stream Yes
Selectable filter: CD / SA-CD / DAC-Mode Yes/ No / Yes(PCM only)
Separated rectifier circuit for analogue and digital circuitry Yes
Playback
Program Play (CD / SA-CD) 25 / No
Random Play Yes
Repeat Yes
Specifications
Channel separation No
Channel Separation (SA) No
D/A Conversion MMM
DAC IC MMM
Digital Filter MMM
Dynamic Range 98 dB
Dynamic Range (SA) 109dB
Frequency response 2 Hz - 20 kHz
Frequency Response (Cust.) 2 Hz - 20 kHz
Headphone amp HDAM SA3
Low Pass Filter stage HDAM
Mechanism SACDMNo3L
Noise Shaper MMM
Output Buffer HDAM SA3
Signal to Noise Ratio 104dB
Signal to Noise Ratio (SA) 112dB
Total Harmonic Distortion 0,000015
Total Harmonic Distortion (SA) 0.0008%
