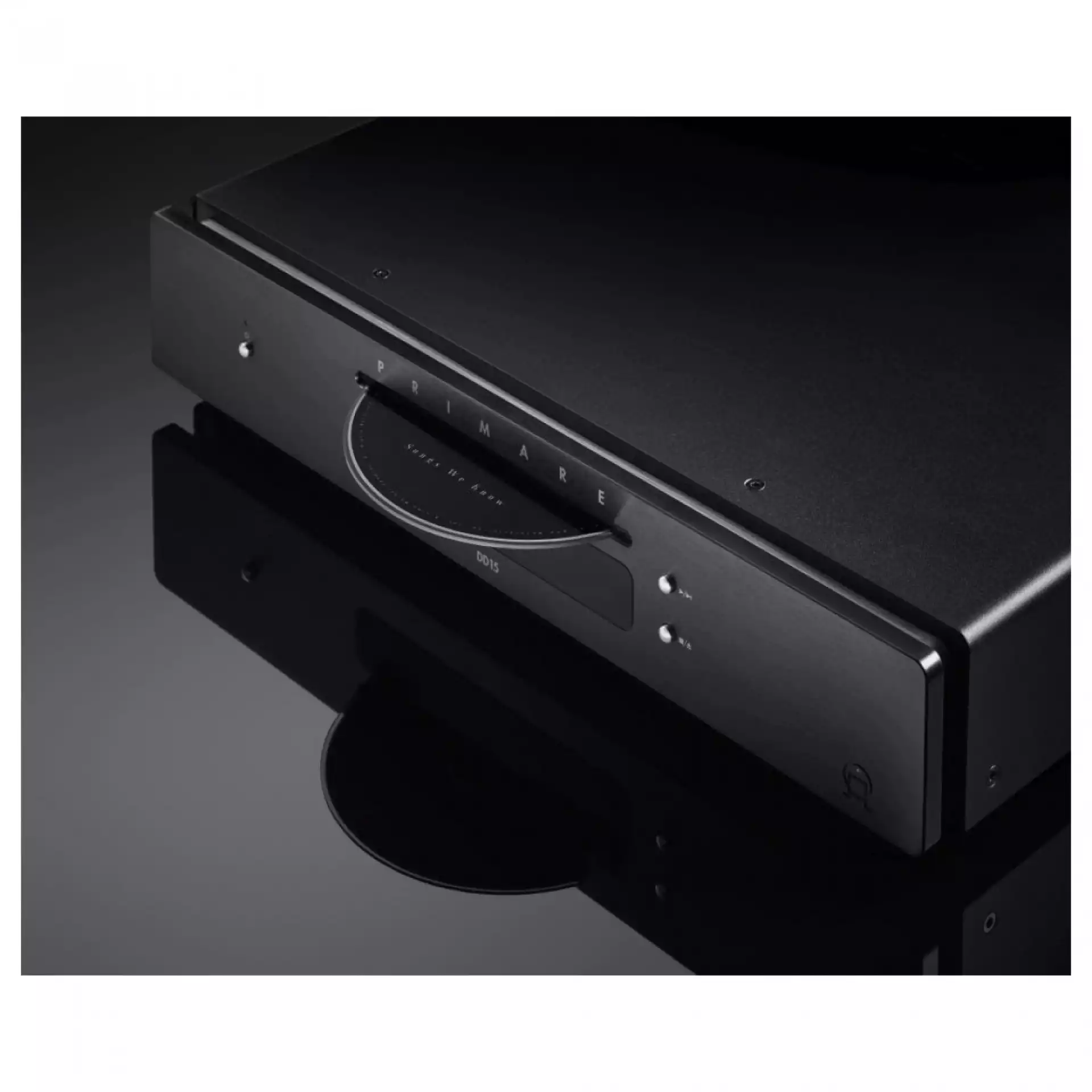

The CD15 Prisma continues a Primare tradition of delivering astonishing performance from compact and elegant devices for easy installation into virtually any living environment. With the three-quarter-sized cabinet of CD15 Prisma, even greater possibilities open up for providing the highest quality music performance and access to any and every room in the house.
The CD15 Prisma continues a Primare tradition of delivering astonishing performance from compact and elegant devices for easy installation into virtually any living environment. With the three-quarter-sized cabinet of CD15 Prisma, even greater possibilities open up for providing the highest quality music performance and access to any and every room in the house.
Technology
Within its compact chassis, the CD15 Prisma features a slot load dedicated CD drive with Prisma control and connectivity technology feeding a carefully crafted DAC stage and finely tuned analog output stage, allowing for full featured digital music playback from either stored or streamed media, as well as multi-room multi-zone capabilities. Connect a pair of powered speakers to its variable output and CD15 Prisma forms the heart of a complete compact digital music system.
Prisma
The CD15 Prisma features Prisma, Primare’s new whole-home, high-fidelity control and connectivity solution. Prisma provides multi-room/multi-zone connectivity and control for playback of stored and streamed media, wired or wireless, all managed from any mobile device through a dedicated system control app. In addition to Bluetooth, AirPlay, and Spotify Connect, Prisma features Chromecast built-in, a unique streaming portal allowing effortless direct connection to hundreds of streaming applications.
Optional Configuration
For those who need a compact dedicated CD transport to connect to a DAC, like that found in our I15 Prisma, I25 DAC, I25 Prisma, I35 DAC or I35 Prisma, DD15 is available; without Prisma control and connectivity technology and DAC, but with the same extraordinary drive as the CD15 Prisma.
| Mechanism | Philips Slot Load |
|---|---|
| D/A converter | AKM AK4490 |
| Analog outputs – selectable fixed or variable | 1 pair RCA, 2.2 Vrms |
| Output impedance | RCA 370 Ω |
| Digital outputs | 1x RCA | 1x TOSLINK |
| Frequency response | 20Hz – 20 kHz -0.3dB |
| Signal to Noise | -110dB/AES17 |
| THD + N | 20Hz – 20kHz <0.01% |
| Prisma Connectivity | Audio formats: WAV, LPCM, AIFF, FLAC, ALAC, MP3, MP4 (AAC), WMA, OGG, DSD |
| Inputs | USB-A up to 192 kHz/24 bit DSD 128/5.6MHz
Airplay Bluetooth Chromecast Built-in Spotify Connect UPnP/DLNA |
| LAN | Up to 192 kHz/24 bit
DSD 128/5.6MHz Data transfer rate: 10/100Mbit |
| WLAN | Up to 192 kHz/24 bit DSD 128/5.6MHz
IEE 802.11 a/b/g/n/ac compliant 2.4/5GHz; b, g, n mode Data transfer rate: maximum of physical layer rate of 390 Mbps |
| Frequency Response | Analog: 20Hz – 20kHz -0,5dB | Digital: 44.1kHz 20Hz – 20kHz +0.1/-0,6dB |
| Wireless Inputs: | Airplay, Bluetooth, Chromecast built-in, Spotify Connect |

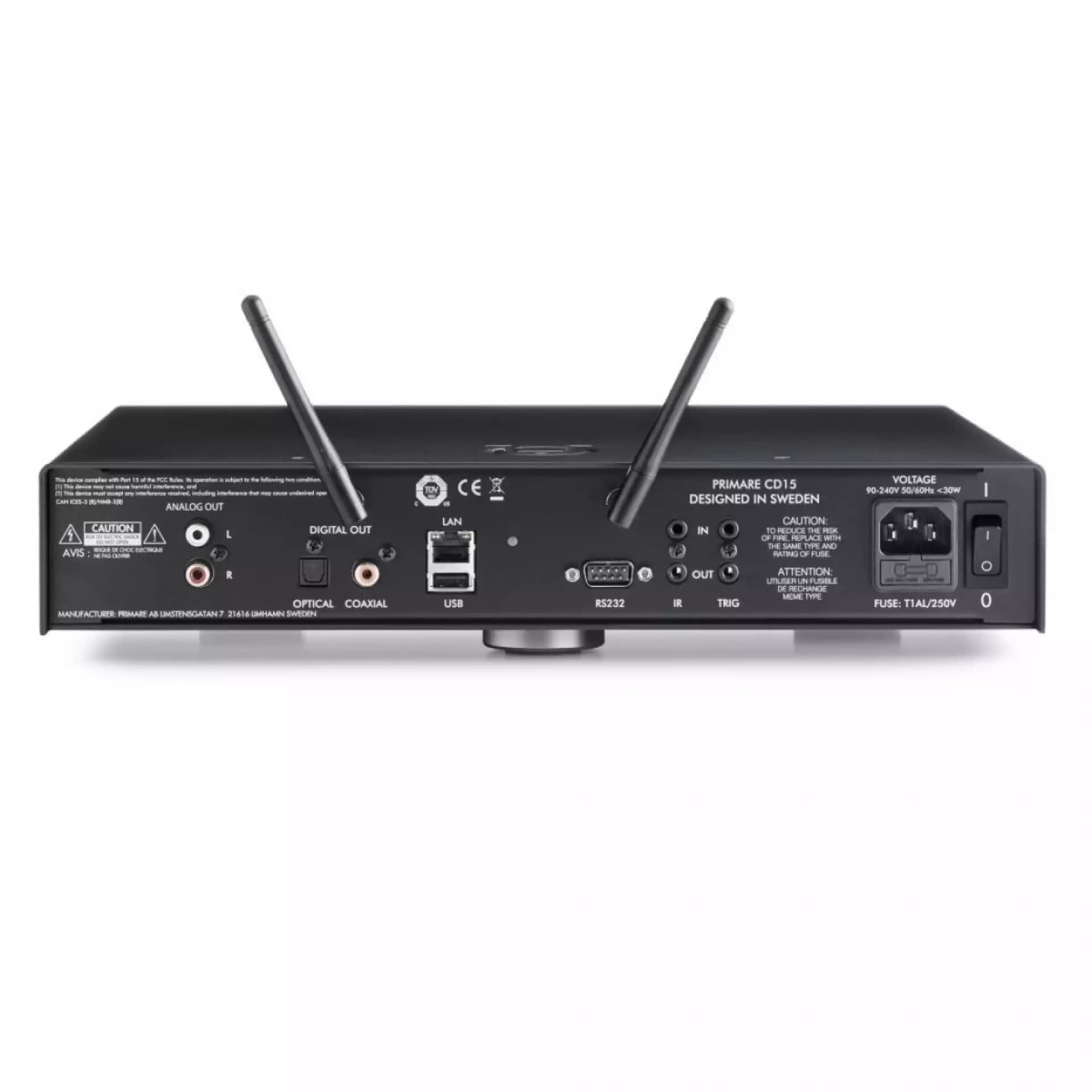

| Control | C25 system remote control RS232 IR in/out Trigger in/out |
| Power consumption | Standby 0.5W
Operation 25W |
| Dimensions: (wxdxh) | 430 x 385 x 106 mm with buttons and connectors
430 x 382 x 106 mm without buttons and connectors |
| Weight | 6.6 kg |
| Color options | Black |
