Denon AVC-X6800H Silver - AV risiver
Designed and manufactured in Japan, the AVR-X6800H drives 11.4 channels of amplification for an upscaled experience. With Dolby Atmos and DTS:X, plus IMAX Enhanced and Auro 3D, the AVR-X6800H envelops larger living spaces in breathtaking 3D audio. With HEOS® Built-in, wirelessly stream your favorite music.
• 11.4 channels
• 140W per channel
• 8K Ultra HD
• 3D Audio
• HEOS® Built-in
• Seven HDMI Inputs
Number of Power Amps: 11
Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive): 140 W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive): 175 W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive): 250 W
Metal Front Panel: Yes
System Remote Control: RC-1256
Pre-programmed / Learnable / LCD Display: Yes / No / No
Power Consumption in W: 750
Power Consumption No-Sound (ECO On / Off) in W: 65W / 110W
Standby Consumption in W: 0.1
CEC Standby Consumption in W: 0.5
Network Standby Consumption in W: Less than 2.0
Maximum Dimensions:
Antenna:Horizontal: (W x D x H) in mm 17.1× 15.3 × 6.6
(Antenna:Vertical: (W x D x H) in mm) (17.1 x 15.3 x 9.3)
【 w/o Antenna: (W x D x H) in mm】 (17.1 x 14.9 x 6.6)
Carton Dimensions (Packaging) (W x D x H) in Inches): 20.9 x 18.3 x 11.9 (in)
Weight in LBS: 34.4
Weight in LBS (Packaging): 40.1
Power Supply: AC 120 V, 60 Hz
Speaker Impedance: 4–16Ω/ohms
Pre-Amplifier
Section: Input Sensitivity: 200 mV
Frequency Response: 10 Hz–100 kHz — +1, –3dB (Direct mode)
S/N Ratio: 102dB (IHF-A weighted, Direct mode)
FM section
Tuning Frequency Range: 87.5–107.9 MHz
AM section
Tuning Frequency Range: 520 kHz–1710 kHz
What's in the Box: Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord
UPC Code: 747192140359

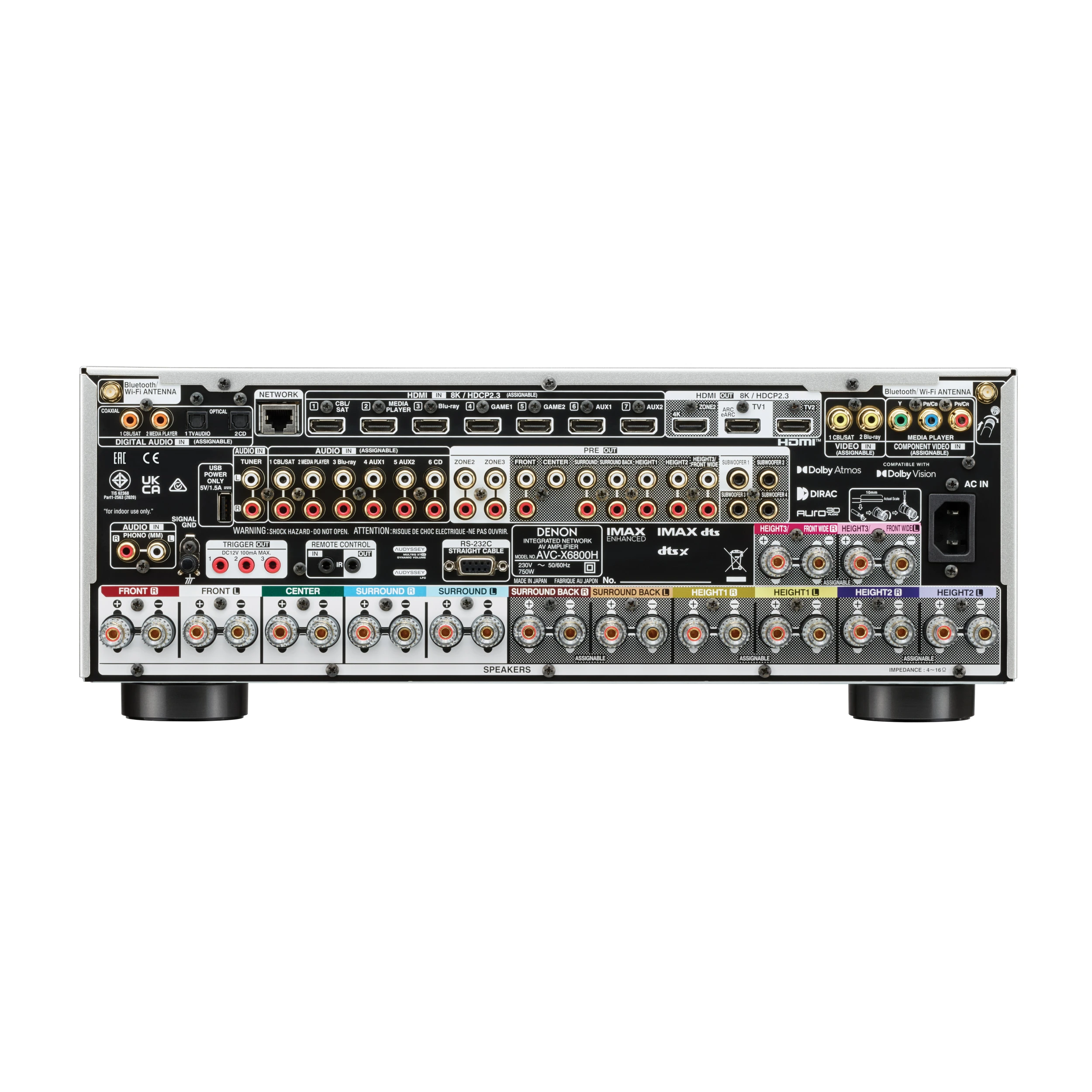

Inputs Outputs
VIDEO
Composite In / Out: 2 / No
Component In / Out: 1 / No
HDMI In / Out: 7 / 3
Multi-Room Video Out: Video / HDMI: No / Yes
AUDIO
Analog In, Out: 6 / No
Phono (MM) In: Yes
Digital in: Optical/Coaxial: 2 / 2
Multi-Room Out: Analog/Digital: 2 / No
Multichannel Pre-out: Yes (13.4)
Subwoofer Out: 4 (independent)
OTHER
Speaker Terminal: Gold-Plated Screw / Regular Screw: Yes / No
Number of Speaker Terminals: 13
Speaker A / B: assignable
Bi-amp drive: assignable
Multi-Room Speaker Terminal: assignable
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB: No / No / No / No / Yes
USB Audio / Made for iPod / Made for iPhone: Yes / No / No
USB Power Supply on Rear Panel: Yes
AM/FM Tuner: Yes
