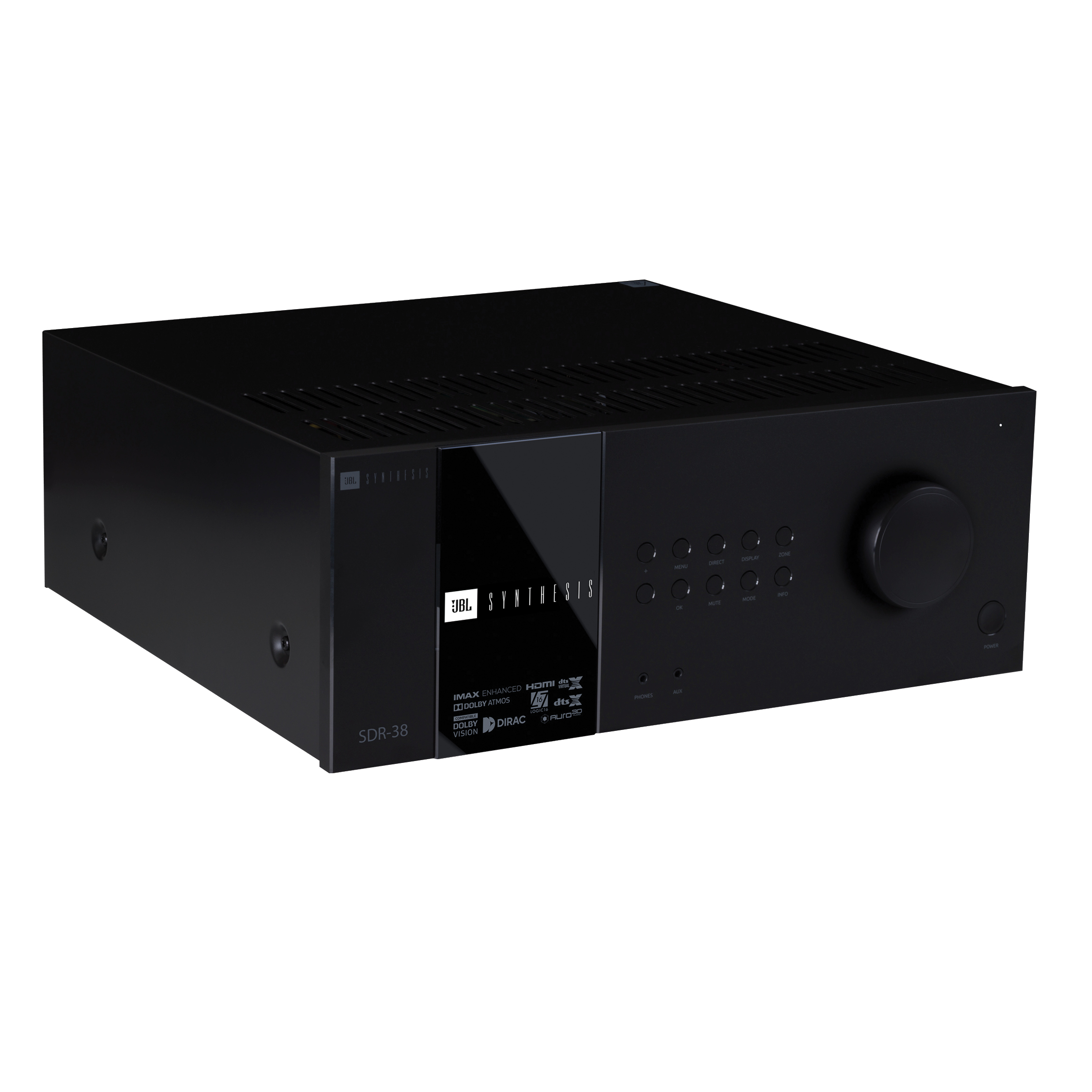

Class G Immersive Surround Sound AV Receiver
Latest HDMI 2.1 specification
• Supports ultra high video resolutions of up to 8K@60fps and 4K@120fps.
• Continuous power output, per channel, 8Ω/4Ω
• 2 channels driven, 20Hz - 20kHz, <0.02% THD : 120W/200W
• 2 channels driven, 1kHz, 0.2% THD : 140W/220W
• 7 channels driven, 1kHz, 0.2% THD :100W/180W
• Residual noise & hum (A-wtd) :<0.15mV
• Stereo line inputs
• Maximum input:4.5V rms
• Nominal sensitivity :1V, 2V, 4V (user adjustable)
• Input impedance:47kΩ
• Signal/noise ratio (A-wtd ref 100W) normal/stereo direct:100dB/110dB
• Frequency response:20Hz—20kHz ± 0.1dB
• Preamplifier outputs
• Nominal output level:1V RMS (max. 5V RMS)
• Output impedance:560Ω
• THD+N (20Hz—20kHz):–100dB
• Headphone output
• Maximum output level into 32Ω: 5Vrms
• Output impedance: 560Ω:<100Ω
General
• Mains voltage: 110–120V or 220–240V, 50–60Hz
• Power consumption (maximum): 50W (Thermal dissipation approx. 170 BTU/hour)
• Power consumption (idle, typical):40W (Thermal dissipation approx. 170 BTU/hour)
• Power consumption (standby): <0.5W
Dimensions
• W x D (including speaker terminals) x H (including feet): 433 x 425 x 171mm”
• Weight (net): 10.6kg
• Weight (packed): 13.9kg
