Power Amplifier

    Number of Powered Channels 11
    Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) -
    Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) 140 W
    Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 175 W
    Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 250 W
    70% Guarantee Yes
    Discrete Power Amplifier Yes
    Amplifier Topology Class A/B
    Current Feedback Topology yes
    Bi-Amp Drive assignable

Multichannel Surround Technologies

    DTS DTS HD Master, DTS:X, DTS:X Pro, DTS Neural:X, DTS Virtual:X
    Dolby Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
    Other
    Max Number of Processing (Preamp) Channels 13.4
    IMAX Enhanced Yes
    Auro 3D Yes
    Audyssey DSX Yes
    Multichannel Stereo Yes

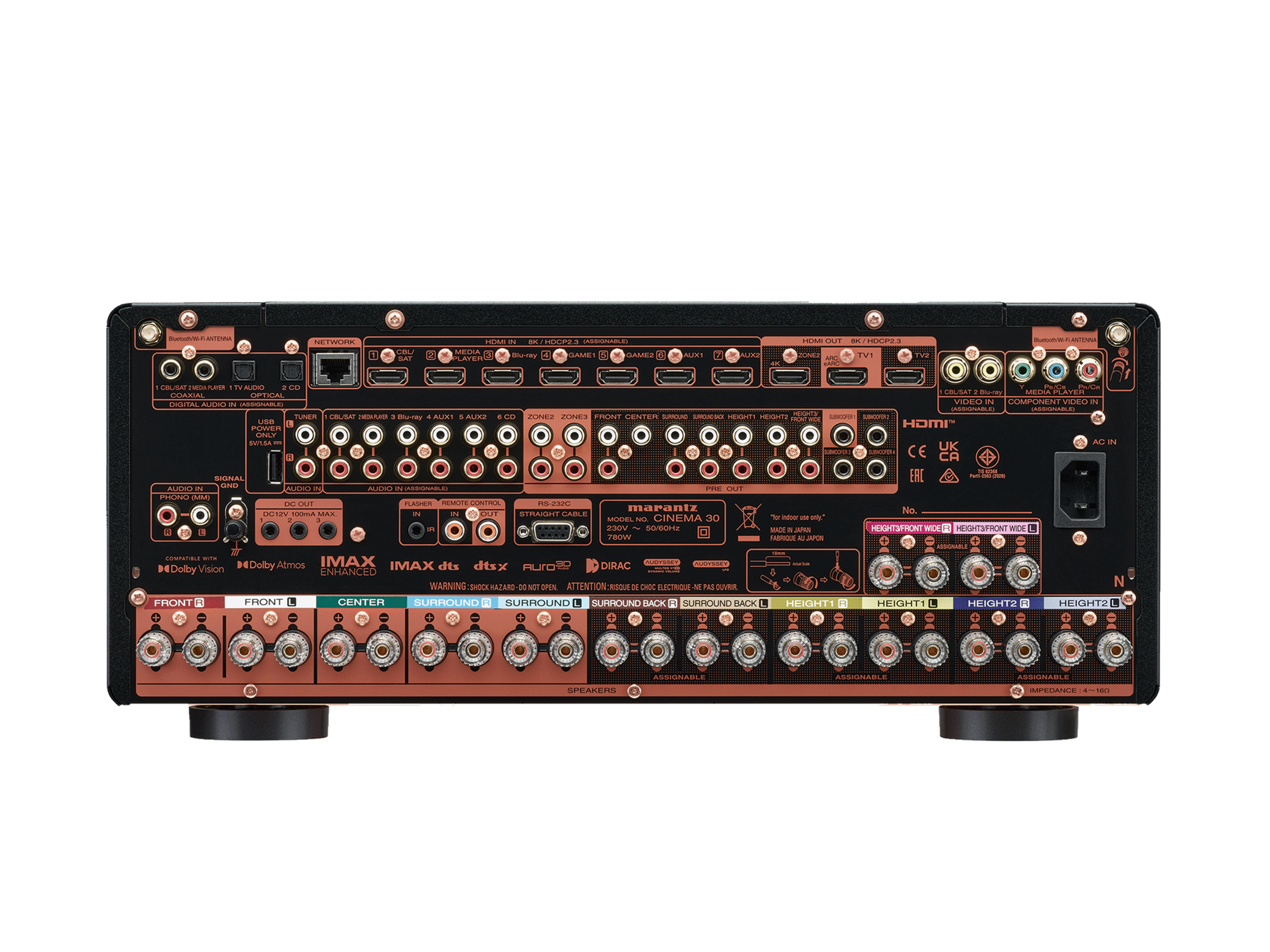

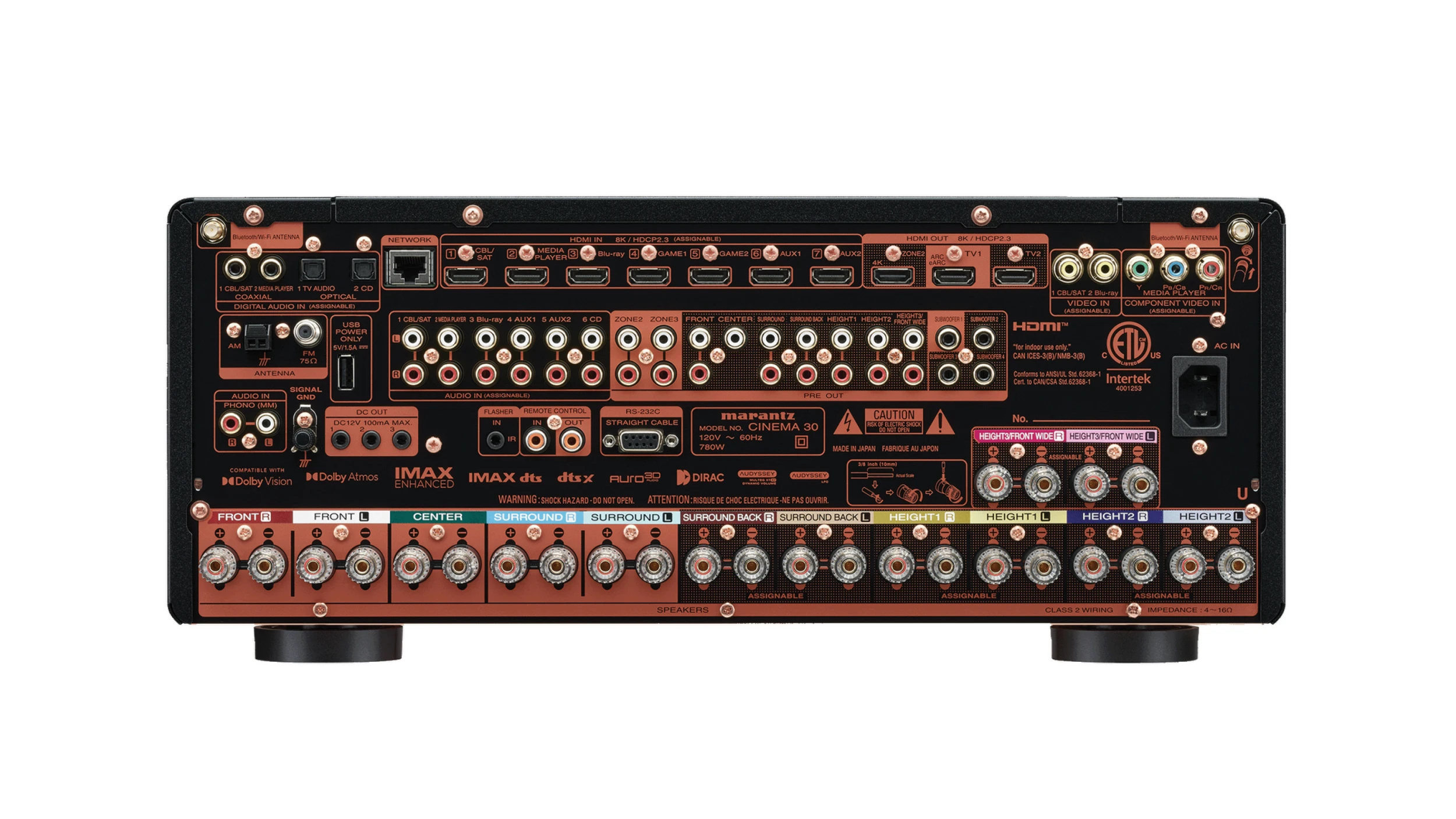

Inputs Outputs

    Composite In / Out 2 / 0
    Component In / Out 1 / 0
    HDMI In / Out 7 / 3
    Multi-Room Video Out via HDMI 0 / 0
    Analog In / Fixed Level Out 3 in / 0 out
    Phono (MM) In Yes
    Digital In: Optical / Coaxial 2 / 2
    Multi-Room Out: analog / digital 2 / 0
    Multichannel Preamp Out 7.2
    Subwoofer Out 4 (independent)
    7.1 multichannel input No
    Number of Speaker Terminals 13
    Speaker A / B assignable
    Multi-Room Speaker Terminal assignable
    Front Inputs USB-A
    USB Audio Yes / No / No
    FM Tuner with RDS Yes
    DAB+ Tuner No
    Multi-Room Video Out: Video / HDMI 7/3
    analog In/out 6 / 0
    Multichannel Pre Out Yes (13.4)
    Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB No / No / No / No / Yes

HDMI

    Total HDMI Inputs / No. Support 8K 6 / 3
    HDCP2.3 support Yes
    HDMI Outputs: Main / Zone 2 / 1
    Analog to HDMI Video Conversion No
    HDMI Upscaling 1080P/4K to 8K
    Max resolution @ framerate
    Audio Return Channel ARC, eARC
    Video Dynamic Range HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
    ALLM (Auto Low Latency Mode) Pass-through for gaming Yes
    Variable Refresh Rate / Quick Frame Transport Yes / Yes / No
    HDMI Pass-Through in Standby Mode Yes
    CEC Yes
    DSD Audio over HDMI No
    Auto LipSync Yes
    HDMI Inputs: Back / Front 7 / -
    Video Conversion Analog -> HDMI Yes
    HDMI to HDMI Scaling 1080P/4K to 8K
    HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB Yes / Yes
    8K/60Hz AB / 4K/120Hz AB Pass-through In/Out 7 / 2 (up to 40Gbps)
    HDMI 2.0: 3D / 4K / CEC / ARC Yes / Yes / Yes / Yes
    HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR Yes / Yes / Yes / Yes / Yes
    Variable Refresh Rate / Quick Flame Transport / Quick Media Switching Yes / Yes / No
    8K signal pass-through / scaling / GUI overlay o / o / o
    4K Signal Pass-Through / Scaling / GUI Overlay o / o / o
    DSD Audio Capability Yes

Performance Technologies

    Copper Plated Chassis Yes
    Toroidal Power Supply Transformer Yes
    Hyper Dynamic Amplifier Modules (HDAM) (List version) Yes
    Pure Direct Mode Yes
    Gold Plated RCA Terminals Yes
    Clock Jitter Reducer Yes

Acoustic Room Correction

    Audyssey MultEQ XT32
    Audyssey Dynamic EQ / Dynamic Volume Yes / Yes
    Audyssey LFC Yes
    Dirac Live Support Yes
    Variable Cross Over Yes
    Optimized Bass Redirection Yes
    Bass Sync Yes
    Dirac Live Upgradability Yes

Music File Support

    Lossy Formats MP3 / WMA / AAC
    Lossless formats FLAC HD 192/24 / WAV 192/24 / ALAC 192/31
    DSD Audio 2.8 MHz / 5.6 MHz
    Gapless Playback FLAC, WAV ,ALAC ,DSD
    Compressed Audio Enhancer: MDAX2 Yes
    Network Audio Sharing Yes

Streaming Services

    HEOS Multi-room and Streaming Yes
    AirPlay Audio Streaming AirPlay2
    Internet Radio TuneIn
    Spotify* Spotify Connect
    Pandora Yes
    SiriusXM Yes
    Other Streaming Services * Amazon Music HD/
    Amazon Music / TIDAL / Deezer / Napster / Soundcloud / Mood Mix
    Roon tested Yes

Network Connectivity

    Ethernet Ports Yes
    Wi-Fi (include version / band) Yes
    Bluetooth (Include version) Yes
    Bluetooth Re-transmit for Bluetooth headphones Yes

Smart Home Integration and Control

    Voice Assistant Compatibility Alexa / Google Voice Assistant / Apple HomePod
    App for Smart Phones & Tablets (iOS & Android) Marantz AVR App
    HEOS Multi-Room Integrated Yes
    HEOS Link Compatibility: IR/ IP Yes /Yes
    Multi-Room zones 2
    Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog 2 Ch / 2 Ch / Yes / Yes
    Zone Audio Output: Speaker / Preout Yes / Yes
    Zone HDMI Output from HDMI Source Yes
    Control Connectivity IP Control / RS232 Control / Web Control / App Control
    IR Flasher In Yes
    Marantz Remote Bus Yes
    DC Trigger Output 3
    HDMI Diagnostics Yes

Others

    Front Display 2 line FLD + port hole OLED
    Primary Display Size (diagonal in/mm)
    Secondary Display Size (diagonal in/mm)
    GUI Languages 3
    Setup Assistant Yes
    Smart Select on Remote Yes
    Firmware Update by Network / USB Yes / Yes
    ECO Mode Yes
    Auto Power off Yes
    Sleep Timer Yes
    GUI Overlay on HDMI
    CEC Yes
    Auto Speaker Setup by Microphone Audyssey MultEQ XT32Dirac Live (upgrade)
    Graphic User Interface - GUI Modern HD GUIModern HD GUI
    Smart Select Yes

General

    Available Colors Black/Silver-Gold
    Metal Front Panel Yes

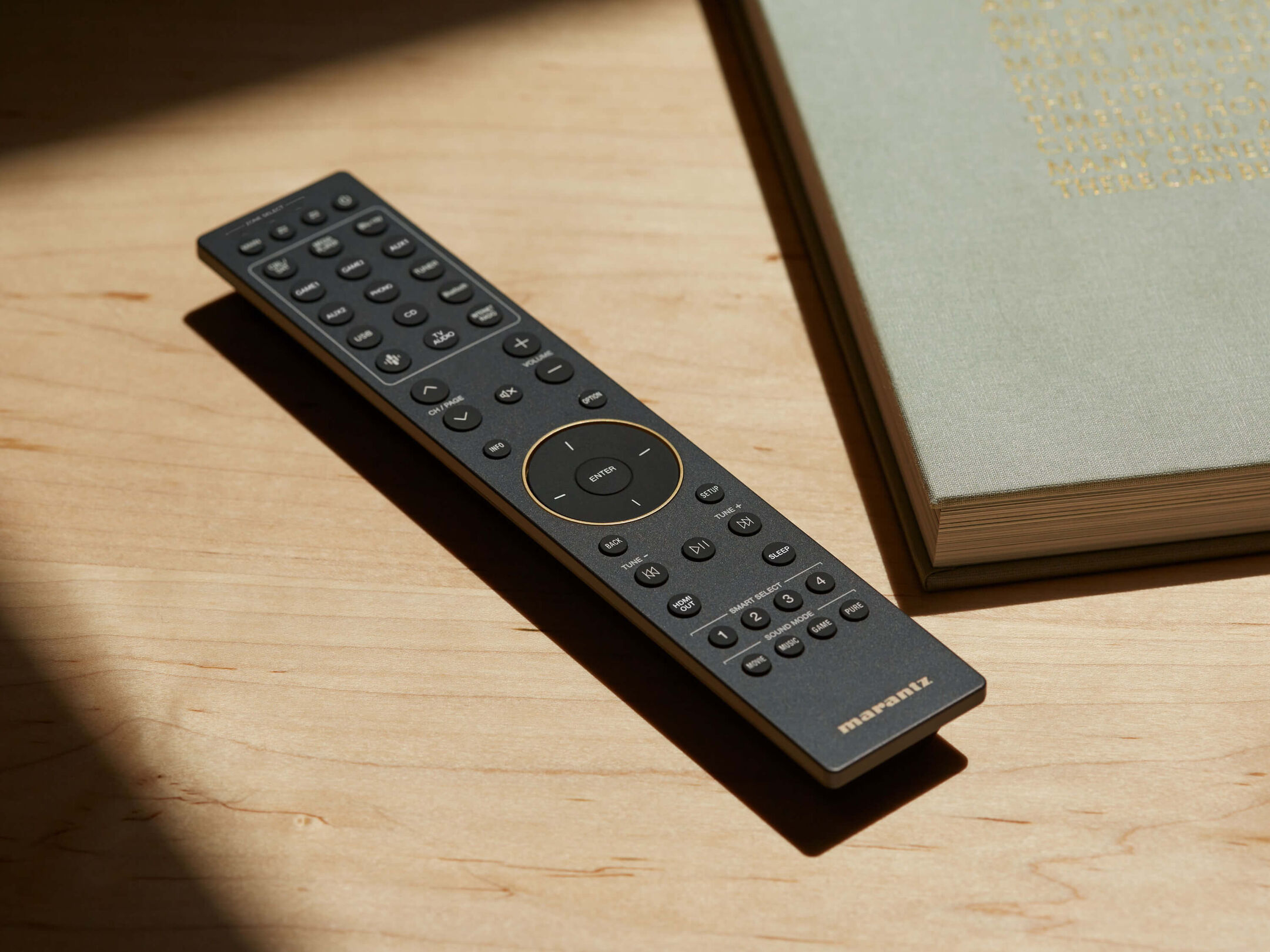

    System Remote Control RC-051SR
    Power Consumption in W 780
    Power Consumption No-Sound (ECO on/off) in W 65 W / 110 W
    Standby Consumption in W 0.2
    CEC Standby Consumption in W 0.5
    Network Standby Consumption in W Less than 2.0
    Maximum Dimensions
    Antenna:Horizontal:(W x D x H) in mm
    Antenna:Vertical :(W x D x H) in mm
    W/o Antenna:(W x D x H) in mm 442 x 384 x 109
    ( 442 x 384 x 178 )
    【 442 x 372 x 109 】
    Weight in kg 8.7
    What's in the box Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, cardboard microphone stand, 2 External Detachable Antennas, AC cord
    Weight in lbs. 42.8
    Maximum Dimensions
    Antenna:Horizontal:(W x D x H) in inches
    Antenna:Vertical :(W x D x H) in inches
    W/o Antenna:(W x D x H) in inches 17.4 x 18.0 x 7.5
    (17.4 x 18.0 x 10.2)
    【17.4 x 17.6 x 7.5】
    Pre-Programmed / Learnable / LCD Display Yes / Yes / Yes
