• 250 W/Ch THX® Certified Select RZ Series
Dynamic Audio Amplification
• Wide 5 Hz–100 kHz frequency response
• HDMI® inputs 1–3, Main Out, and Sub/Zone 2 Out
(Sub Mode output) support 8K/60p (4:2:0/10-bit), 8K/30p
(4:4:4/10-bit), 4K/120p (4:4:4/10-bit) video passthrough
• HDMI terminals*1 support HDR10+, Dolby Vision™, and
BT.2020 color; VRR (Variable Refresh Rate), ALLM (Auto
Low Latency Mode), and QFT (Quick Frame Transport)
passthrough; eARC (Main Out), and HDCP 2.3
• SMART AV Receiver™ Works with Sonos*2,
Chromecast built-in™, AirPlay 2, DTS Play-Fi®, Spotify®,
Amazon Music HD*3, Pandora®, TIDAL, Deezer, TuneIn*4
• Dolby Atmos® and DTS:X® playback (5.2.4-ch)
• 11.2-ch processing and pre-outs for 7.2.4 layouts
• Dolby Atmos Height Virtualizer
• IMAX® Enhanced certified signature sound by DTS:X
• Supports Dirac Live® Room Correction
• AccuReflex™ phase-matching solution for
Dolby Atmos enabled speakers
• HDMI Main Out with eARC
(enhanced Audio Return Channel)
• HDMI Sub/Zone 2 Out*5 connects a second display
or projector
• Refined HDMI grounds, isolated SoC board,
reinforced power lines
• Quad-core SoC supports 802.11ac (2x2 MIMO) Wi-Fi®*6
• Dedicated DACs for switching Zone 2 outputs (dedicated),
Zone 3 outputs (shared), Zone 2/Zone B and
Zone 3 pre-/line-outs
• Stereo Assign Mode supports Height-channel playback
• DSP-based Vocal Enhancer improves vocal/dialog audibility
• OSD function shows A/V input/output signal data,
playback settings, and network info
• Volume memory presets for A/V inputs via front panel
AMPLIFIER FEATURES
• 250 W/Ch (6 ohms, 1 kHz, 10% THD, 1-ch driven),
120 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2-ch driven, FTC)
• Certified for IMAX Enhanced and THX Certified Select
• Exclusive Dynamic Audio Amplification (DAA) RZ Series build
• Wide 5 Hz–100 kHz frequency response
• Custom High-Current Low-Noise Power Transformer
• Custom 15,000 μF high-current smoothing capacitors
• Refined chassis, HDMI board, DAC, digital/analog inputs, power-amp
grounds, and power lines
• Isolated network module reduces high-frequency interference on
audio circuitry
• Original 2-stage non-phase-shift amplifier circuitry with
discrete output stage
• Anti-resonant extruded aluminum heat-sink
• High current capability drives 4-ohm loads through 9 channels
• High-quality DAC supports 192 kHz/24-bit multichannel D/A conversion
• VLSC™ (Vector Linear Shaping Circuitry) noise filtering (Front L/R)
• PLL (Phase Locked Loop) anti-jitter technology for SPDIF audio
• Independent tone controls (bass/treble) for all channels
(excluding Zone 3)
VIDEO & AUDIO SUPPORT
• HDMI*1 supports 8K/60p (4:4:4/12-bit*7, 4:2:2/12-bit*7, 4:2:0/10-bit*8),
8K/30p (4:4:4/12-bit*7, 4:4:4/10-bit*8, 4:2:2/12-bit*8, 4:2:0/12-bit), 4K/120p
(4:4:4/12-bit*7, 4:4:4/10-bit*8, 4:2:2/12-bit*8, 4:2:0/12-bit) video passthrough,
VRR, ALLM, QFT, DSC (Display Stream Compression), QMS (Quick
Media Switching), eARC (Main Out), HDR10+, Dolby Vision, HDR10,
HLG, BT.2020, DeepColor™, x.v.Color™, LipSync, and HDCP 2.3
• Dolby Atmos, DTS:X, Dolby® TrueHD, and DTS-HD Master
Audio® decoding
• Dolby Atmos Height Virtualizer 3D audio processing
• Dolby Surround® and DTS® Neural:X 3D upmixing technology
• IMAX Mode for IMAX Enhanced content
• THX® listening modes for movies, music, and games
• Theater-Dimensional virtual surround-sound function
• Sound optimization for games (Rock, Sports, Action, and RPG)
• Hi-Res Audio playback via network (DSD256/DSD128/DSD64 [PCM
conversion], FLAC, WAV [RIFF], AIFF, and ALAC to 192 kHz/24-bit*9)
• Pure Audio Mode and Direct Mode for source-authentic sound quality
NETWORK FEATURES
• SMART AV Receiver multi-room platform with integrated streaming
services, voice assistant support, and remote app control*10
• Works with Sonos certified for the Sonos Home Sound System,
control with Sonos app*10
• Works with Alexa supporting multi-room music*11
• Works with Hey Google*12 and Chromecast built-in
• Supports Apple AirPlay 2 enabling Siri voice control
• DTS Play-Fi multi-room audio via Onkyo Music Control App*10
• 1.8 GHz quad-core SoC supports 802.11ac (2x2 MIMO) Wi-Fi
• Roon Tested for the Roon Core

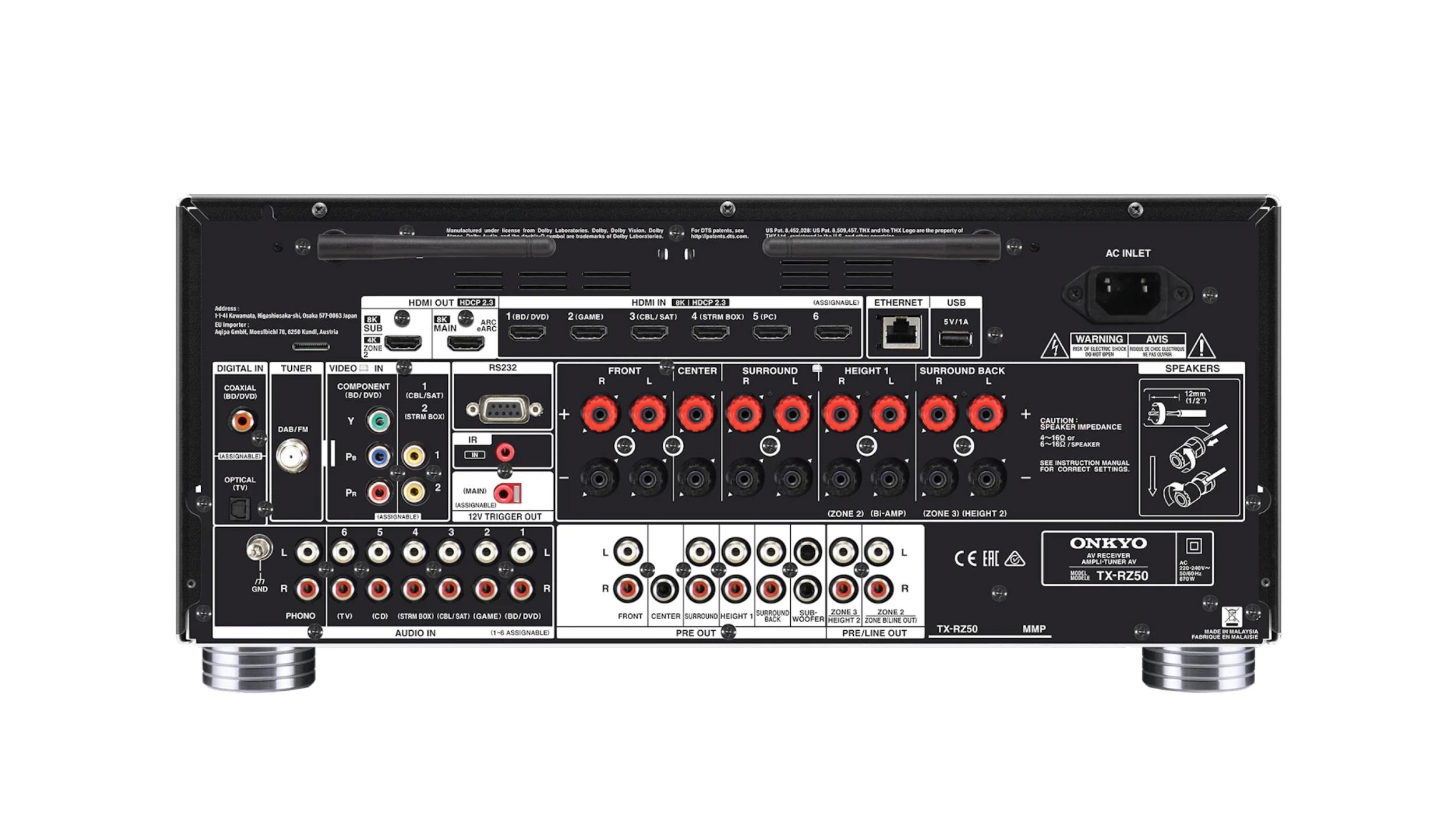

CONNECTION FEATURES
• 7 HDMI inputs (1 front), 2 outputs (Main [eARC], Sub/Zone 2)
• 1 component video input (assignable)
• 2 composite video inputs (assignable)
• 2 digital audio inputs (1 coaxial, 1 optical, assignable)
• 6 analog RCA audio inputs (assignable)
• 1 phono input with built-in low-noise MM equalizer for turntable
• 1/8˝ (3.5 mm) setup mic input for AccuEQ/Dirac Live (front)
• 1/4˝ (6.35 mm) headphone jack (front)
• 11.2-ch pre-outs (analog RCA, variable)
• Zone 2/Zone B and Zone 3 analog RCA pre/line-level outputs*13
• 11 banana-plug-ready screw-type speaker posts
(including exclusive Zone 2 outputs)
• 10BASE-T/100BASE-TX Ethernet terminal for network and IP control
• USB input (5 V/1 A) for audio playback (rear)
• RS-232 serial port for remote control
• IR (infrared) input for remote-control extenders
• 12 V trigger output (Main, assignable, 100 mA)
• AC inlet for detachable IEC power cord
ADVANCED FEATURES
• Dirac Live improves staging, localization, clarity, and bass
• Bluetooth® wireless technology can receive audio sent from mobiles and
PC, transmit audio to wireless headphones (RX mode: SBC/AAC,
TX mode: SBC/Qualcomm® aptX™/aptX HD)
• Advanced Music Optimizer improves compressed audio playback quality
• Vocal Enhancer boosts vocal/dialog audibility via remote control or
front-panel keys
• Front-to-Surround/Height speaker switching in Stereo Assign Mode for
background listening
• Overlaid OSD function displays A/V input signal data,
output data/settings, and network information
• My Input Volume one-touch volume memory preset assignment to
individual A/V inputs
• Transmit HQ audio from compatible TVs to the A/V receiver via eARC
(HDMI Main Out)

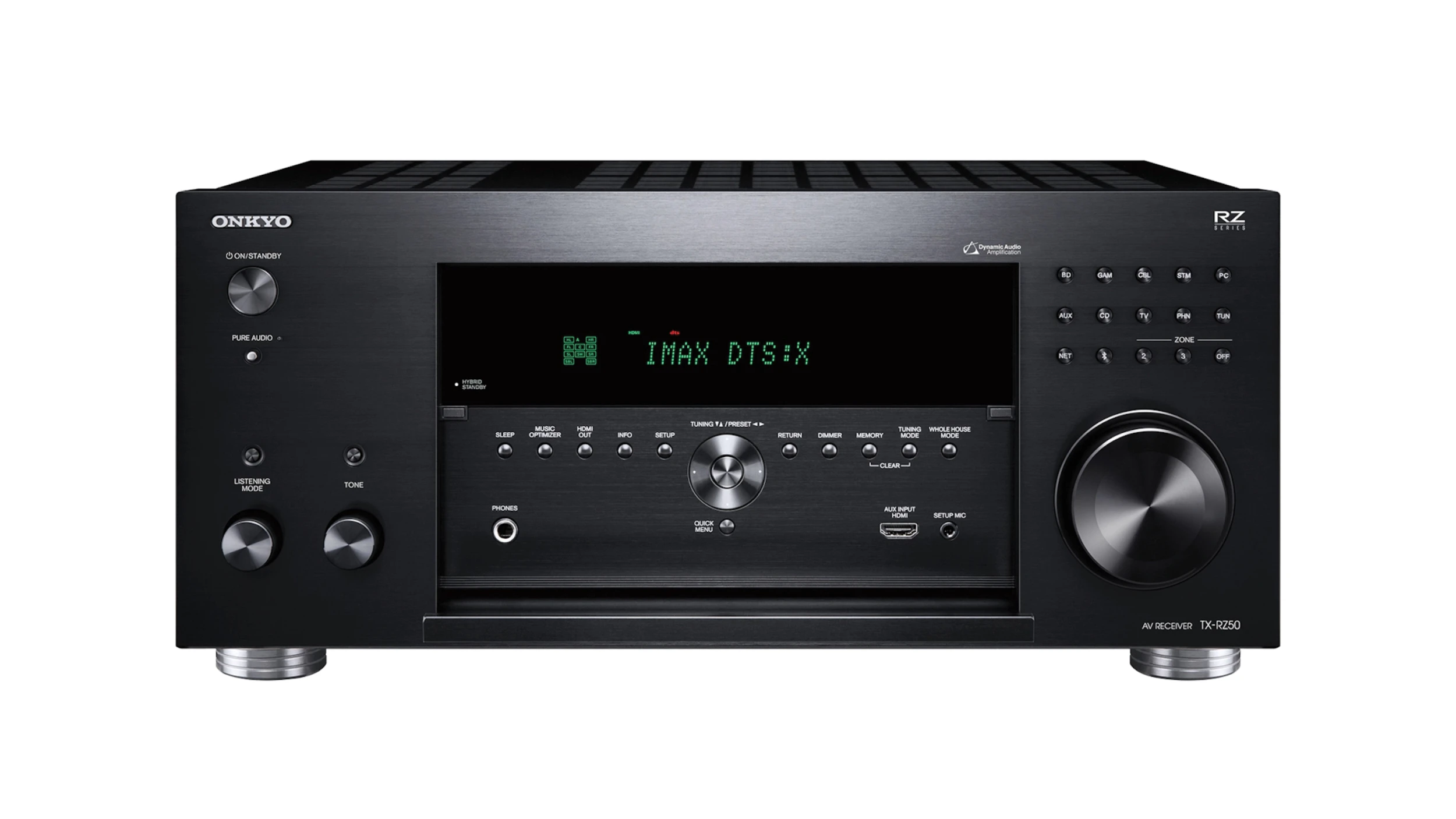

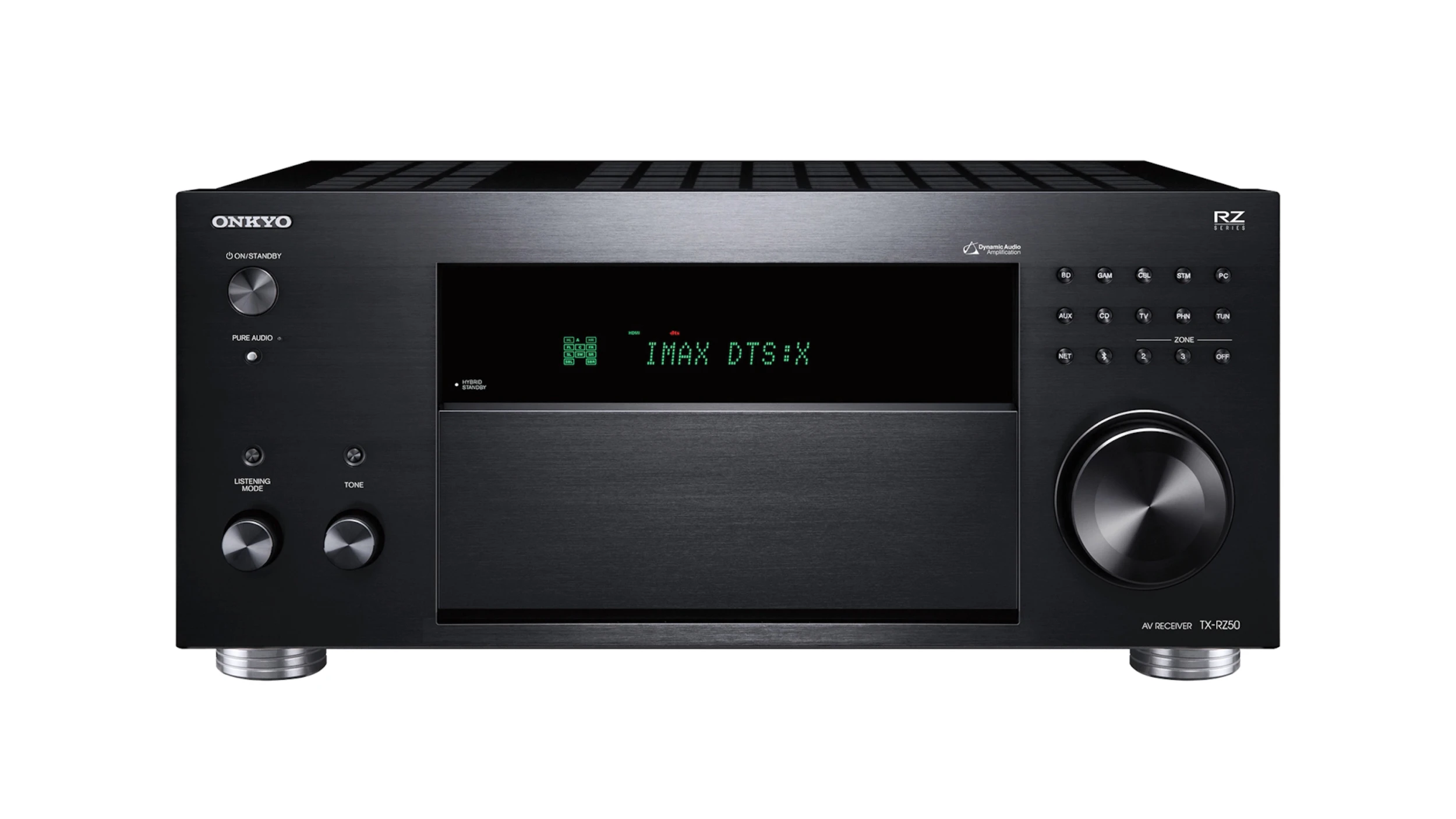

• Aluminum front panel, concealment flap door, and volume control
• Connect Zone 2 speakers and 7.2.2/5.2.4-ch speaker system using
dedicated Zone 2 outputs (Zone 2 + 7.2/5.2.2-ch switching)
• Play three audio sources via dedicated DACs and MAIN, Zone 2, and
Zone 3 speaker outputs*14
• Share MAIN audio or a second source (including HDMI/SPDIF*15)
to a hi-fi via Zone 2 pre-/line-out
• Share any MAIN audio source to a wireless headphone dock via
Zone B line-out*16
• 4K to 8K, 1080p to 8K/4K video upscaling via HDMI
• GUI with overlaid OSD via HDMI
• IP control and AVR setup via web browser
• Crossover adjustment for each channel
(40/50/60/70/80/90/100/120/150/180/200 Hz)
• A/V Sync Control (up to 500 ms in 5 ms steps at 48 kHz*17)
• Efficient standby modes including HDMI Passthrough Mode
• Optional rack-mounting kit (IRK-180-4C)
• FM/AM tuners with 40-station random preset memory
• 3-Mode display dimmer (Normal/Dim/Dimmer)
*1 Features defined in HDMI 2.1 specification, HDR10+, and passthrough capabilities
described are supported on HDMI inputs 1–6, Main Out, and Sub/Zone 2 Out in Sub
Mode output. *2 Requires a Sonos Connect or Port (sold separately). Connection of 1–3
Sonos devices is supported with volume control enabled via the Sonos app for compatible
iPhone, iPad, and Android™ devices. *3 Amazon Music HD is supported via DTS PlayFi. *4 Service availability varies with region and subscriptions may be required. *5 HDMI
Zone 2 Mode output supports signals via HDMI inputs 1–3. *6 Some countries or
regions have regulations that affect wireless signal strength and use of Wi-Fi channels. *7
DSC signals only. *8 DSC signals only when input via HDMI inputs 4–6. *9 Supported
sampling rates may vary depending on network environment. DSD is converted to
PCM upon playback. ALAC is supported to a maximum 96 kHz. *10 Available free
for compatible iPhone and iPad at the App Store. Available free for compatible Android
devices at the Google Play Store. *11 Voice control requires an Amazon Alexa enabled
device. Alexa multi-room music may require a firmware update. *12 Voice control
requires a Google Assistant enabled device. *13 Zone B is line-level output only. *14
HDMI/SPDIF/NET supported in Zone 2. Analog/NET supported in Zone 3. When set to
Zone 2, HDMI audio is available on inputs 1–3. SPDIF and HDMI support PCM signals
only. Simultaneous playback of multiple audio sources is enabled. *15 HDMI audio
is available on inputs 1–3. SPDIF and HDMI support PCM signals only. Simultaneous
playback of multiple audio sources is enabled. *16 When set to Zone B mode, playback
of encoded and PCM audio via any input is enabled in MAIN and Zone B. *17 Max.
400 ms (5 ms steps) at 96 kHz, and max. 200 ms (5 ms steps) at 192 kHz.
PRODUCT HIGHLIGHTS BLACK
Unleash the IMAX® Enhanced experience
IMAX Enhanced uses DTS:X® technology optimized for the
IMAX signature experience and reproduces the full dynamic
range of IMAX theatrical mixes.
IMAX Mode delivers lMAX Enhanced
content as the filmmakers intended.
THX® Certified Select theater-reference sound
Experience the same reference volume of at a commercial
theater in rooms where the screen-to-seat distance is about
12 ft. (3.5 m). Certified receivers must pass 2,000 bench-tests
in 75 categories.
Welcome to 8K Ultra HD with the latest HDMI®
Features defined in HDMI 2.1 enable 8K/60p passthrough to
a compatible display. As well as HDR10 and HLG, HDR10+
and Dolby Vision™ formats optimize brightness, contrast, and
color frame-by-frame. All HDMI terminals support HDCP 2.3,
while eARC on Main Out passes multichannel audio (including
Dolby Atmos® or DTS:X) from TV to AVR for decoding and
amplification. QMS (Quick Media Switching) reduces screen
blanking when switching HDMI sources.
Note: features defined in HDMI 2.1 supported on HDMI inputs 1–6, Main Out, and
Sub/Zone 2 Out in Sub Mode output.
Experience lag-free gameplay
Transform virtual worlds with 3D sound and get a competitive
edge with all-new HDMI features for gamers. VRR (Variable
Refresh Rate), ALLM (Auto Low Latency Mode), and
QFT (Quick Frame Transport) eliminate lag, stutter, and
frame-tearing for more fluid and responsive gameplay.
Note: features supported on HDMI inputs 1–6, Main Out, and Sub/Zone 2 Out in
Sub Mode output.
Dolby Atmos and DTS:X
Dolby Atmos and DTS:X formats map sound origins as they
are perceived in real life and transpose them around your
audience for a captivating entertainment experience. Enjoy 3D
sound through a 5.2.4 or 7.2.2 layout or connect a stereo amp
and expand to 7.2.4 channels. Rediscover classic titles through
your height-enabled system with Dolby Surround® and DTS®
Neural:X. These technologies analyze legacy soundtracks for
spatial cues and upmix for immersive 3D playback.
Dolby Atmos Height Virtualizer
Dolby Atmos Height Virtualizer enhances Dolby® formats for
a more immersive experience. It creates virtual surround and
height effects using a traditional speaker layout.
Exclusive refinements for clear sound
HDMI board has short signal-paths and well-finished grounds
that suppress noise. SoC board is isolated from audio circuitry,
reducing interference. Reinforced power-supply line and refined
power-amp grounds with copper bus bar reduce circuit noise
for thick, clear, and detailed sound.
SMART AV Receiver™ multi-room entertainment
SMART AV Receiver is the heart of your
home entertainment system. Access
streaming content from Amazon Music
HD*
, Pandora®, Spotify®, TIDAL, Deezer,
and TuneIn and share sound as part of a multi-room system
via Works with Sonos, Chromecast built-in, AirPlay 2, and DTS
Play-Fi®.
* Amazon Music HD is supported via DTS Play-Fi.
Works with Sonos
Add this receiver to your Sonos Home Sound System just by
pairing it with a Sonos Connect or Port*
. The AVR ties into the
Sonos ecosystem, changing inputs and responding to volume
commands from the Sonos app*
.
* Sonos Connect and Port sold separately. Connection of 1–3 Sonos devices is
supported. Sonos app is available free for compatible iPad, iPhone, and Android™
devices at the App Store and the Google Play Store.
Chromecast built-in™ works with Hey Google
Stream music from your smartphone, laptop, or PC to the
receiver via Chromecast built-in and control playback from
Chromecast-enabled apps from iPhone, iPad, Android™ phone
or tablet, Mac or Windows® PC, or Chromebook™. Cue, play,
and control audio on this and other supported devices just by
using your voice.
Works with Alexa
Use your voice to control the AVR by issuing commands
through an Alexa device. Whether you want to listen to music,
radio stations, or podcasts, all you have to do is ask. It also
supports multi-room music*
played on multiple devices.
* Multi-room music may require a firmware update.
Connect speakers for powered multi-room sound
Separate Zone 2 outputs connect passive speakers in another
room in addition to your 5.2.4 or 7.2.2 speaker system. Switch
freely between 7.2.2/5.2.4 or 7.2/5.2.2 + Zone 2 playback.
Together with MAIN, Zone 2 and Zone 3 DACs support
D/A audio playback (including HDMI, SPDIF, and NET) in
three rooms. You can sync the same track or play different
songs in each room using Onkyo Controller to manage
your entertainment.
Note: Zone 3 supports analog/NET only. Zone 2 HDMI audio available via
inputs 1–3. HDMI and SPDIF support PCM only.
5 GHz/2.4 GHz Wi-Fi® supports 802.11ac standard
Isolated 1.8 GHz quad-core SoC performs multiple
processing tasks at once. It evolves network functions and
supports the 802.11ac (2x2 MIMO) standard for stable
multi-room audio streaming.
Note: some countries or regions have regulations that affect wireless signal strength
and the use of Wi-Fi channels.
Bidirectional Bluetooth® wireless technology
Send or receive audio via Bluetooth wireless technology.
Stream from your laptop, digital audio player, or mobile to the
receiver over SBC or AAC, or share what’s playing in the main
zone*
to a pair of wireless headphones using SBC, aptX™, or
aptX HD codecs.
* Audio via Chromecast built-in and Works with Alexa excluded.
Convenient Zone 2 and Zone B pre-/line-out
RCA pre-/line-out has two modes: Zone 2 supports
connection of active speakers or a hi-fi system, and can sync
D/A audio in MAIN and Zone 2 or play a different source in
each. Zone B plays MAIN audio through compatible wireless
headphones via a connected headphone dock.
Note: Zone 2 mode supports HDMI audio via inputs 1–3. SPDIF and HDMI
support PCM only. Zone B mode is line-level only and supports encoded or PCM
signals (all inputs) in MAIN and Zone B.
Dirac Live® Room Correction
Dirac Live analyzes your audio system and listening environment
by examining acoustic data measured with a setup
mic. It corrects both the timing and amplitude aspects
of sound coloration using a mixed-phase correction
filter throughout the listening area, not just a particular
zone. Correction is performed automatically using
a proprietary app for smartphone or tablet*
.
Dirac Live improves staging, localization, clarity,
voice intelligibility, and bass response.
* Mobile device and AVR must be connected to the same local network.
Flexibility for customized setups
Connect an external power amp or motorized projector
screen via the AVR’s 12 V trigger output and power them up
automatically with your AVR, with CEC performing the same
task for media players over HDMI. An IR repeater input lets
you conceal the AVR away from the screen, ideal for bespoke
theaters. Ethernet and RS-232 terminals integrate the AVR into
your automation system, with the former supporting setup and
web browser control via PC.
|
