audiolab 8300A Aluminium Silver Integrisano Pojačalo
Garantujemo najnižu cenu!
- Futoški put 1, Novi Sad
Completely redesigned from scratch, our new integrated amplifier, the 8300A is miles ahead of what was already an industry-leader. Higher power, an additional phono stage and new Audiolab styling means the amplifier is more stylish and more versatile than ever. Most importantly it's new, ultra-efficient circuitry and streamlined components create a listening experience which brings new definition to your favourite music.
The 8300 series’ blasted aluminium finish, CNC routed aluminium dials and display certainly look cutting-edge, yet with every Audiolab product, form follows function. The new display and controls enable a fast and intuitive access through the vast routing options and filter settings in both the A and CD.
On the 8300A Engineers have developed a new phono stage catering for the resurgence in vinyl records with MM and MC configurations accessible via the front panel controls.
While striving to achieve the most supreme sound quality, each stage of Audiolab product development is focused on usability.The amplifier can behave as an integrated amplifier, power amplifier, pre-amplifier and a split pre-amplifier - easily paired with a multitude of hi-fi systems.

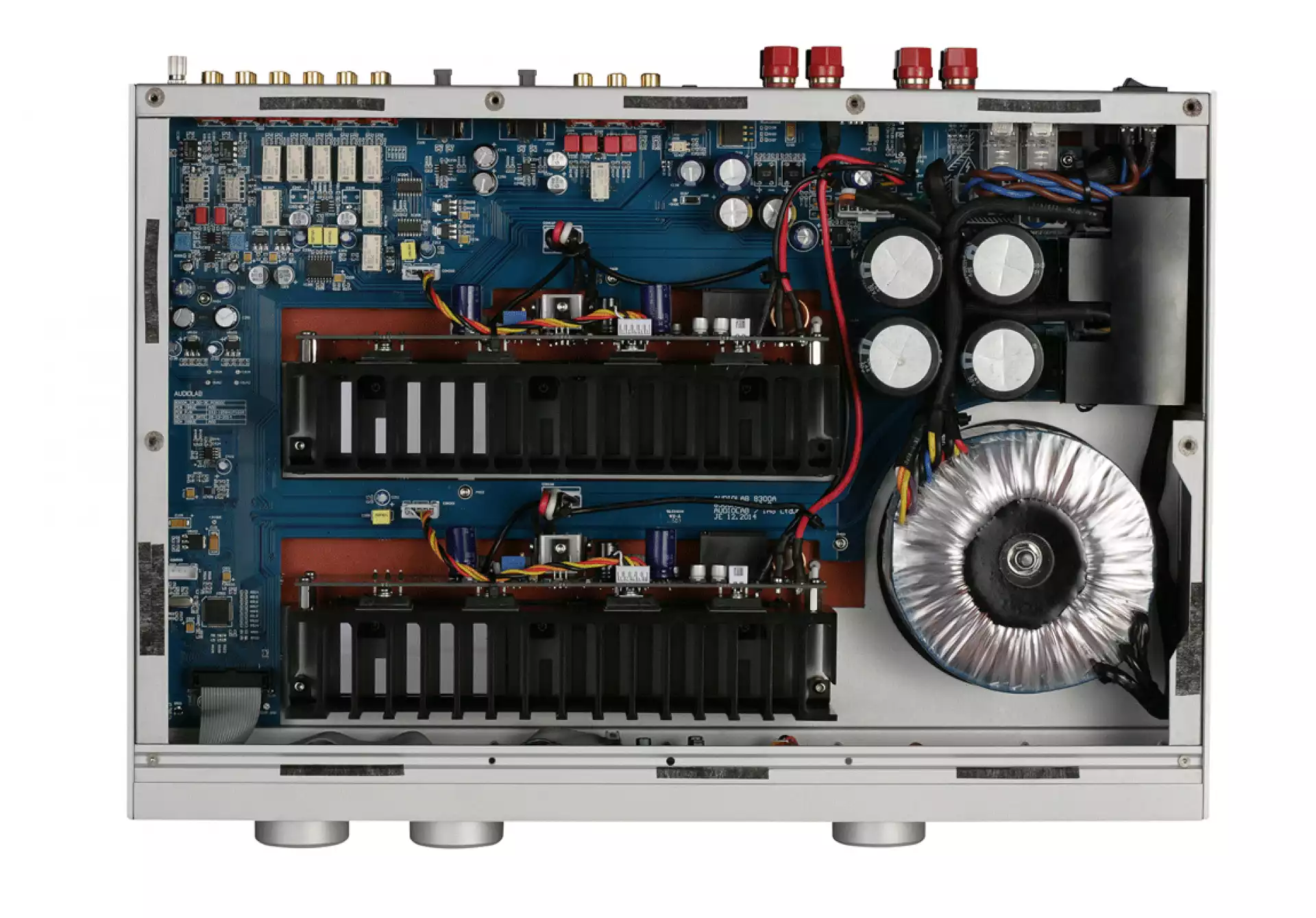

The 8300A works as coherently inside as it does on the outside - By taking a completely new approach to the layout, a dual mono structure means inter-channel interference is minimised. Crucial components processing audio and the power supply are completely separated as far as possible.
The new technology - Active Current Delivery also ensures a completely clean sound up to the point of clipping, then its advanced microprocessor limits the output, which guarantees no audible distortion, even at its louder output of 75W RMS.
- Dual Mono Power Amp Design
Logarithmic Ladder Volume Design
|
Rated Max Power Output , THD < 1% |
2 x 75W RMS (8 ohm) 2x115W (4 ohm) |
|
Peak Output Current |
+/- 15A |
|
Display |
OLED 128x64 pixels 2.7" |
|
Frequency Response |
+/- 0.1dB (10Hz – 20KHz) +/- 3.0dB (1Hz – 100KHz) |
|
Channel Imbalance |
< 0.2dB (10Hz – 20KHz) |
|
Total Harmonic Distortion (THD) |
< 0.002% (Power Out = 50W @ 1KHz, BW = 20 – 20KHz) |
|
Signal-To-Noise Ratio |
> 107dB (BW = 20 – 20KHz ) >109dB(A-weighted, BW = 20 – 20KHz) |
|
Damping Factor |
>100 (8ohm Load @ 1KHz) |
|
Inputs |
1 x RCA |
|
Outputs |
2 x Binding Post Terminal |
|
Inputs |
CD Vide Tuner AUX1 AUX2 XLR (Balanced) & Phono (MM/MC) |
|
Outputs |
2 x RCA |
|
Input Sensitivity (Phono RIAA) |
3.4mV (MM) , 340uV (MC) |
|
Input Impedance (line inputs) |
50K // 100pF |
|
Input Voltage (Line) |
3.5V max. (< 0.02% THD) |
|
Output Voltage |
2.3V max. (< 0.02% THD) |
|
Output Impedance |
120 ohm |
|
Frequency Response (Line) |
+/- 3.0dB (1Hz - 100kHz) |
|
Frequency Response (Line) |
+/- 3.0dB (1Hz - 100kHz) |
|
Frequency Response (Phono RIAA) |
+/- 1.0dB (20Hz - 20kHz) |
|
Channel Imbalance |
< 0.2dB (10Hz - 20kHz) |
|
Total Harmonic Distortion |
(THD)-Line<0.001% |
|
Total Harmonic Distortion |
(THD)-Phono<0.002% |
|
Signal-To-Noise Ratio (Line) (Volume = 0dB , Vin=1V, BW=20-20KHz ) |
> 107dB > 109dB(A-weighted) |
|
Signal-To-Noise Ratio Phono (MM) (Volume = 0dB , Vin=3mV , Rs=1K, BW=20-20KHz) |
> 73dB > 78dB(A-weighted) |
|
Signal-To-Noise Ratio Phono (MC) (Volume = 0dB , Vin=300uV , Rs=0R, BW=20-20KHz) |
> 68dB > 73dB(A-weighted) |
|
Crosstalk |
< 80dB (L-> R & R->L @10KHz) |
|
Gain |
29dB (20Hz-20KHz) |
|
Input Sensitivity |
840mV (Power Out = 70W into 8ohm) |
|
Dimensions H x W x D |
80mm (inc. feet) x 444mm x 330.3mm (inc. connectors / controls) |
|
Weight |
7.8kg |
