audiolab 9000A Aluminium Black Integrisano Pojačalo
Garantujemo najnižu cenu!
- Futoški put 1, Novi Sad

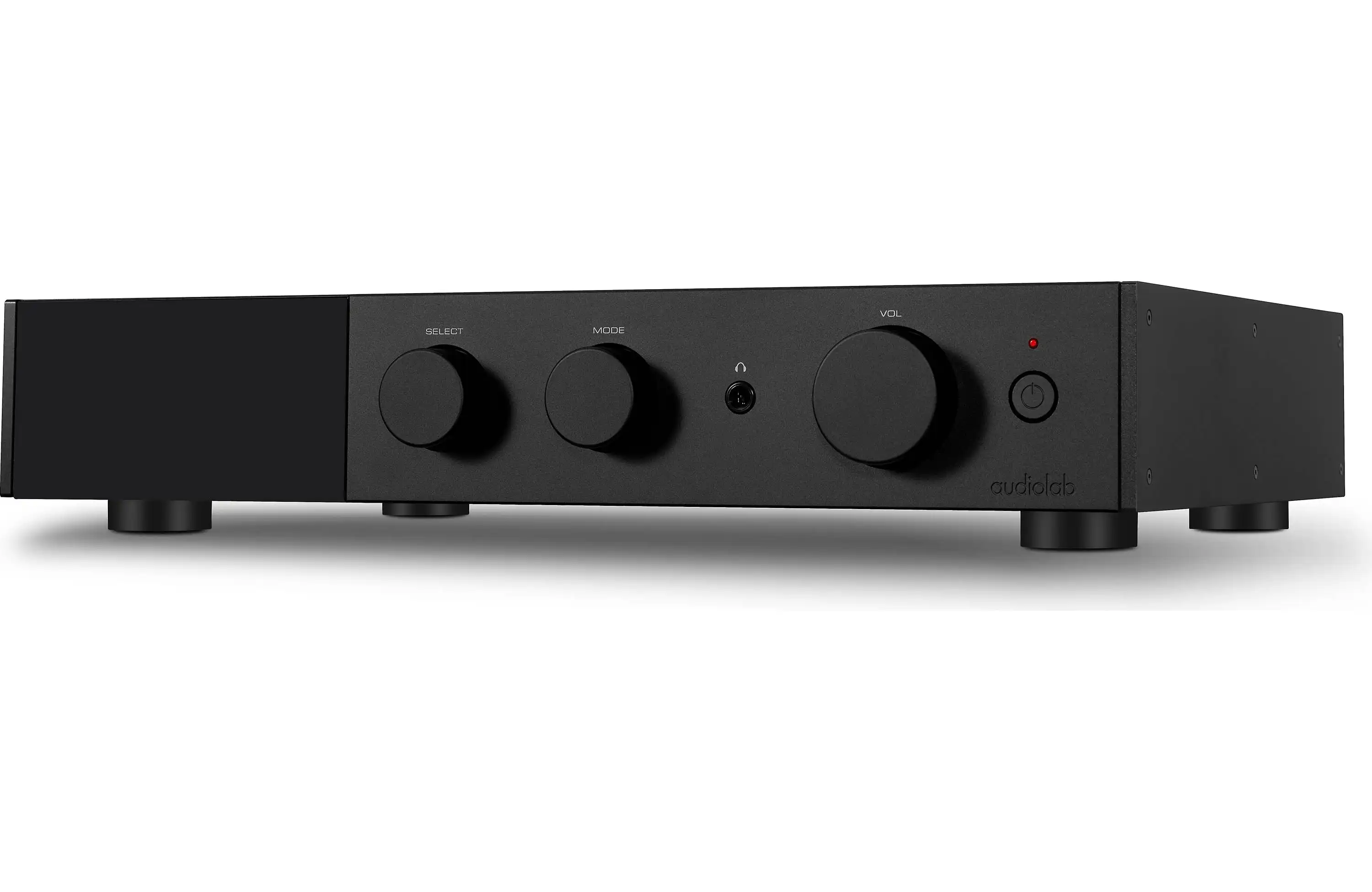

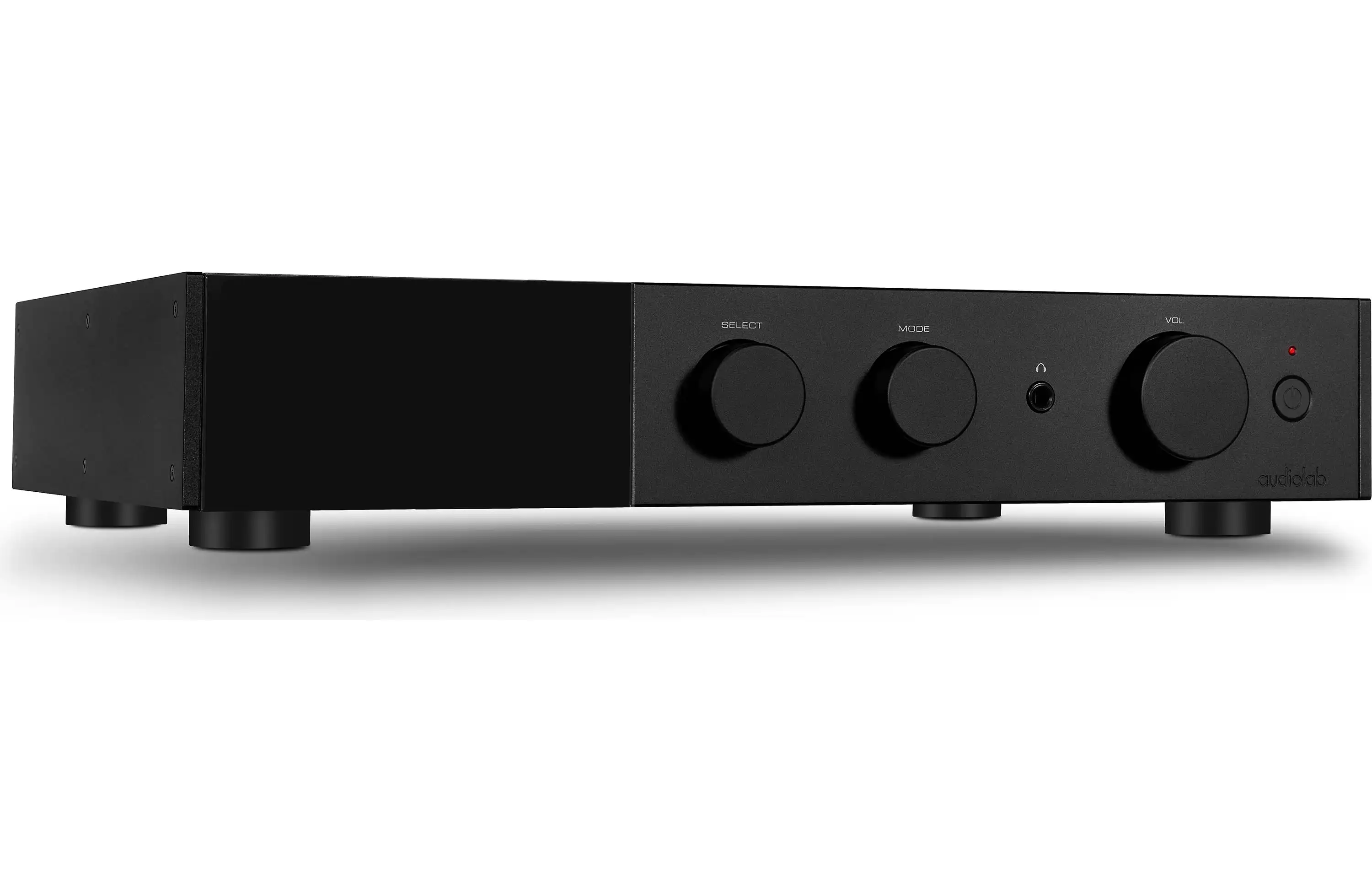

The Audiolab 9000A Bluetooth Integrated Amplifier is designed so you can bring all your HiFi separates together and save space on your HiFi rack. This two-channel, Class AB amplifier transmits 100W of power per channel into 8 ohms. An ES9038Pro 32-bit DAC will offer brilliant audio quality, with Bluetooth enabling wireless connectivity to speakers and smart devices. The 9000A amplifier provides direct speaker connections with loudspeaker terminals as well as line inputs allowing for analogue connectivity.
Powerful Audio
The Audiolab 9000A offers Class AB amplification, enabling good efficiency and high-quality audio output. Relish in sturdy audio signals with two-channels that produce 100W of power each, with 8 ohms impedance. A 320VA toroidal transformer, 60,000uF reservoir capacitance, and four output transistors in each channel deliver excellent audio performance and an output current drive of 15A.
Brilliant DAC and Hi-Res Sounds
Equipped with the ES9038PRO 32-bit 8-channel DAC chip, the Audiolab 9000A provides an immersive analogue listening experience for the digital age. Enjoy awesome analogue sounds thanks to PCM to 32-bit/768kHz and DSD to 22.5MHz. The Audiolab 9000A also caters to most audio formats such as MP3, FLAC, AIFF, and more.
MQA and Roon Tested
The 9000A supplies MQA technology and allows for MQA file playback so you can enjoy your favourite songs in their original master recordings. The MQA indicator on the LCD screen will also inform you when an MQA file is playing. The 9000A is also Roon tested so you can stream your favourite music.
Bluetooth
Providing Bluetooth 5.0, the 9000A lets you connect your wireless speakers so you can sit back and enjoy your music from a distance. You can also connect your smart devices and listen to your favourite playlists on Spotify and TIDAL. With aptX HD support, you can experience immersive sound quality.
Endless Inputs

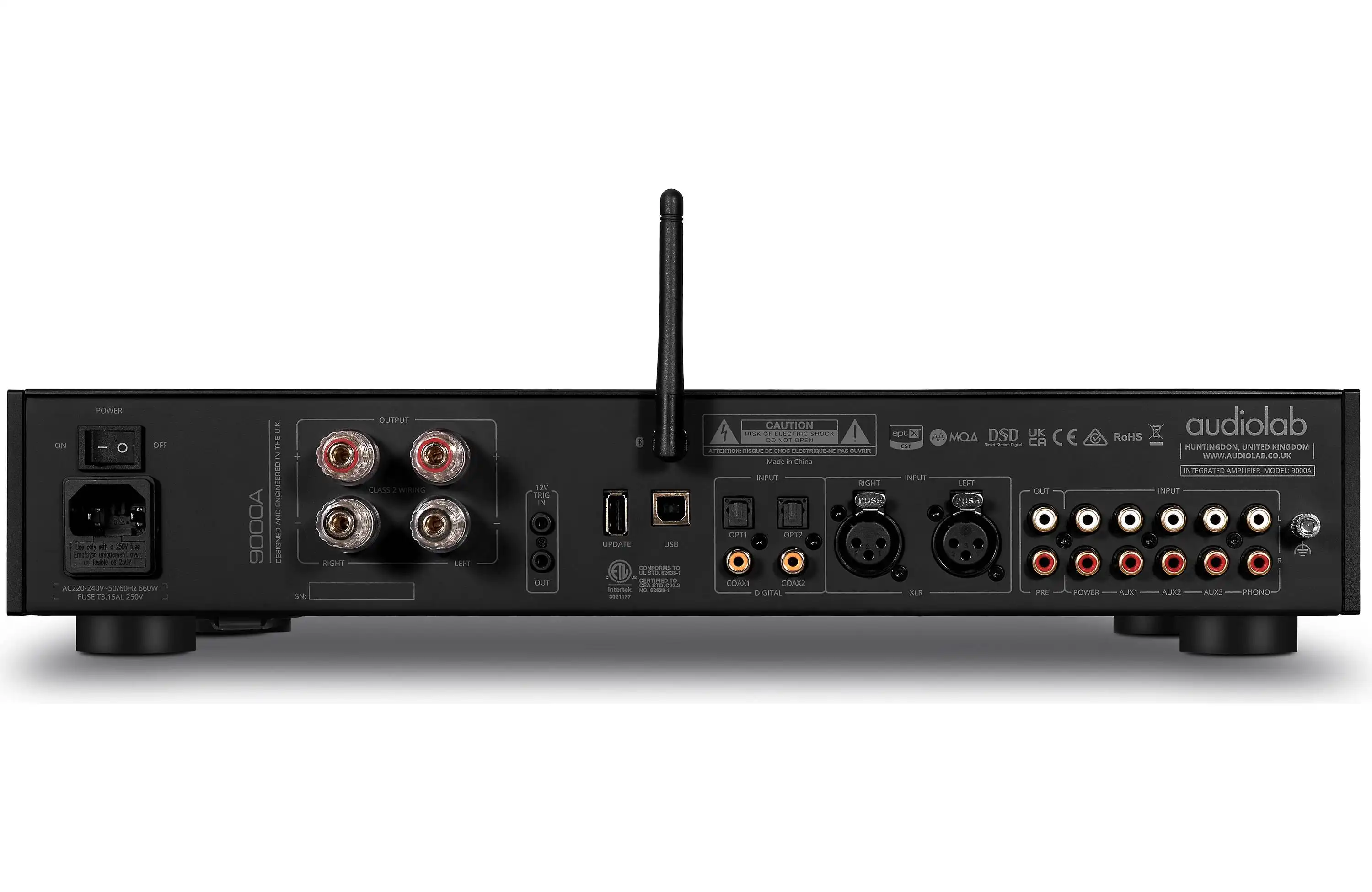

Offering four analogue inputs (three line and one phono), the 9000A unleashes the power of your favourite CDs and vinyl records. The loudspeaker terminals enable direct speaker connectivity and a crisp sound. Supplying four S/PDIF 192kHz, a stereo XLR, 12V trigger, and USB input further enhances your HiFi setup. A headphone amplifier also enables an intimate listening experience.
LCD Screen and Great Design
The Audiolab 9000A amplifier provides a great LCD screen that ensures effective control over input selection, volume, data formatting, digital upsampling, balance control, and more. The solid, robust design also enables longevity and will fit in your HiFi cabinet seamlessly.
What's in the box?
The Audiolab 9000A
1 x IEC power cord suitable for your area

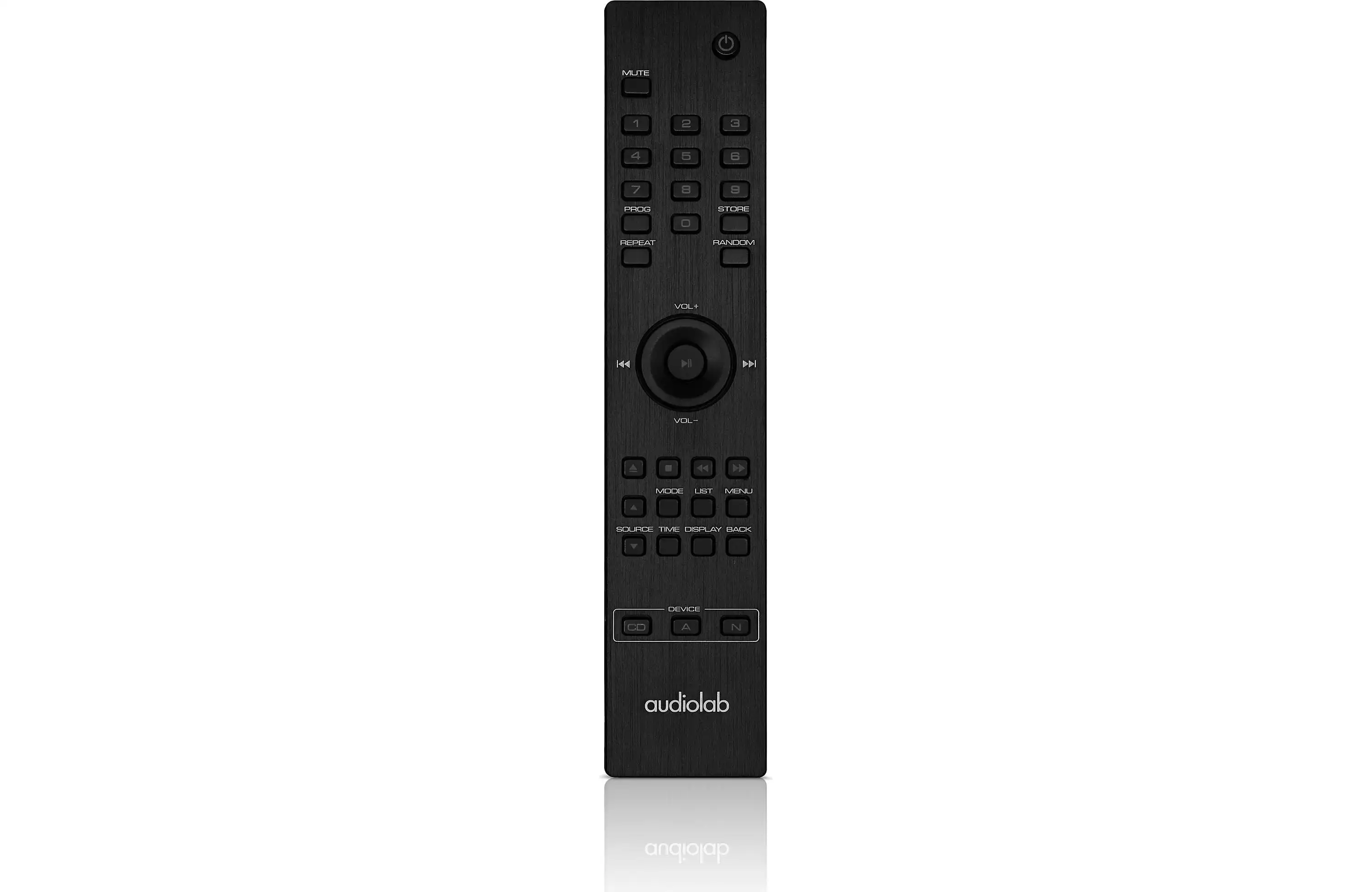

1 x remote handset
1 x instruction manual
Features
2-channels that deliver 100W of power in 8 ohms offer robust audio signals
Class AB design enables brilliant sounds
ES9038Pro 32-bit DAC provides an immersive analogue experience
Bluetooth allows for wireless connectivity to smart devices and speakers
Headphone amplifier ensures a premium listening experience
3 x line and 1 x phono input optimises your CDs and vinyl records
Multiple digital inputs bring your HiFi separates together
The LCD screen supplies ample audio management
MQA provides brilliant sound quality
Roon tested ensures you can stream all your favourite music
|
General Description |
Integrated Amplifier |
|
Design Philosophy and Core Technology |
2 x 100W (8 ohms) / 2 x 160W (4 ohms) Class AB ES9038Pro 32-bit DAC 800 x 480mm Large Size Full View IPS LCD Built-in Certified MQA Full Decoder (PC USB, Coax/Optical) Bluetooth 5.1 (aptX/aptX HD/AAC/LDAC) Support Dedicated High-performance, Low-noise MM Phono Stage Dedicated Current-Feedback Headphone AMP Integrated / PRE-POWER / PRE Only Modes USB Upgrade Support |
|
Inputs |
3 x Analogue, 1 x XLR 1 x Phono (MM) 1 x Power Amplifier 2 x SPDIF (Coax) 2 x SPDIF (Optical) 1 x PC USB (USB B) 1 x Bluetooth (aptX/aptX HD/LDAC) 1 x 12V Trigger |
|
Outputs |
1 x PRE Amplifier 1 x Stereo Speaker 1 x Headphone 1 x 12V Trigger |
|
Sampling Frequency |
Optical / Coaxial: 44.1kHz-192kHz PC USB: 44.1kHz-768kHz (PCM) / DSD64, DSD128, DSD256, DSD512 |
Preamplifier Section
|
Gain (max) |
+6dB (Line) +53dB (Phono MM) |
|
Input Sensitivity |
1Vrms (Line, Volume = 0dB) 2Vrms (XLR, Volume = 0dB) 4.4mV (Phono MM, Volume=0dB) |
|
Input Impedance |
10K (Line); 47K // 100pF (Phono MM) |
|
Total Harmonic Distortion (THD) |
110dB (Line & XLR, A-weighted); > 80dB (Phono MM, A-weighted) |
DAC
|
D to A Converter |
ES9038Pro |
|
Total Harmonic Distortion (THD) |
< 0.001 (1kHz @ 0dBFS) |
|
Max. Sampling Frequency |
Optical, Coaxial: 192kHz; PC USB: PCM768kHz, DSD512 |
|
Output Level (0dBFS, 1kHz) |
2.1Vrms |
|
Signal-to-Noise Ratio (S/N) |
> 117dB (A-weighted) |
Power Amplifier Section
|
Gain |
+29dB |
|
Rated Power Output |
2 x 100W (8 ohms, THD<1 ) 2 x 160W (4 ohms, THD<1 ) |
|
Frequency Response |
20Hz-20kHz (+/-0.3dB) |
|
Total Harmonic Distortion (THD) |
110dB (A-weighted) |
|
Max. Output Current |
15A |
Headphone Amplifier
|
Total Harmonic Distortion (THD) |
< 0.01 (1kHz, 50mW ) |
|
Output Impedance |
2.35 ohms |
|
Load Impedance |
20-600 ohms |
General
|
Standby Power Consumption |
<0.5W |
|
Net Weight |
9.4 kg |
|
Gross Weight |
11.2 kg |
|
Dimensions (mm) (W x H x D) |
444 x 342 x 89 |
|
Carton Size (mm) (W x H x D) |
514 x 470 x 161 |
|
Finish |
Black |
|
Power Requirements (depending on region) |
220-240V 50/60Hz 100-120V 50/60Hz |
