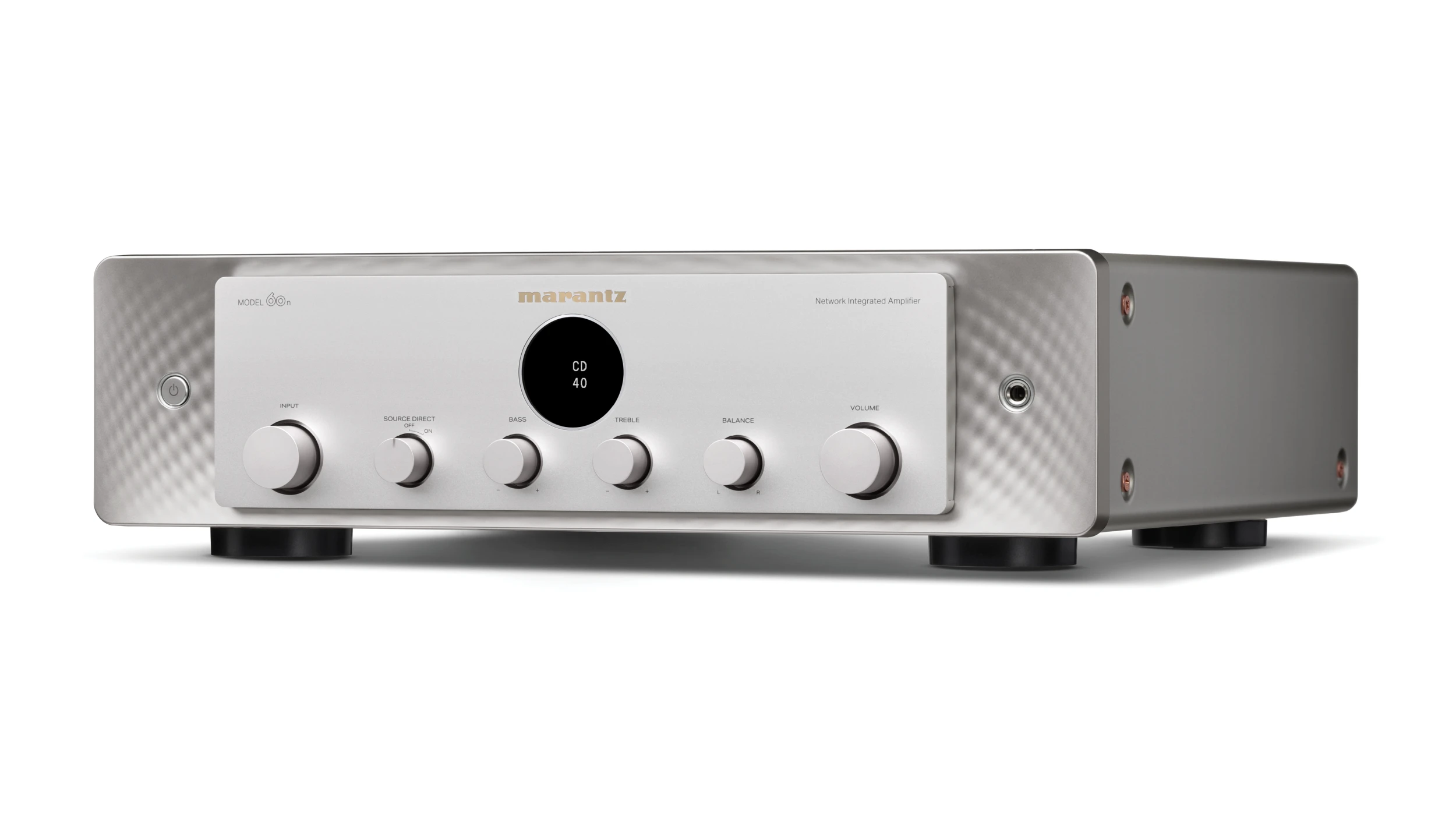

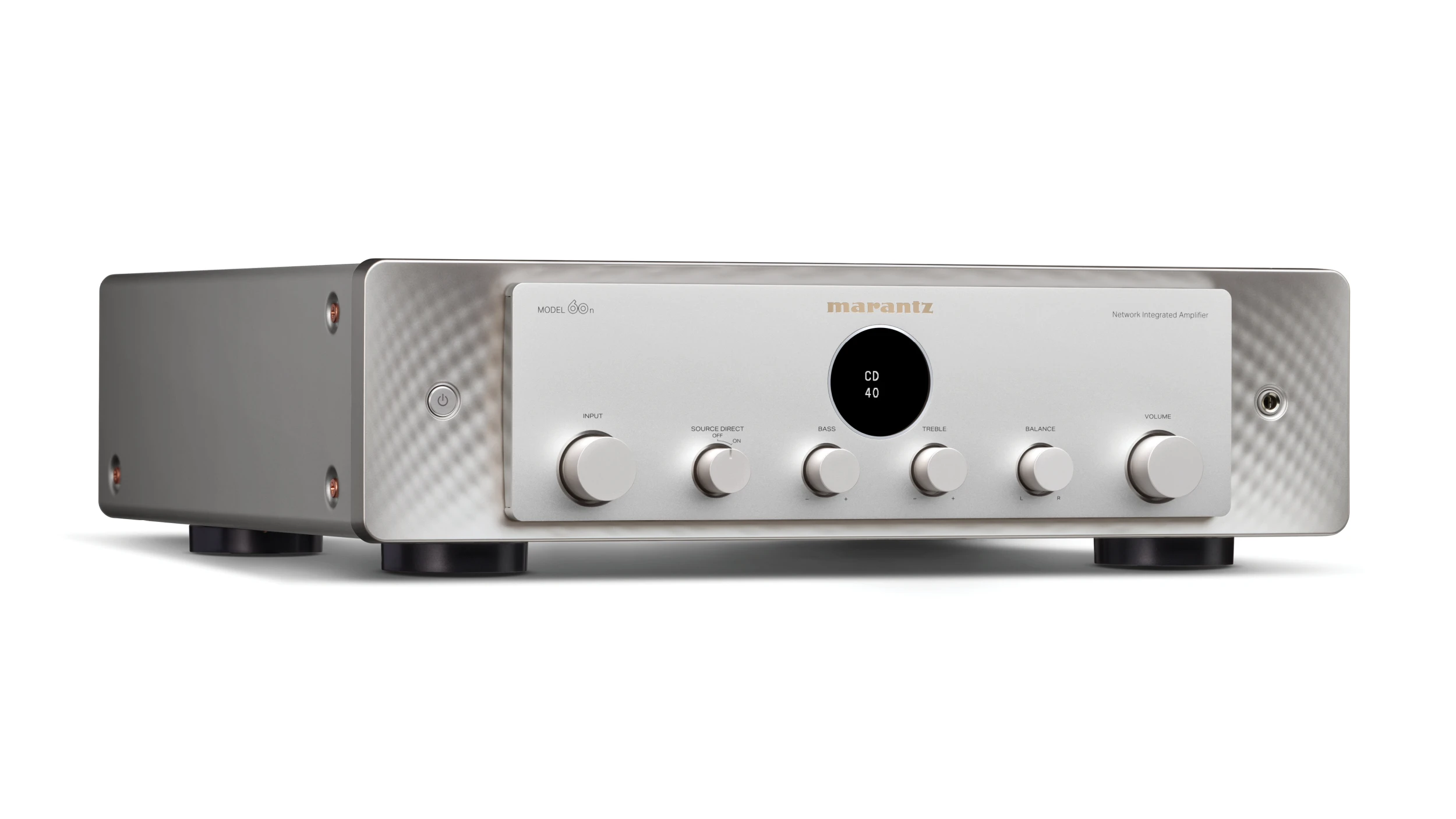

Marantz MODEL 60N Silver Gold
MODEL 60n is a network integrated amplifier engineered for exceptional hi-fi performance and comprehensive connectivity. Stream in high-resolution via HEOS® Built-in, connect your CD player or turntable and complete your hi-fi system with the speakers of your choice, or an optional subwoofer.
• 60W per channel
• HEOS® Built-in
• HDMI ARC
• Marantz HDAM® circuits
• Hi-Res audio support
• CD and MM phono inputs
Amplifier
Channels: 2
PSU Transformer: Toroidal
Speaker A / B: No
Speaker Terminals: Marantz SPKT-1+
Number of Terminals: 2
Power Output (8 / 4 Ohm RMS): 60 W / 80 W
Topology: Class A/B
Audio Components and Technologies
Current Feedback Topology: Yes
HDAM Version: SA3, SA2
High Grade Audio Components: Yes
Customised Components: Yes
Symmetric PCB Layout: Yes
Aluminium Extrusion Heat Sink: Yes
Copper Plated Chassis: No
Marantz Musical Digital Filtering: No
Linear Drive Power Supply: Yes
BI-AMP and Multichannel Option: No
Shottky Diodes: Yes
Control
D-Bus: Yes
DAC
Digital Inputs: Coaxial, Optical, USB-A
Max PCM Sample Rate: 192 kHz / 24-bit
Max DSD Sample Rate: DSD 4X (11.2 MHz)
HDMI: 1 ARC
HEOS
Streaming Technologies: Bluetooth, Airplay 2, Roon Ready, Spotify Connect, Tidal Connect
Streaming Services (subject to change and local availability): Tidal (Hi Res), Deezer (Hi Res), Amazon Music HD, Pandora, TuneIn, iHeartRadio, SoundCloud, SiriusXM, AWA, Mood:Mix, Qplay, Sony HiRes
HEOS Multiroom and Streaming: Yes
Lossy Formats: MP3, WMA, AAC
Lossless Formats: DSD/DSF, FLAC, ALAC, WAV
Gapless Playback: Yes
HEOS App: iOS, Android
Network
Wi-Fi / Wired LAN: Yes / Yes
Other
Display: Low-Noise OLED Monochrome
Preamp
Phono EQ: MM Standard
Tuner: FM / AM: No
Audio Adjustments: Yes
Power Amp Direct: No
Balanced In / Out: No / No
Preamp Outputs: 1
Subwoofer Output: 1 Mono
Headphone Out: Yes
Specifications
Frequency Response: 5 Hz-100 kHz
Total Harmonic Distortion: 0.02 %
Damping Factor: 100<
Input Sensitivity: MM: 1.9 mV / 47 kOhm
Signal to Noise Ratio: MM/MC: 87 dB / -
Input Sensitivity: High Level: 190 mV / 20 kOhm
Signal to Noise Ratio: High Level: 113dB
Treble Control: ± 10 dB at 15kHz
Bass Control: ± 10 dB at 50Hz
Metal Front Panel: Yes
Power Consumption in W: 220
Standby Consumption in W: 0.3
Auto Power Off: Yes
Detachable Power Cable: Yes

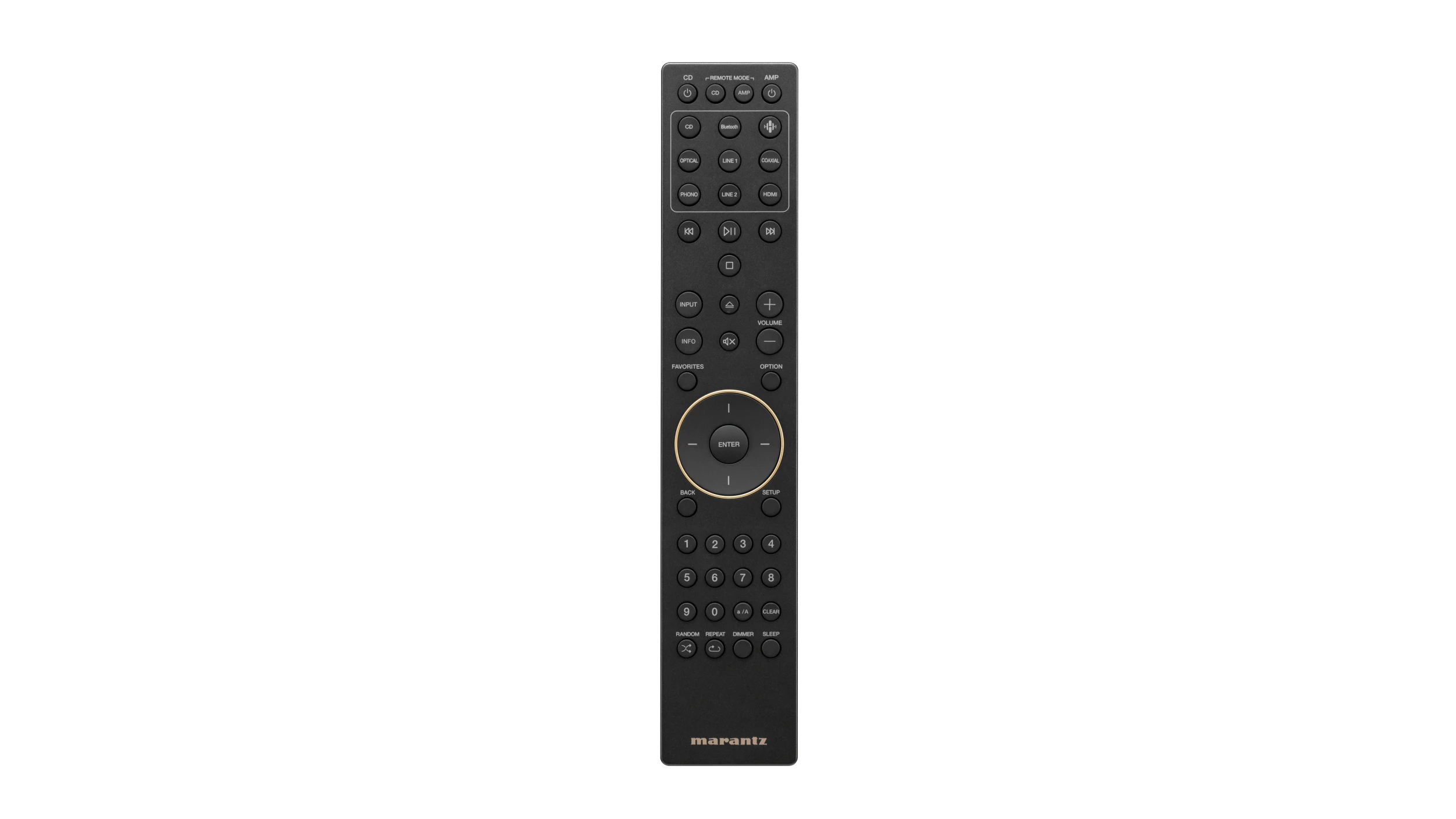

Remote Control: RC006PM
System Remote Function: Yes
Maximum Dimensions (W x D x H) mm: 442 x 431 x 129
Carton Maximum Dimensions (W x D x H) mm: 527 x 517 x 255
Carton Weight (inc. product) in kg: 15.5
Maximum Dimensions (W x D x H) in: 17.4 x 17 x 5.1
Weight in LBS: 28.1
Carton Maximum Dimensions (W x D x H) in: 20.8 x 20.4 x 10.1
Carton Weight (inc. product) in LBS: 34.3
