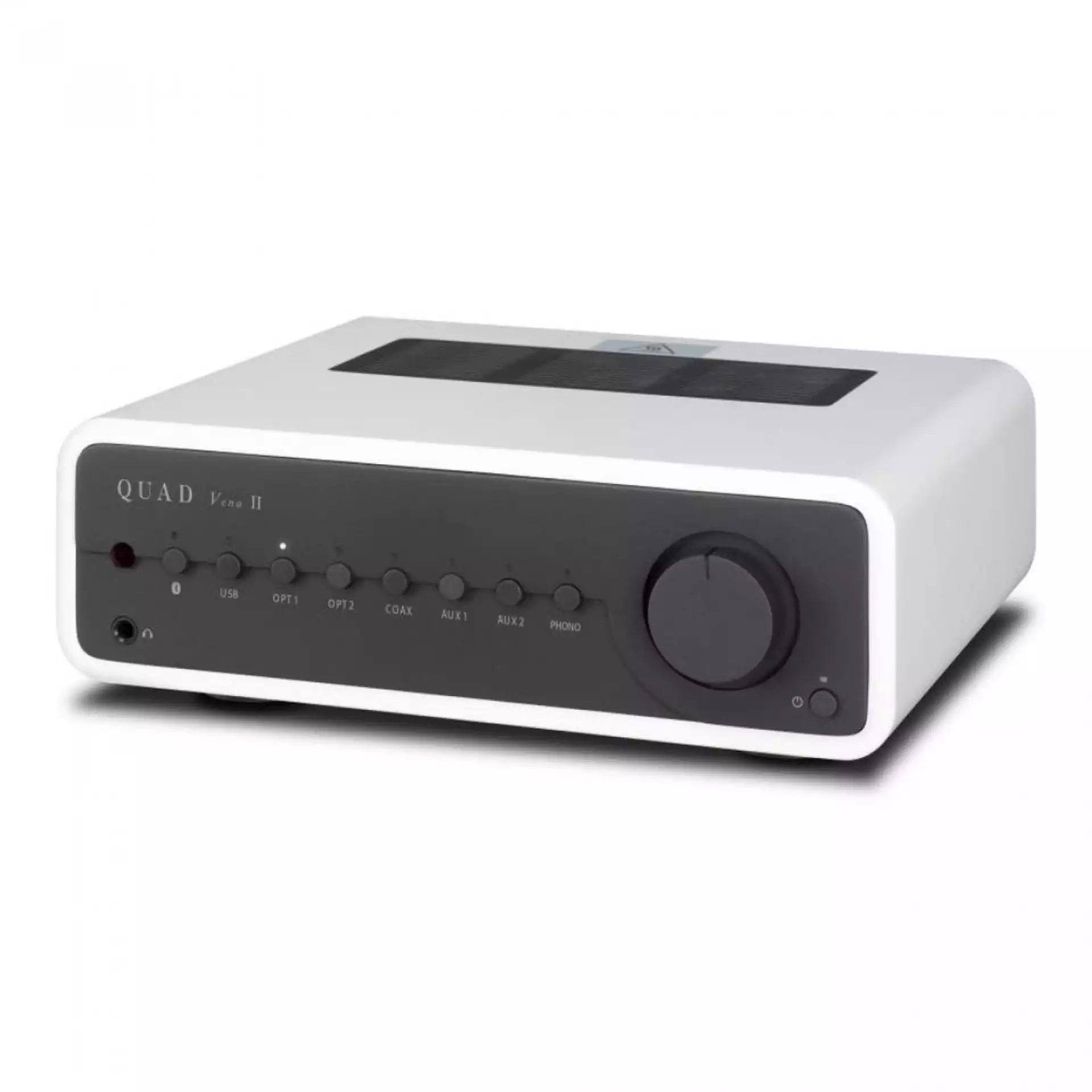

Quad Vena II Delux Hi-Gloss White Integrisano Pojačalo
Garantujemo najnižu cenu!
The new Vena II builds upon the strengths of its predecessor – compact design, a useful range of facilities and thoroughly engaging sound – by adding new features and enhancing sonic performance to form the beating heart of an affordable, high-performance audio system.
The new Vena II builds upon the strengths of its predecessor – compact design, a useful range of facilities and thoroughly engaging sound – by adding new features and enhancing sonic performance to form the beating heart of an affordable, high-performance audio system.
This new Quad Amplifier is an exceptionally neat and convenient way to bring true high-fidelity sound to the varied nature of modern music collections – from vinyl and CD to digital streaming and hi-res files – via all manner of playback devices.
MM Phono Stage input
Several Digital inputs including USB and Optical
Pre-amp output
Small footprint allows flexible positioning in any Hi-Fi set up
Analogue Upgrades
Significant improvements have also been made to the Vena II’s analogue stages. Like the original model, the new amp sports a Class AB power amp section that draws on Quad’s many decades of design experience.
Music In The Blood
Quad, the distinguished British audio brand, is launching a new version of one of its most popular products of recent years – the Vena integrated amplifier. The new Vena II builds upon the strengths of its predecessor – compact design, a useful range of facilities and thoroughly engaging sound – by adding new features and enhancing sonic performance to form the beating heart of an affordable, high-performance audio system.
Vena en Vogue
Smart aesthetics are important to today’s music lovers. The Vena II’s small footprint (compared to many amps in its class) allows flexible positioning and ensures the amp slips tidily into a range of environments. The amp‘s dapper design is enhanced by a choice of five finishes: Quad’s classic Lancaster Grey, Silver or the three premium finishes – Mahogany, Gloss Black and Gloss White which wrap the Vena II’s aluminium housing in veneered or lacquered wood.
Digital Developments
Beneath the hood, the Vena II sports significant upgrades. The digital audio circuitry has been improved, the Cirrus Logic DAC chip found in the original Vena replaced by an ES9018K2M from the Sabre32 Reference family. This enables the Vena II to benefit from ESS Technology’s 32-bit HyperStream architecture and Time Domain Jitter Eliminator to deliver ultra-low noise and high dynamic range.
Pre-Amplifier Section
|
Analogue Inputs |
2x Line-Level RCA 1x MM Phono |
|
Analogue Outputs |
1 x RCA (pre-out) |
|
Analogue Input Sensitivity |
450mV (Line-Level) 4.1mV (MM phono) |
|
Analogue Input Impedance |
10kΩ (Line-Level); 47kΩ 100pF (MM phono) |
|
Frequency Response |
20Hz-20kHz |
|
Total Harmonic Distorion (THD) |
< 0.002% |
|
Signal-To-Noise |
> 110dB (A-Weighted) |
Power Amplifier Section
|
Power Output |
2x 45W RMS (8Ω) 2x 65W RMS (4Ω) |
|
Frequency Response |
20Hz-20kHz |
|
Total Harmonic Distortion (THD) |
< 0.005% (30W, 8Ω) |
|
Signal-to-Noise |
> 108dB (A-Weighted) |
Digital Section
|
DAC Chip |
ESS Sabre32 ES9018K2M |
|
Digital Inputs |
2x Optical 1x Coaxial 1x USB Type A Bluetooth |
|
Max Sampling Frequency – USB |
PCM 384kHz DSD256 |
|
Max Sampling Frequency – Optical/Coaxial |
PCM 192kHz |
|
Digital Outputs |
1x Coaxial 1x Optical |
General
|
Dimensions (W x H x D) |
301mm x 96mm x 313mm |
|
Weight |
6 kg |
