Marantz MODEL M4/EX1B
Garantujemo najnižu cenu!
- Svetogorska 9, Beograd
MODEL M4 is a four-zone, rack-mountable distribution amplifier engineered to offer superb Marantz sound from a wide range of streamed music services, locally connected music sources, and your TV.
• Crafted in Shirakawa, Japan
• 8 Channels
• 100 Watts per Channel
• Four Zones
• Dolby Digital
• HEOS Built-in
Distribution Done Differently
MODEL M4 offers an innovative and intelligent take on traditional distribution amplifier designs. A rack-mountable distribution amplifier for dedicated music lovers, it delivers superior sound from a wide range of streamed music services, locally connected music sources, and your TV (via the Optical inputs). MODEL M4’s industrial design complements the latest generation of Marantz hi-fi and AVR products. It has been carefully engineered to deliver the extreme robustness, simple control functionality, and flexible configuration that is essential to successful home integration.
Amplifier
Power Amplifier Rated output & THD (8 ohm): 8 X 100 W (8 Ω/ohms, 20 Hz to 20 kHz, T.H.D. 0.05 %)
Power Amplifier Rated output & THD (4ohm): 8 X 125 W (4Ω/ohms, 1 kHz, T.H.D. 0.1%
Frequency Response: 20 Hz to 20 kHz : ±1 dB
Connected loudspeaker Impedance: 4 – 16 Ω/ohms

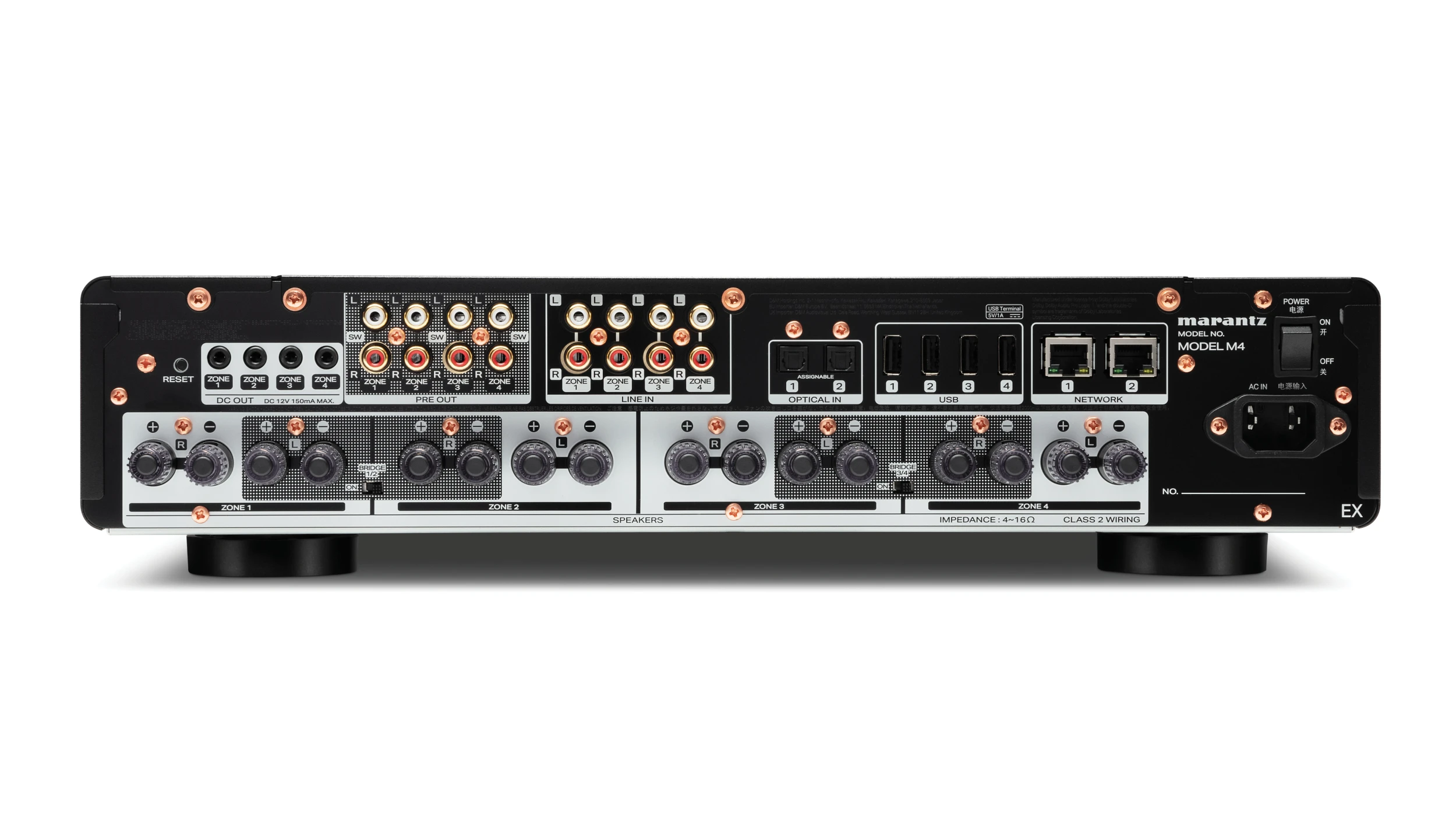

Audio Inputs / Outputs

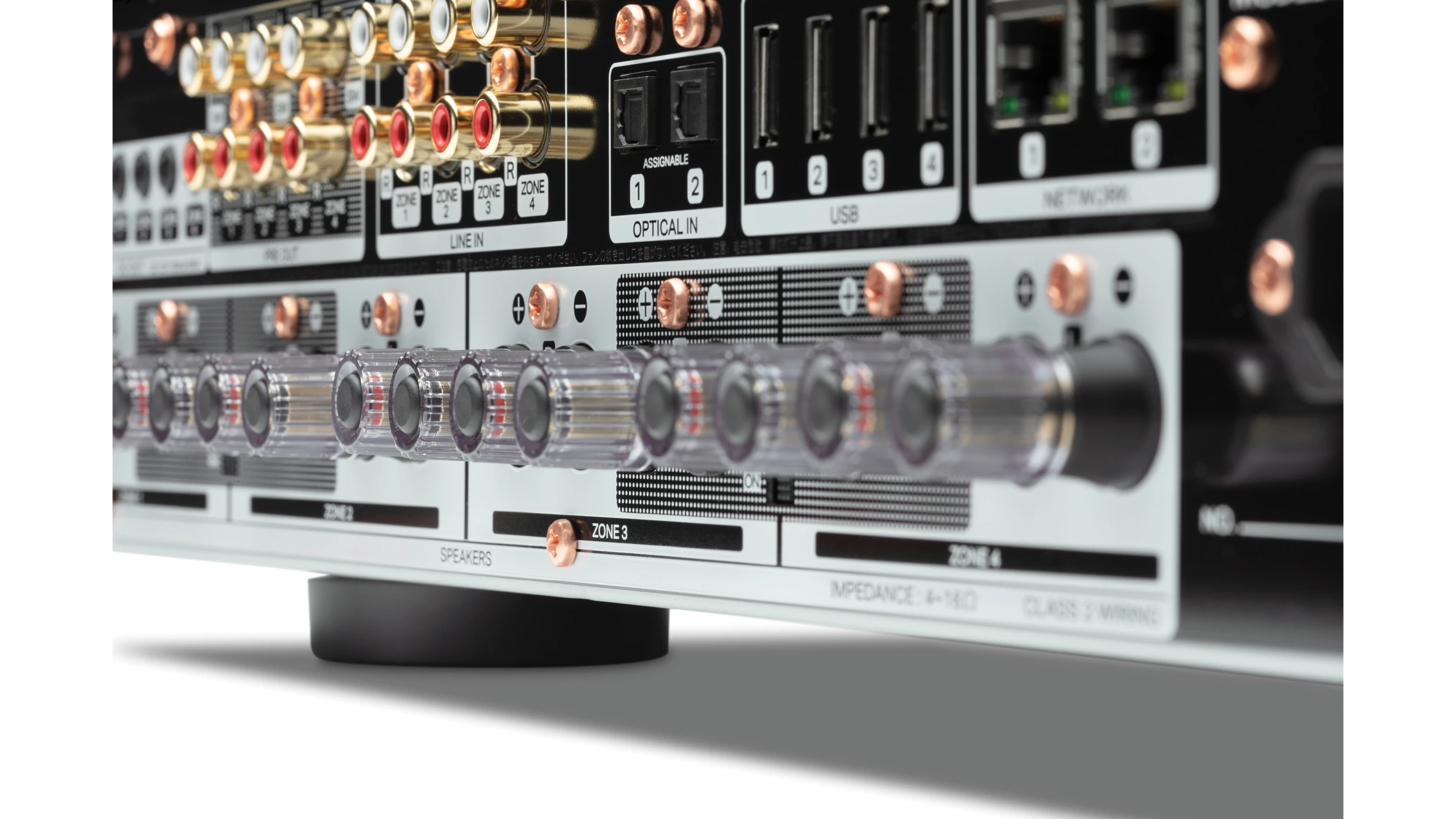

Loudspeaker Binding Posts: 4-way binding posts
Digital Inputs: TOSLINK (2)

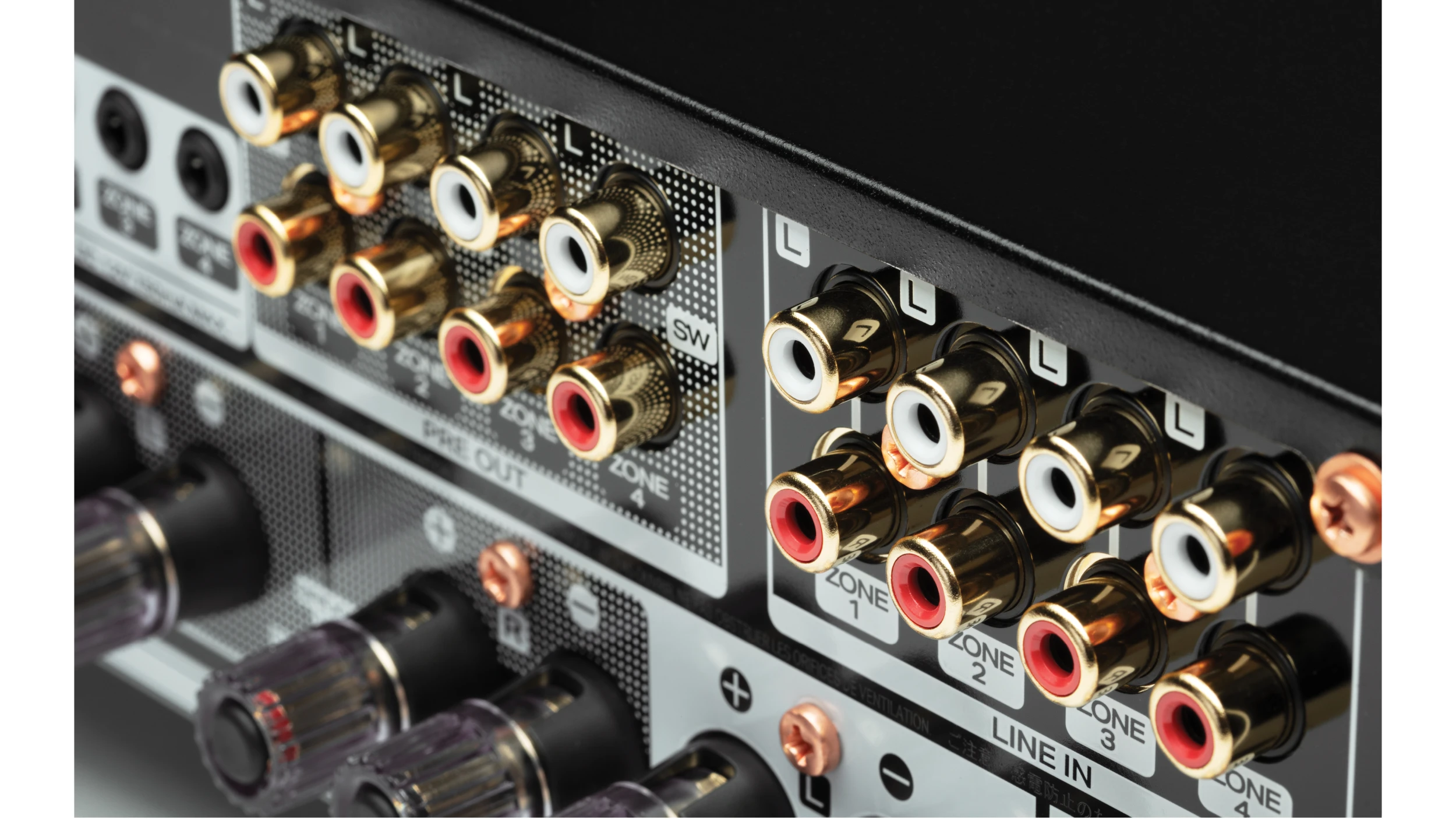

Analog Inputs: RCA L/R (4)
Preouts: RCA L/R (4)
Subwoofer Out: RCA Mono (4) (selectable)
Inputs Audio Options
Channel Assignments: Stereo (Default), Dual Mono
Volume Limit: 80-100%
Balance: -15dB to +15dB
Adjustable High Pass / Low Pass Filters: 40-250 Hz / 40-120 Hz
EQ: Bass, Treble -5dB to +5dB
Sound Modes: Stereo, Direct, Virtual, Dialog Enhancer, Night Mode
TV Sound Grouping: Yes
Audio Format Support
Decoding: Dolby Digital, LPCM, DSD
Stereo PCM / Multi-channel PCM: Yes / Yes
Stereo File Formats (HEOS network share or USB): WMA: up to and including 192 kbps, AAC & MP3: up to and including 320 kbps, WAV, ALAC, FLAC: up to and including 24-bit/192kHz, DSD: 2.8 MHz, 5.6MHz
Streaming Technologies
Bluetooth Receive: N/A
Bluetooth Trasmit: N/A
AirPlay: AirPlay 2
Spotify: Spotify Connect
Music Services and Sources
Music Services Supported ((HEOS®, subject to change and local availability): Pandora, Spotify, TuneIn, SiriusXM, Amazon Music, Tidal, Tidal HiRes, iHeartRadio, Deezer, Deezer HiFi, Mood:Mix, Sony Hi-Res, AWA, QPlay, SoundCloud.
Music stored on mobile device: Yes (iOS, Android or Kindle Fire)
NAS (Network Attached Storage): Network share
USB Storage Device Playback: Yes (4) (FAT32, NTFS formatted drives)
Networking & Control
Wired Connectivity: Ethernet (2)
Wireless Connectivity: N/A
IR Input: N/A
IR Learning: N/A
Control System Compatibility via TCP/IP: Creston, Control4, AMX
HEOS® App: iOS, Android, Kindle Fire
Trigger Output DC 12V: Yes (4)
General
Product Color: Black
User Interface: Reset button, Front power button, Rear power switch
Dimensions (W x D x H) Inches: 16.34 x 4.17 x 17.4
Dimensions (W x D x H) mm: 415 x 106 x 442
Weight (lbs): -
Weight (kg): -
