First unveiled in October 2018, the new ULTIMA amplifier topology (which to date has been exclusive to the range-topping ULTIMA power amp), is now more affordable than ever having trickled down into the new ULTIMA 2 mono power amp, which shares the same Chord Electronics DNA as in its range-topping cousin.

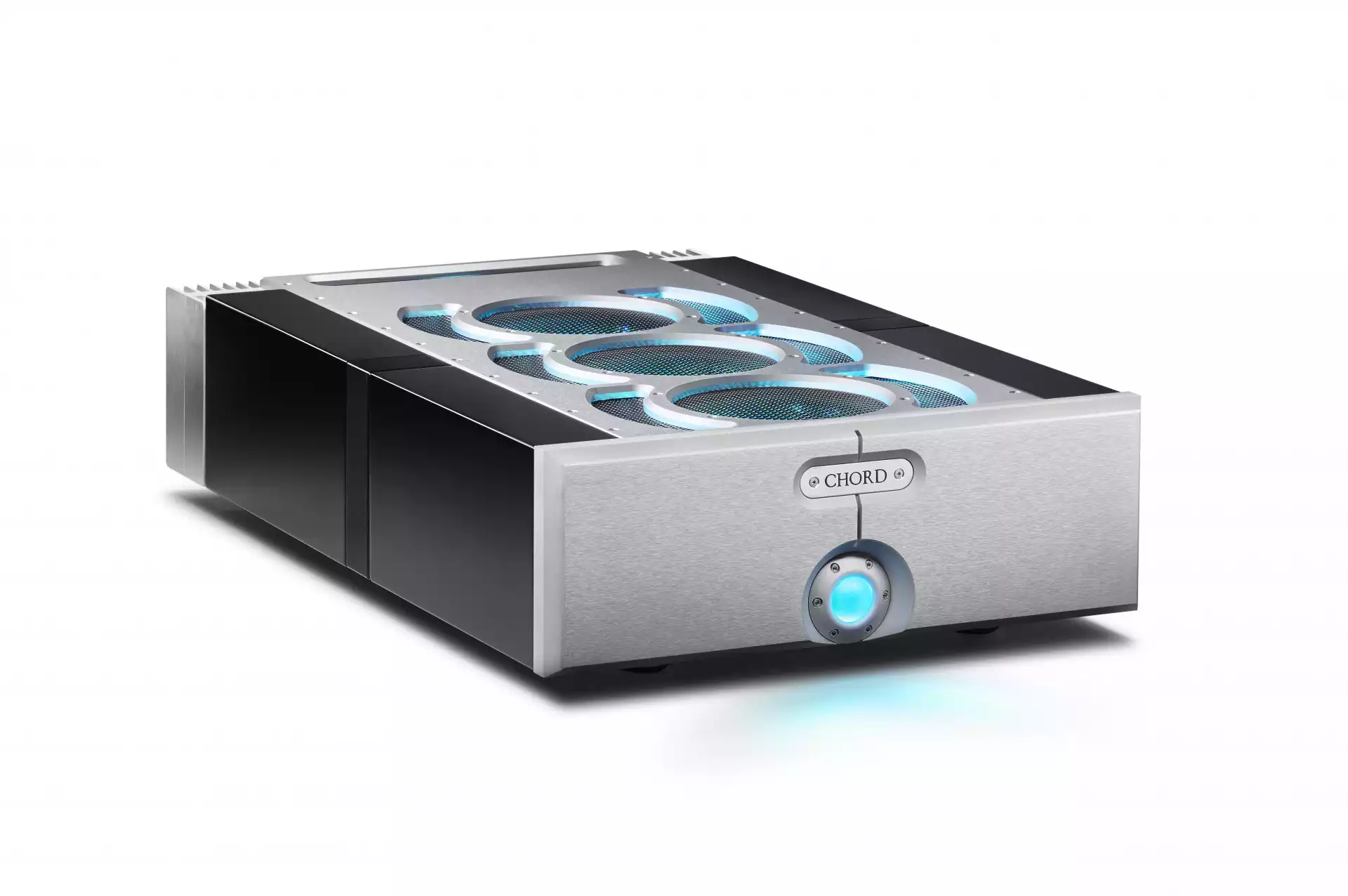

The new 750-watt ULTIMA 2 is a direct replacement for the SPM 6000 MKII and forms part of our flagship Reference range. The amp has been given a remodelled fascia featuring John Franks’ latest design. The precision CNC-machined fascia is made from aircraft-grade aluminium and features a reassuringly solid 28-mm thick front panel, enhanced by a recessed spherical polycarbonate power button that illuminates for standby and operation modes; a discreet and hidden front panel switch neatly located in the vertical split line, enables the lighting to be dimmed.

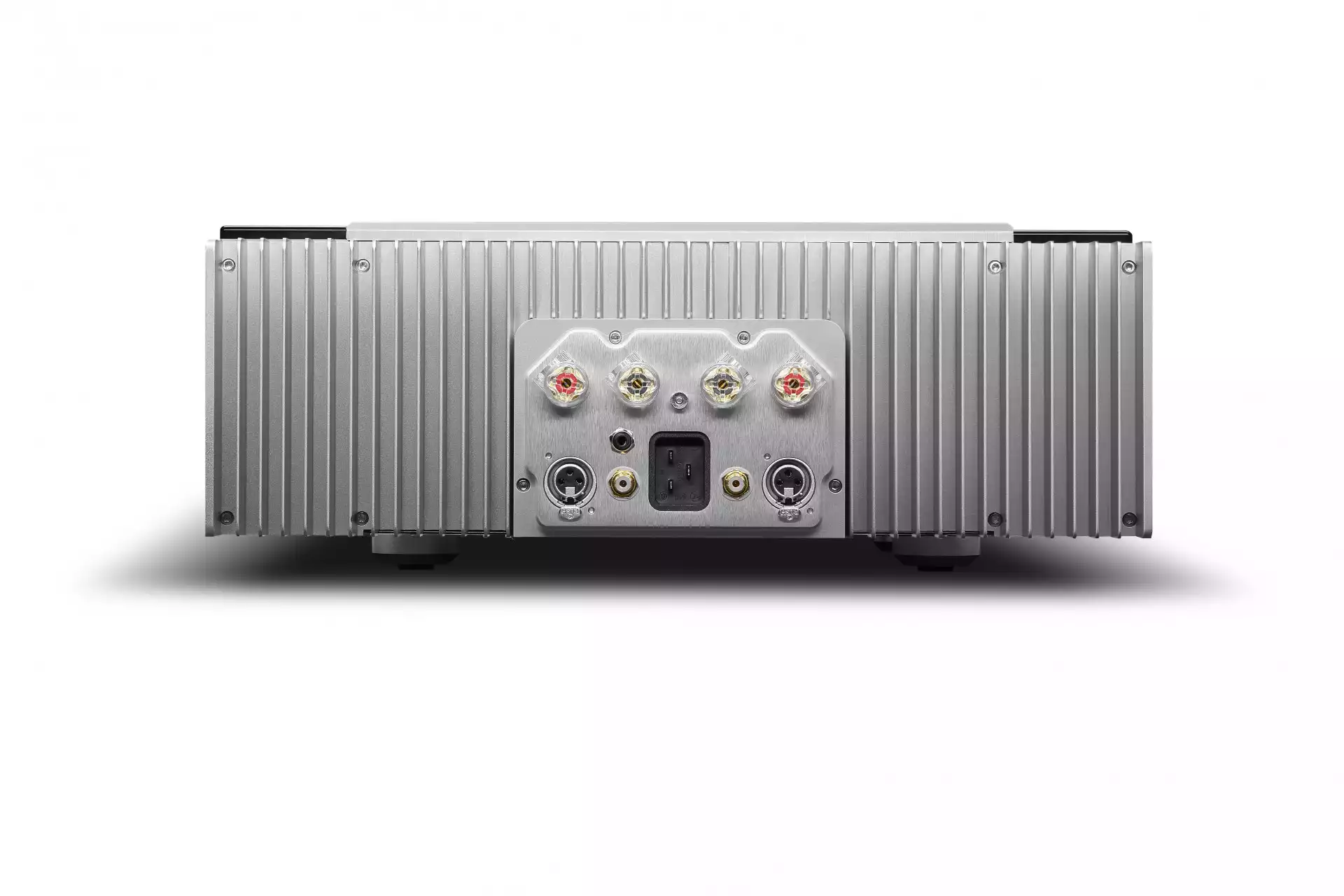

Like all of Chord Electronics’ full-size and Reference range amplifiers, the new ULTIMA 2 is available in a choice of Jett Black or Argent Silver finishes. The amplifiers can also be specified with either the famous stackable Integra Leg system in Jett Black, Argent Silver or Nickel finishes or the highly polished black acrylic side block option. The amplifier’s rear panel contains both balanced and unbalanced connections, high-quality loudspeaker terminals, a 12V trigger and a C-19-type IEC.

Inputs:

1x Balanced XLR Inverted Input
1x Balanced XLR Non-inverted Input
1x Gold Plated Unbalanced RCA Inverted Input
1x Gold Plated Unbalanced RCA Non-inverted Input
1x 12v Trigger Input – Chord Electronics Auto Start

Output:

2x Pair of High Quality, High Current, Gold Plated Type Speaker Terminals (Bi-wireable)

Output Power: 750w RMS per channel @ 0.005% distortion into 8O, 1305w RMS per channel into 4O
Frequency Response: -1dB @ 0.2Hz to 46kHz and -3dB 0.1Hz to 200kHz
Signal to Noise Ratio: Better than -89dB
Input Impedance: 100kO Unbalanced/Balanced
Output Impedance: 0.04O
Gain: 30dB
Dimensions with included Integra Legs: 18cm (H) x 48cm (W) x 67cm (D)
Dimensions with optional Side Blocks: 15cm (H) x 42cm (W) x 67cm (D)
