ELECTROCOMPANIET EC 4.8 MKII REFERENCE PREAMPLIFIER
![](https://www.player.rs/images/bd.png)
Garantujemo najnižu cenu!
CENA:4599€
With its outstanding performance, excellent resolution, superb control and precise musical reproduction, we have made a preamplifier that is true to our slogan, “Closing the gap to the master”. Our new two-channel EC 4.8 MKII preamplifier enhances the predecessor, and is sure to make all good power amplifiers sound even better!
Fully balanced discrete analog audio circuitry.
![](http://cdn.shopify.com/s/files/1/0004/3352/0692/files/ec4.8mk2-bal-1000x1000_180x.jpg?v=1575395039 180w, //cdn.shopify.com/s/files/1/0004/3352/0692/files/ec4.8mk2-bal-1000x1000_360x.jpg?v=1575395039 360w, //cdn.shopify.com/s/files/1/0004/3352/0692/files/ec4.8mk2-bal-1000x1000_540x.jpg?v=1575395039 540w, //cdn.shopify.com/s/files/1/0004/3352/0692/files/ec4.8mk2-bal-1000x1000_750x.jpg?v=1575395039 750w, //cdn.shopify.com/s/files/1/0004/3352/0692/files/ec4.8mk2-bal-1000x1000_900x.jpg?v=1575395039 900w, //cdn.shopify.com/s/files/1/0004/3352/0692/files/ec4.8mk2-bal-1000x1000_1080x.jpg?v=1575395039 1080w)
![](http://cdn.shopify.com/s/files/1/0004/3352/0692/files/ec4.8mk2-design-1000x1000_180x.jpg?v=1575395157 180w, //cdn.shopify.com/s/files/1/0004/3352/0692/files/ec4.8mk2-design-1000x1000_360x.jpg?v=1575395157 360w, //cdn.shopify.com/s/files/1/0004/3352/0692/files/ec4.8mk2-design-1000x1000_540x.jpg?v=1575395157 540w, //cdn.shopify.com/s/files/1/0004/3352/0692/files/ec4.8mk2-design-1000x1000_750x.jpg?v=1575395157 750w, //cdn.shopify.com/s/files/1/0004/3352/0692/files/ec4.8mk2-design-1000x1000_900x.jpg?v=1575395157 900w, //cdn.shopify.com/s/files/1/0004/3352/0692/files/ec4.8mk2-design-1000x1000_1080x.jpg?v=1575395157 1080w)
The MKII further enhances the EC 4.8 with new mechanics and sonic enhancements, and an updated design to be in line with the new MKII versions of our products.

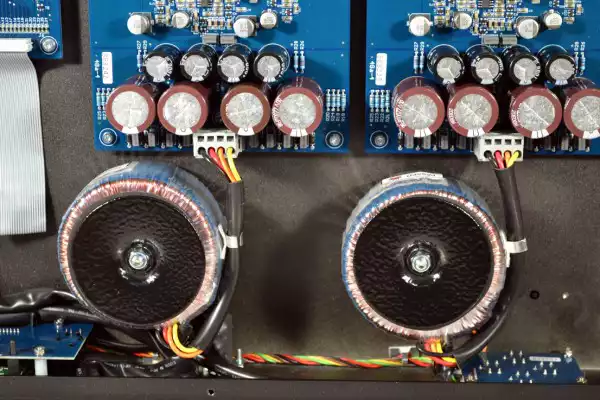

It is designed as two separate mono preamplifiers, each with its own independent power supply.
![](http://cdn.shopify.com/s/files/1/0004/3352/0692/files/ec4.8mk2-dualmono-1000x1000_180x.jpg?v=1575395584 180w, //cdn.shopify.com/s/files/1/0004/3352/0692/files/ec4.8mk2-dualmono-1000x1000_360x.jpg?v=1575395584 360w, //cdn.shopify.com/s/files/1/0004/3352/0692/files/ec4.8mk2-dualmono-1000x1000_540x.jpg?v=1575395584 540w, //cdn.shopify.com/s/files/1/0004/3352/0692/files/ec4.8mk2-dualmono-1000x1000_750x.jpg?v=1575395584 750w, //cdn.shopify.com/s/files/1/0004/3352/0692/files/ec4.8mk2-dualmono-1000x1000_900x.jpg?v=1575395584 900w, //cdn.shopify.com/s/files/1/0004/3352/0692/files/ec4.8mk2-dualmono-1000x1000_1080x.jpg?v=1575395584 1080w)
All measurements are made at 120V / 240V //50Hz / 60Hz |
|
|
|
|
|
Input impedance balanced (fixed) |
47 Kohm |
Output impedance |
100 ohm |
Input level (Single ended) |
>15 Vp-p |
Input level (balanced) |
>30 Vp-p |
Max output level (Single ended) |
>15 Vp-p |
Max output level (Balanced) |
30 Vp-p |
Gain |
- 111dB to +6dB |
Noice Floor |
<-130dB (@ 0dB gain) |
Frequency responce |
0.5 - 200.000 Hz |
Channel Seperation |
> 120dB |
THD + N |
<0.002% |
IMD |
TBD |
|
|
Power consumption (no load or signal) |
30 W |
|
|
Dimensions and Waight |
|
Width |
483 mm / 19 inch |
Depth |
386 mm / 16.1 inch |
Height |
76 mm / 4.5 inch |
Weight |
9 kg |
|
|
|
|

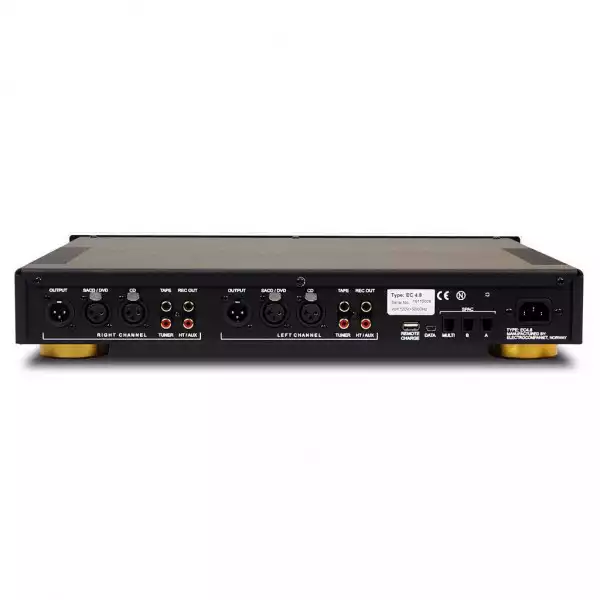

Inputs |
|
Balanced |
2 x2 channel |
Single ended |
3 x 2 channel |
|
|
Control Ports |
|
Nettwork |
3 x SPAC |
Programming |
1 x USB |
|
|
Outputs |
|
Balanced |
1 x 2 channel |
Single ended |
Record Out |
