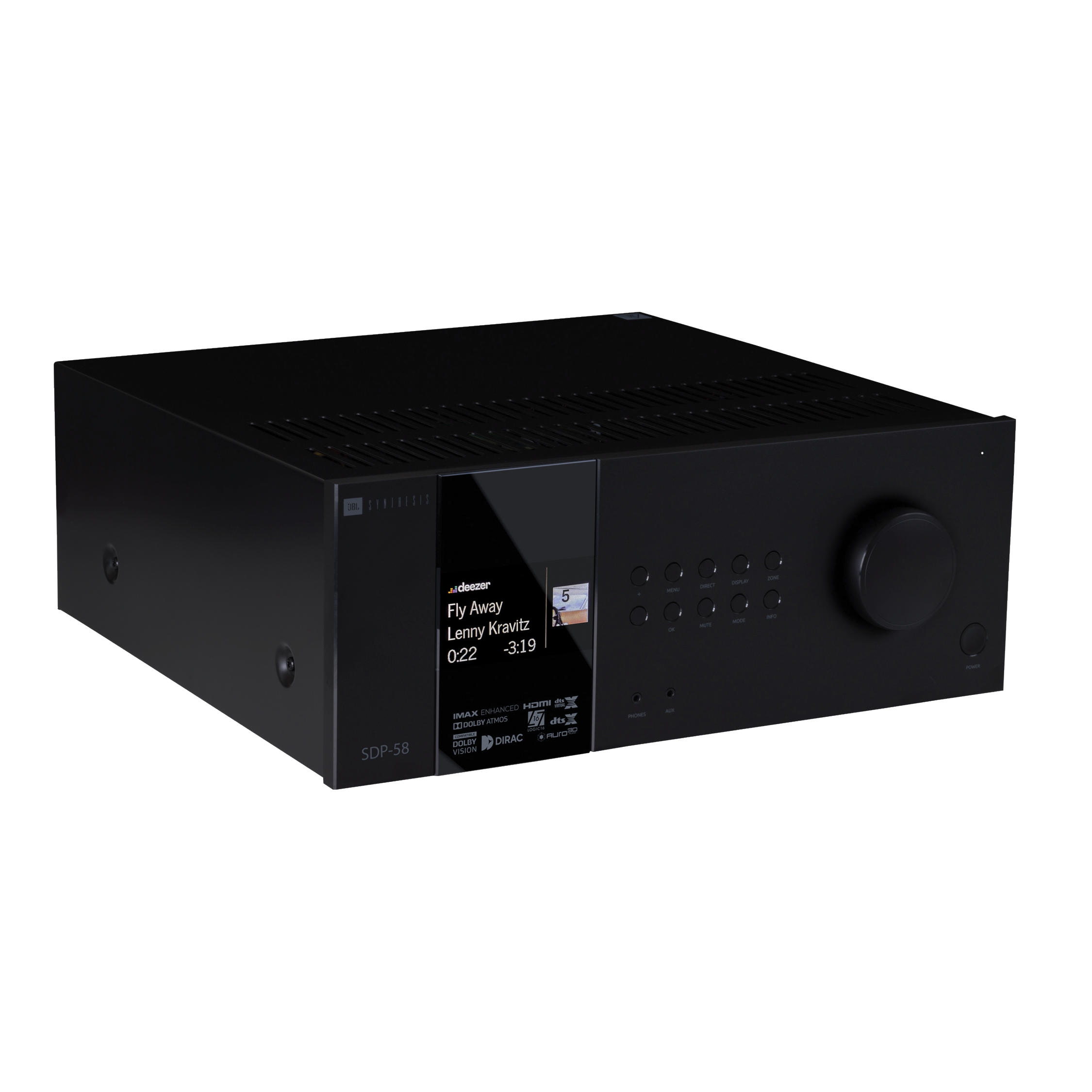

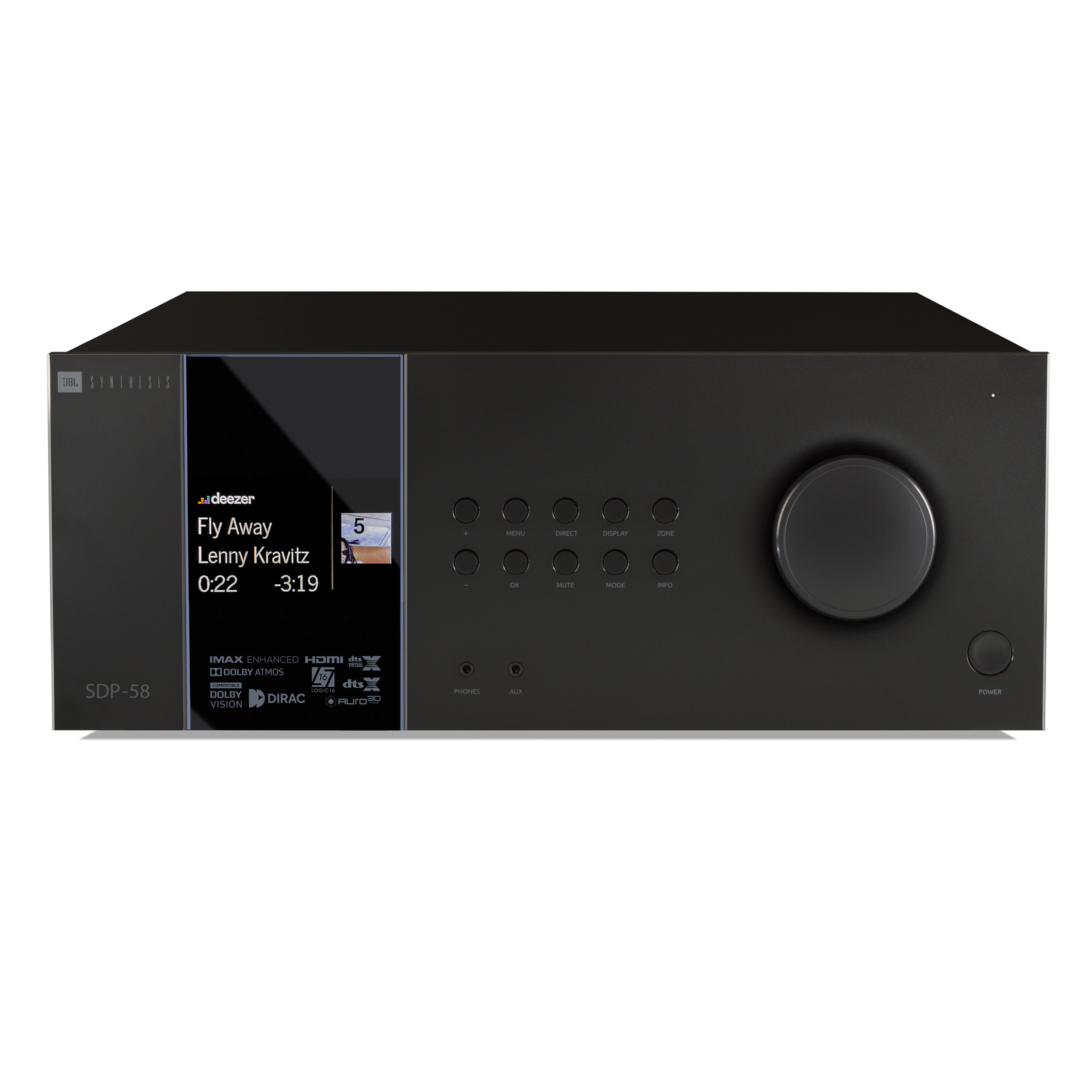

16 Channel Immersive Surround Sound Processor with Dante Stereo line inputs

Latest HDMI 2.1 specification

• Supports ultra high video resolutions of up to 8K@60fps and 4K@120fps.

• Maximum input:4.5V rms

• Nominal sensitivity: 1V, 2V, 4V (user adjustable)

• Input impedance:47kΩ

• Signal/noise ratio (A-wtd ref 100W) normal/stereo direct:100dB/110dB

• Frequency response:20Hz—20kHz ± 0.1dB

• Preamplifier outputs

• Nominal output level (single-ended/balanced):1V RMS / 2V RMS (max. 5V RMS / 10 V RMS)

• Output impedance:560Ω

• THD+N (20Hz—20kHz):–100dB

• Headphone output • Maximum output level into 32Ω:5Vrms

• Output impedance:560Ω:<100Ω General

• Mains voltage: 110–120V or 220–240V, 50–60Hz

• Power consumption (maximum): 50W (Thermal dissipation approx. 170 BTU/hour)

• Power consumption (idle, typical): 40W (Thermal dissipation approx. 170 BTU/hour)

• Power consumption (standby): ​
