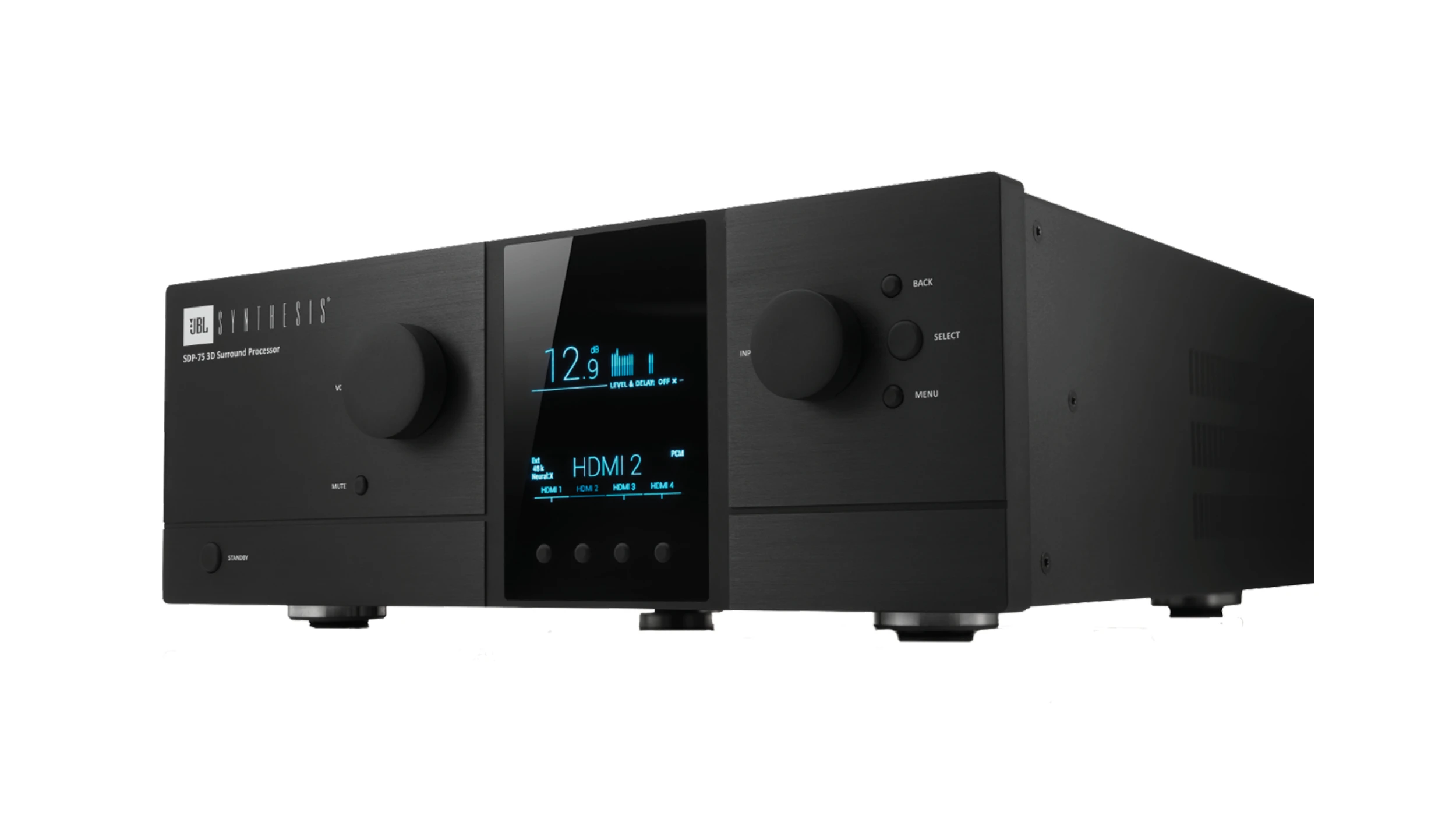

16 Channel Digital Audio Processor

Universal Spatial-Accurate 3D Audio playback

118 Digital and Analog Inputs and 80 audio Outputs

 8x HDMI Input, 2x HDMI Outputs

User-friendly, self-explanatory user interface

Built-in WiFi &UPnP/DLNA Compliant Digital Media Renderer

Wide choice of Remote Options. IN 25 SOURCE PREAMP

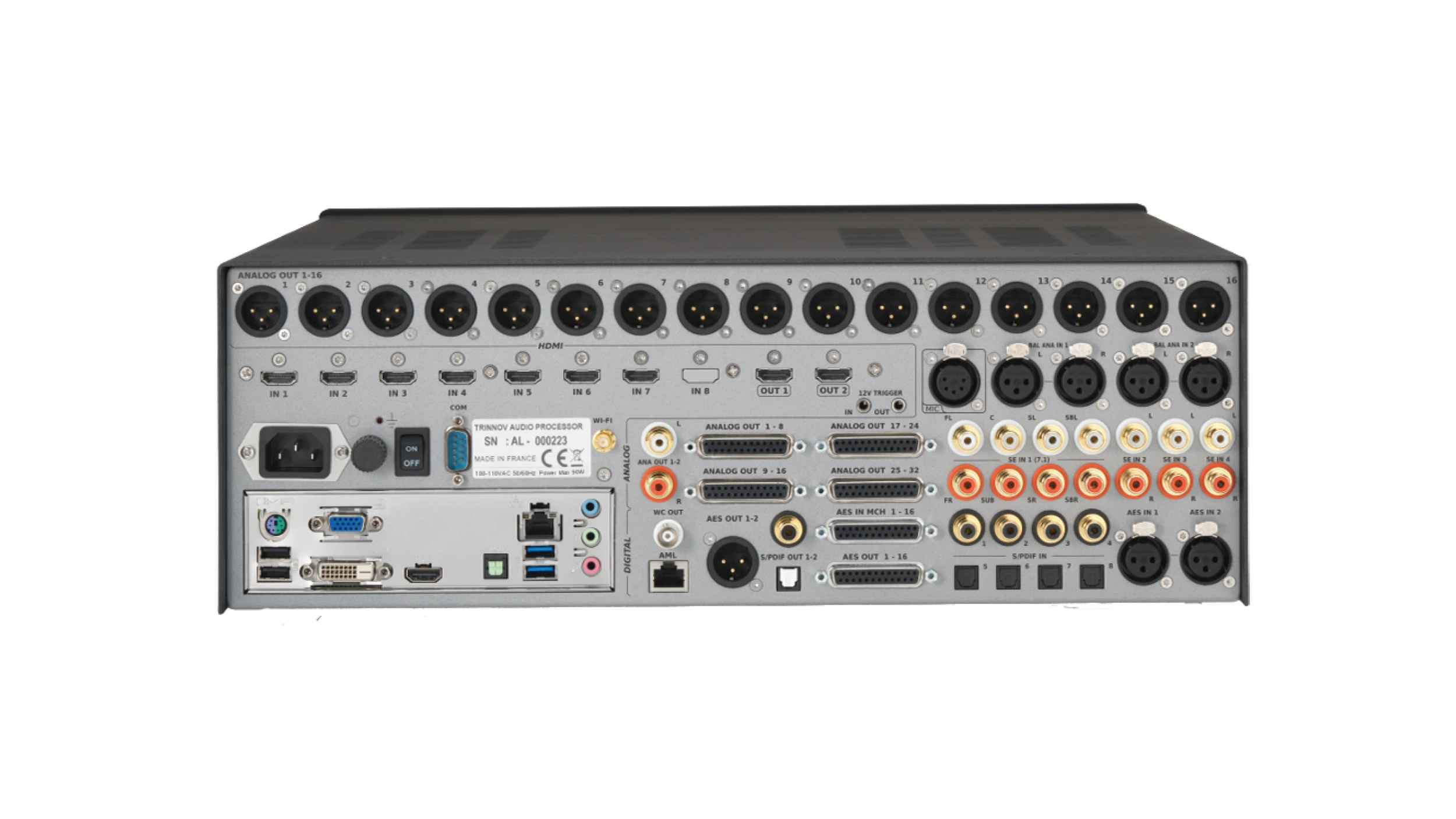

 • 7 x HDMI Inputs (4 programmed for HDMI 2.0, 3 Programmed for HDMI 1.4 compatibility)

• 3x RCA stereo

• 1x 16 AES channels on DB25

• 2x XLR stereo

• 4x S/PDIF coaxial on RCA

• 1x RCA 7.1

• 4x S/PDIF optical on TosLink

• 1x 3D Microphone Input

• 2x AES/EBU on XLR OUT UP TO 32 SIMULTANEOUS OUTPUTS

• 2x HDMI outputs

• 32x Balanced on 4x DB25

• 16x AES channels on DB25

• 16x Balanced on 16x XLR

• 1x AES/EBU on XLR

• 1x RCA stereo

• 1x S/PDIF coaxial + 1x S/PDIF optical • 1 AML extension link

• Dimensions (H x W x D): 6.1” x 16.9” x 15.9” (155mm x 430mm x 405mm)

• Weight: 30.8 lb (14.5kg)
