Product Description

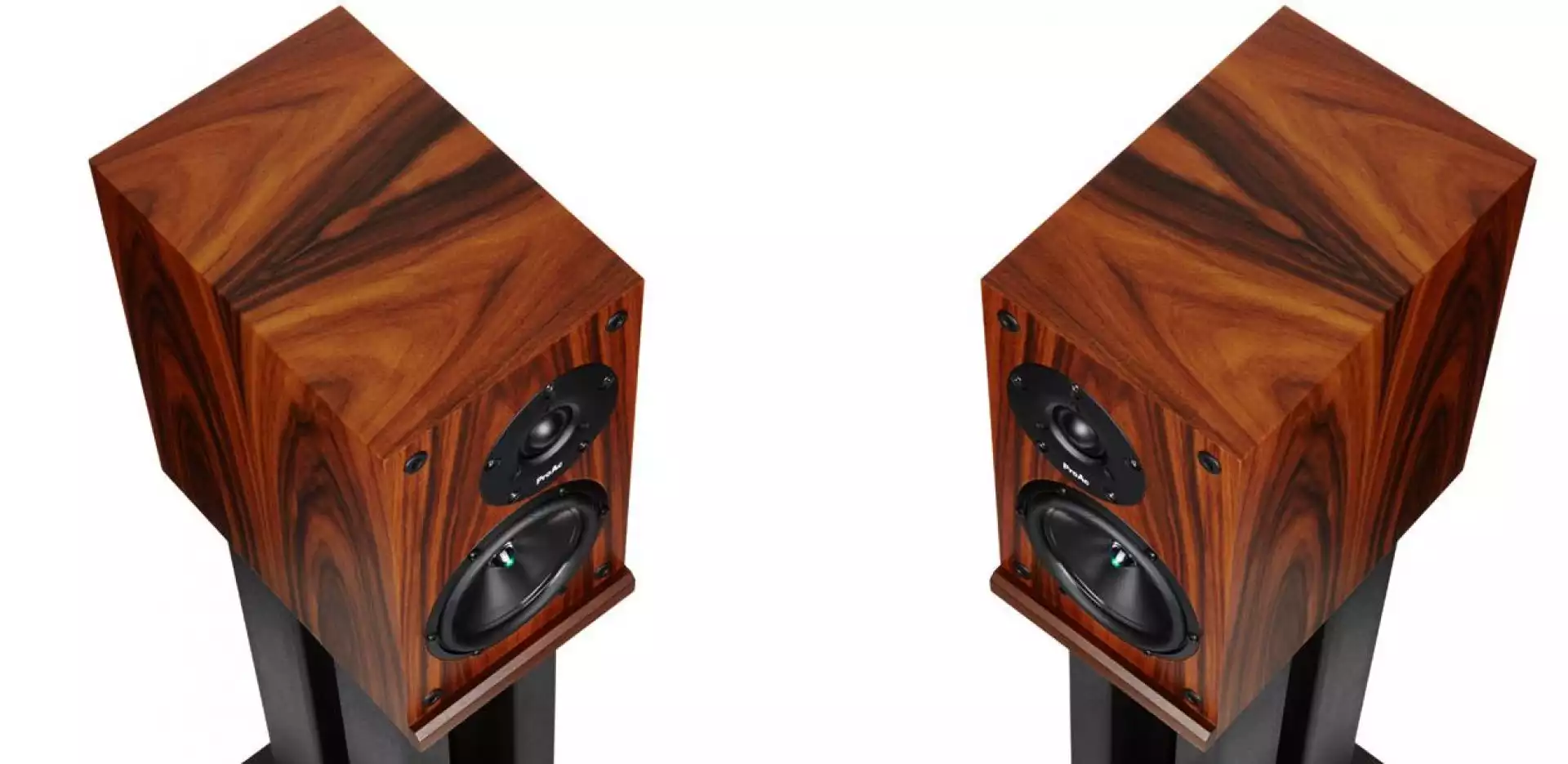

With the new Response DB1, ProAc has set out to produce a small speaker with a quality of sound normally associated with larger speakers, particularly in the bass response

A Smaller Build
Although this type of speaker can be accurate and sound better in some areas than some larger loudspeakers, the Achilles’ heel of a small loudspeaker is its bass extension and the size of the sound stage. A big loudspeaker can produce low octaves and exhibit a large sound stage, ideal for large orchestral works and high-level rock however they can dominate the room visually.

Resonance Control
The DB1 cabinet is slightly larger than the previous D1 model, and is made from different thicknesses of high-density MDF and utilises bituminous damping panels to control cabinet resonances. A newly designed long throw bass driver with raised spider and linear motor system has been incorporated in a rear ported cabinet. The mid/bass driver cone is manufactured from carbon mixed pulp that is then elastic coated and fitted with our ProAc acrylic pole damping phase plug.

Superb Performance
The new high-quality crossover has been designed to produce a flatter response at high sound levels and the tweeter is a ProAc 1” silk dome similar to that used in the highly successful ProAc Response D2. The result is superb midrange and high-frequency reproduction and in the classic ProAc tradition, low colouration and impressive detail. The new driver produces a wonderful bass quality that is both punchy, extended and in some ways, reminiscent of a larger loudspeaker.

Choice of Finish
The DB1 also has the type of larger sound stage normally associated with bigger cabinets. The ProAc Response DB1 comes in the real wood veneer standard finishes of cherry, mahogany, black ash & maple together with silk white and the premium veneer finishes of rosewood & ebony.

Tech Specs
Nominal Impedance: 8 ohms
Recommended Amps: 20 -100W
Freq Resp: 35Hz-30KHz (+/-3dB) 50Hz-20KHz
Sensitivity: 87.5 dB linear for 1w @1m
Bass Diver: ProAc 5” long throw unit
Uses: special cone and acrylic phase plug
Tweeter: 1” silk dome with special coolant
Crossover: Finest components on circuit board
Cable: Multistrand oxygen free copper

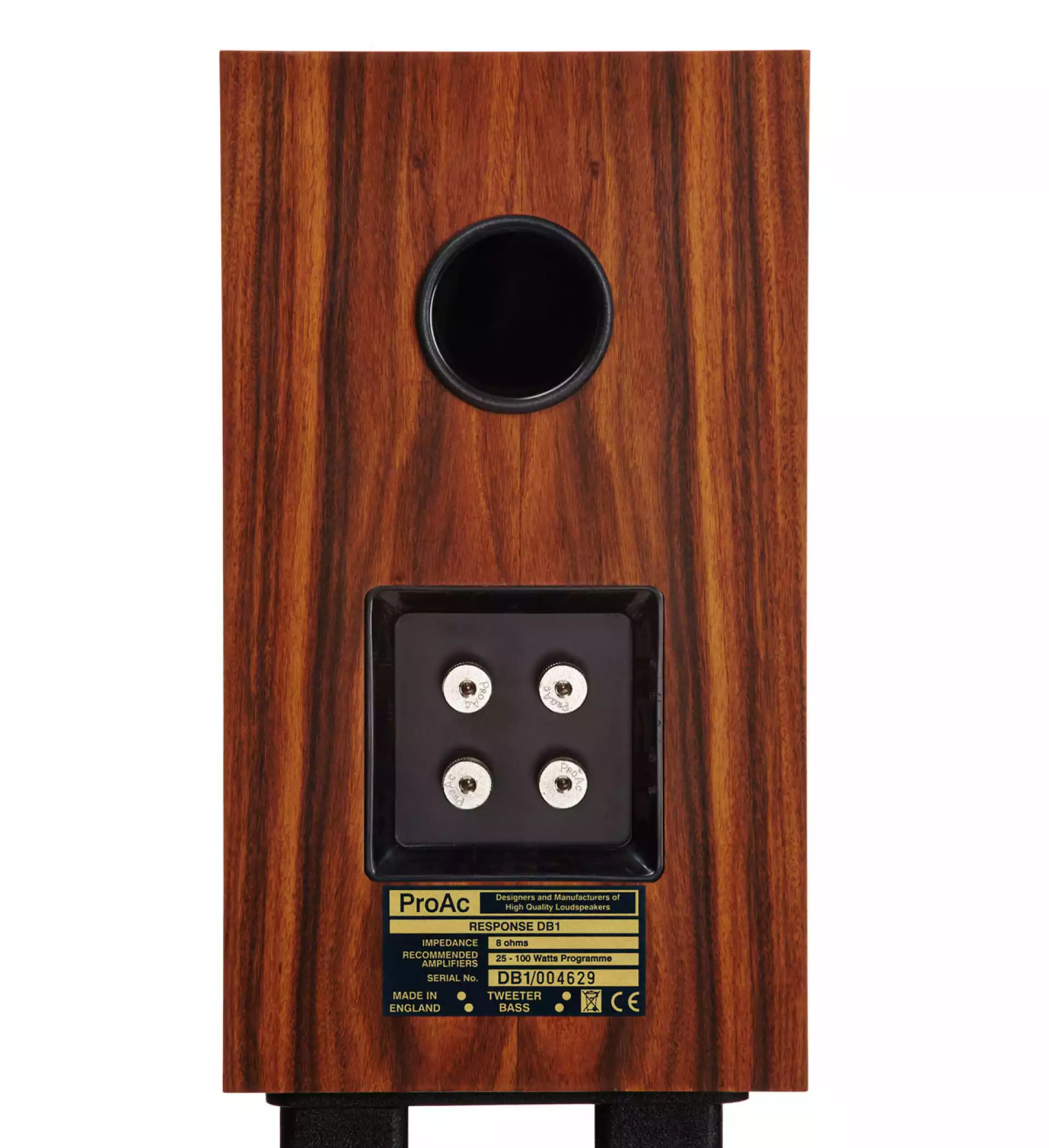

Biwiring: Split for optional Bi-wiring/Bi-amp
Crossover Frequncy: 2.9KHz

Mode: Stand Mounted
Grille: Acoustically transparent crimplene
Dimensions (HDW): 320 X 280 X 182mm
Weight: 8.8Kg (19.6lbs)
