ALL NEW 90° X 90° TRACTRIX HORN Our exclusive Tractrix® horn technology delivers the power, detail and emotion of the live music experience with the cleanest, most natural sound possible. The increased outer horn dimensions allow for directivity control over a larger bandwidth of frequencies, resulting in improved high frequency directivity and a more accurate sound stage.
LINEAR TRAVEL SUSPENSION (LTS) ALUMINUM TWEETER WITH KAPTON SUSPENSION The exclusive Linear Travel Suspension (LTS) minimizes distortion for enhanced, detailed performances. Aluminum is an extremely light and rigid material used in the tweeter assembly to provide high efficiency and improve resolution and detail. LTS tweeters are a hallmark of Klipsch speakers, making it a core component of some of the best speakers in the world.
SPUN-COPPER THERMOFORMED CRYSTALLINE POLYMER (TCP) WOOFERS Utilizing trickle-down technology from Klipsch’s highly acclaimed Reference Premiere series, the TCP woofers have steeper angling of the cones for a smoother response and improved accuracy and transparency. The additional ribbing increases the overall rigidity for less cone breakup at higher frequencies. SLEEK, MODERN APPEARANCE Hidden fasteners, edge-to-edge horn, and low-profile magnetic grilles give the speakers a polished, modern appearance.
SLIM DESIGN Compliments todays flat panel TVs with an unobtrusive footprint.
TAPERED CROSSOVER Tapered array crossovers improve dispersion resulting in improved midrange definition - critical for dialog rich material in center channels. MDF CABINET WITH SCRATCH-RESISTANT, TEXTURED WOOD GRAIN VINYL Stylish aesthetic with absolute durability that results in a seamless integration into any décor.
HIGH QUALITY CABINET DESIGN Reinforced 3/4” MDF construction with an all-new bracing design reduces cabinet vibration for less audible coloration and improved sonic accuracy
SPECIFICATIONS
FREQUENCY RESPONSE
78Hz - 21kHz +/- 3dB
SENSITIVITY
96 dB (In-Room)
POWER HANDLING
(CONT/PEAK) 100W/400W
NOMINAL IMPEDANCE
8 ohms Compatible
CROSSOVER FREQUENCY
1,650 Hz
HIGH FREQUENCY DRIVER
1" Aluminum LTS tweeter mated to a 90 x 90 square Tractrix® Horn
LOW FREQUENCY DRIVER
Quad 3.5" spun-copper TCP woofers
ENCLOSURE MATERIAL
MDF
ENCLOSURE TYPE
Bass-Reflex via forward-firing Tractrix®ports

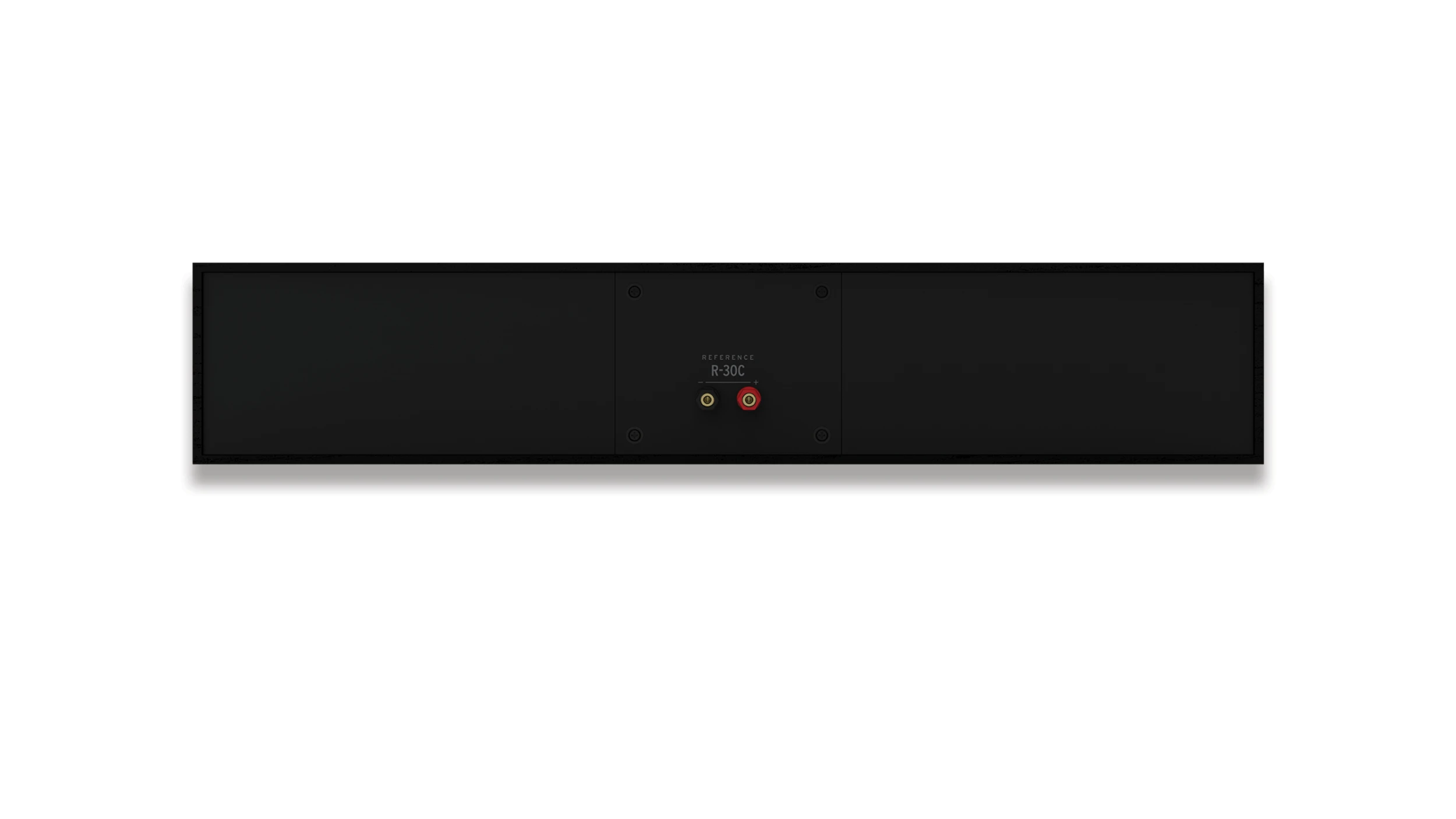

INPUTS
Single Gold Plated Binding Posts
HEIGHT INCHES (MM)
5.0" (126 mm)
WIDTH INCHES (MM)
26" (660 mm)
DEPTH INCHES (MM)
6.8" (173 mm)
PRODUCT WEIGHT LBS (KG)
13 lbs (5.9 kg)
FINISH
Black Textured Wood Grain Vinyl
