PERFORATED GRILLE

sub8 features a specially designed grille which protects the driver from impact and dust while allowing sound through with minimal diffraction.

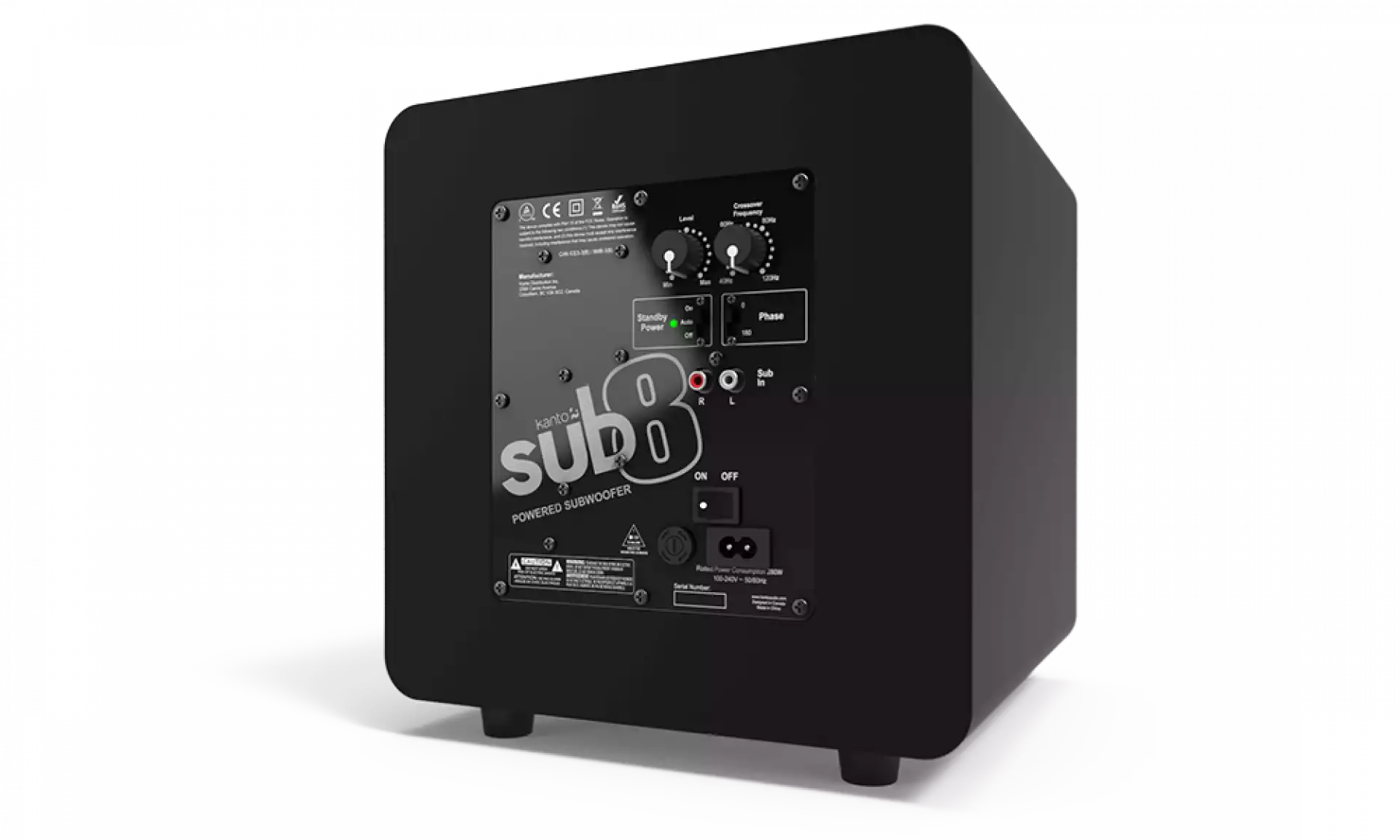

CONTROLS

Every space is different. Precise dials for volume and cut-off frequency offer exacting, responsive control that lets you shape your bass to fit the unique character of your room.

MODERN DESIGN

sub8 is available in a Gloss Black, Gloss White, Matte Black, and Matte Grey to suit your personal style.

ACOUSTIC MDF

sub8’s acoustic MDF enclosure is engineered to reduce undesired resonance and reverberation inside the box, providing clean, deep sound.

STEREO INPUTS

Although designed to be a perfect match with Kanto speakers, sub8 features stereo inputs allowing use with any source. Anything from vintage stereo receivers to high-end amplifiers with stereo sub output can be connected, so you don’t have to sacrifice quality for convenience.

FEET

Solid rubber feet keep sub8 firmly planted on any surface. De-coupling the housing from the surrounding environment allows for unmatched clarity and separation from lower-mid frequencies, and reduces vibration.

SPECIFICATIONS

GENERAL
Woofer: 8 inch Paper Cone Driver

AUDIO
Amplifier Type: Class D
Nominal Impedance: 4 Ohm
Sensitivity 1W/1m: 88 dB
Total Harmonic Distortion: < 0.3%
Low-Pass Filter: 40 Hz – 120 Hz
Phase Switch: 0° and 180°

INPUT
Input: 1 x RCA L/R Line Level
Input Sensitivity: 100 mV
Frequency Response: 35 Hz – 175 Hz
Input Voltage / Frequency: AC 100V – 240V 50/60 Hz (auto switching)

POWER
Power Output: 250W (125 Watts Total RMS)
Standby Power Consumption: < 0.5 W

WEIGHTS AND MEASUREMENTS
Dimensions: 11” W x 11” D x 11.9” H (28 x 28 x 30.3 cm)
Net Weight: 16.8 lb (7.6 kg)
Gross Weight: 20.9 lb (9.5 kg) (boxed)
Shipping box dimensions: 15.6″ x 14.4″ x 14.3″ (39.6 x 36.6 x 36.3 cm)

WHAT’S IN THE BOX?
Power cord
Manual
