Specifications:

    Height:        18.5" (46.99 cm)

    Width:        17.125" (43.5 cm)

    Depth:        18.125" (46.04 cm)

    Weight:        49.9 lbs (22.63 kg)

    Subwoofer Array Driver Enclosure Type
        Power Port Bass Vented

    Subwoofer Array Driver Complement
        (1)  12" (30.48 cm) d (Round) Polypropylene Dynamic Balance and Klippel optimised driver - Subwoofer

    Peak Power:        400 Watts

    Continuous Power:        200 Watts

Internal Amplifier

    Amplifier Class:        Class D

Audio Quality

    Total Frequency Response:        22 Hz → .180 Hz

    Nominal Impedance:        8 ohms

    Lower and Upper -3dB Limits:        28 Hz → .120 Hz

Controls

    IO Button Location:        Back Panel

    Adjusts
        "Volume +/-
        Low Pass Filter (40Hz-160Hz)
        Phase (0/180°)
        Power: Auto on/off
        Power: DC control (12V trigger)"

Inputs

    Audio Inputs
        LFE (Unfiltered)
        Stereo Line Level - (2) RCA

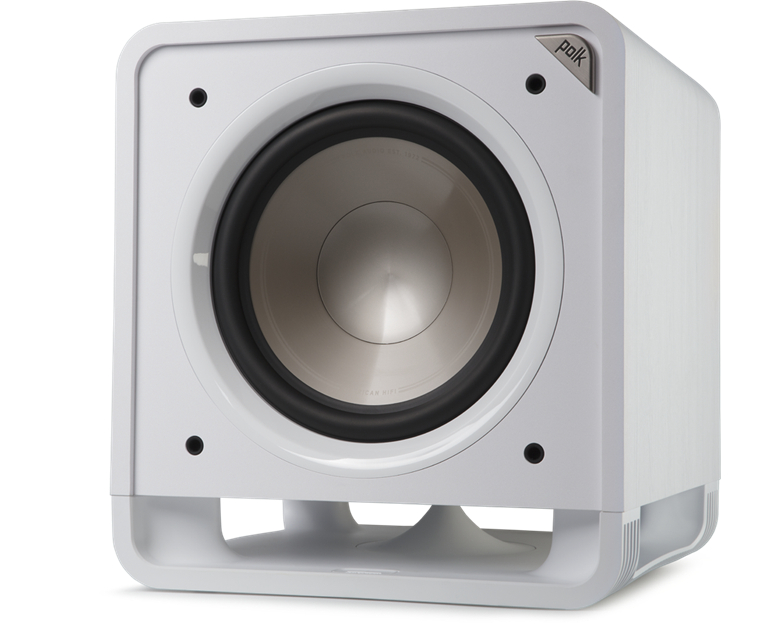

Deep Bass for Home Theatre and Music
Whether you're installing a new set of surround or ATMOS speakers, adding a second subwoofer for the ultimate home theatre experience, or just need more core-pounding impact from your favourite music, the HTS 12 delivers the powerful bass you crave with its long-throw 12" driver, patented Power Port® technology and 400W Class D amplifier.

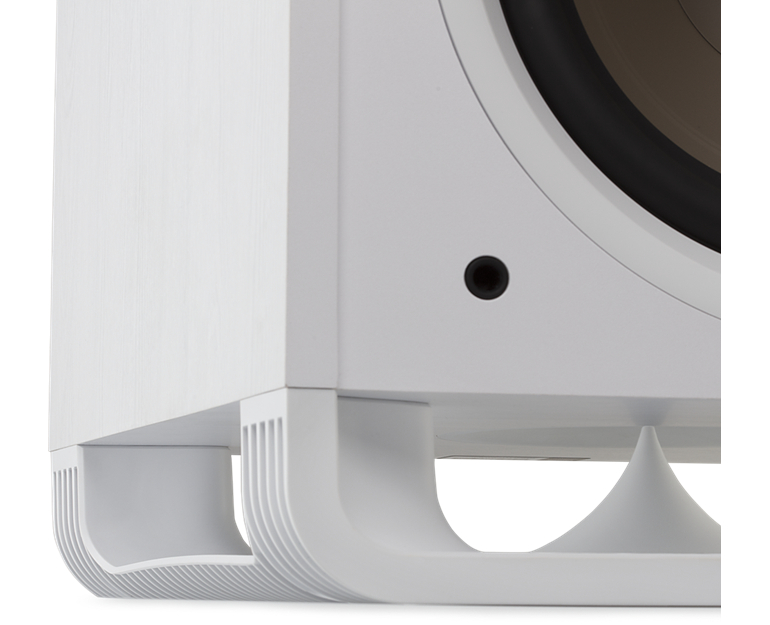

Patented Power Port® Technology
The Power Port® floor-firing design smoothly transitions air flow from the speaker into your listening area for deep, extended bass impact whilst minimizing turbulence, distortion, and port noise. At the port tuning frequency, Power Port® equipped subwoofers have 3dB less port noise than similarly configured subwoofers without Power Port®.

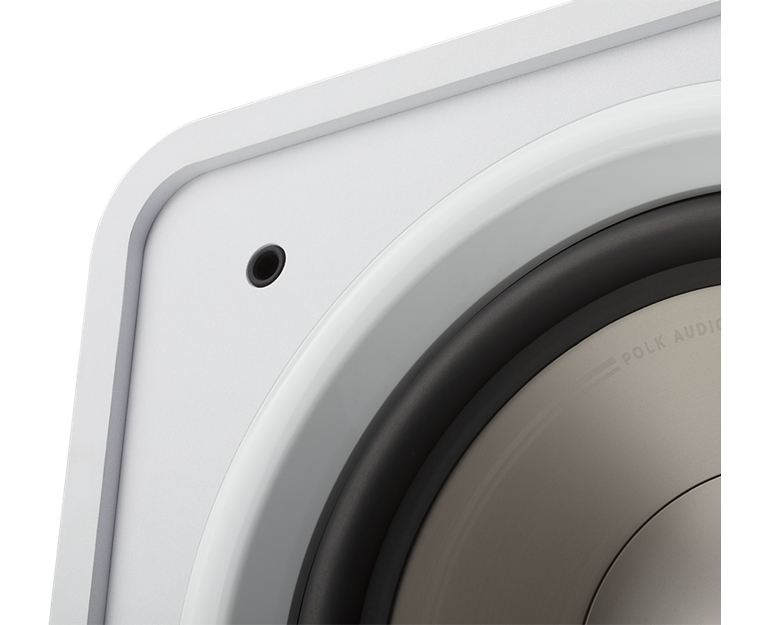

Dynamic Balance Driver
Front-firing 12" driver with our patented Dynamic Balance technology is Klippel optimised to provide clean, clear bass, better linearity, lower distortion and greater durability.

American Modern Styling
Curved edges offer a sensual yet powerful look that fits with any home decor—available in a stunning black washed walnut or classic brown walnut finish.

Complete Control
Built-in controls for variable volume, low pass filter and phase (0/180°) for optimum bass levels. Set power toggle to Auto on/off or DC control (12V trigger) for fast and easy on/off power switching in the sub and other home theatre equipment-all easily accessible on the back panel.
Universal Compatibility

Connect via LFE (unfiltered / low pass disabled) or stereo line level RCA inputs-complements any home theatre system (cables not included).
Quality Crafted Cabinet Design

Strong, rigid and acoustically inert enclosure reduces unwanted internal standing waves for less audible colouration. And non-resonant Meddite MDF construction, with extra bracing and minimum thick baffles, ensures a more lifelike sound.
